Ford cMax Hybrid Battery Modules
Ford cMax Hybrid Battery Modules
Regular price
$149.00 USD
Regular price
$399.00 USD
Sale price
$149.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping to Lower 48 USA states only via Ground Shipping. No shipping to PO Boxes. No international shipping including Hawaii, Guam, Puerto Rico. We are receiving a high volume of Fraud orders on these. Do not use a Web Proxy, do not use a freight forwarder service unless you can verify you live outside the usa, Only use mailing address associated with credit card, We will not ship your order if it doesnt meet our requirements.

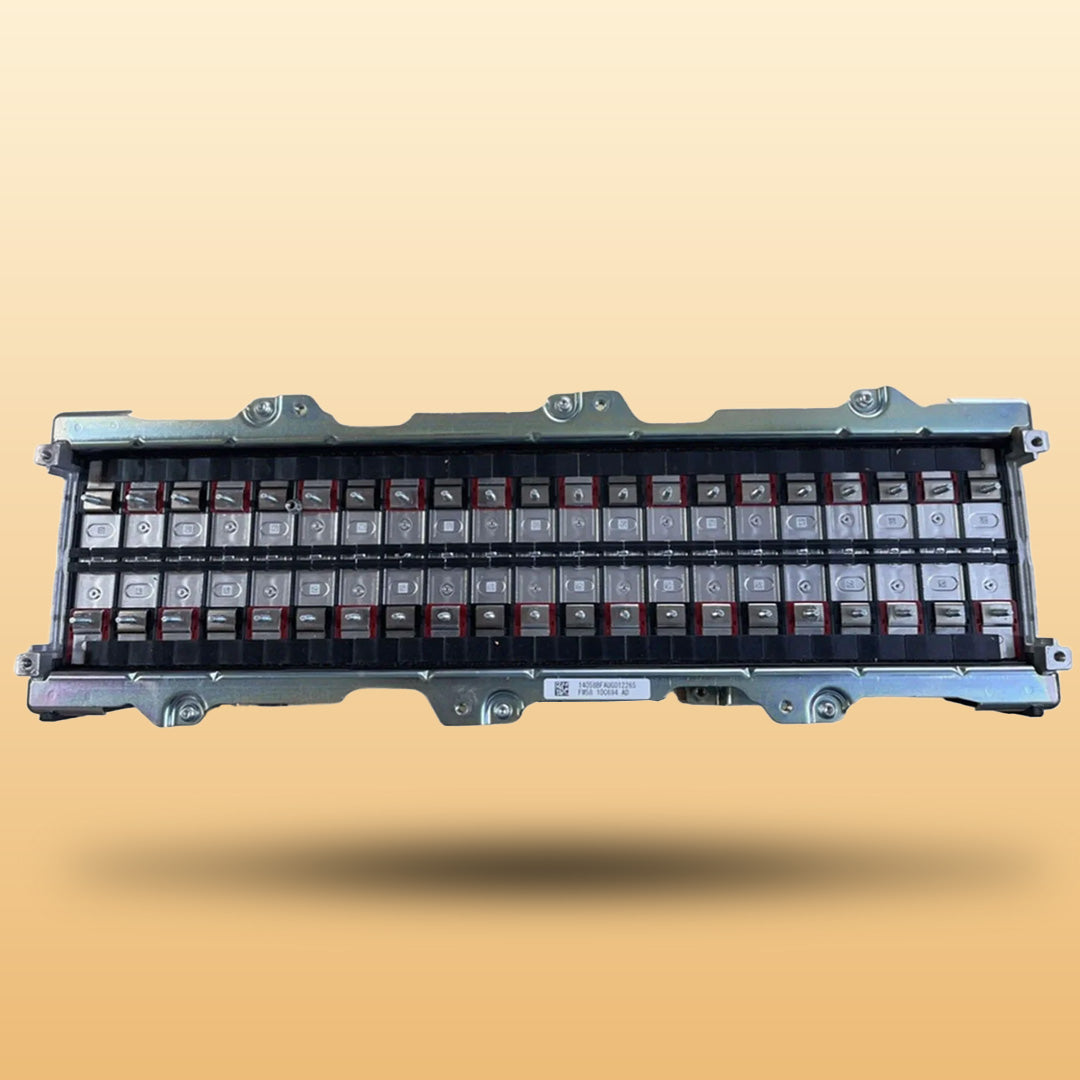

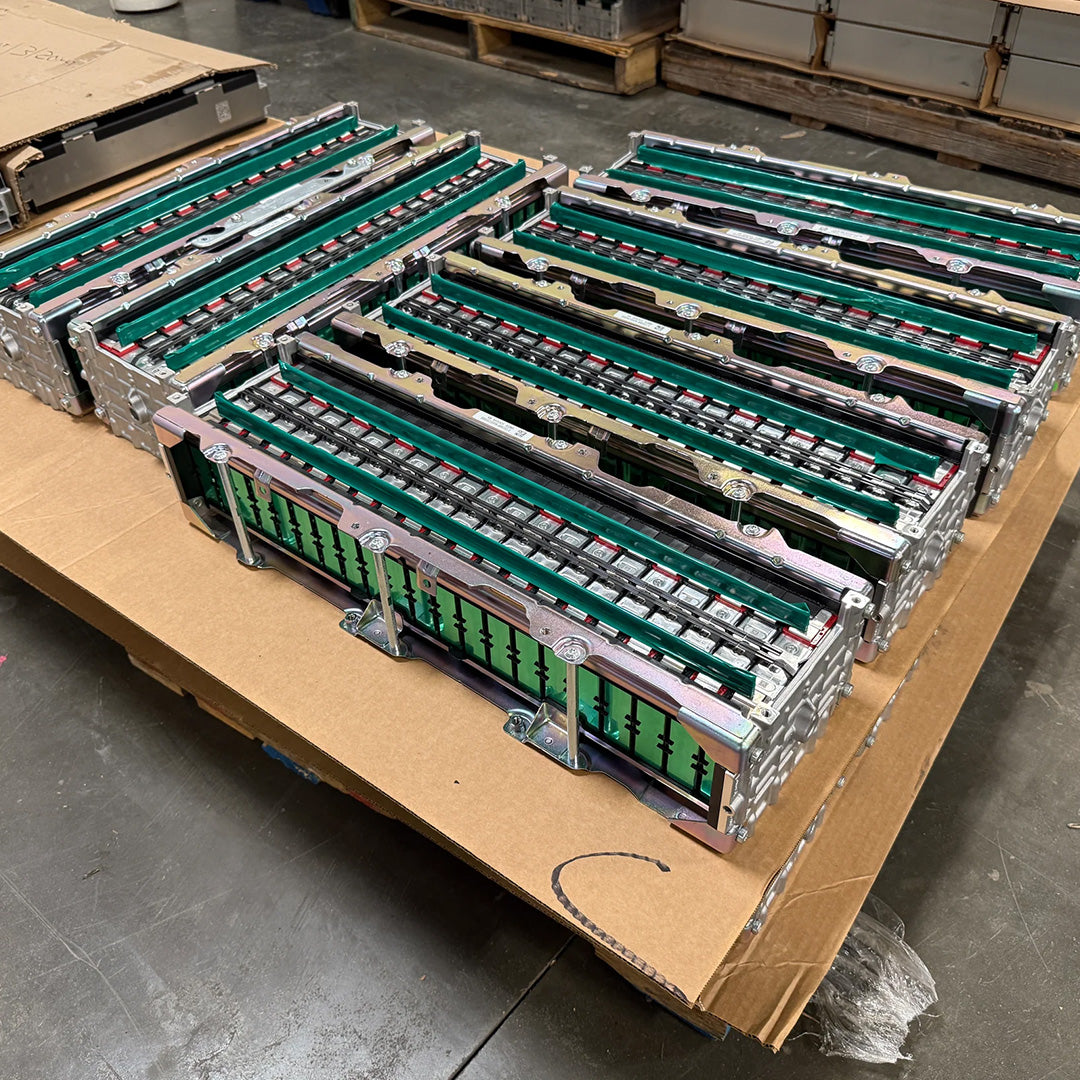

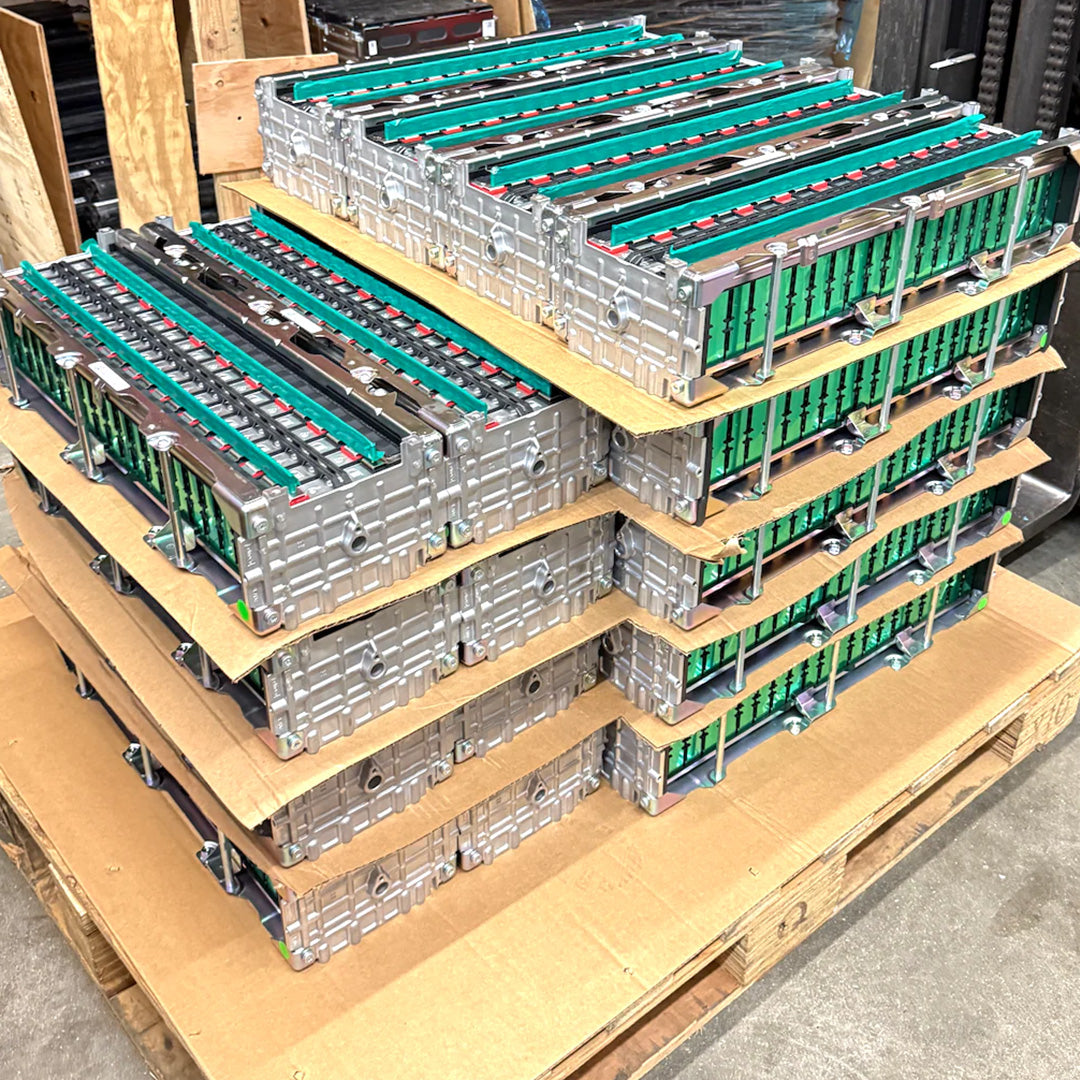

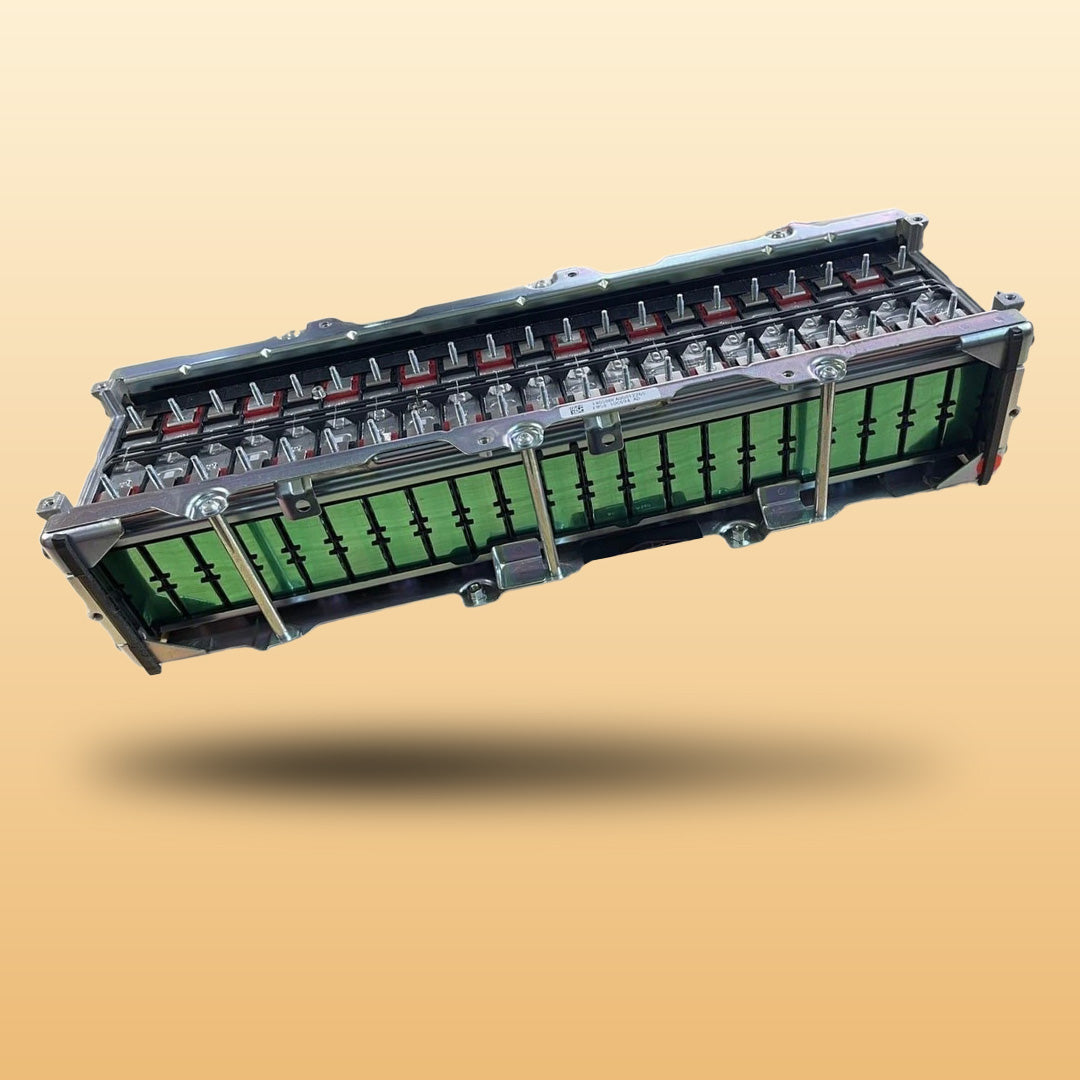

Ford Fusion/Cmax Lithium Battery modules from Hybrid car.

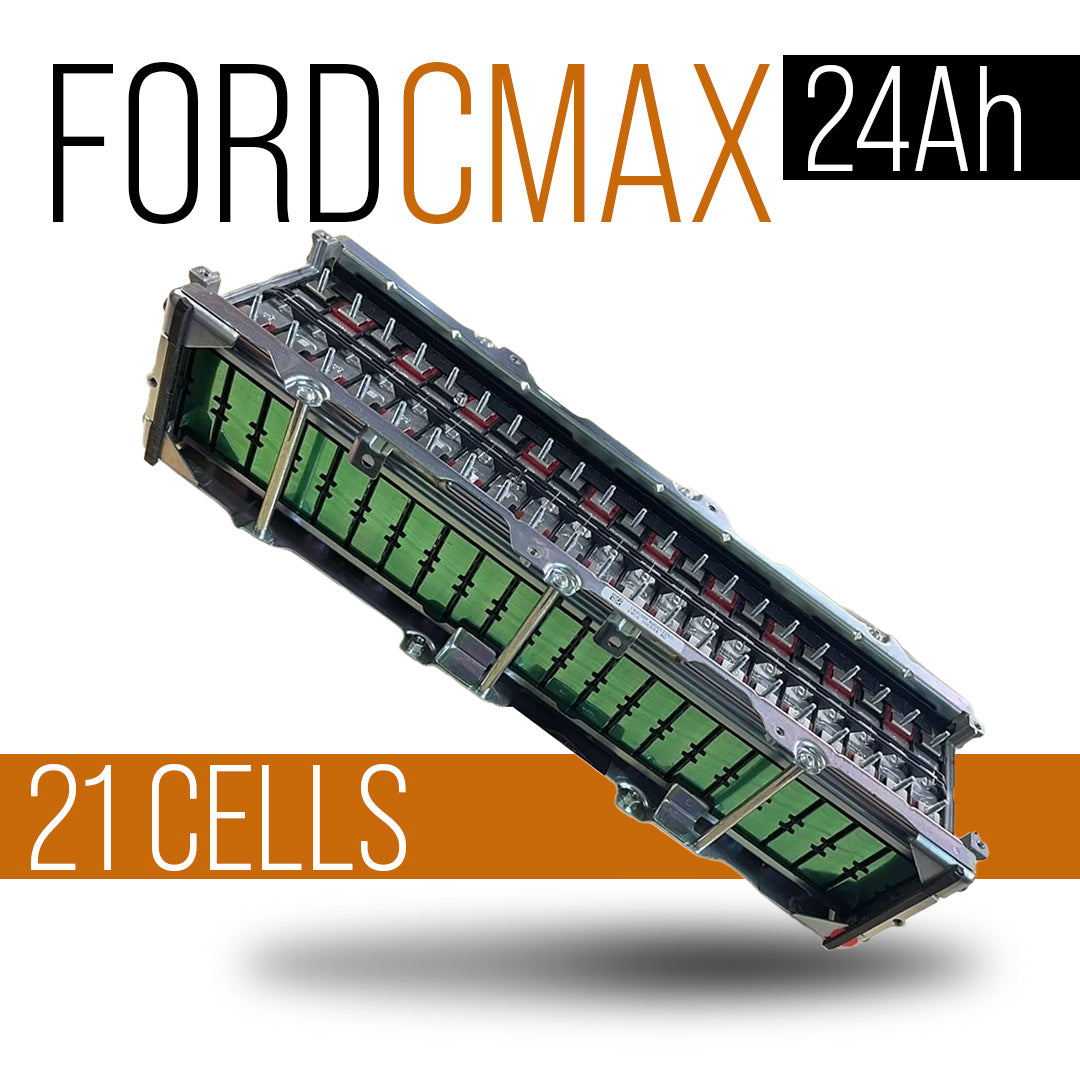

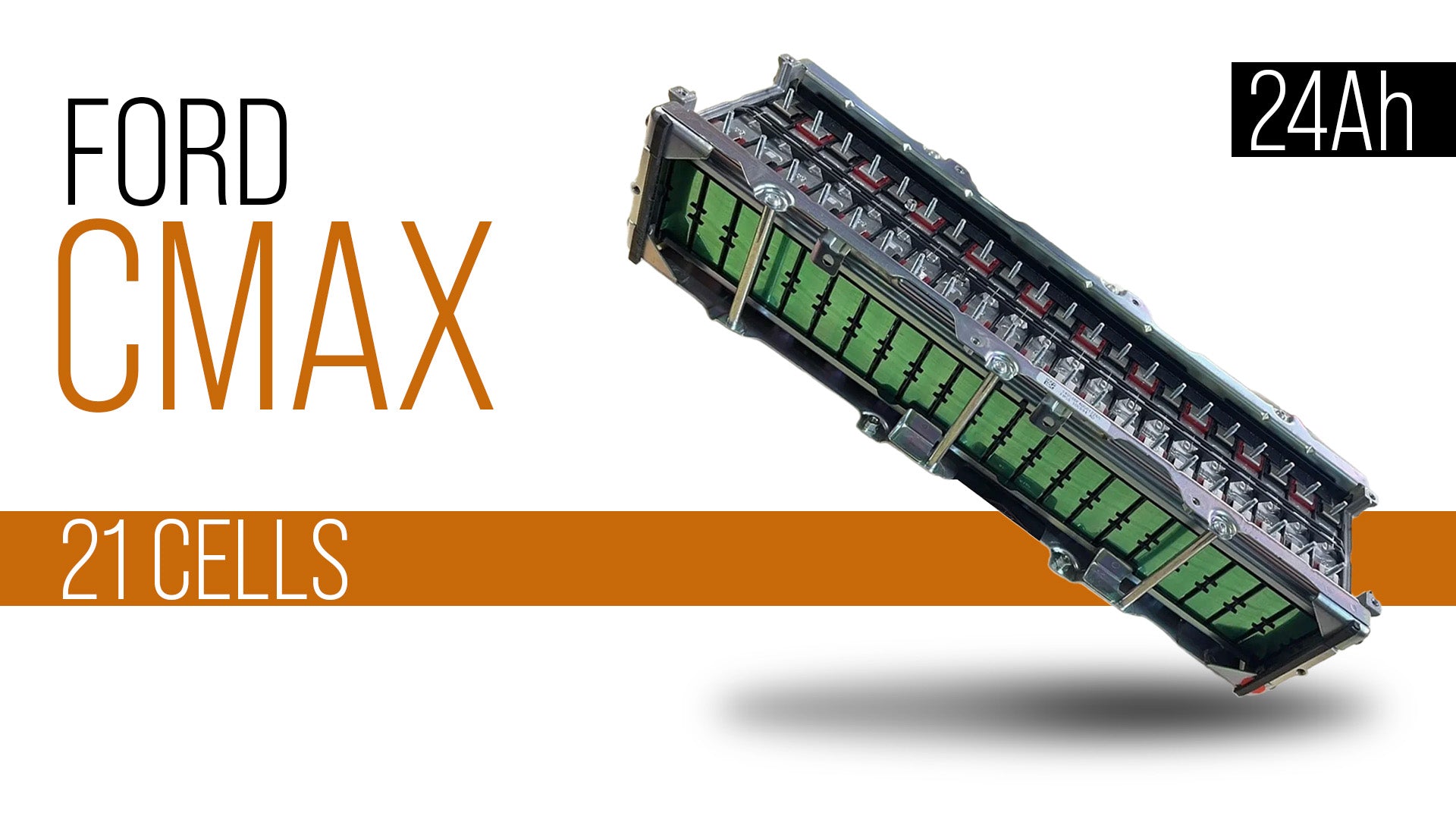

21 cells 25Ah cells.
Cell Voltage range
Power: 15c
Max: 4.2V
Nominal: 3.7V
Min: 3V
Cell Size
Length: 5 7/8"
Width:1 1/16"
Height: 3 3/8"
Height with Terminals: 4 7/16"
Weight: 1.6 lb
Module dimensions of approximately
25" (length) x 7 3/4" (width) x 5 3/8" (height) and weighs around 42 lbs.
Custom Aluminum Busbars sold here : https://jag35.com/products/busbar-kit-for-cmax-21cell-module-4s5p
you will need this 5pin connector to use the recommended Balancer.
