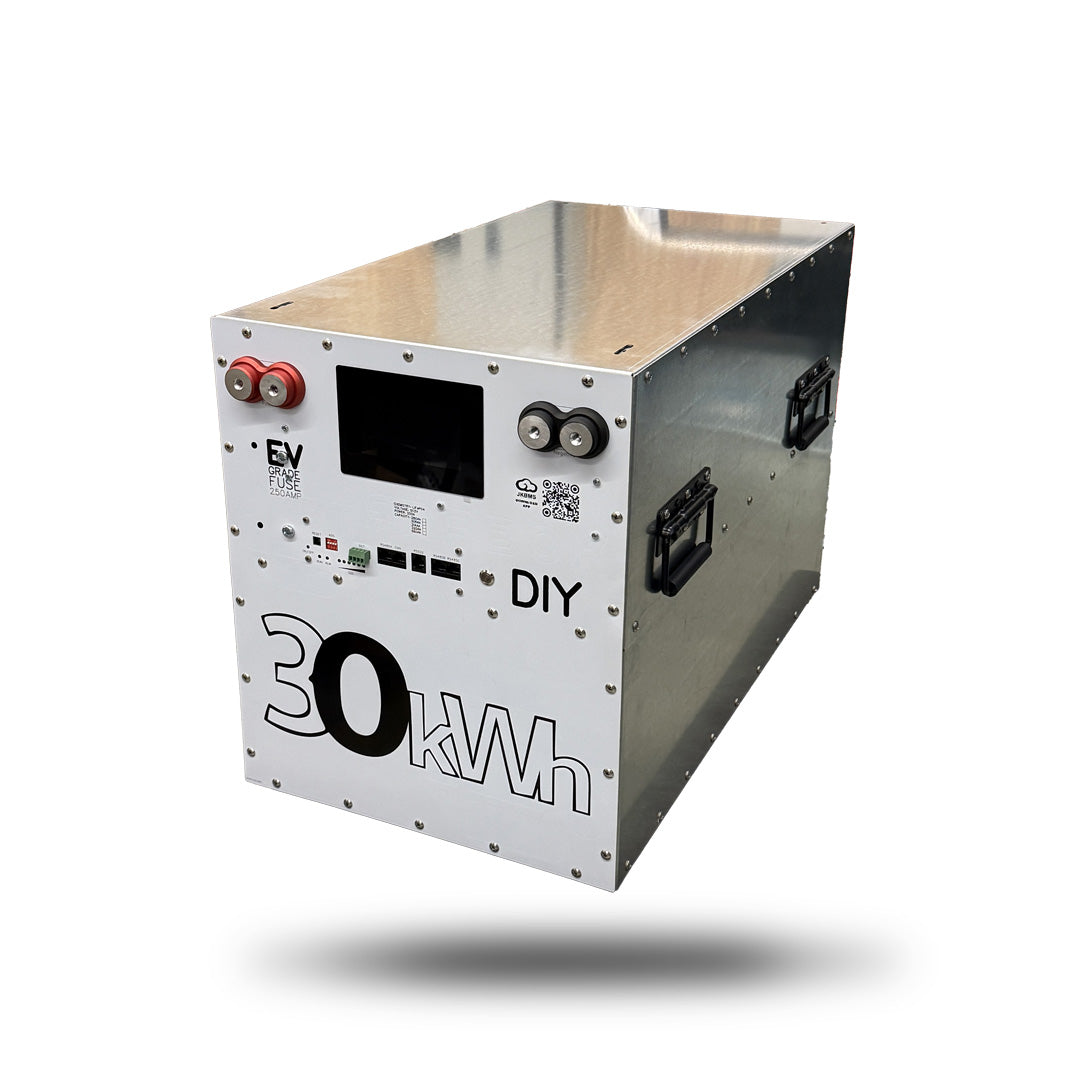

48v 30kWh AmpBox DIY Lifepo4 Battery BOX With JK 200A BMS with LCD Screen
48v 30kWh AmpBox DIY Lifepo4 Battery BOX With JK 200A BMS with LCD Screen
Regular price
$2,499.00 USD
Regular price
$5,200.00 USD
Sale price
$2,499.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
28.6 kWh – Rugged, reliable, and budget-wise
Built with 280Ah cells, this configuration delivers dependable power in a cost-conscious package. Ideal for off-grid setups, mobile energy systems, or backup power where simplicity and durability matter most.
What’s Included
- 📦 AmpBox Steel Enclosure (all hardware)

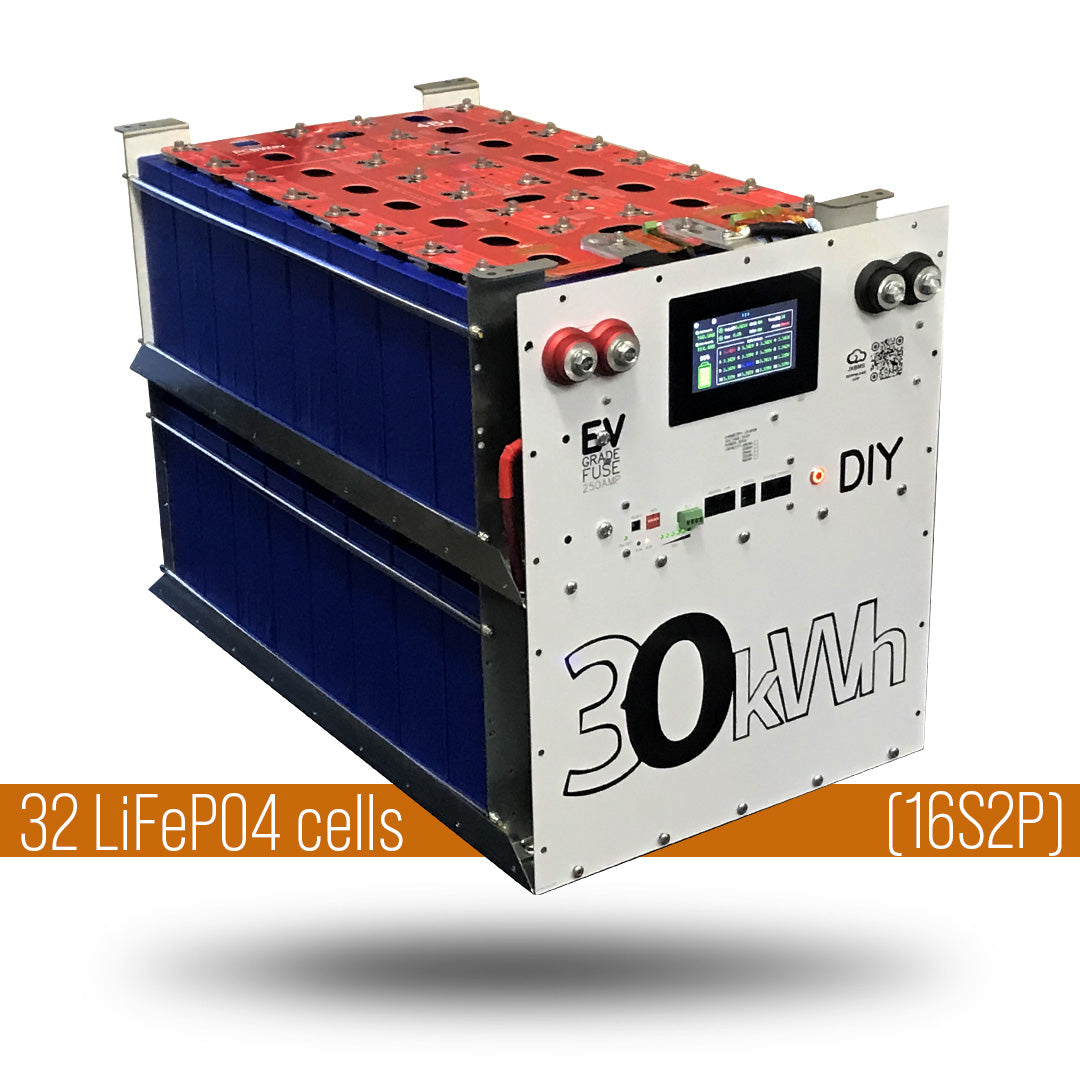

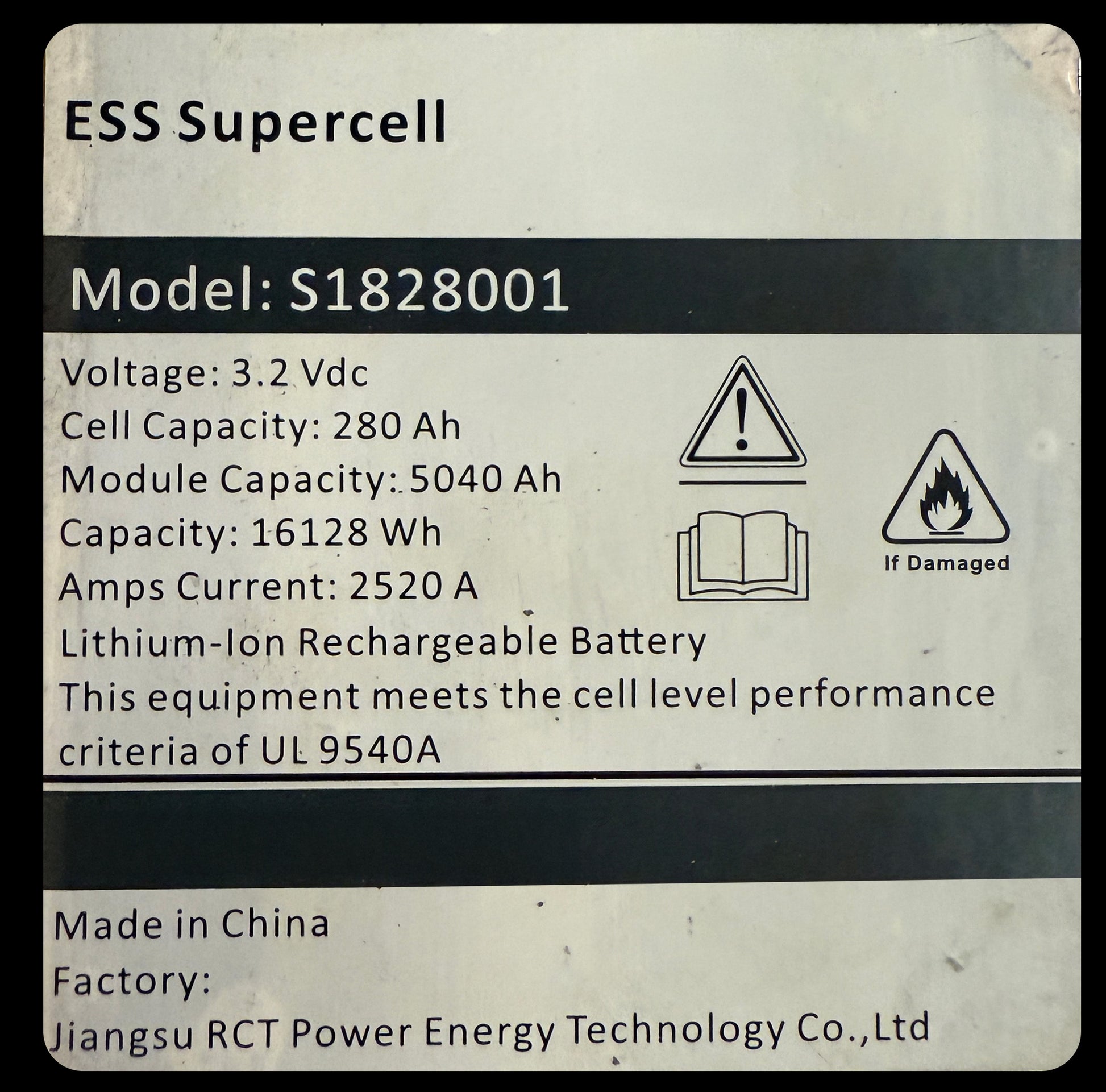

- 🔋 Battery Cells 32 RTC LiFePO4 (16S2P)

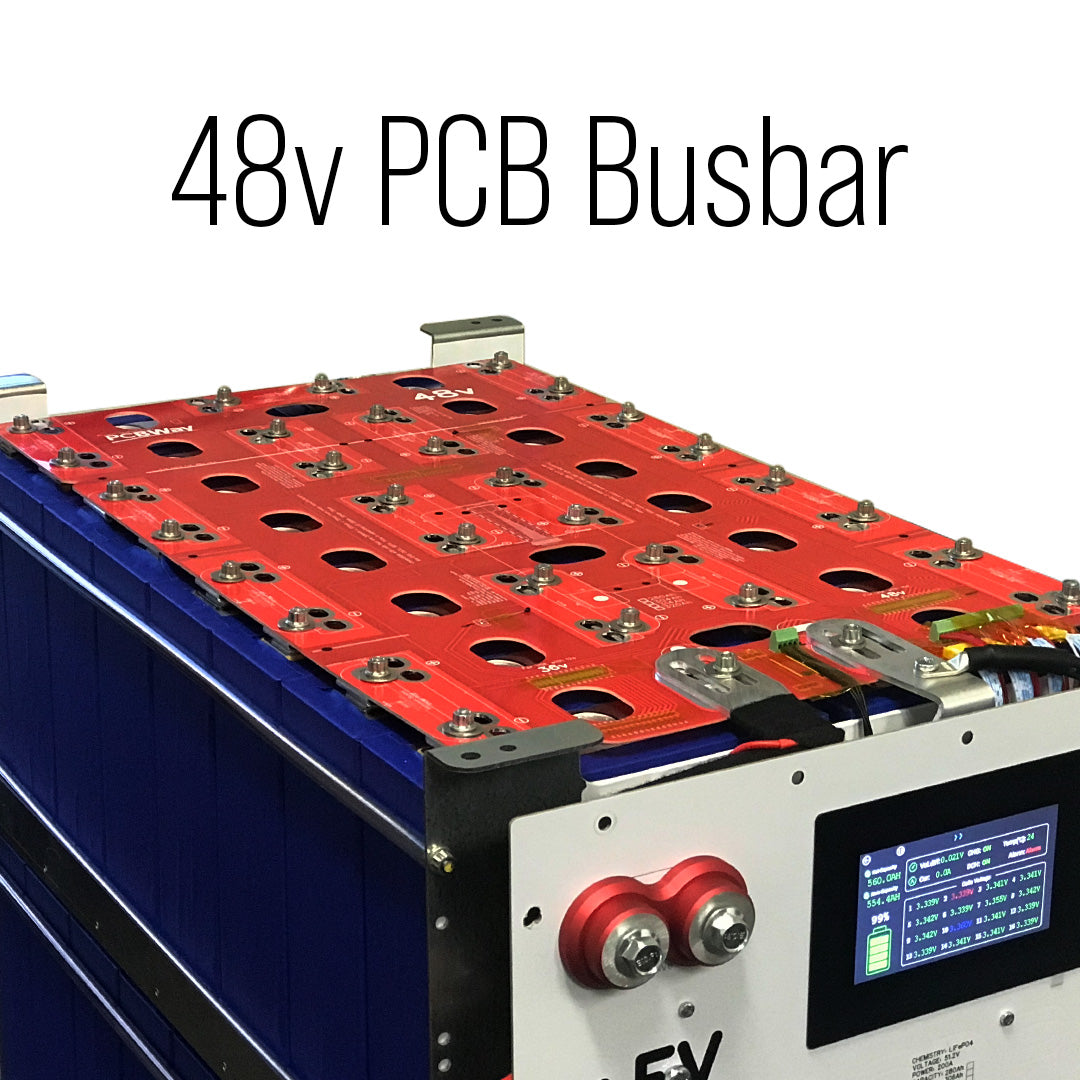

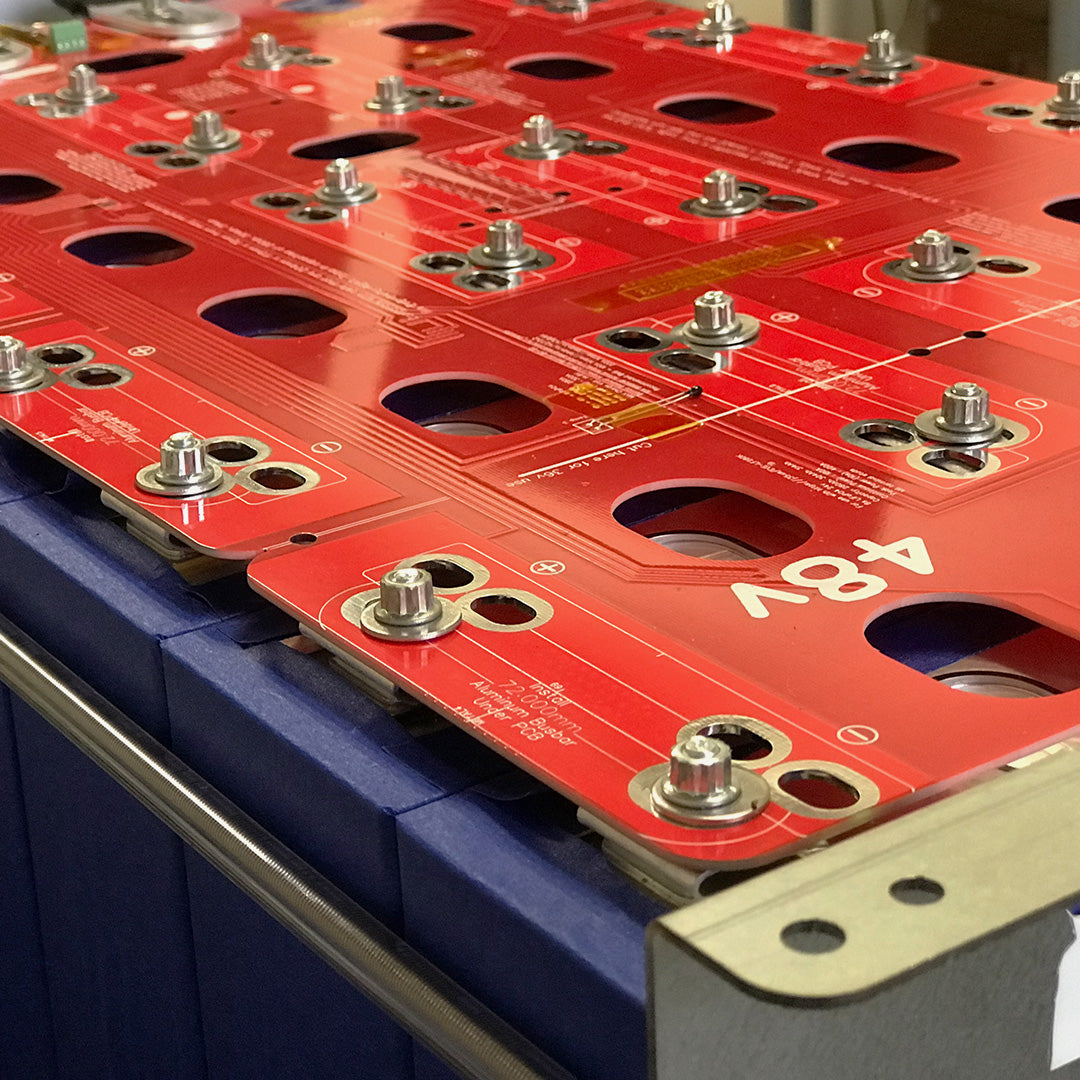

- 🟥 48v PCB Busbar

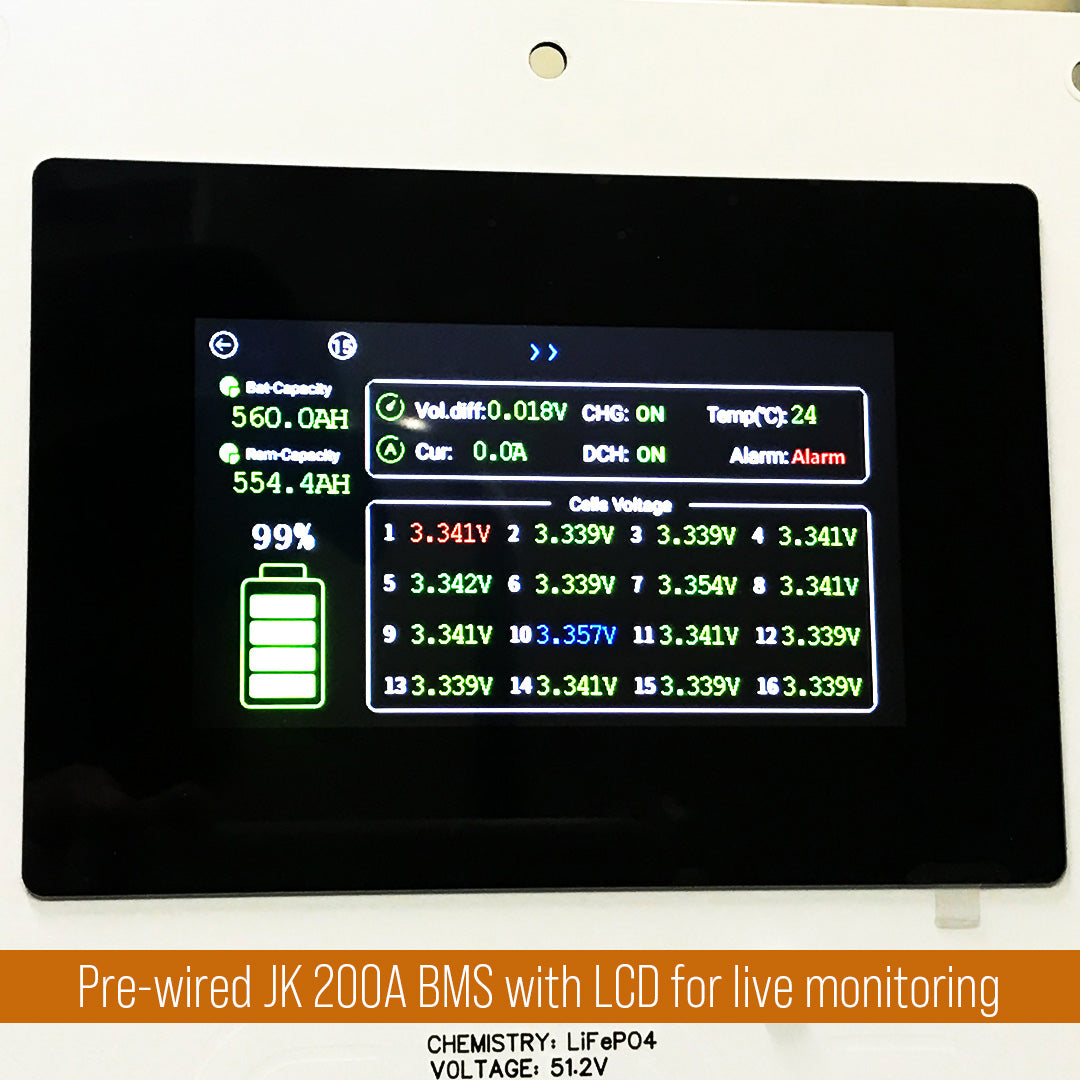

- ⚡ JK 200A BMS (pre-wired, LCD screen)

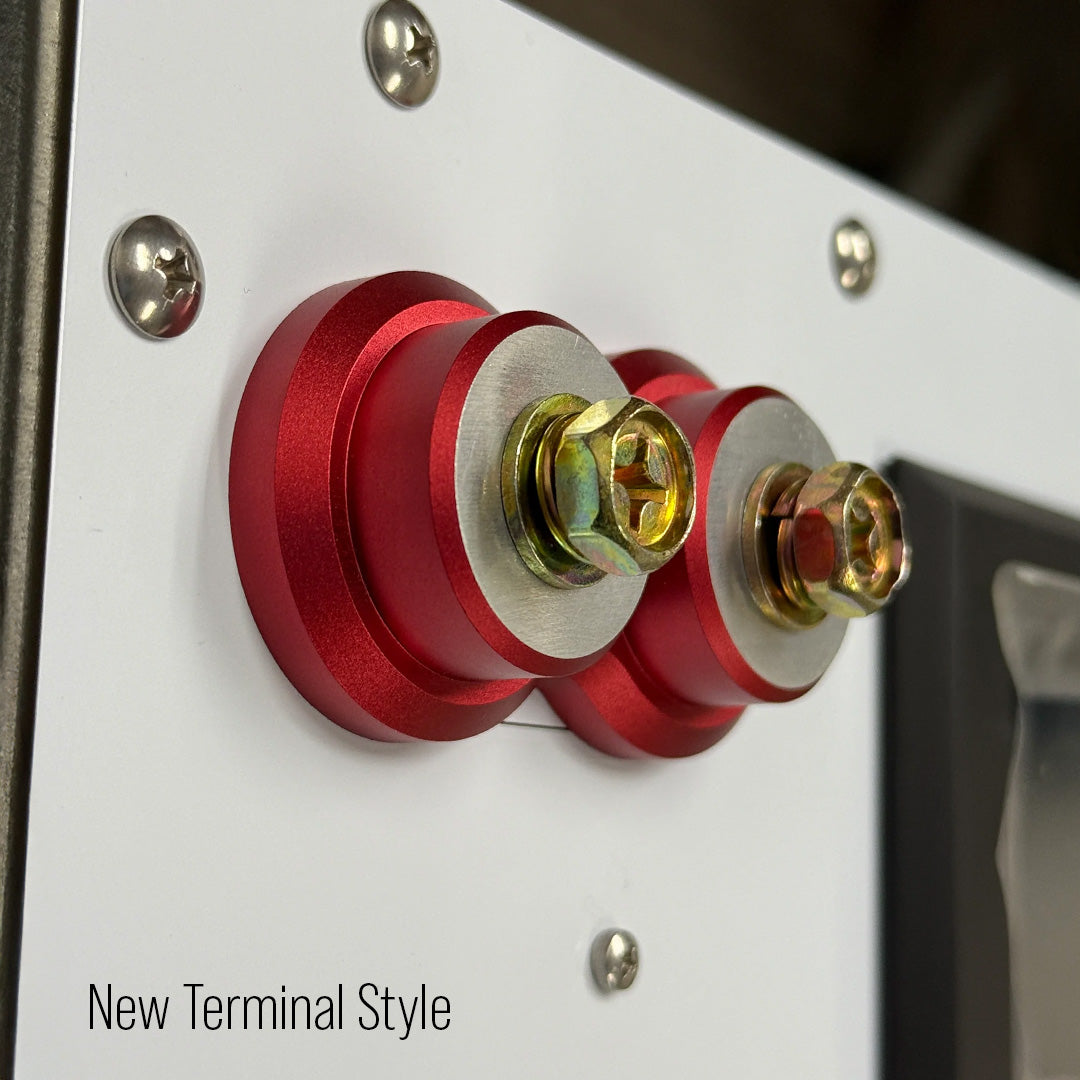

- 🔒 Protective terminal covers
- 🛠 Fully assembled and ready to use
You’ll Also Need
- 🔌 Inverter compatible with 48V systems
- 🔗 Proper DC cabling and fusing
- 🚚 Forklift or dock equipment for LTL freight (500 Lbs.)
Key Features
- ✔ 28.6 kWh Nominal (16S2P LiFePO4)
- ✔ JK 200A BMS with LCD display
- ✔ Stackable design for easy expansion
- ✔ Certified: CE, RoHS, UN38.3, MSDS, ISO
- ✔ Ships to Lower 48 (instant LTL freight Quote in Cart)
🔌 Is AmpBox compatible with your inverter?
Start typing your inverter name to check compatibility with JK‑BMS and AmpBox.
Real-World Runtime Examples
Here’s how long a 28.6 kWh AmpBox can power typical household or commercial loads (based on ~26.94 kWh usable energy):
-
🏠 Central Air Conditioner (3,500 W):
≈ 7.7 hours of continuous cooling -
🚗 Level 1 EV Charging (1,400 W):
≈ 19.2 hours — ~91 miles of driving range -
💡 Lights & Electronics (400 W load):
≈ 67.4 hours of backup power -
🧊 Refrigerator (150 W):
≈ 179.6 hours (~7.5 days) -
🔧 Power Tools (2,000 W load):
≈ 13.5 hours of work time
Runtime Calculator
Estimate how long this battery can power your load:
Based on 28.6 kWh nominal, 97% DoD, 97% inverter efficiency (~26.94 kWh usable).
AmpBox Specifications
- Nominal Capacity: 28.6 kWh

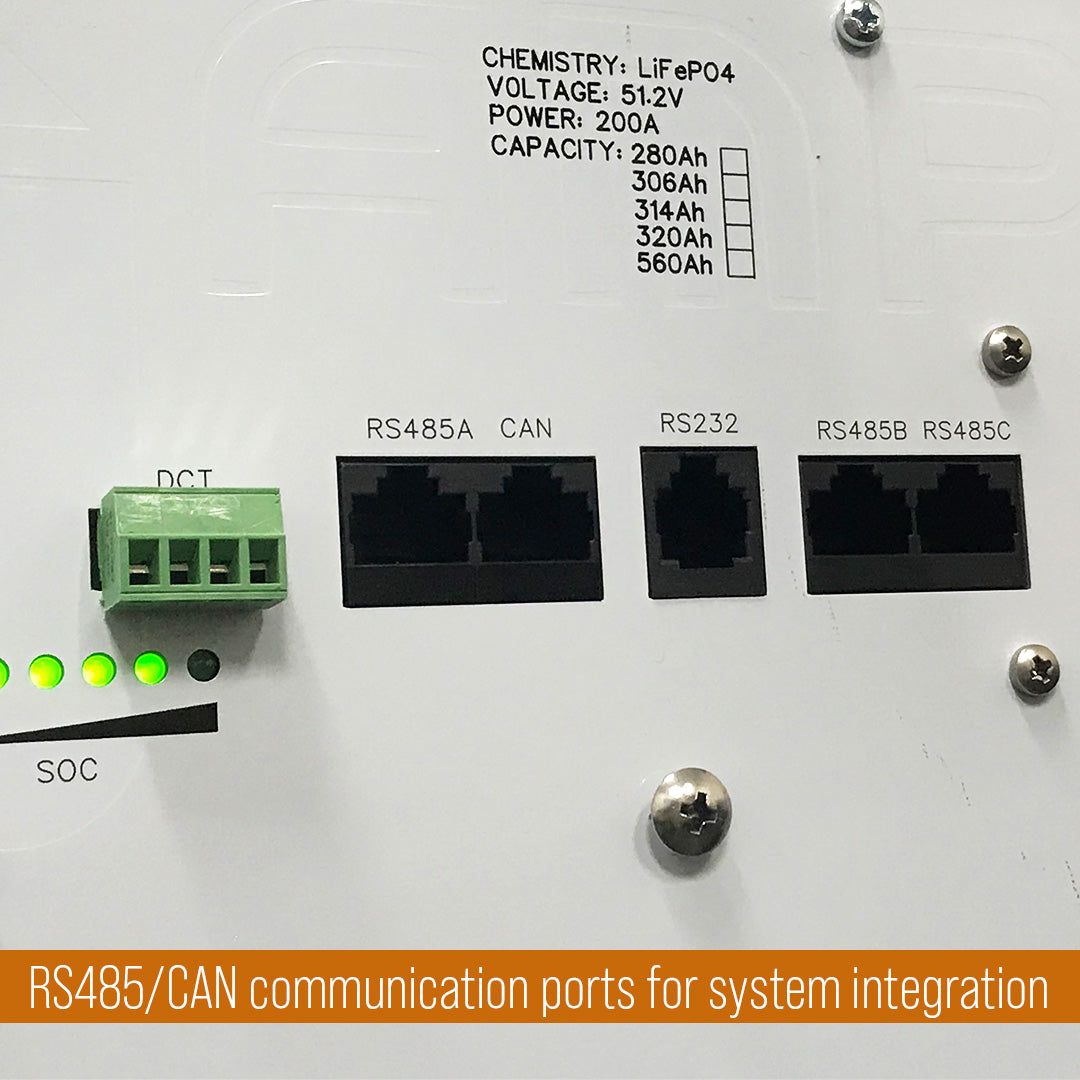

- Communication: CANBUS / RS485
- Cell Dimensions: 208 × 174 × 72 mm
- BMS: 48V 16S 200A with LCD display
- Enclosure Size: 740 × 440 × 520 mm
- Color: White / Metal
Product Size:
- Dimensions: 86 x 56 x 72 cm (34" x 22" x 28")
- Weight: 210 kg. (464 Lbs.)
