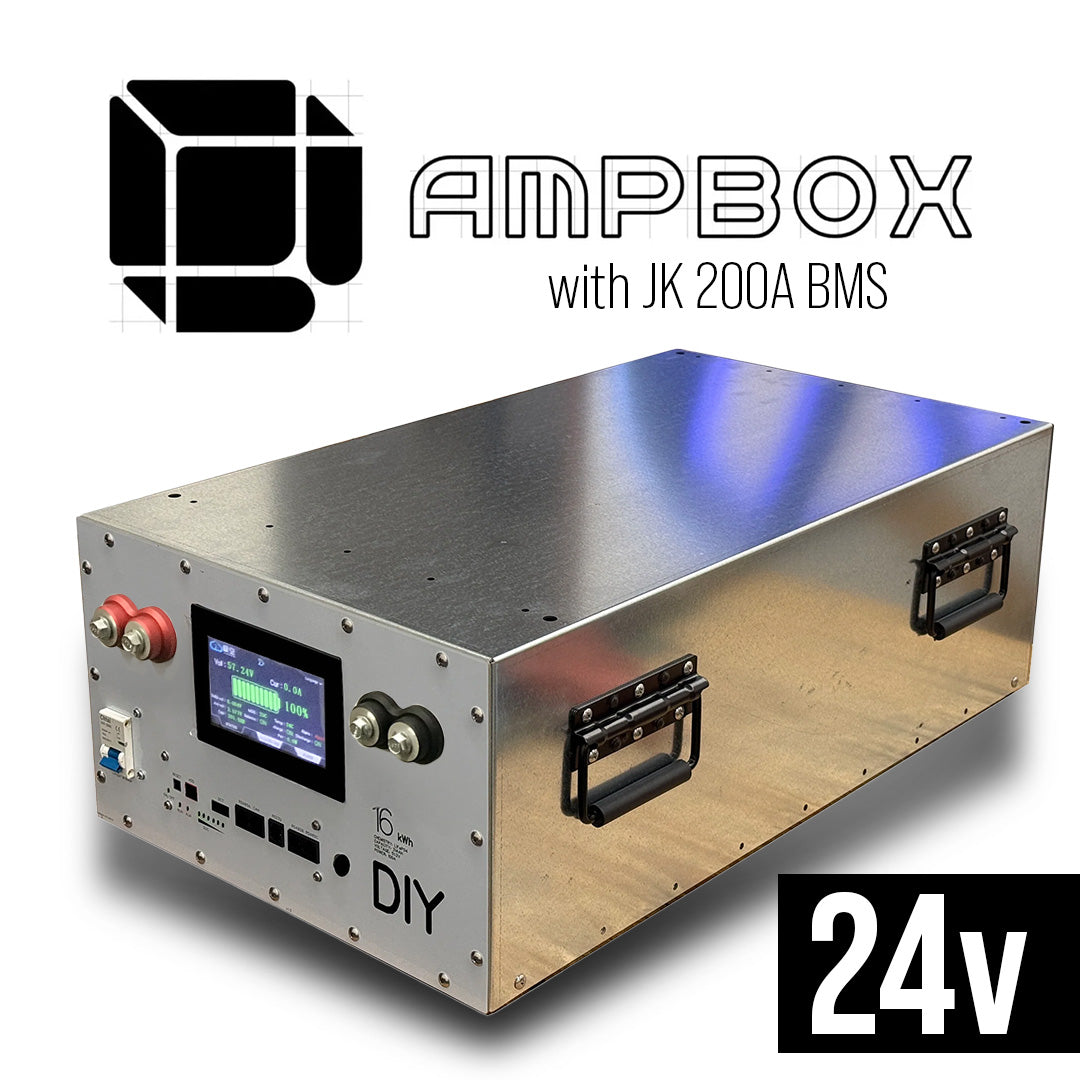

24v AmpBox DIY Lifepo4 Battery BOX With JK 200A BMS with LCD Screen
24v AmpBox DIY Lifepo4 Battery BOX With JK 200A BMS with LCD Screen
Regular price
$1,299.00 USD
Regular price
$2,600.00 USD
Sale price
$1,299.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping Information:
- Shipping to Lower 48 USA states only via Ground Shipping.
- No shipping to PO Boxes.
- No international shipping, including Hawaii, Guam, Puerto Rico.
Plug and Play Variant: Requires Freight LTL shipping.
DIY Battery Enclosure Details:
- NEW TERMINAL Style
- 24V steel battery enclosure for LiFePO4 cells with dimensions of 680*410*260mm.
- Box requires 16 cells in 8S2P for 24V nominal voltage.
- Fully Assembled ready to use.
- Includes a JK 200A BMS.
Communication: CANBUS and RS485
Cell Dimensions: 280Ah/306Ah/314Ah - 208*174*72mm
Features: Stackable
Certification: CE / RoHS / UN38.3 / MSDS / ISO
BMS: 24V 8S 200A BMS
Size: 740*440*260mm
Brand: AmpBox
Color: White / Metal
Choose Your Capacity:

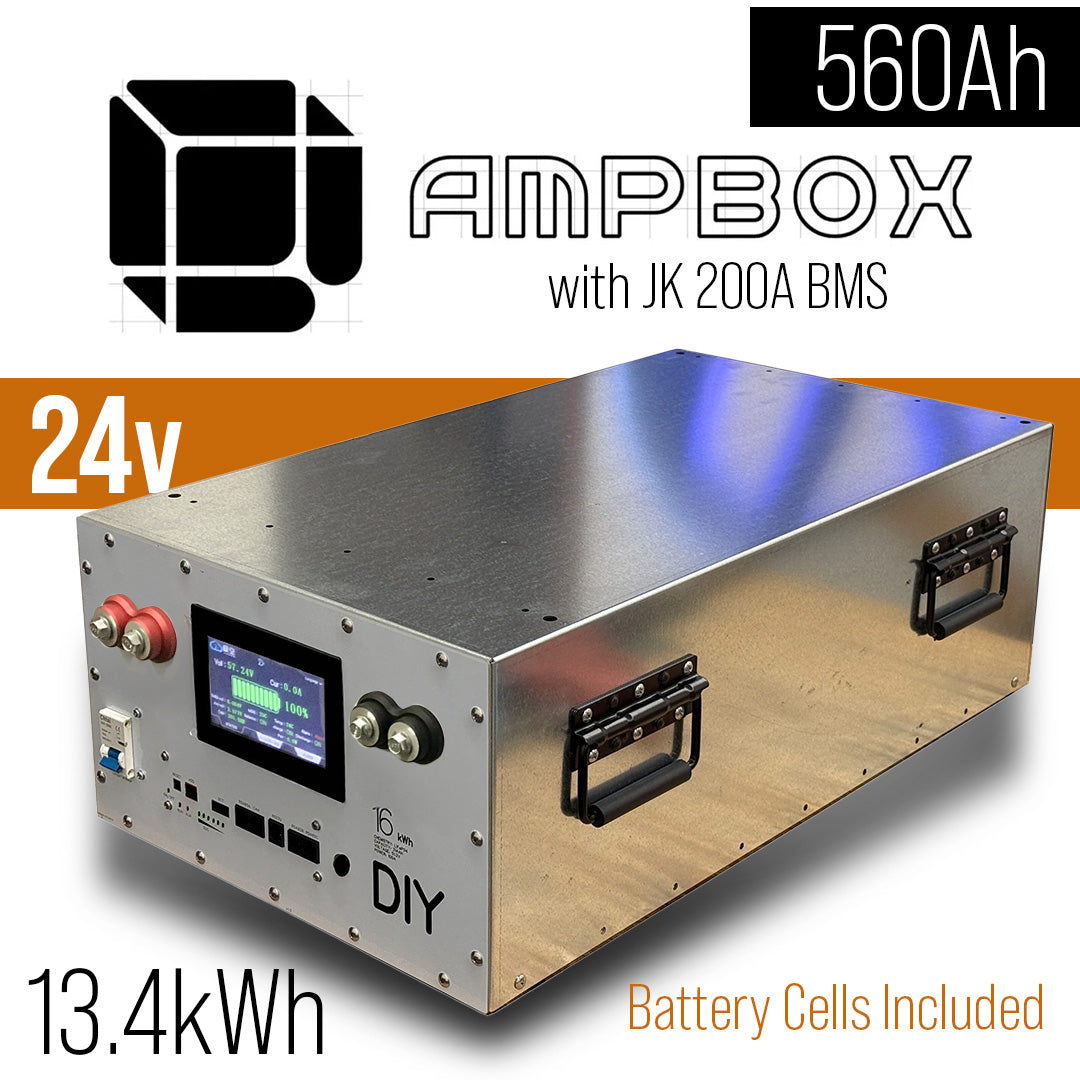

- 13.4 kWh – Efficient, cost-conscious

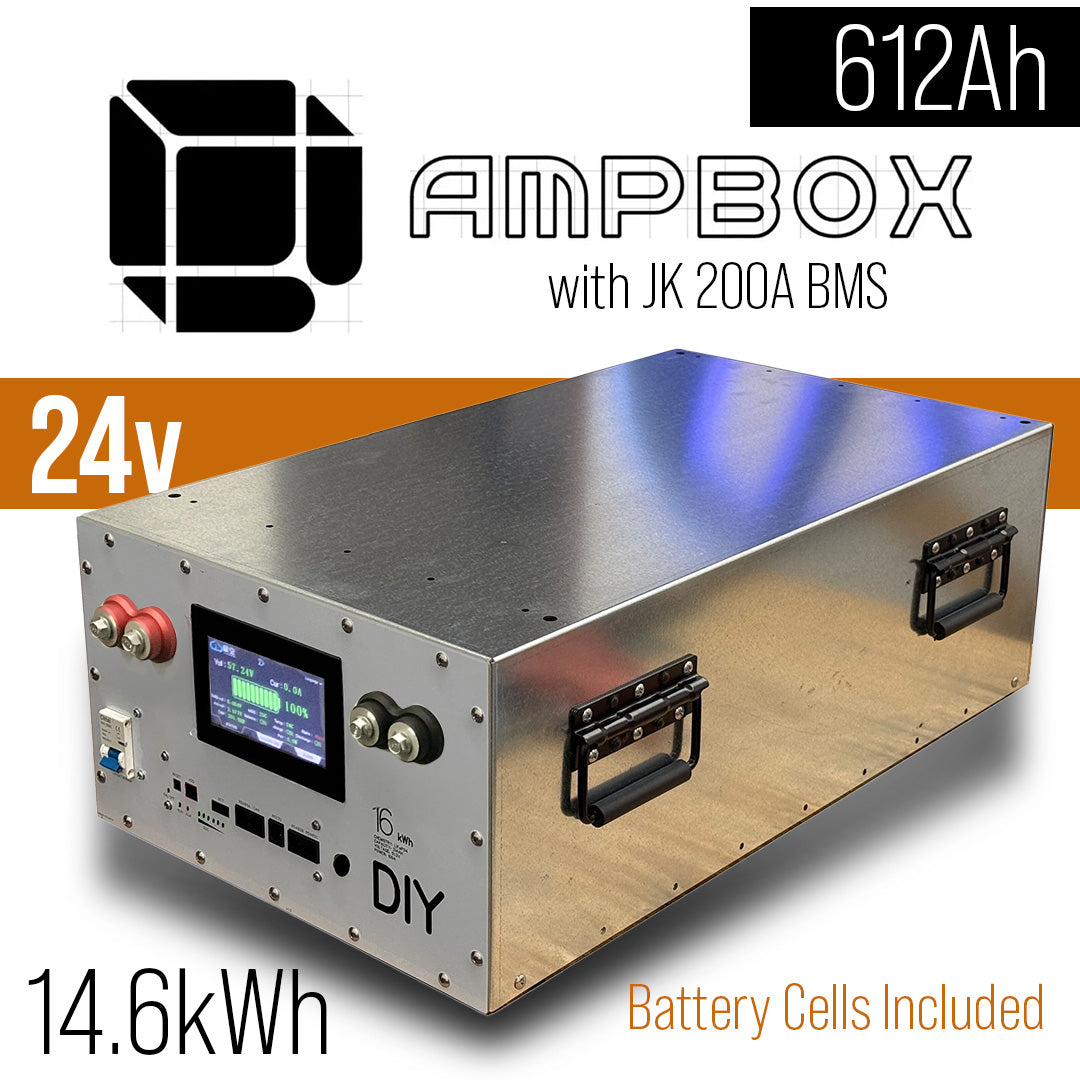

- 14.6 kWh – Balanced performance and runtime

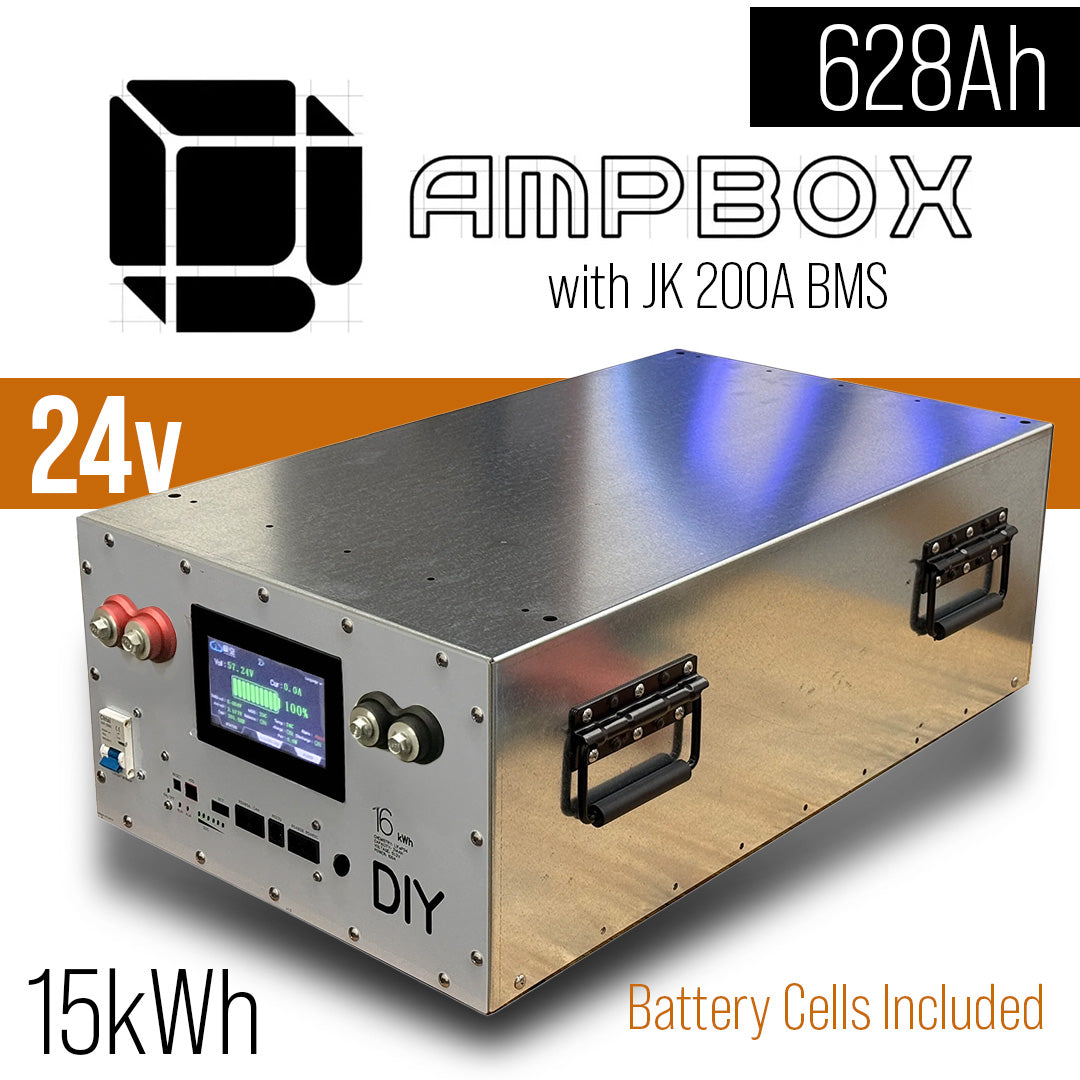

- 15.0 kWh – Maximum capacity for extended usage
Packaging Details:
- Single package size: 86 x 56 x 36 cm. (34 in. x 22 in. x 14 in.)
- Single gross weight: 32 kg. (70.5 Lbs.)
- Plug-and-play gross weight: 105 kg. (232 Lbs.)
⚡ JK BMS Quick Setup
Learn how to set up your JK Inverter BMS, including video tutorials, firmware tips, and troubleshooting.
⚠ Important: Do not change the BMS password. This can lock the unit or even brick it. If you’re already locked out, visit the guide for the unlock code.
