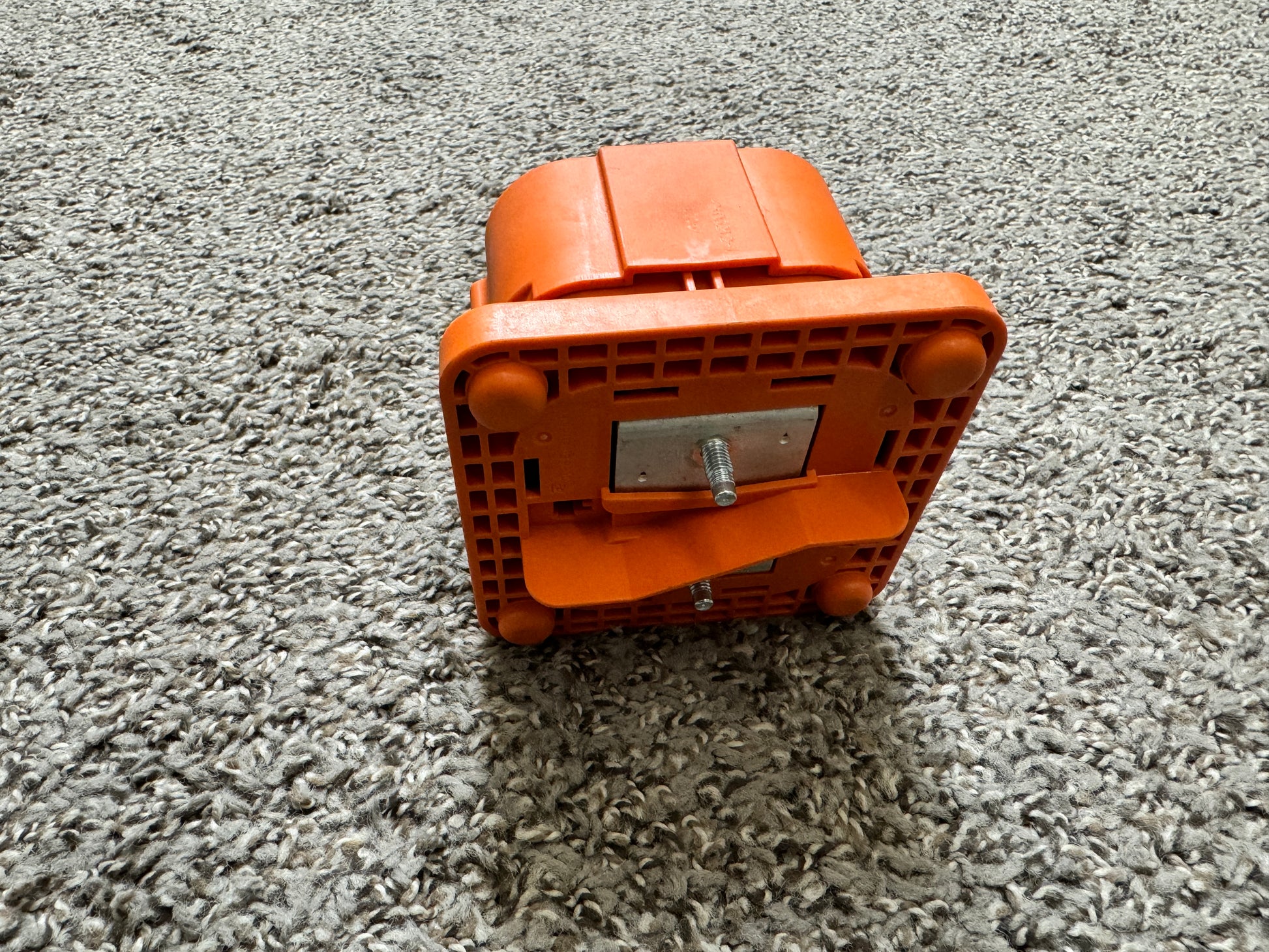

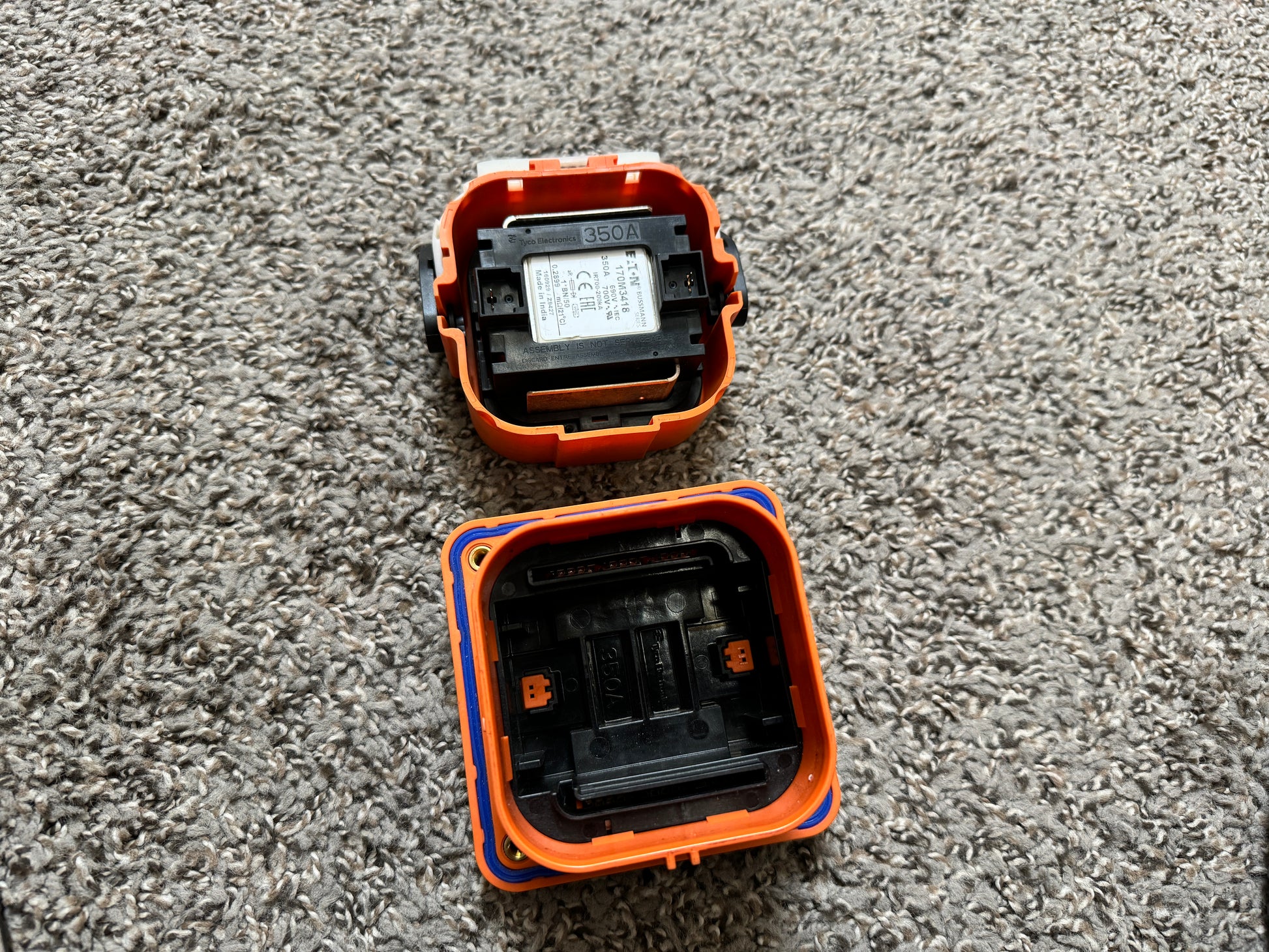

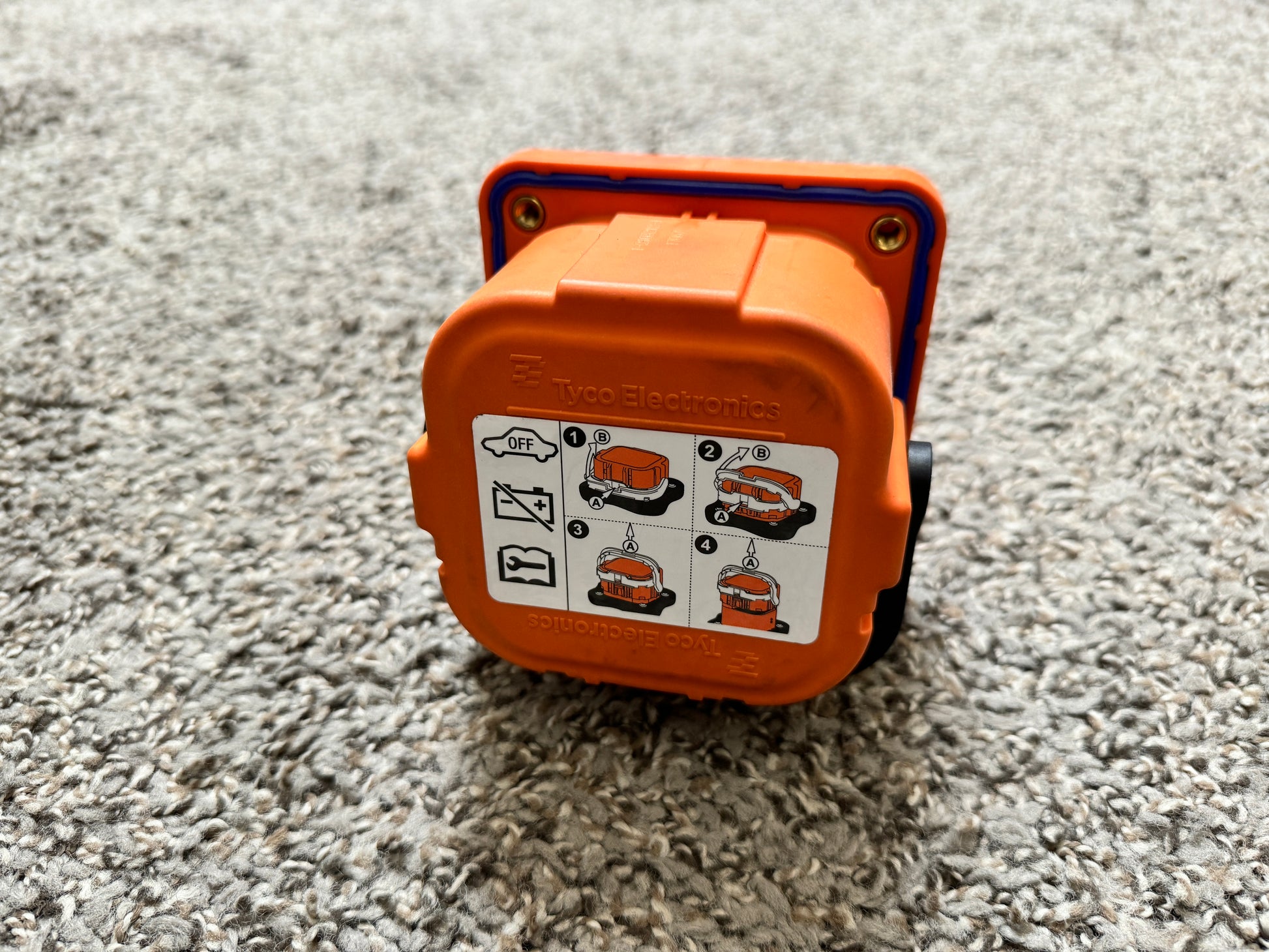

Used service disconnect pods used in many popular production EVs.
They might contain signs of use, small cosmetic scratches but these 100% functional.
| Specification | Units | Tyco Fused Disconnect |
| Continouous Contact Current | Amps | 350 |

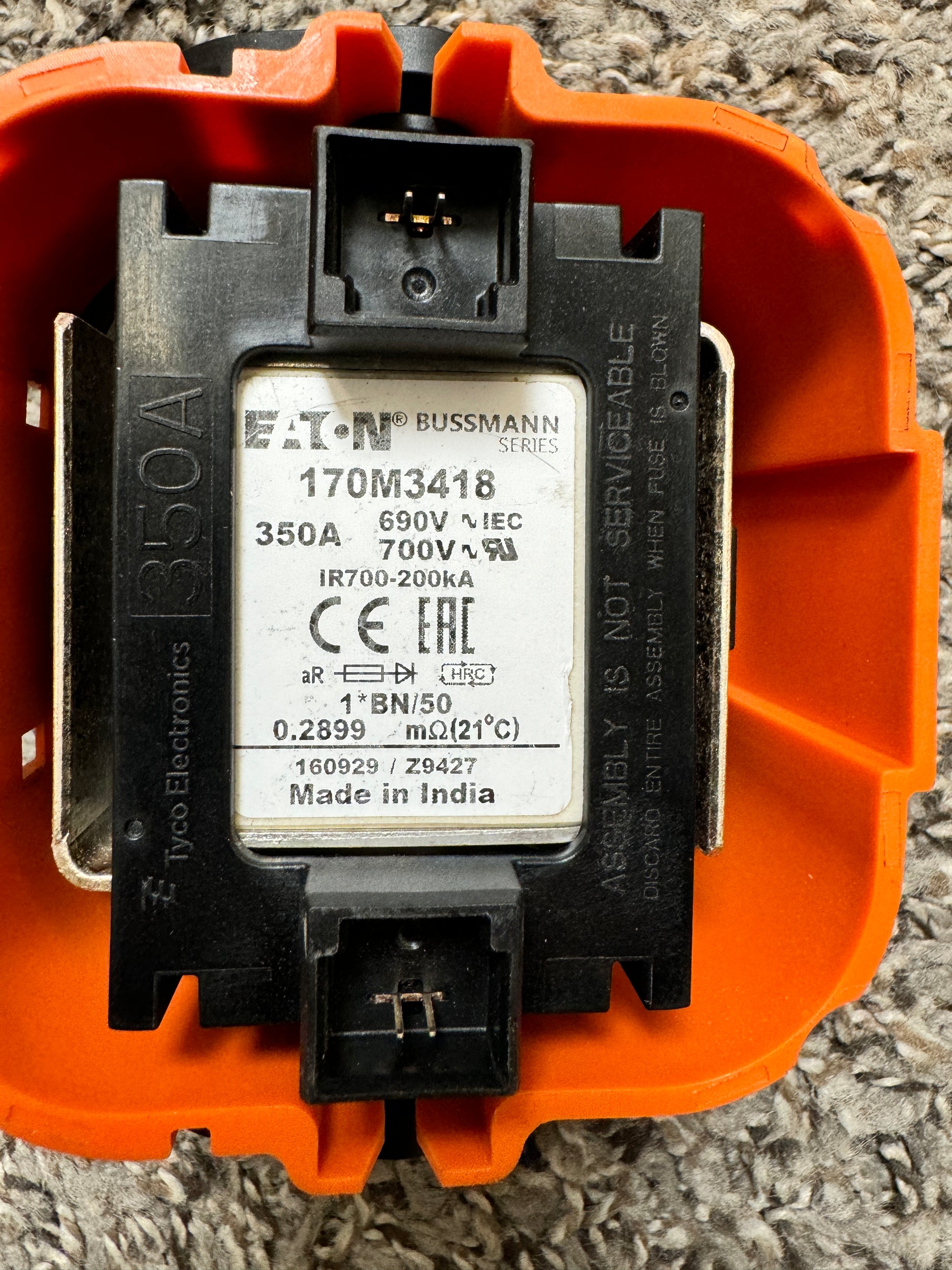

| Fuse Rating | Amps | 630 |
| Rated Operating Voltage | VDC | 700 |
| Mating cycles | Cycles | 50 |
| Operating Temperature | Deg C | -40 to 65 |
| IP rating | Mated: IPx7, IP6k9k Unmated: IP2xb |
|
| Mounting | Battery box mounting flange with seal. Mounting holes 3.375" on center |
