R5-Shorty 36v 13Ah 470Wh eBike/Scooter Battery

R5-Shorty 36v 13Ah 470Wh eBike/Scooter Battery

Regular price $54.50 USD
Regular price $109.00 USD Sale price $54.50 USD
Sale Sold out
Shipping calculated at checkout.
Style



PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Fedex Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.

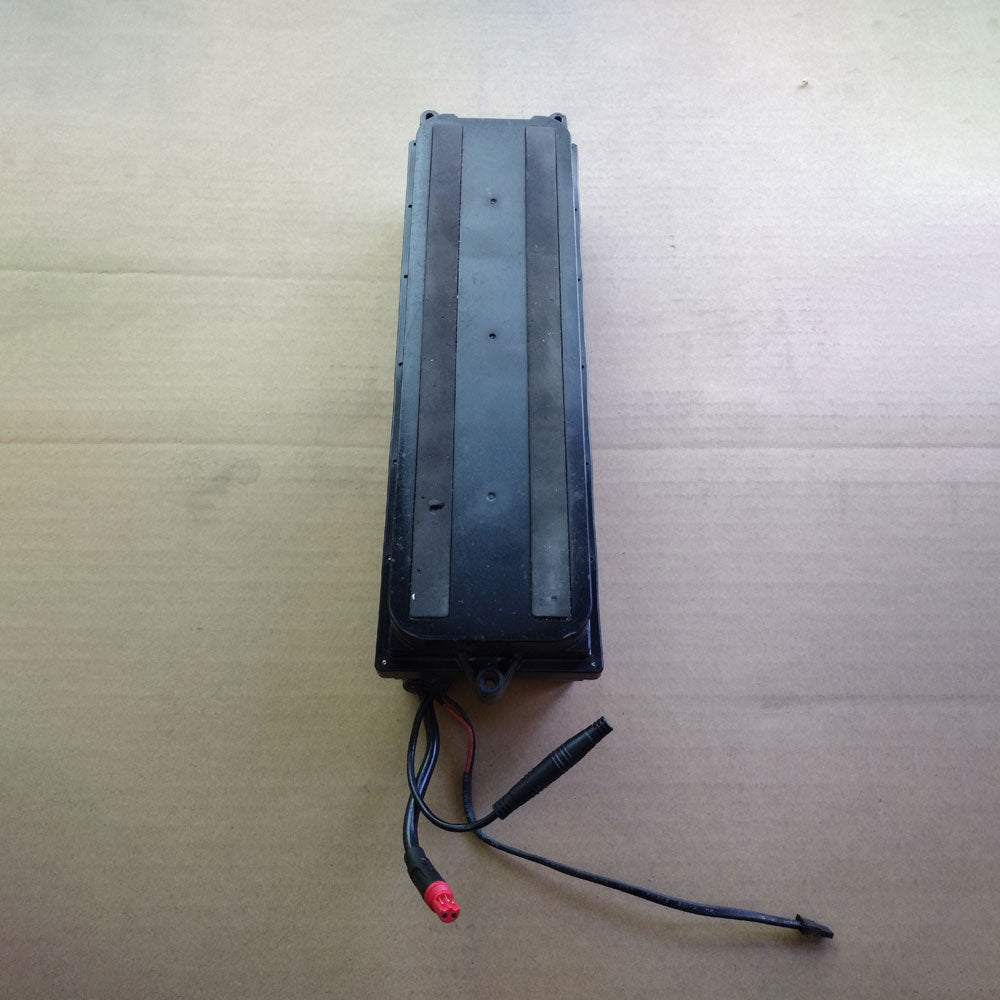

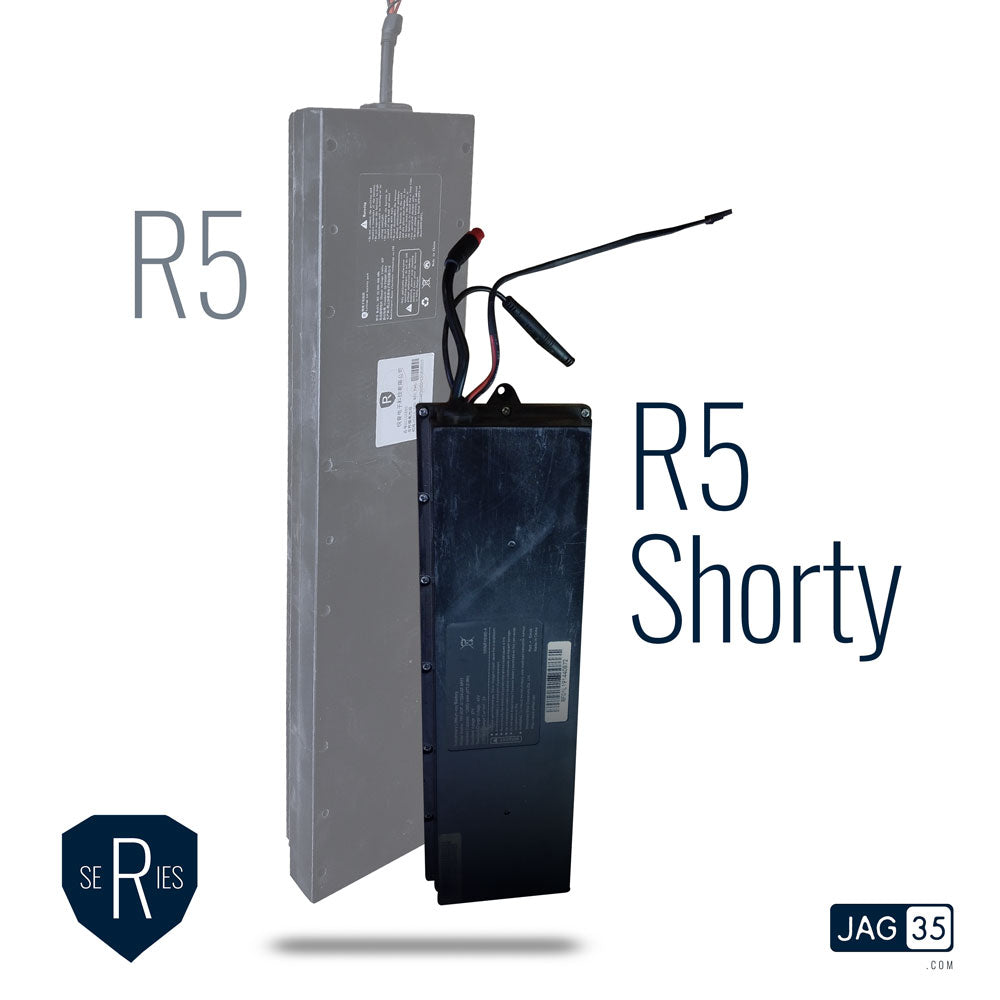

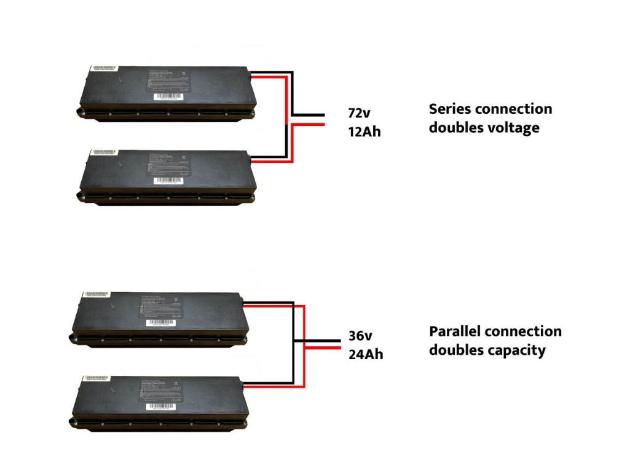

Used R5-Shorty eBike/eScooter Battery Packs 470Wh 36v 13Ah. These compact packs contain the powerful and popular high-capacity lithium-ion LG MH1 3200mAh 18650 cells. These are very similar to the same packs as the very popular R5, and also similar to the JUMP packs and 40-cell scooter packs but without the need for an activating dongle. These can be used as 470Wh eBike battery packs, though originally made as E-Scooter battery packs. Connect x2 in parallel to make 36v 26Ah 936Wh. Connect x2 in series to make 72v 13Ah 936Wh.

Packs come with custom Julet output connectors (2-pin power male + 3-pin data female), and the input connectors are 2-pin female (Mini Molex/Tamiya?). If you want XT connectors you'll need to add your own. Packs may have some cosmetic blemishes from storage. These packs are Tested and untested.

The untested ones are not guaranteed to work

Tested packs will be inspected, charged and tested by us.

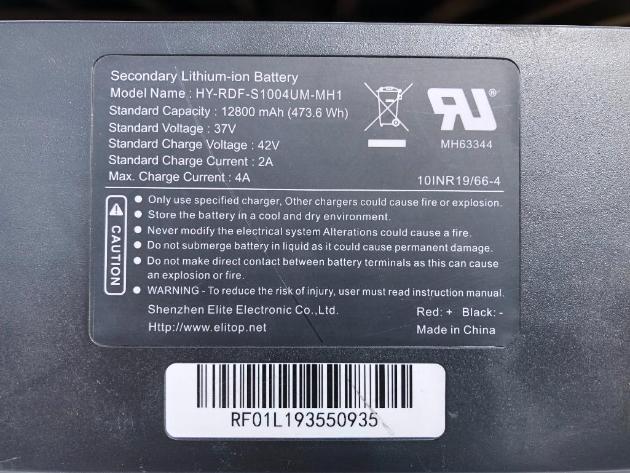

Specs

  • Capacity:  12.8Ah
  • Size:  13" L x 4" W x 2.75" H
  • Continuous Discharge: 23A



    Charging

      Charger sold separately. These packs can be charged using our standard 42v 2A charger. Make sure you choose a charger with the right connector, if not you'll have to splice in your own connector. We recommend fully charging this pack as soon as you receive it.



      Range

      • Can give you a range of approximately 30-45 miles at low speeds (10mph), or approximately 15-20 miles at high speeds (20mph).

      Use as an Expansion Battery:

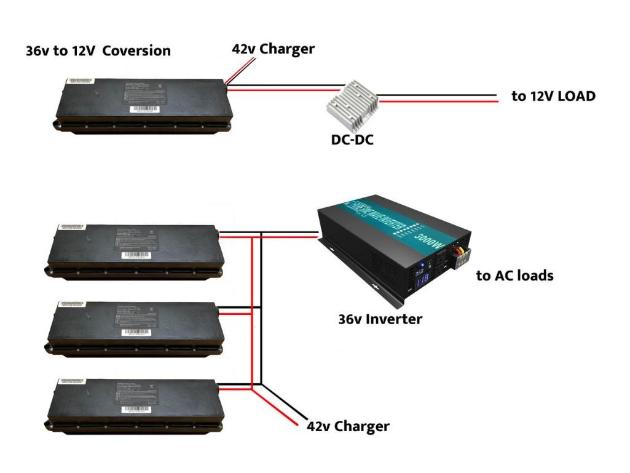

      This battery pack can serve as an expansion battery for many popular power stations. It may be possible to connect multiple batteries in series to increase the charging speed (Volts), or connect multiple in parallel to increase capacity (AmpHours) and current (Amps), see your device specs for max limits. Plz double-check your power station's PV/Solar input specifications to make sure this battery will be compatible. Use with:

      • EcoFlow Delta Max 2000 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
      • EcoFlow Delta Max 1600 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
      • EcoFlow Delta Pro (Solar Charging Input 1600W Max, 11-150V, 15A Max). May require an XT90 connector adapter.
      • EcoFlow Delta Mini (Solar Charge Input 300W 11–75V DC 10A max). May require an XT60 connector adapter.
      • Bluetti AC300 (Solar Input 2,400W Max., VOC 12-150VDC, 12A). May require an XT60 connector adapter.
      • Bluetti AC200 Max (Solar Input 900W Max., VOC 10-145VDC, 15A). May require an XT60 connector adapter.
      • Bluetti AC200P (Solar Input 700W Max., VOC 35-150V, 12A). May require an XT60 connector adapter.
      • Bluetti EB240 (PV Max Input Power MAX 500W/10A, OCV 16V~68V /MAX10A). May require an XT60 connector adapter.
      • Similar spec portable power stations. You are responsible for double-checking to make sure this battery is compatible with your power station. When combining batteries, you are ultimately responsible for making sure your configuration (series or parallel) is compatible.

      ** NOTE:  To get an accurate shipping price when buying more than x4 sets, email support@jag35.com



      R5 Shorty breakdown video:



      Harvesting Cells

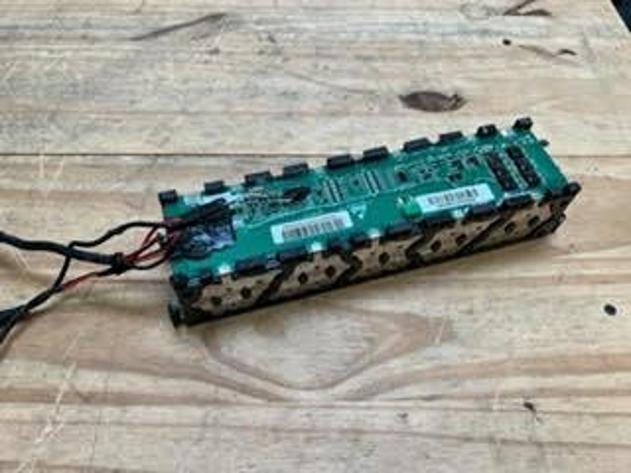

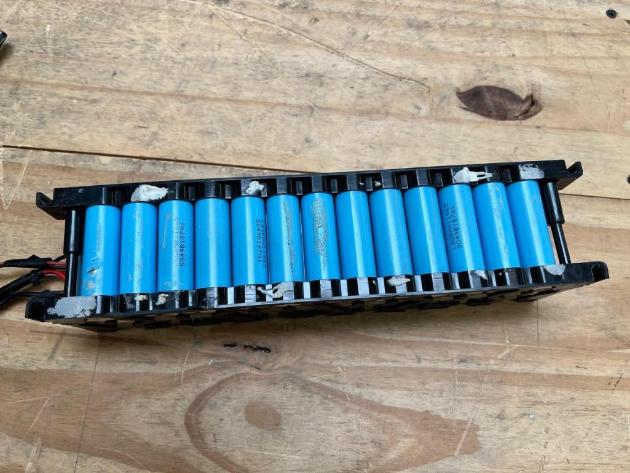

      If you prefer to harvest the cells, you have to open the case, remove the rubber around the cells, and extract the cells as shown here. You'll have to cut and clean the Nickel interconnects using snips.

      Once the cells are out and clean you will have to test them using a charger like this.



      ---

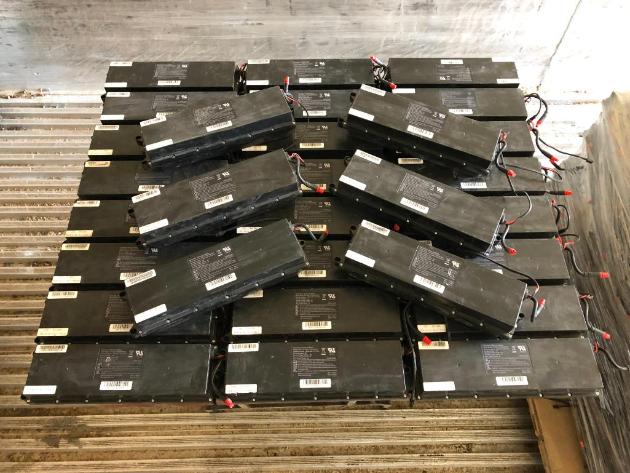

      Note that these are reclaimed packs, so the actual cell voltage you receive may be lower than the label shows. These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. Sold as-is. No refunds.

      If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.

      NEW YORK residents:
      On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.

      Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
