R5 R-Series 36v 13Ah 460Wh eBike/Scooter Battery

  • Sale
  • $69.00
  • Regular price $99.00
Shipping calculated at checkout.


PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Fedex Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.

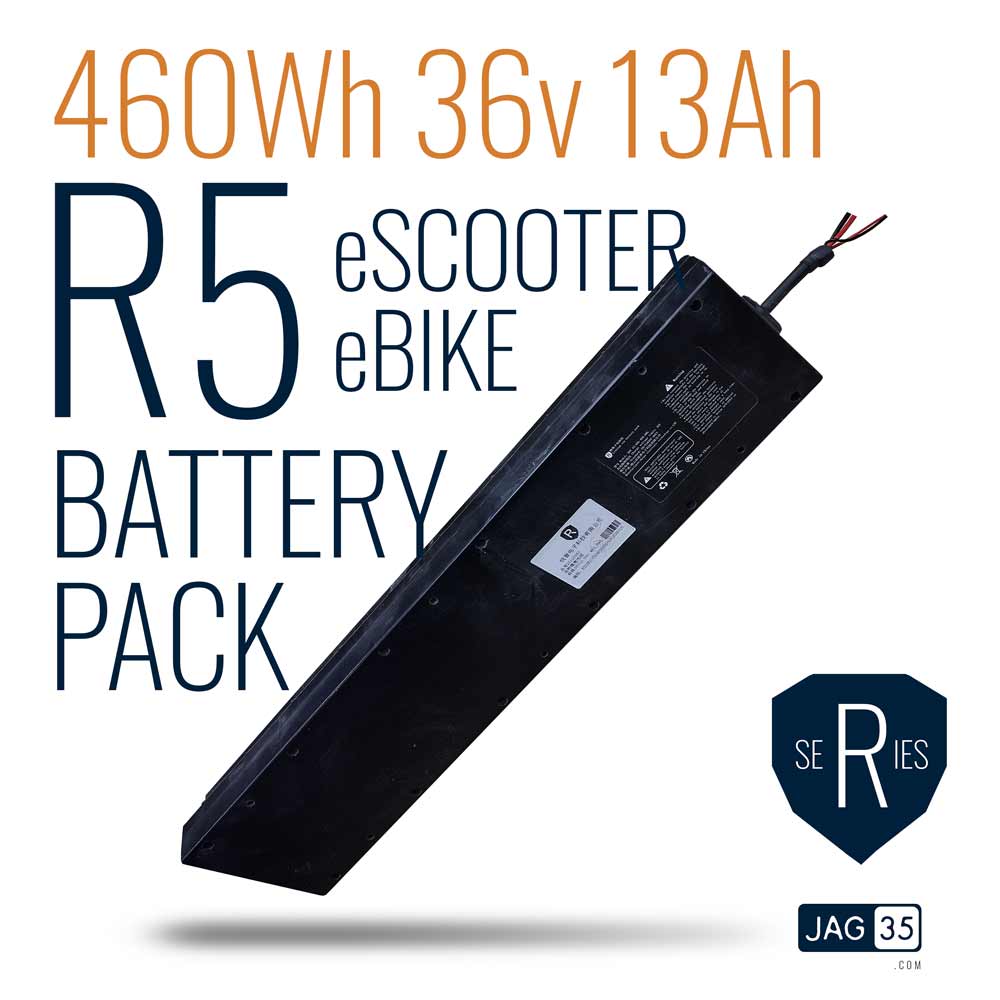

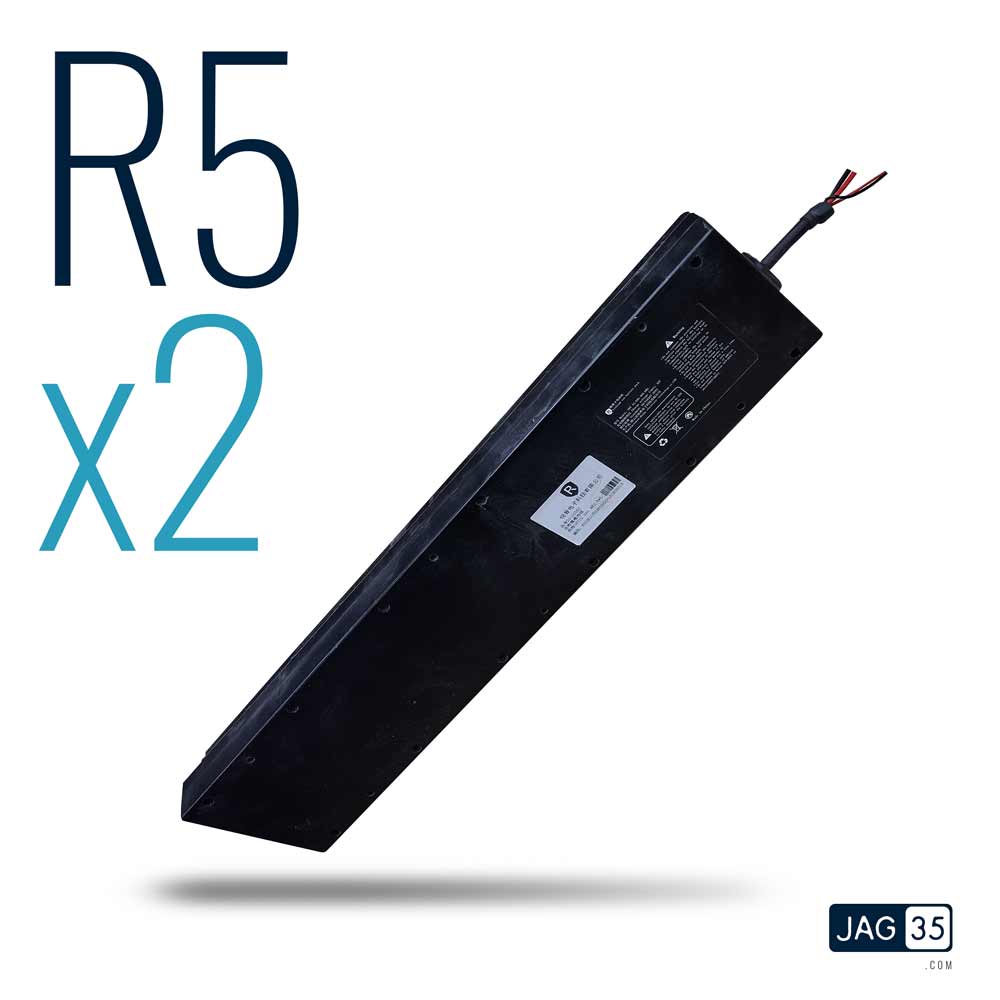

Reclaimed R5 (R-Series) eBike/eScooter Battery Packs  460Wh 36v 13Ah. They contain the powerful and popular high-capacity lithium-ion Panasonic NCR18650BD 3200mAh 18650 cells. These are virtually the same packs as the very popular 40-cell scooter packs but without the need for an activating dongle. These can be used as 460Wh E-Bike battery packs, though originally made as E-Scooter battery packs. Connect x2 in series to make 72v 13Ah 920Wh. Connect x2 in parallel to make 36v 26Ah 920Wh.

Packs may have some cosmetic blemishes from storage. Some packs have the cables cut, this means you can either choose a pack with an XT connector from the dropdown menu or you'll need to add your own XT connector.

** NOTE:  To get an accurate shipping price when buying more than x4 sets, email support@jag35.com


Specs

  • Capacity:  12.8Ah
  • Size:  18" L x 4" W x 2.25" H
  • Weight:  8.2 LBS
  • Dimensions:  4" W x 2.25" H x 18" L (not including cables)

Versions

These R-Series eBike packs are available in 3 versions (choose from dropdown menu  ):

  • R5 Series - 460Wh 36v 13Ah, cables cut, UNTESTED

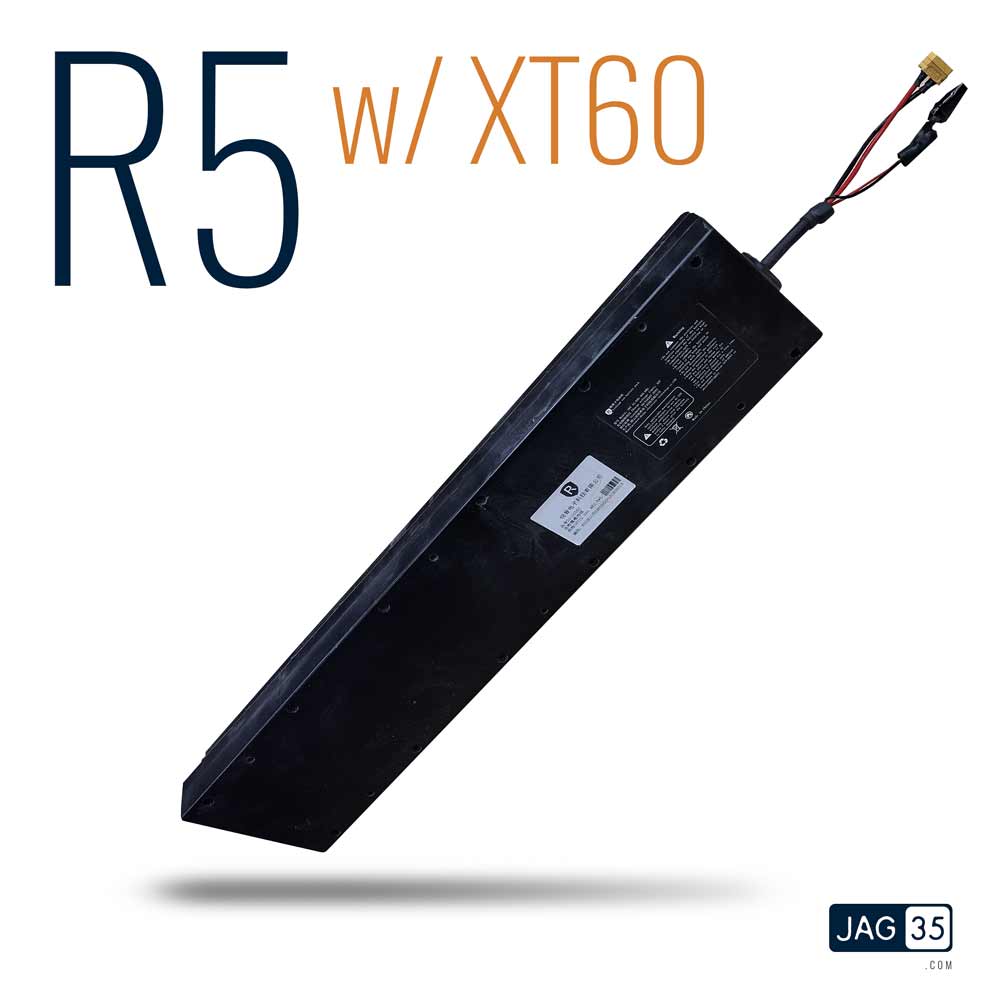

  • R5 Series - 460Wh 36v 13Ah, we add XT60 connector, UNTESTED

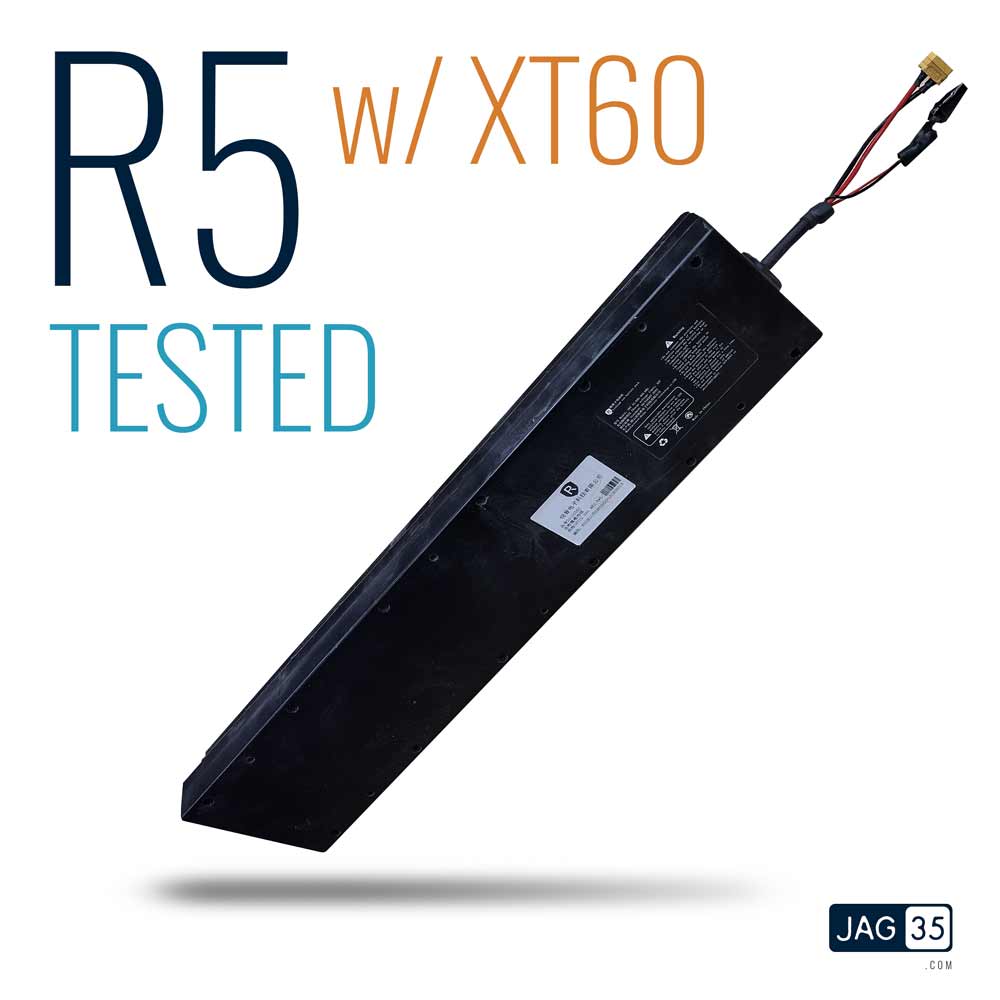

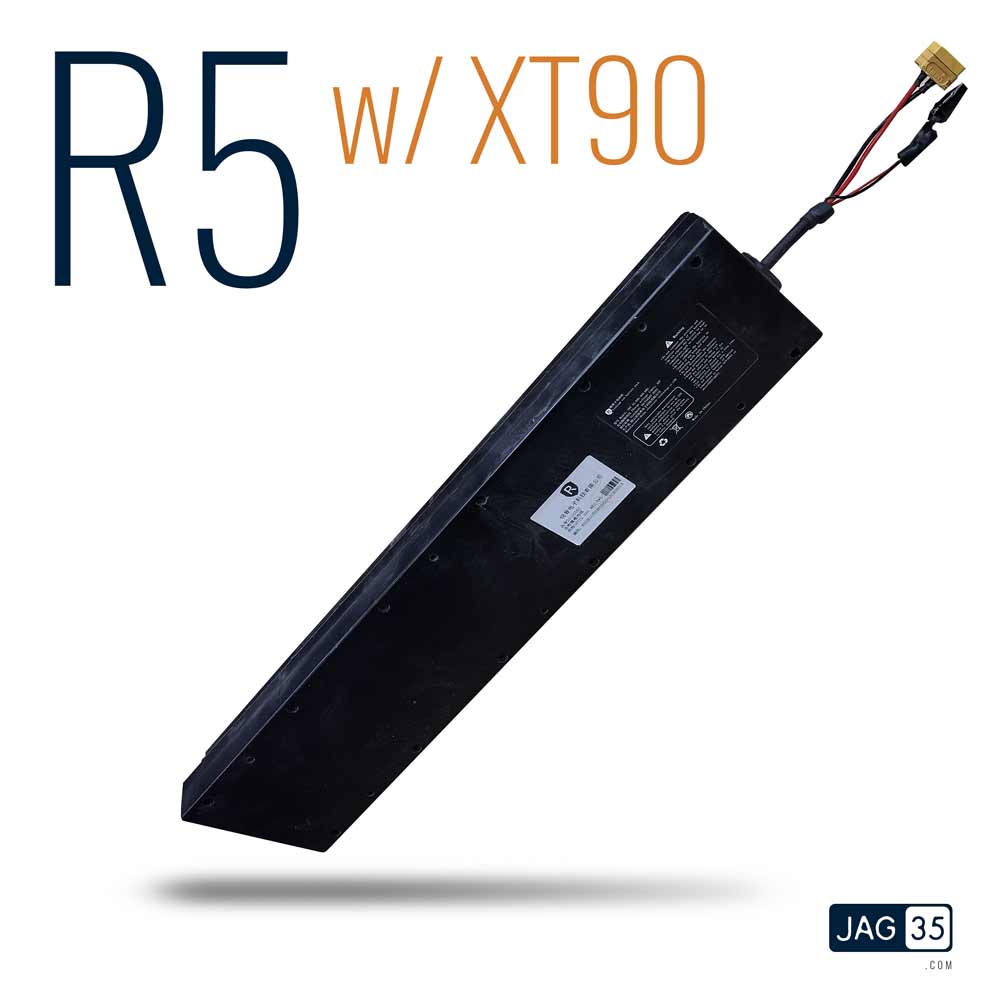

  • R5 Series - 460Wh 36v 13Ah, we add XT90 connector, TESTED
  • R5 Series - 460Wh 36v 13Ah, UNTESTED, FOR REPAIR OR HARVESTING CELLS ONLY

Use as an Expansion Battery:

This battery pack can serve as an expansion battery for:

  • EcoFlow Delta Max 2000 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
  • EcoFlow Delta Max 1600 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
  • EcoFlow Delta Pro (Solar Charging Input 1600W Max, 11-150V, 15A Max). May require an XT90 connector adapter.
  • EcoFlow Delta Mini (Solar Charge Input 300W 11–75V DC 10A max). May require an XT60 connector adapter.
  • Bluetti AC300 (Solar Input 2,400W Max., VOC 12-150VDC, 12A). May require an XT60 connector adapter.
  • Bluetti AC200 Max (Solar Input 900W Max., VOC 10-145VDC, 15A). May require an XT60 connector adapter.
  • Bluetti AC200P (Solar Input 700W Max., VOC 35-150V, 12A). May require an XT60 connector adapter.
  • Bluetti EB240 (PV Max Input Power MAX 500W/10A, OCV 16V~68V /MAX10A). May require an XT60 connector adapter.
  • Similar spec portable power stations.



** NOTE:  To get an accurate shipping price when buying more than x4 sets, email support@jag35.com

Range

  • R5 Series 36v eBike packs can give you a range of approximately 30-45 miles at low speeds (10mph), or  approximately 15-20 miles at high speeds (20mph).


Charging

    Charger sold separately. These packs can be charged using our standard 42v 2A charger or by using an 8A fast charger. Make sure you choose a charger with the right XT connector, if not you'll have to splice in your own connector. We recommend fully charging this pack as soon as you receive it.


    Harvesting Cells

    If you prefer to harvest the cells, you have to remove the rubber around the cells and extract the cells as shown here. You'll have to cut and clean the Nickel interconnects using snips. Once the cells are out and clean you will have to test them using a charger like this. This pack is tightly glued together, open at your own risk.



    Product Video

    ---

    Note that these are reclaimed packs, so the actual cell voltage you receive may be lower than the label shows. These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. Sold as-is. No refunds.

    If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
