PCB Battery Module Starter DIY Kit

  • Sale
  • $12.50
  • Regular price $15.00
  • 5 available
Shipping calculated at checkout.


Please read the description carefully.

Shipping to Lower 48 USA states only via UPS Ground. No international shipping including HI, GU, PR. Non-USA customers click here.



This DIY PCB Battery Module Starter Kit includes the hardware to make a small 7-cell 18650 battery pack 24v +- 70Wh (7s1p). Only the Complete Starter Kit comes with battery cells included.

Choose one of the following variants from the drop-down menu:

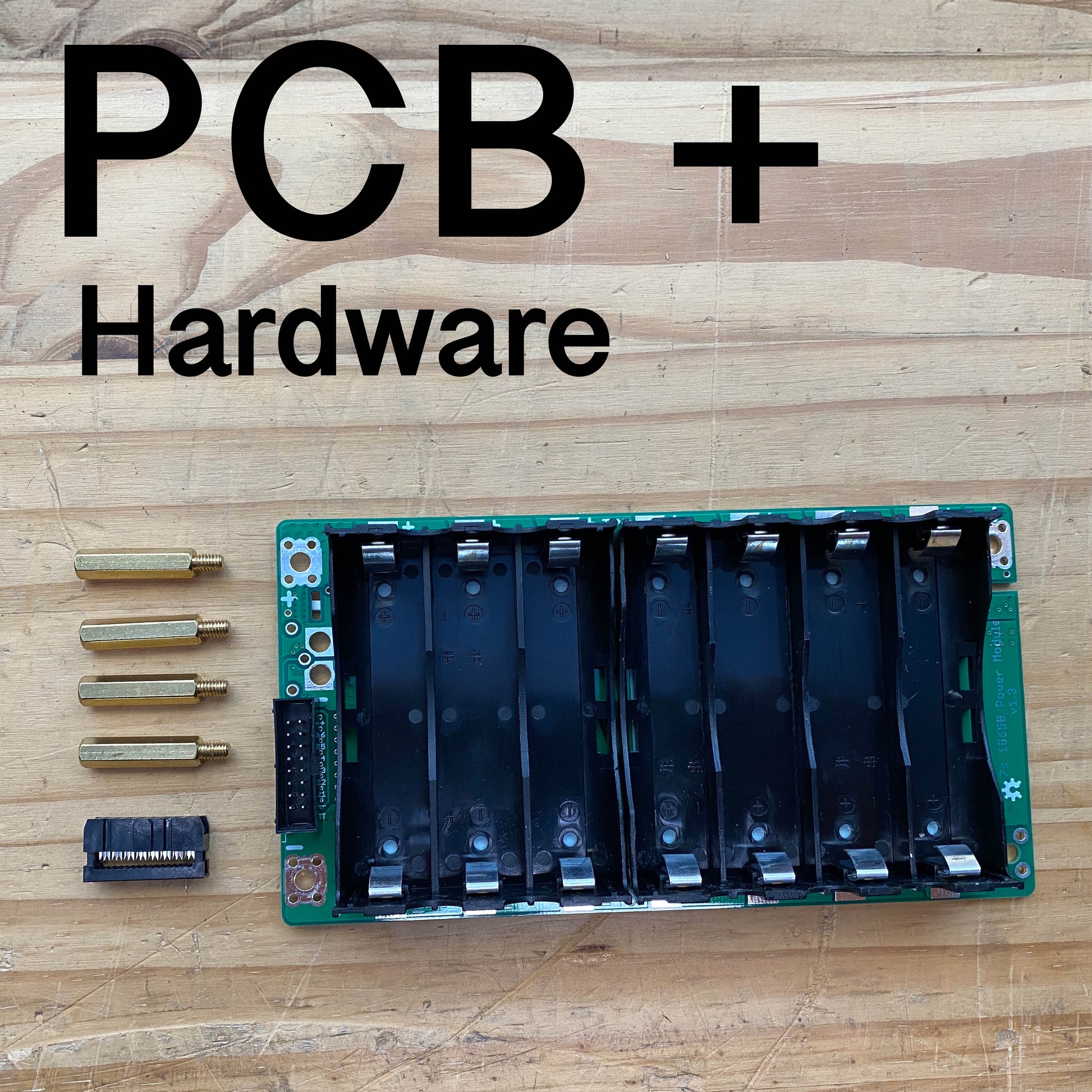

PCB+ Hardware Kit
1) 1x Battery module (populated)
2) 4x M4x25mmx6mm Standoffs
3) 1x IDC ribbon Connector

Battery cells sold separately > Find batteries here

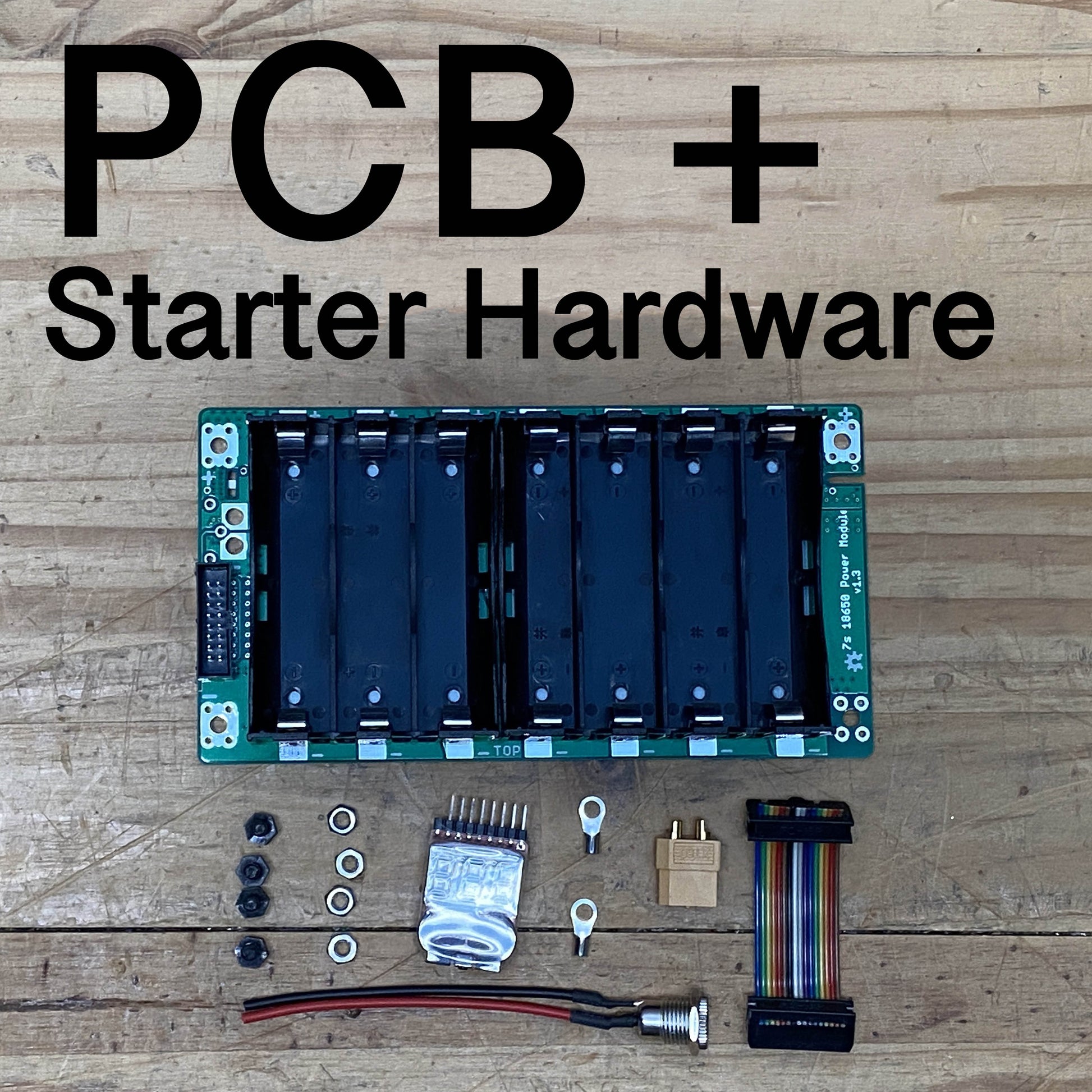

PCB+ Starter Hardware Kit
1) 1x Battery module (populated)
2) 1x Ribbon cable with 2 IDC connectors
3) 1x 8s tester/alarm
4) 4x Nylon M4 standoffs
5) 4x M4 nuts
6) 1x Xt60 female connector
7) 2x Small ring terminals
8) 1x 5.5mm x 2.1mm DC Power Pigtail

Battery cells sold separately > Find batteries here

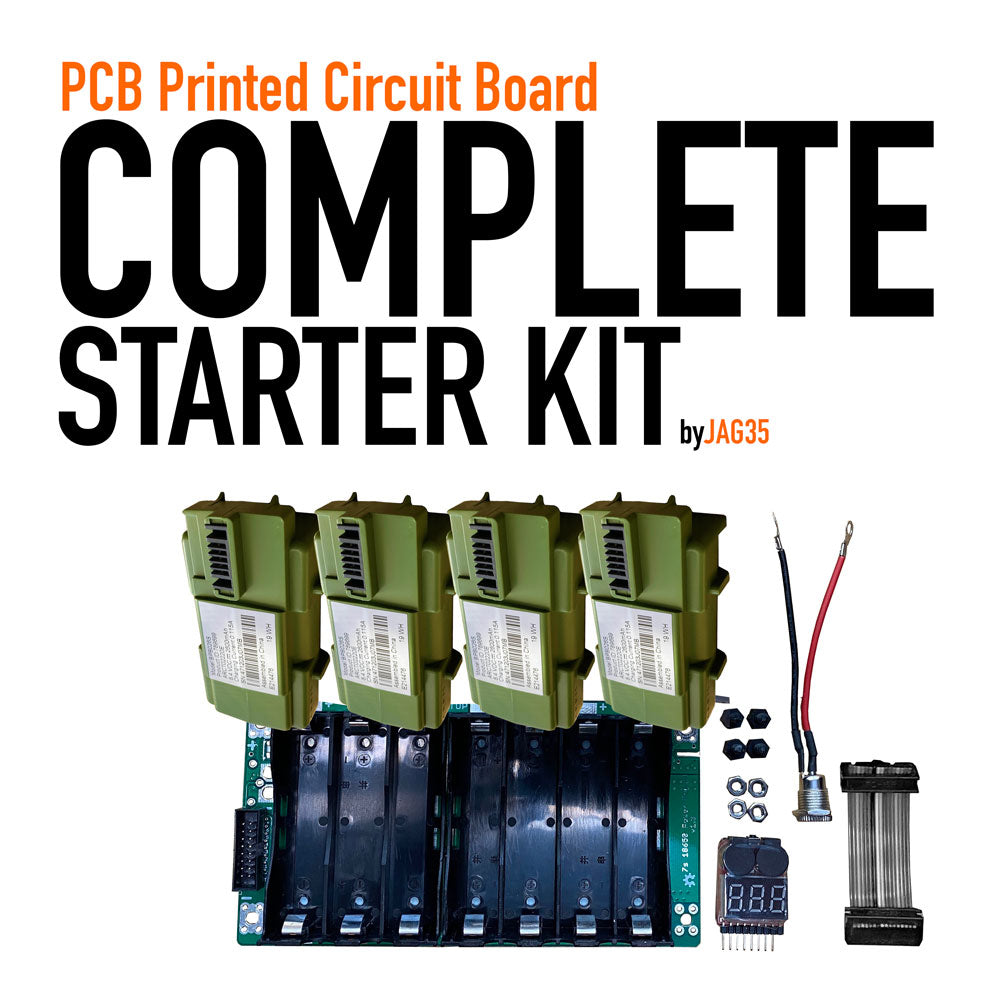

PCB+ Complete Starter kit
1) 1x Battery module (populated)
2) 1x Jumper cable for PCB, 2.54mm male to female 8-pin, 24v
3) 4x Nylon M4 standoffs
4) 4x M4 nuts
5) 1x XT60 female connector
6) 2x Small ring terminals
7) 1x 5.5mm x 2.1mm DC Power Pigtail
8) 1x 8s tester/alarm
9) Batteries included: 4x Arris 2400mAh Modem Battery packs (8 cells)

**Note: The 8s tester/alarm works for 7s, simply plug in the jumper cable starting from (-), the last pin (+) can be left out.

Connect 8s tester/alarm to 8-pin jumper cable | JAG35.com



You will need to purchase these two items as well:

1x Charger: https://amzn.to/2LXCEJX
1x Quick Charge USB module: https://amzn.to/3c1kemT

Here's a VIDEO HOW-TO put it all together and use it:




Battery cells sold separately > Find batteries here
