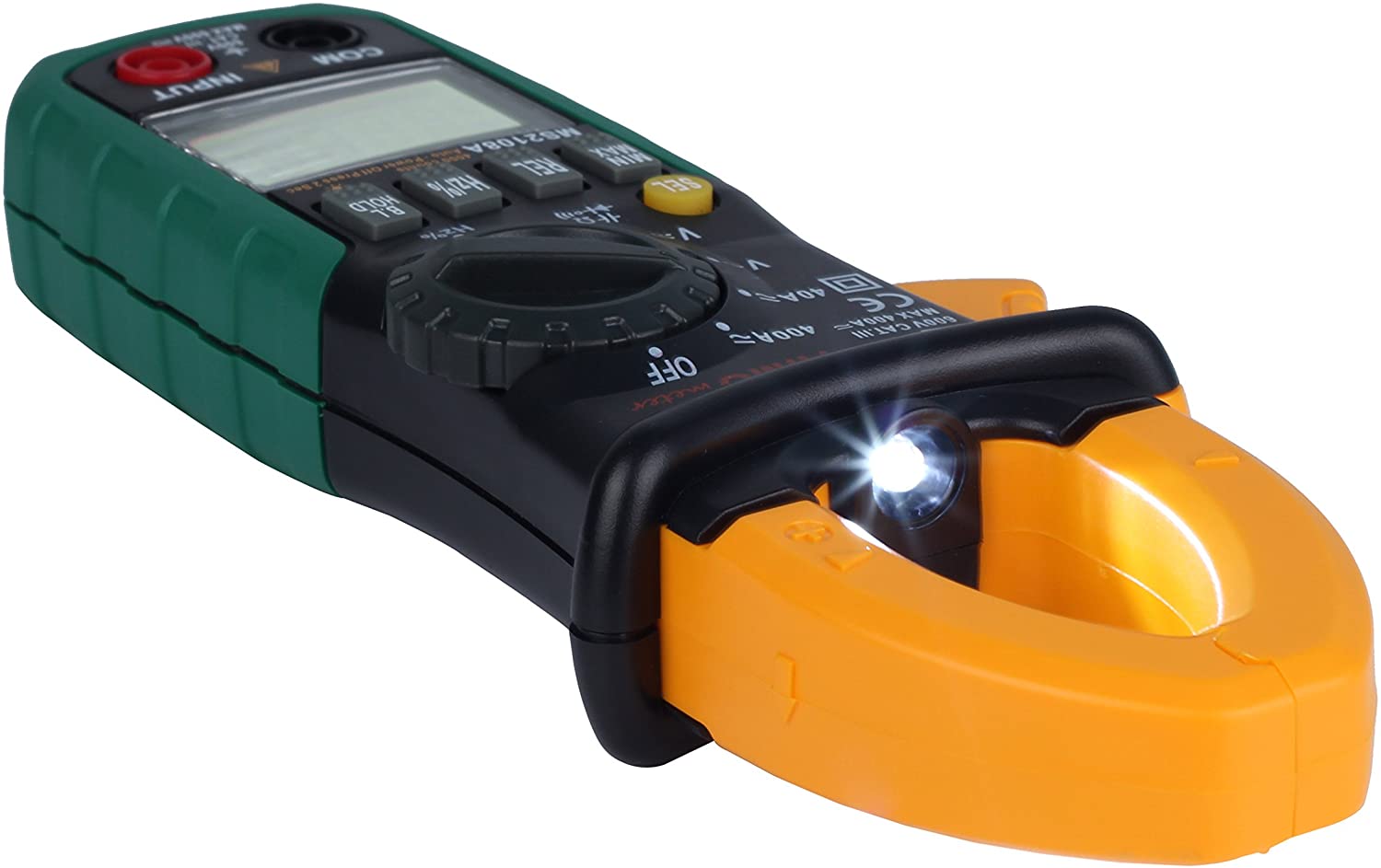

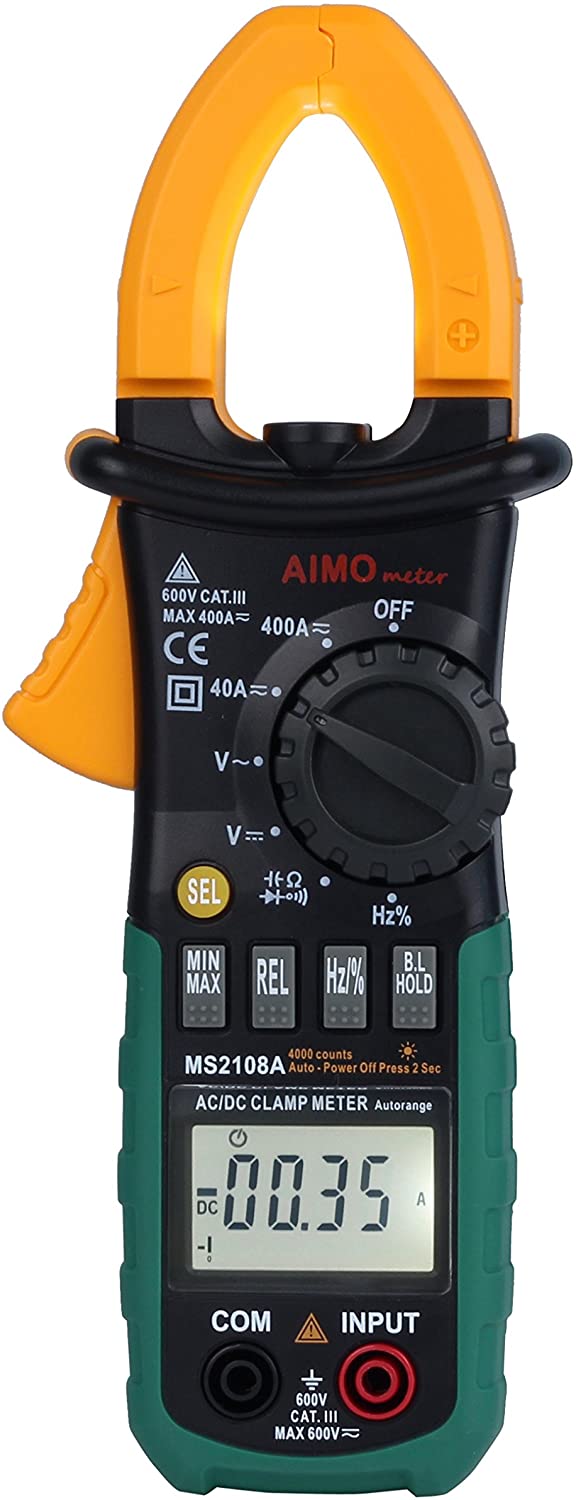

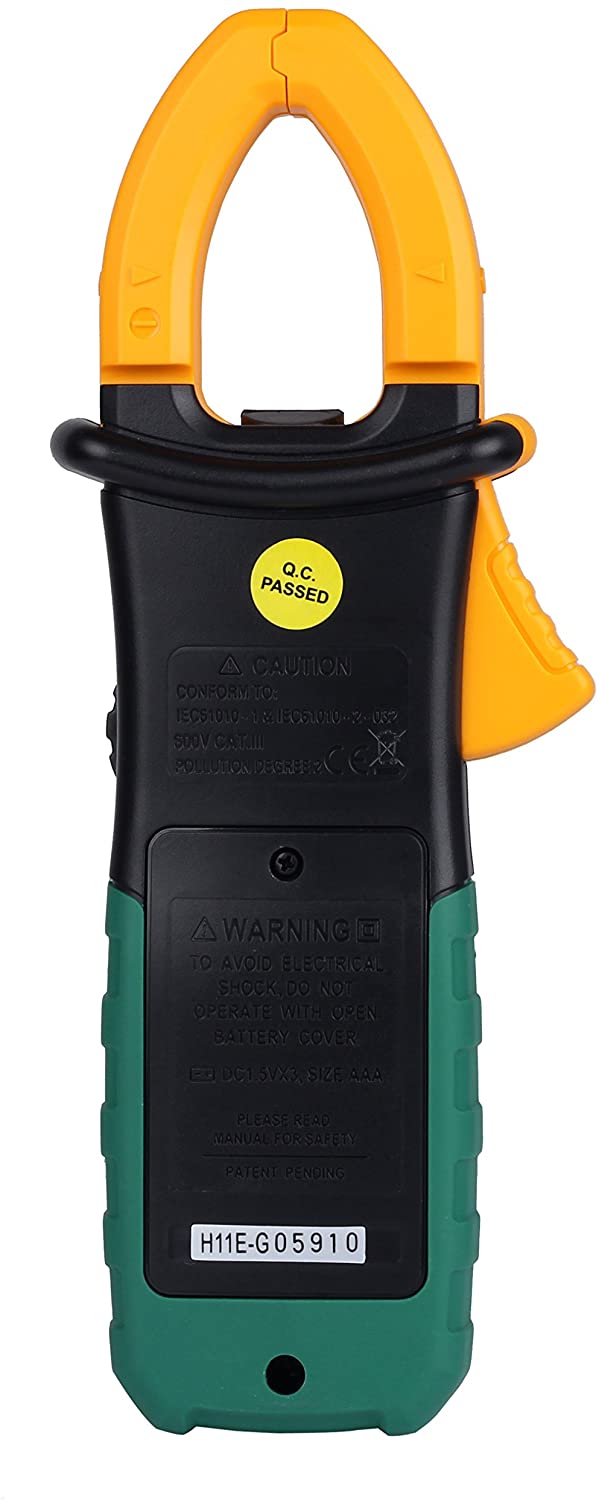

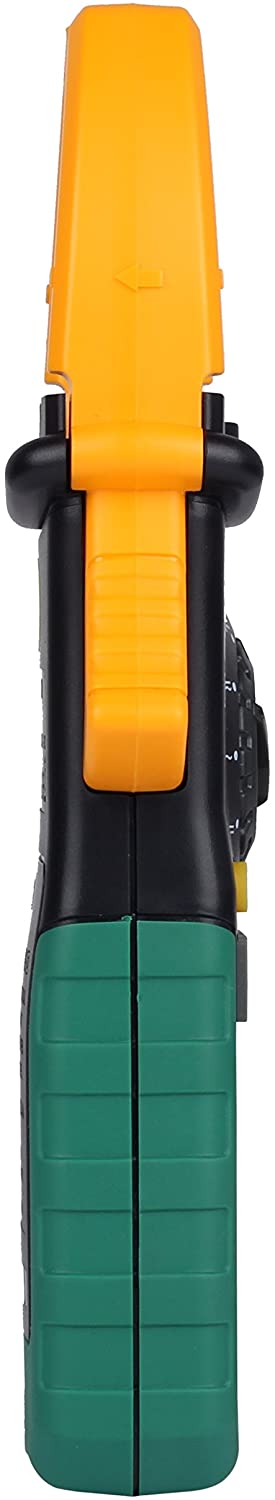

Multimeter AIMO MS2108A Auto Range Digital Clamp Meter 400 AC DC Current Hz Tester
- Measures AC/DC amps, AC/DC voltage, resistance, frequency, duty, capacitance, as well as continuity and diode test
- Display: 4000 counts LCD display with analog bar
- Maximum voltage between terminals and earth ground: DC 1000V or AC 750V
- Over range protection for all ranges
- Reading hold function
Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
Display: 4000 counts with analog bar LCD display.
Maximum voltage between terminals and earth ground: DC 1000V or AC 750V.
Over range protection for all ranges.
Reading hold function.
Square value measuring function. (at AC A and AC V range)
Maximum & minimum value measuring function.
Converte rate: 3 times/sec.
Bar graph: 30 times/sec.
Auto power off.
MAX. diameter for conductor: Ф26mm.
Secondary injection molding case.
Conform to the IEC1010-1 & IEC1010-1-032 standards.
Protection class CAT III 600V and pollution degree 2
Display: 4000 counts
DC Voltage Accuracy: 400mV / 4V / 40V / 400V / 1000V ± 0.8%
AC Voltage Accuracy: 4V / 40V / 400V / 750V ± 1.0%
DC Current Accuracy: 40A / 400A ± 2%
AC Current Accuracy: 40A / 400A ± 2%
Resistance Accuracy: 400Ω / 4kΩ / 40kΩ / 400kΩ ± 0.8%, 4MΩ / 40MΩ ± 1.2%
Capacitance: 40nF / 400nF / 4μF / 40μF / 400μF / 4000μF ± 4%
Frequency Accuracy: 10Hz / 100Hz / 1KHz / 10kHz / 100kHz / 1MHz / 10MHz ± 1%, 10 ~10KHz ± 2%
Duty Cycle: 0.1% ~ 99.9% ± 3%
Operating Temperature: 0℃ ~ 40℃ (32°F ~ 104°F)
Storage Temperture: -10℃ ~ 50℃ (10°F ~ 122°F)
MAX. Diameter for Jaw: Ф26mm
Dimension: 208mm x 78mm x 35mm
Power: 1.5V (AAA) x 3 (not included)

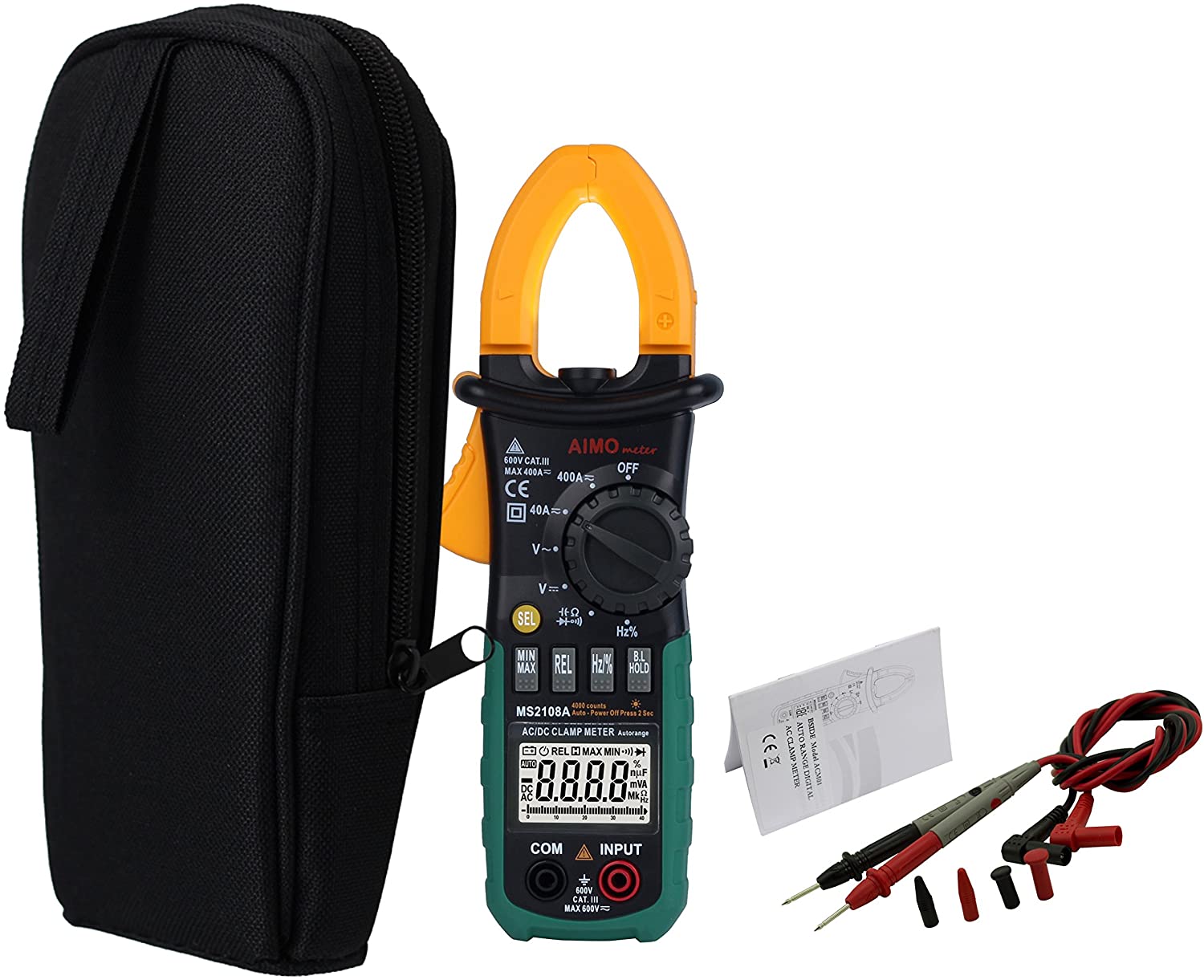

1 x MS2108A Clamp Meter
1 x Test Leads
1 x Canvas Bag
