Male Charging Connector for Scooter Batteries OKAI ES200G
Male Charging Connector for Scooter Batteries OKAI ES200G
Regular price
$46.00 USD
Regular price
Sale price
$46.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Please read the description carefully.
Shipping to Lower 48 USA states only via UPS Ground. No international shipping. Non-USA customers click here.

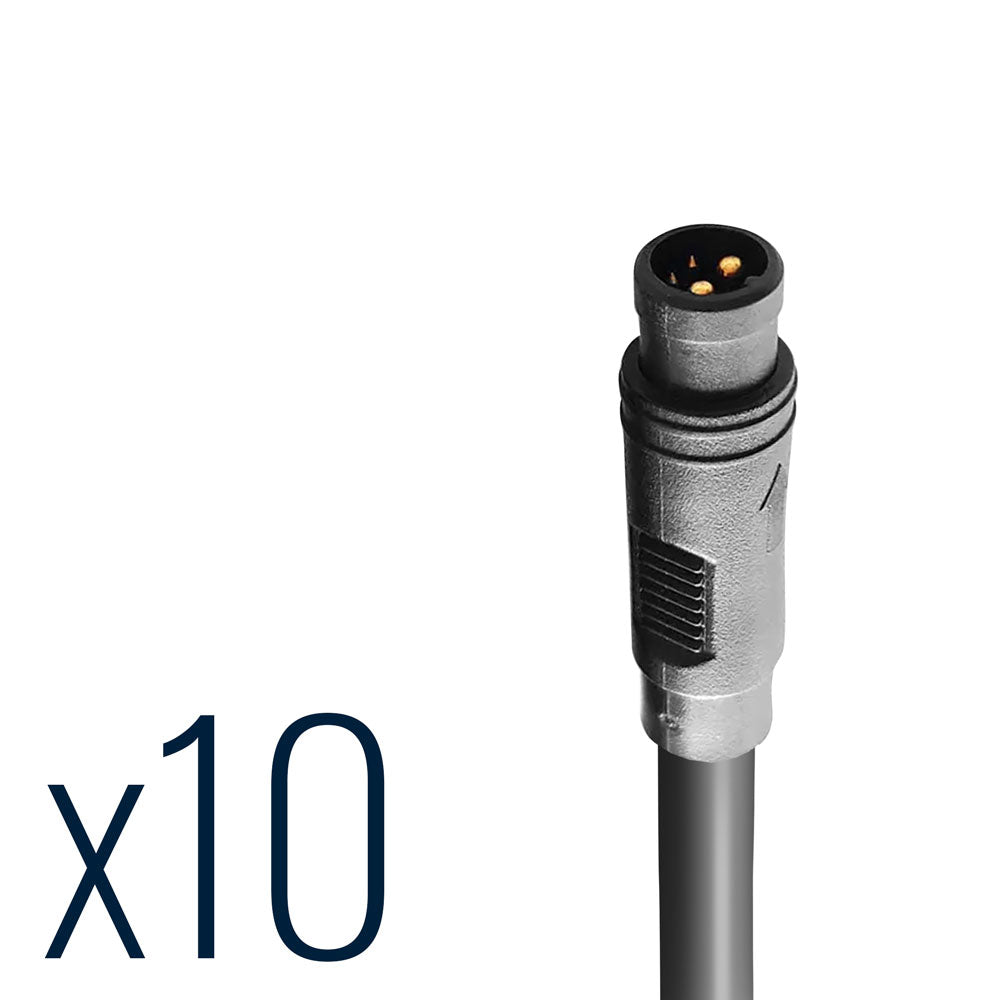

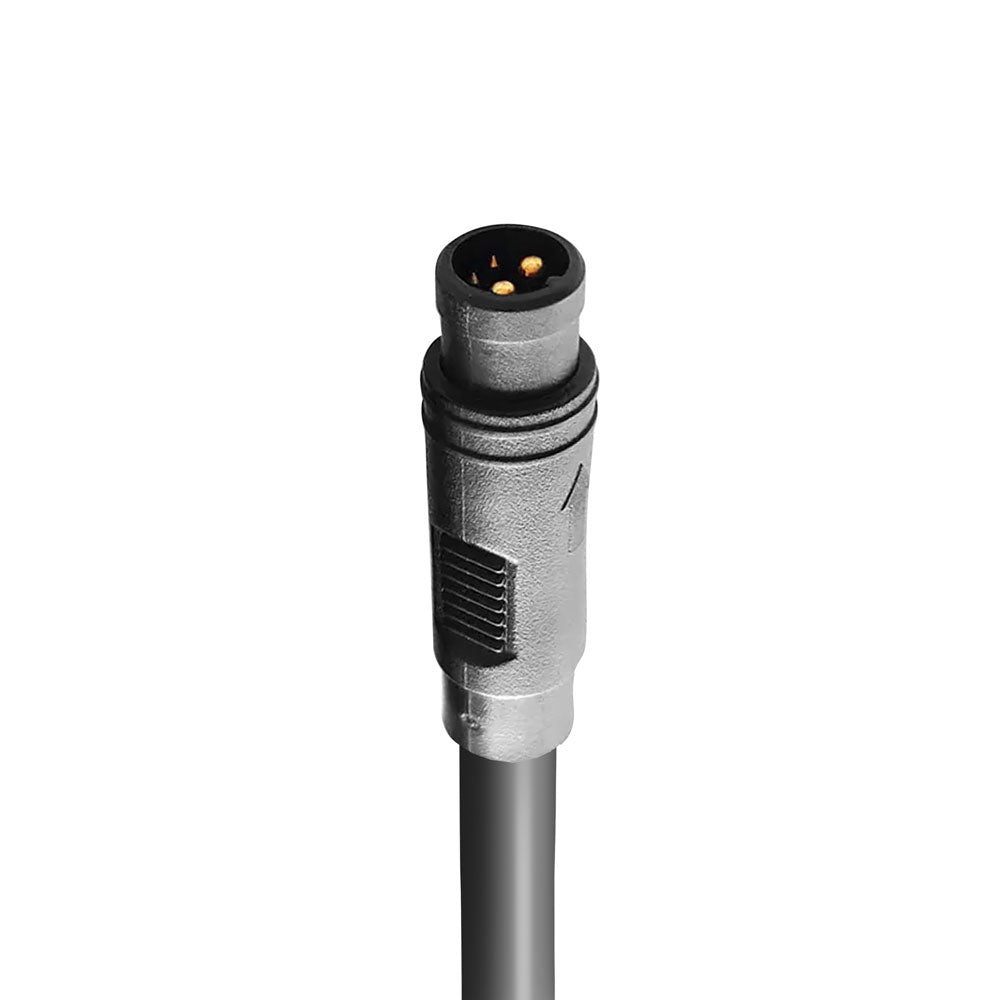

These are the male charging battery connectors you need for your OKAI ES200G scooter battery modules to connect your charger to your scooter batteries. Charging via this cable allows the BMS to use overcharge protection.
- 4-pin Ebike battery connector
- 2+2 pin main power and signal connectors
- Cable length is 4 inches (10cm)
- Rated 48v
- Rated 10A
- IP66 dust/water-resistant
You can use these connectors to help "wake up" the JAG35 scooter battery modules.
>> Check out our ACTIVATING DONGLE with charging cables, coming soon!

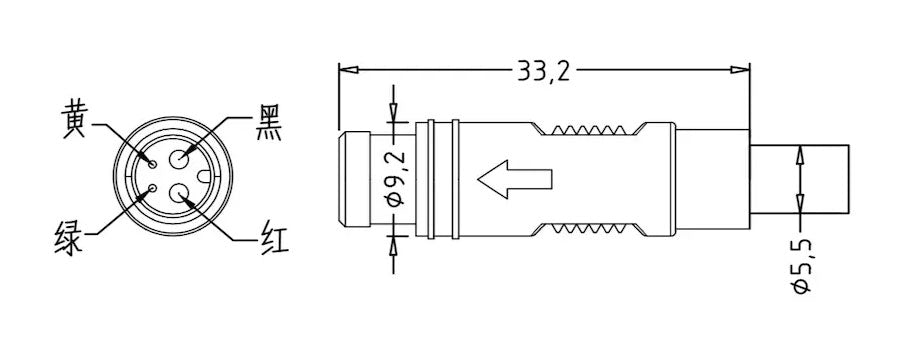

Technical Specs
Characteristics
Cable Length: 10cm (4 inches)
| Rated Voltage |
48V |
| Rated Current | 10A |
| Withstanding Voltage | 700V |
| Insulation Resistance | ≥20MΩ |
| Contact Resistance | ≤10mΩ |
| Mating Type | Insertion Force:80N Max, Extraction 30N Min |
| Mating Cycles | 200Times |
| Operation Temperature | -25℃~+80℃ |
| Protection Degree | IP66 |
| External Diameter | 9.2mm |
| Mating Length | 62mm |
| Contact Material | Copper alloy plated with gold which conforms to military standard |
| Wire Section | 0.82mm²+0.2mm² |
