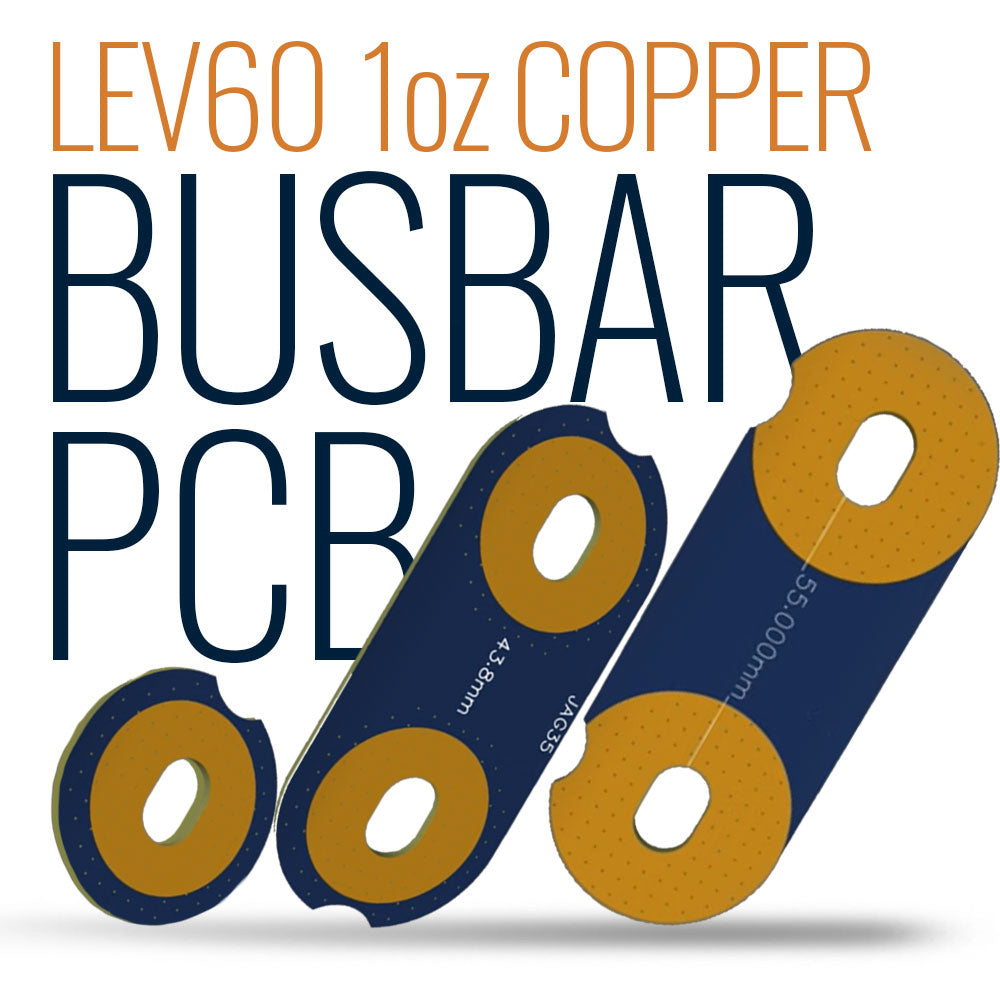

Brand new high-discharge busbars! These busbars are beefy! A single aluminum D-plate busbar is 1200A capable, while a single PCBs busbars is 600A capable (1oz copper). Perfect for turning the powerful LEV60F lithium-iron-phosphate (LiFePO4) cells into compact, high discharge, high performance batteries for things like 12v car audio, marine, 48v golf cart & UTV, and other high performance uses that require high amp discharge capability. Also great for building DIY solar systems and stationary storage batteries. The PCB busbars each have 1oz copper and can be stacked on top of each other to handle more amperage. LEV60F cells sold separately HERE. Hardware not included. 2/0 aluminum terminal blocks not included, but linked below. LEV60 Terminal torque: 9Nm +/- 3 / 6.64ft-lb.
Available in 4 variations (choose from dropdown menu):
- 55mm PCB Busbar, for series connection, (sold one-by-one)

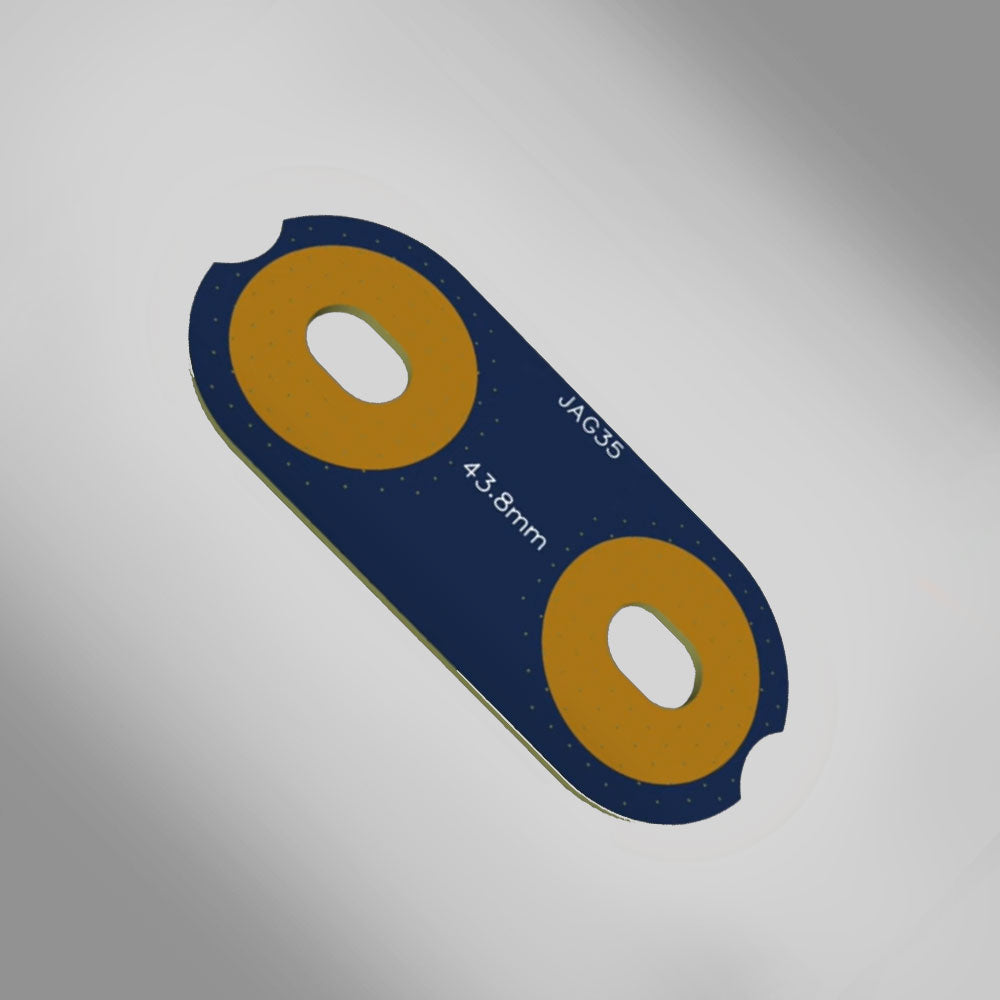

- 43mm PCB Busbar, for parallel connections (sold one-by-one)

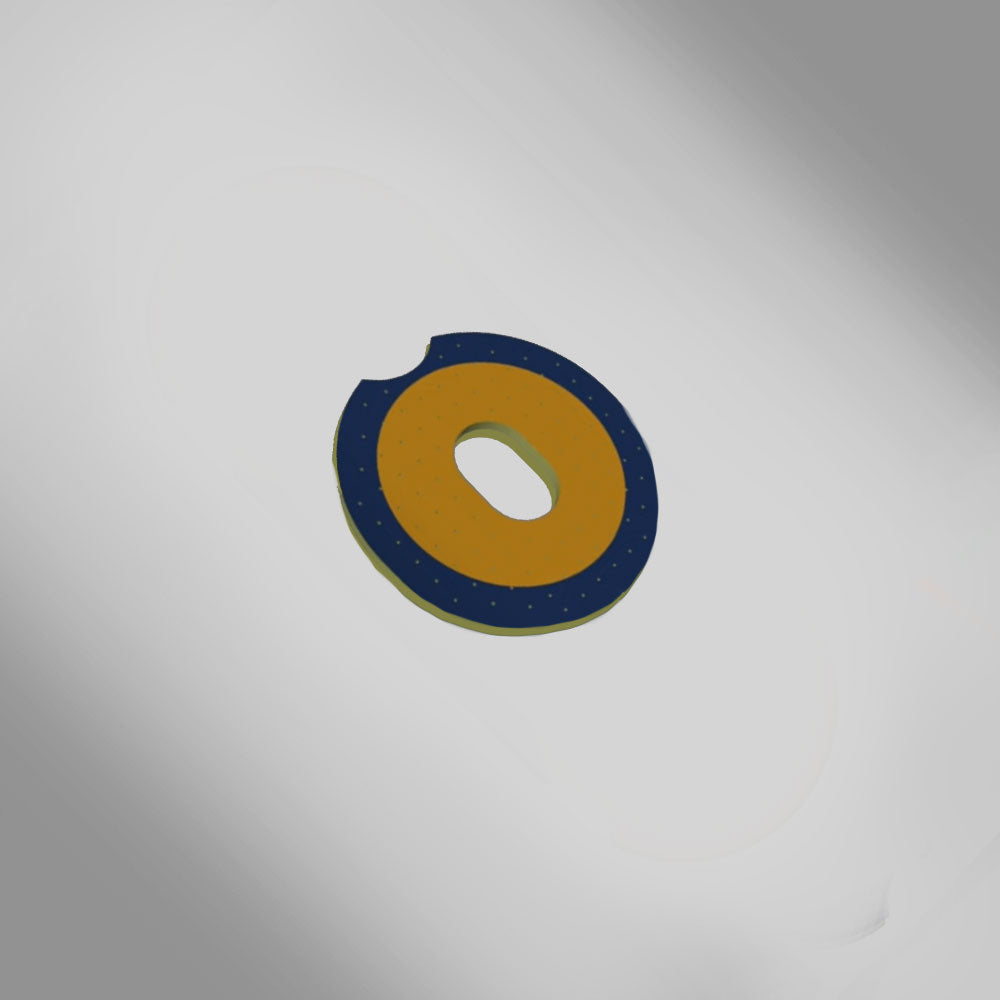

- Single Stud Busbar (sold one-by-one)
- D-Plate Aluminum Busbar Pair (set of x2 plates) for use with 2/0 Aluminum Terminal Blocks (2/0 blocks not included).
For customers who wish to add 2/0 terminal blocks after receiving their LEV60 battery you can buy them here
**Note: When using for LEV60F cells, if combining with the JAG35 12v/24v/48v PCB busbar kits, then the busbars are required to prevent shorts (adds height between the cells and the main large PCB busbar).
If using with the JAG35 12v PCB busbar kit, five (x5) PCB busbars are required to prevent shorts (x3 of 55mm, x2 singles). See the diagram below for more details:
If using with the JAG35 24v PCB busbar kit, nine (9x) PCB busbars are required to prevent shorts (x7 of 55mm, x2 singles). See the diagram below for more details:
If using with the JAG35 48v PCB busbar kit, seventeen PCB busbars are required to prevent shorts (14x of 55mm, 1x of 43mm short, 2x singles). See the diagram below for more details:
Other components you'll need:
-
Fish Paper for isolation between cells available > HERE
- Compression kit sold separately > HERE
- 5-pin jumper cable sold separately > HERE
