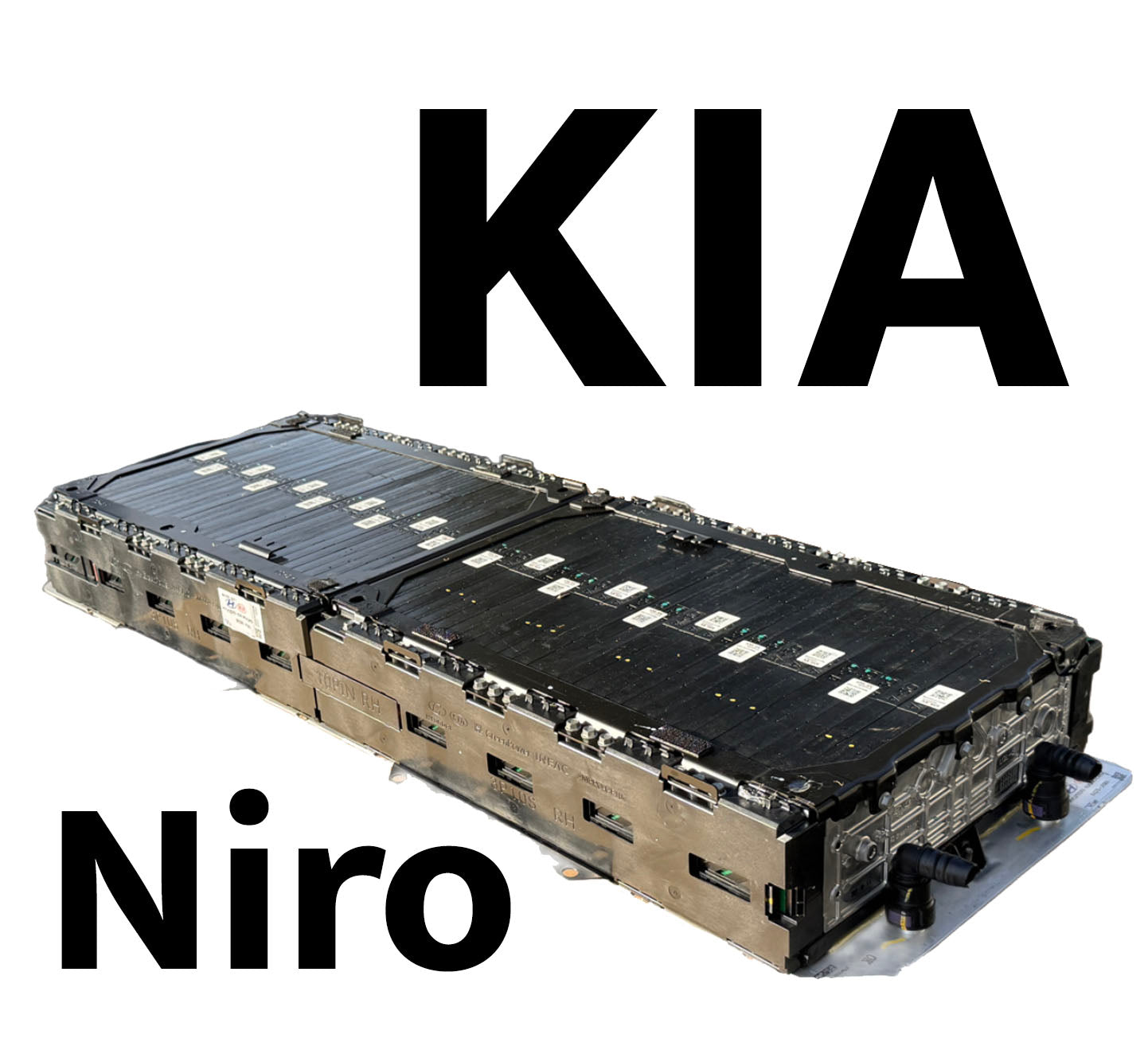

Kia Niro SK Inovation Battery Modules - E600B

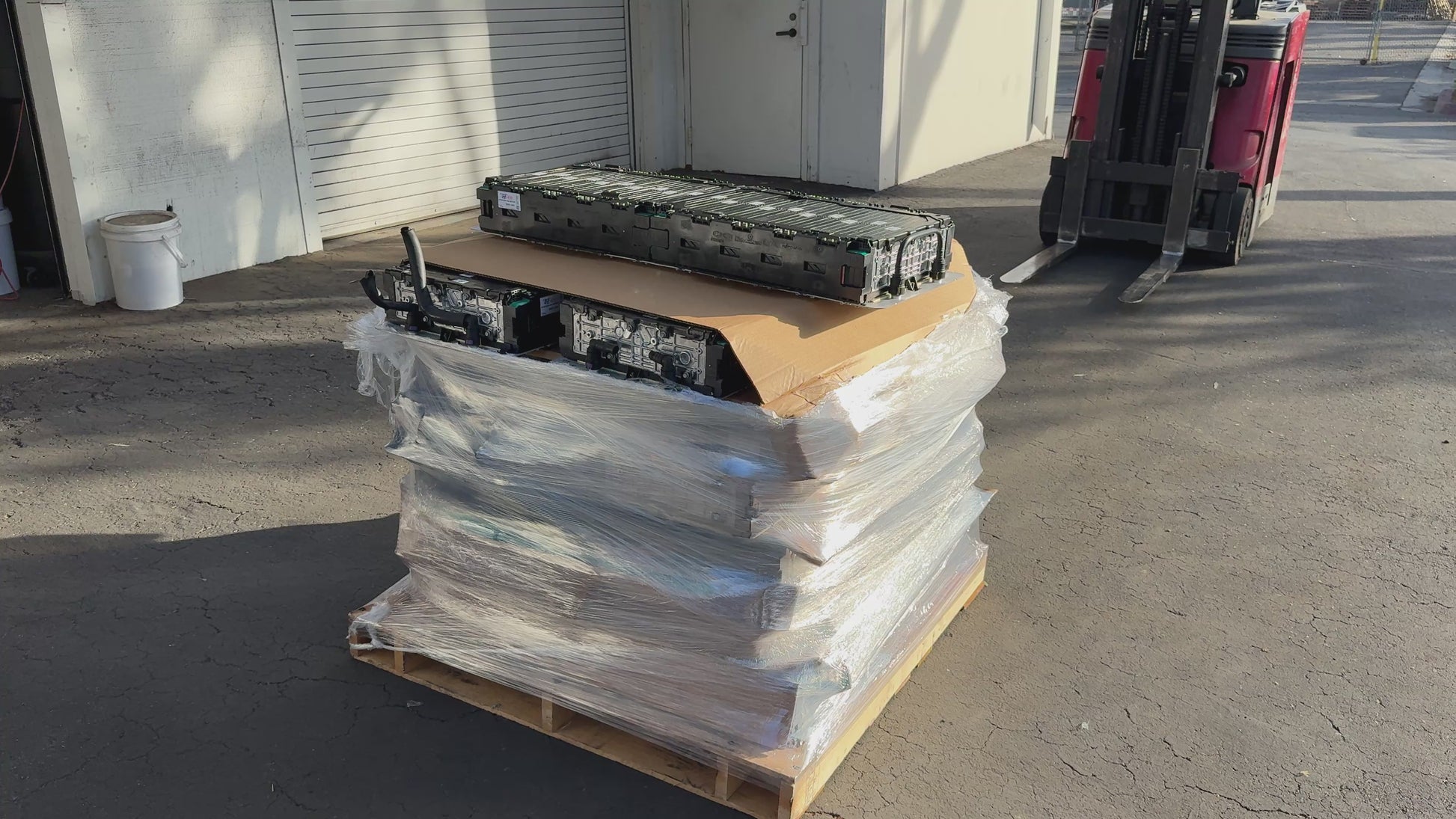

Shipping to Lower 48 USA states only via Ground Shipping. No shipping to PO Boxes. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here. The Double Modules must be shipped via LTL so shipping charge will not be accurate,  we will contact with actual LTL Freight quote.

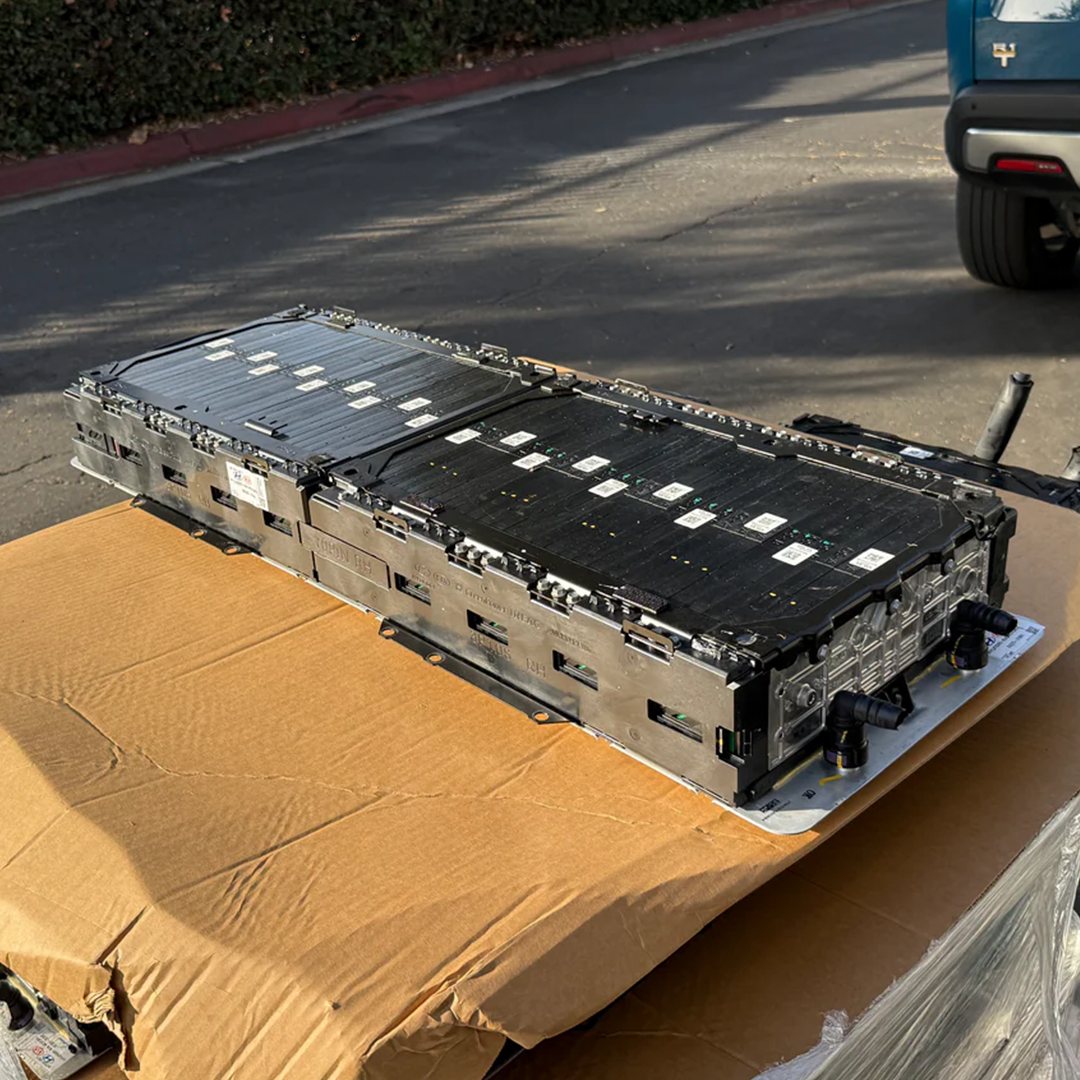

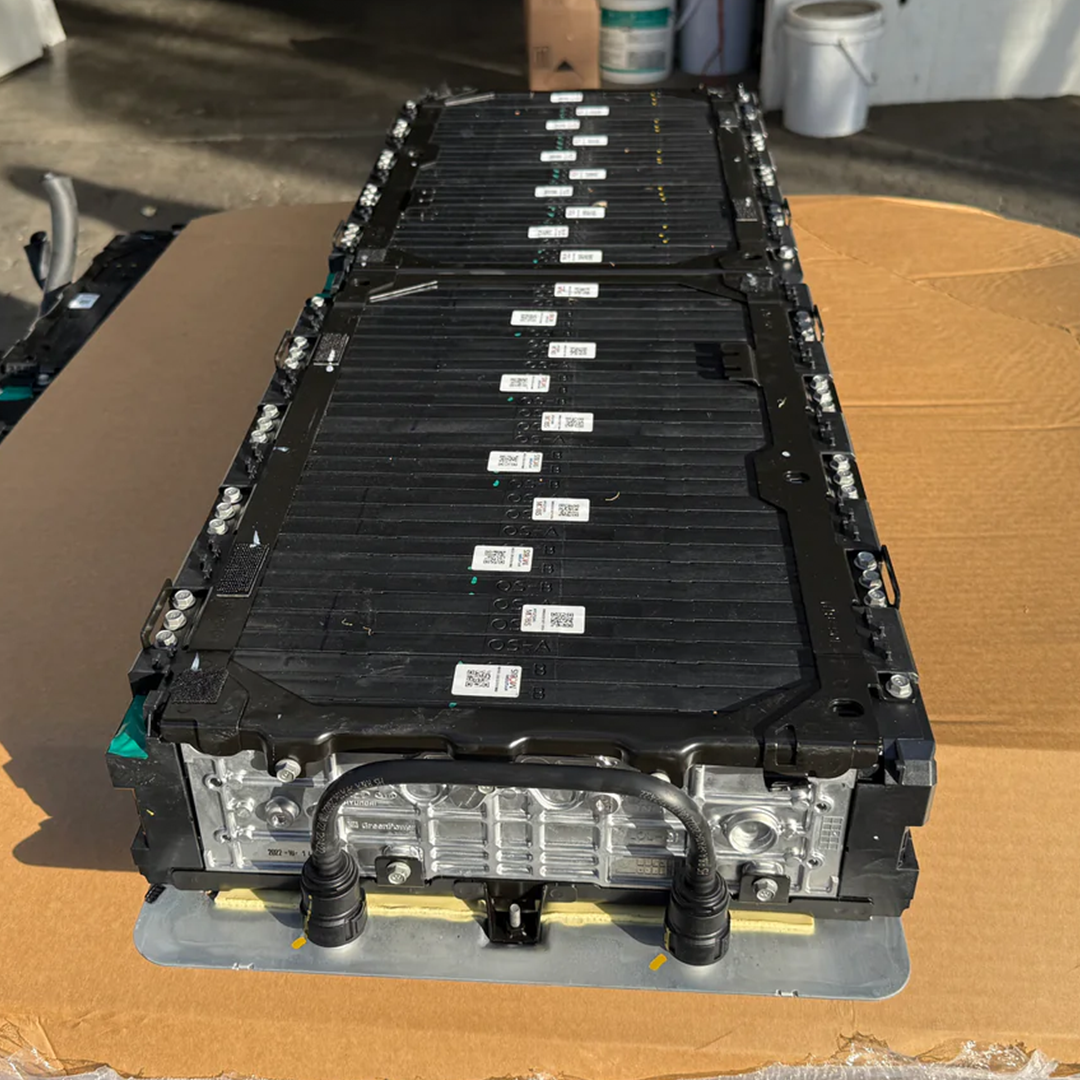

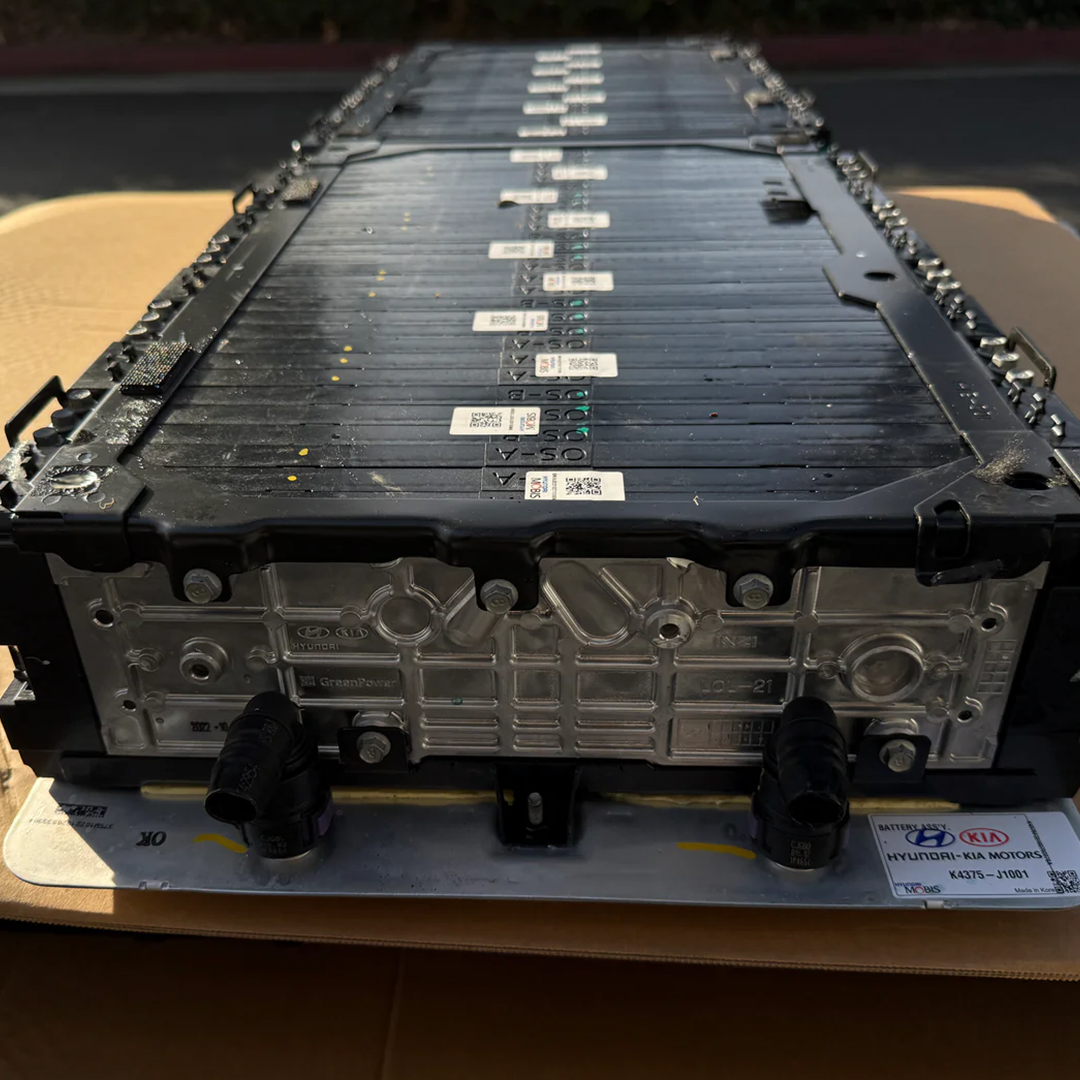

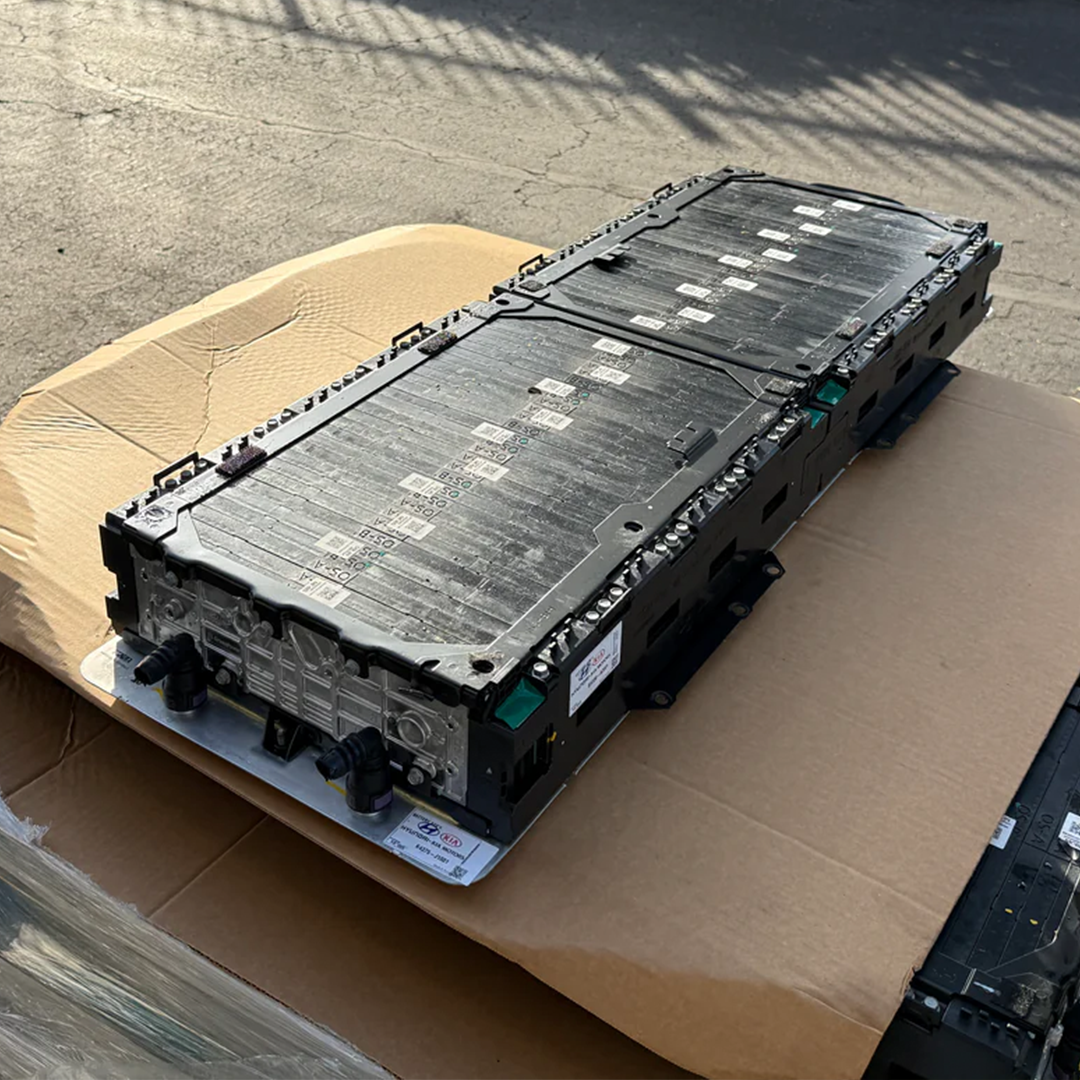

EV pouch cell modules! Modules contain NMC 3.7v cells made by SK innovation. Modules come in 9s3p and 10s3p and they come assembled in double module assemblies.   Modular design, so you can disassemble and combine to make different voltages. For example, buy 14x of the 1s3p config to make voltages like 48v (14s) and other voltages.  Easy access to all the terminals. Easily add your own chill plate for liquid cooling. The cells are not taken from any recalled battery packs. Cells may be from LG Chem or SK Innovation. BMS not included.

Compared to regular lithium-ion cells, these pouch cells provide better temperature stability and tolerance. Ultra thin design = small size, extremely light weight, and ability to accommodate many applications. Use as cheap way to build out a solar battery solution.

Available in 3 variants (choose from dropdown menu):

• Single 9s3p Module 33.3v 180Ah 5.87kWh  - 20"x15"x5"
• Single 10s3p Module 37v 180Ah 6.53kWh  - 21" x15" x 5"
• Single 9s3p + 10s3p Modules + Chill plate  12.4kWh - 40' x15" x 5"
• Double 10s3p Modules + Chill plate  37v x 2 180Ah 13kWh - 41" x 15" x 5"

Cell specs:

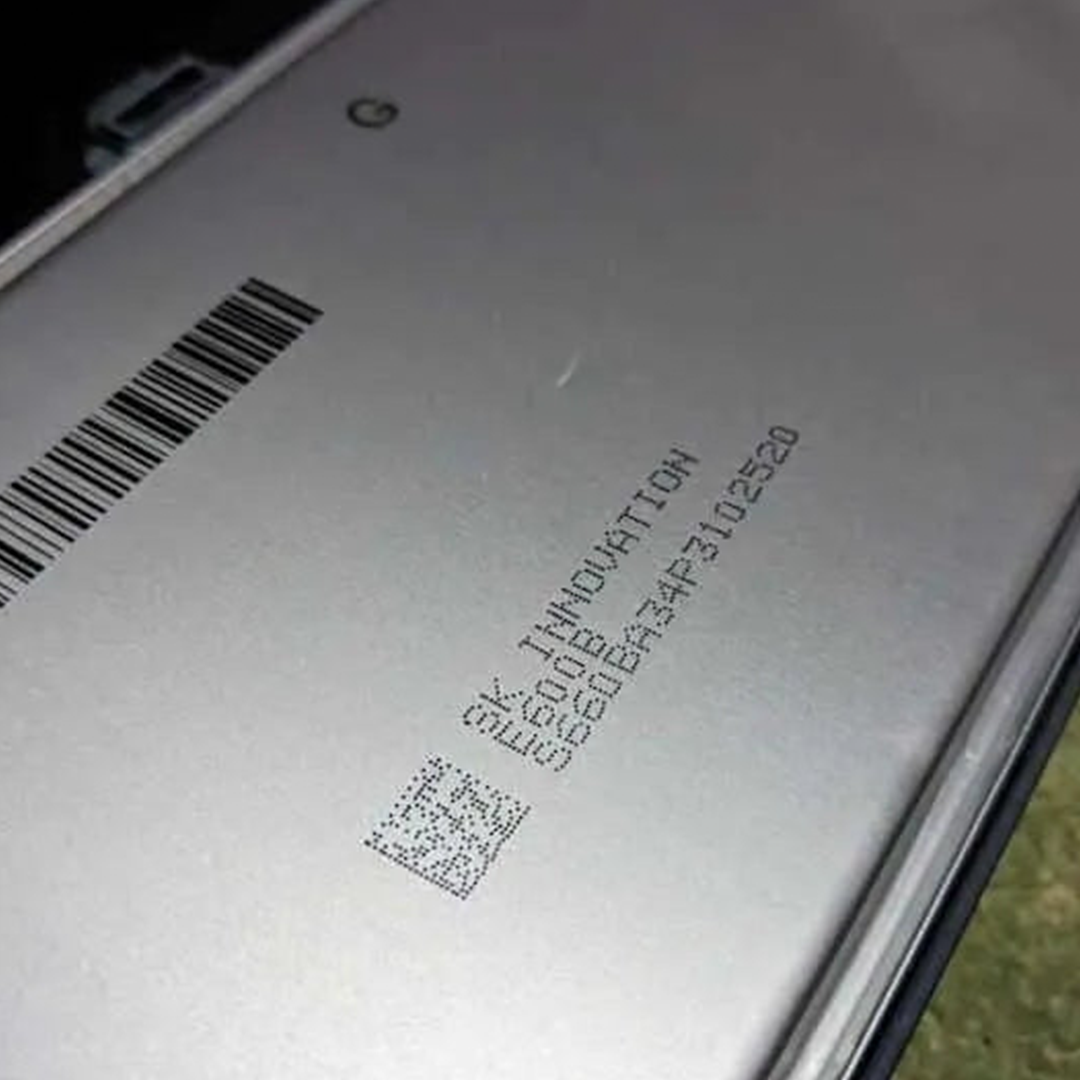

• Model = E600B
• Chemistry = NCM622
• Nominal capacity = 60 Ah
• Nominal energy = 3.63 V
• Nominal energy = 218 Wh
• Dimensions = 300 x 100 x 14mm
• Mass = 0.899 kg
