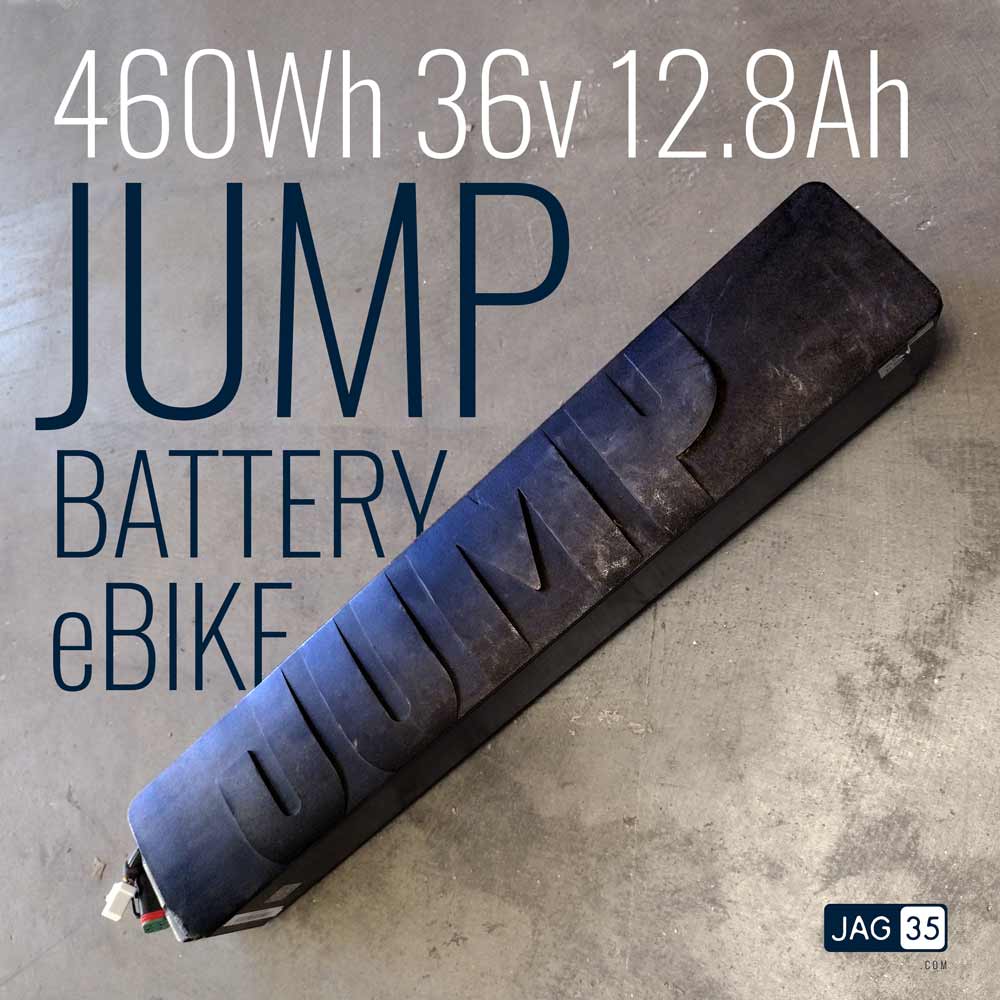

JUMP eBike Battery 40 cell 18650 LG MH1 36v 12.8Ah 460Wh

JUMP eBike Battery 40 cell 18650 LG MH1 36v 12.8Ah 460Wh

Regular price $71.10 USD
Regular price $119.00 USD Sale price $71.10 USD
Sale Sold out
Shipping calculated at checkout.

Please read the description carefully.

Shipping to Lower 48 USA states via Fedex Ground only. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.


These are untested JUMP eBike Batteries with 40 cells 18650 LG MH1 36v 12.8Ah 460Wh in 10s4p configuration. Battery model # INR18650MH1-10S4P. They contain x40 high quality 3200mAh LG MH1 18650 lithium-ion cells. Packs should have around 90-95% capacity. Untested packs are in unknown condition and sold as-is, not eligible for refunds or returns, no exceptions.

For DIY use, requires the use of a CAN Controller dongle to activate/wake the BMS. Instructions to DIY your own dongle can be found here. Alternatively you can also perform this hack to wake them up. You can also replace the BMS or just harvest cells.

These packs don't have glue, making them perfect for harvesting cells. To do so you have to open and extract the cells,  you'll have to cut and clean the Nickel interconnects using snips. Once the Cells are out and clean you will have to test them using a charger like this.

Available in quantities x1, x2, x3 x4 and x6.

Typical Capacity: 3200mAh
Nominal Capcity: 3100mAh
Diameter: 18mm
Length: 65mm
Voltage nominal: 3.6V
Charge voltage cut-off: 4.2V
Discharging cut-off: 2.5V
Module Dimentions: 16"x 3"x1.75"

I recommending using this BMS units:

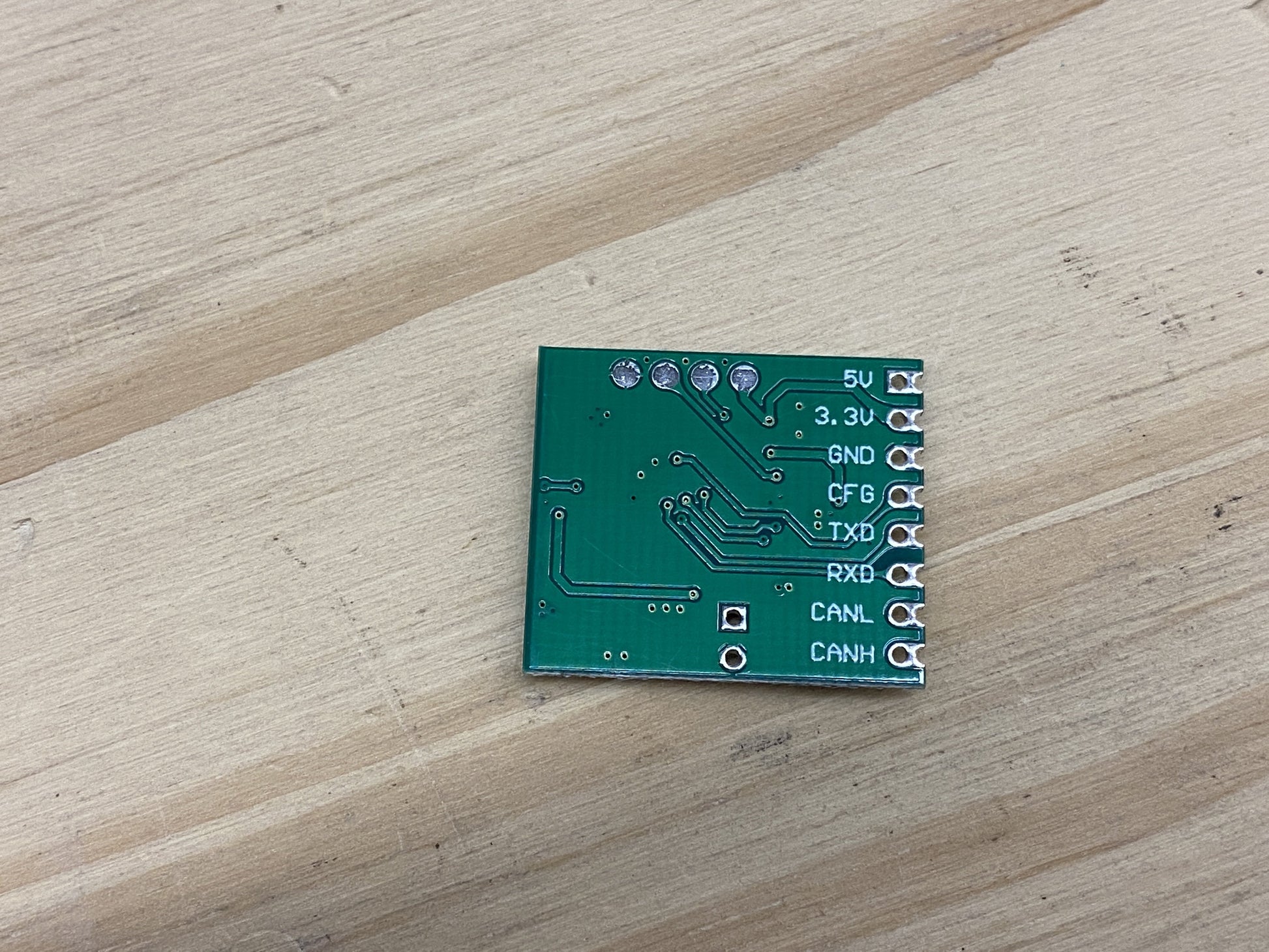

Required Dongle CAN Controller

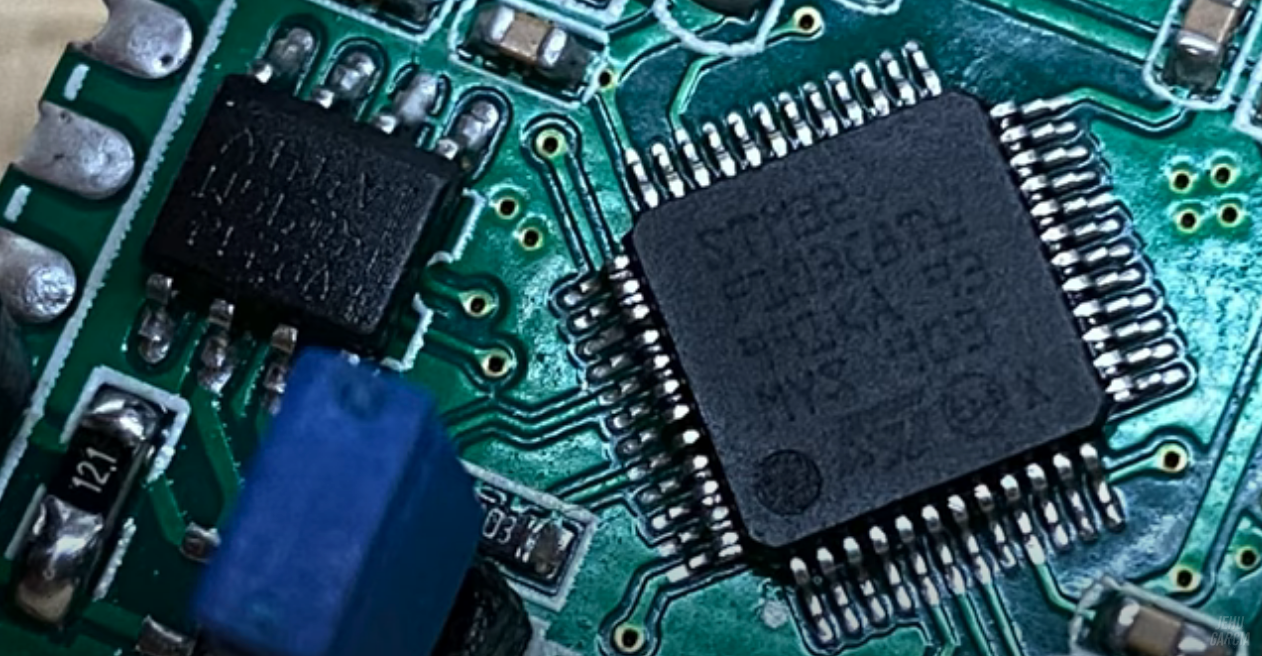

This a STM32 Based CAN controller to wake up the JUMP 36v Scooter Battery pack BMS system. Fully Coded by ALEX GRADEA with source code found here, ready to be wired and used.

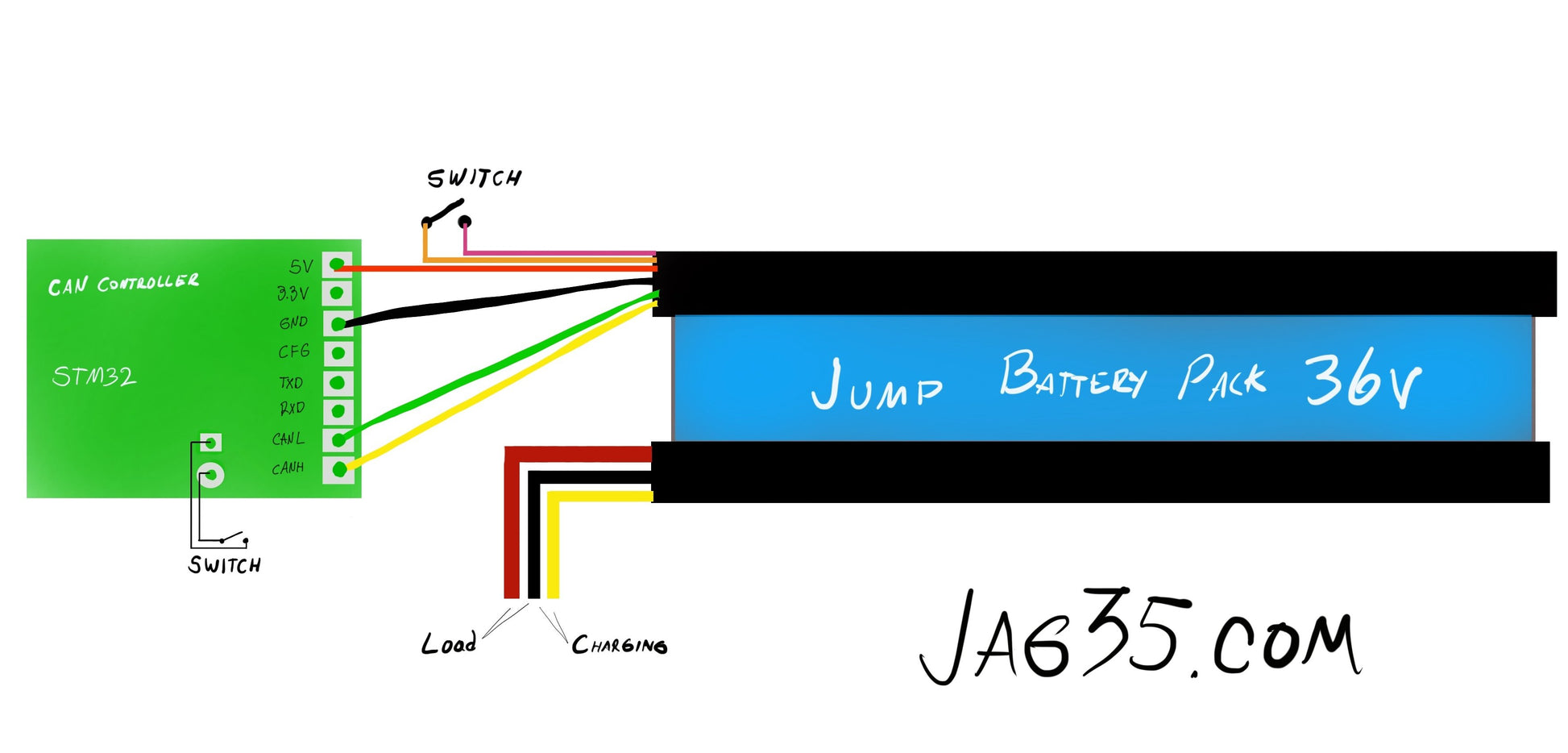

Battery Pin Out:

Red: 5v Positive
Black: 5v Ground
Yellow: CANH
Green: CANL
Orange: Connect to Pink
Pink: Connect to Orange
Blue: Not used
White: Not used

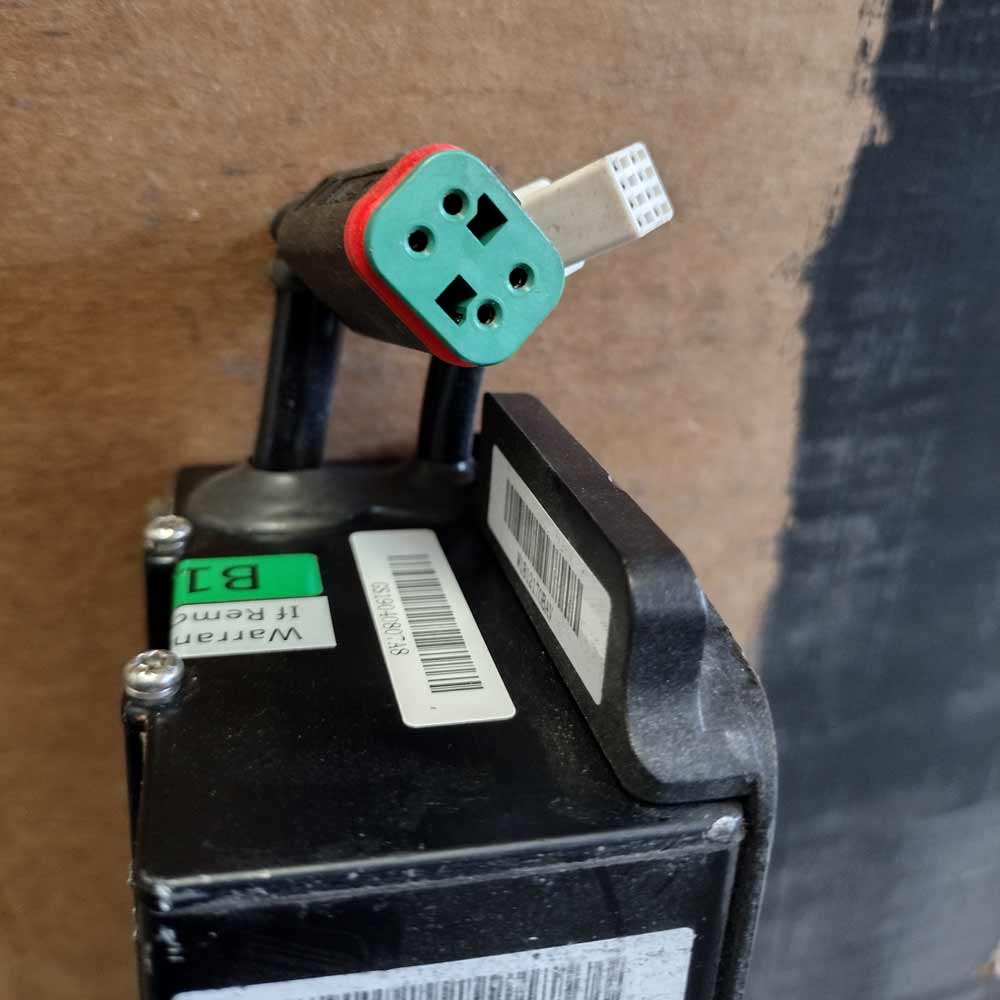

Power Connector
Red: LOAD Positive
Black: LOAD Negative
Yellow: Charge Positive
Black: Charge Positive

Watch this video for more info:

Combine multiple packs using my DC Powerstrip:



Untested packs are in unknown condition and sold as-is, not eligible for refunds or returns, no exceptions.

Note that these are reclaimed packs, so the actual cell voltage you receive may be lower than the label shows. These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Buyer is responsible for proper cell recycling/disposal. Sold as-is. No refunds.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.

NEW YORK residents:
On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.

Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
