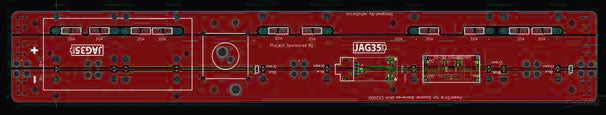

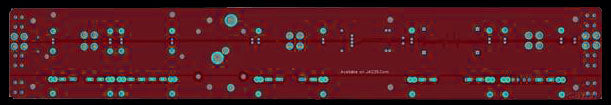

This listing is for the MegaloDONGLE Activator Powerstrip PCB Board that allows you to build your own DIY Megalodongle kit. See below for additional parts needed. Assembly and soldering required.

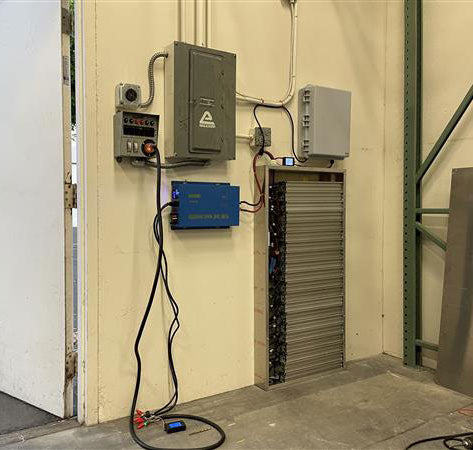

The MegaloDONGLE Activator Powerstrip is designed especially for your DIY Powerwall build using ES200G 40-Cell Scooter Packs. Connect multiple MegaloDONGLE Activator Powerstrips together to build your powerwall to your custom specs. Each MegaloDONGLE Activator Powerstrip allows you to activate/wake 10 Okai ES200G Scooter battery packs. Discharge via an SB120 Anderson connector, charge via XT90.
DIGITAL UNLOCK SIGNAL
The MegaloDONGLE Activator Powerstrip sends the required Digital Unlock Signal each battery pack needs in order to remain ON while in use.
CHARGING + DISCHARGING CABLES
Each MegaloDONGLE Activator Powerstrip needs 10x male scooter pack charge cables and 10x male scooter pack discharge cables to take full advantage of the scooter pack's BMS safety features.
BUILT-IN METER w WIRELESS
The MegaloDONGLE Master supports a DC 500V 500A WIRELESS VOLTAGE/POWER/CAPACITY METER. It has 18 functions to help you conveniently and quickly access more accurate measurements. (Note: Slave MegaloDONGLE does not require a meter.)
Wireless transmission of data, to avoid the complex wiring between the display and detection modules that could cause interference.
Hall sensor is used to realize non-contact detection current without disconnecting wires, which is safe, reliable and convenient.
Voltage, current, power, temperature, capacity, percentage of remaining capacity, running time is displayed at the same time.
Double relay interface. Manage charge and discharge separately.
With charge over voltage, discharge under voltage, charge over-current, discharge over-current protection.
The memory function of the breakpoint, power-on and power-off, and the number of AH and WH before power-off can be memorized.
More meter specs & details here.
Parts you will need:
- 10x charging connectors - LINK
- 10x Discharging Connectors. - LINK
- 10x Fuse holders - LINK
- 10x 20A fuses - LINK
- 1x DC-DC module - LINK
- 1x Arduino - LINK
- 8x M4 nuts - LINK
- 8x M4 nylon standoffs - LINK
- 1x DC 500v Meter - LINK
- 1x Xt90 Pigtail - LINK
- 1x SB120 Connector - LINK
- 1 meter of 6AWG cable - LINK
- 6x M4 terminals - LINK
- 10x Okai ES200 Scooter Batteries - LINK
- Instructions on setting DC-DC Voltage and programing the Arduino - LINK
See these instructional videos:
