JAG35

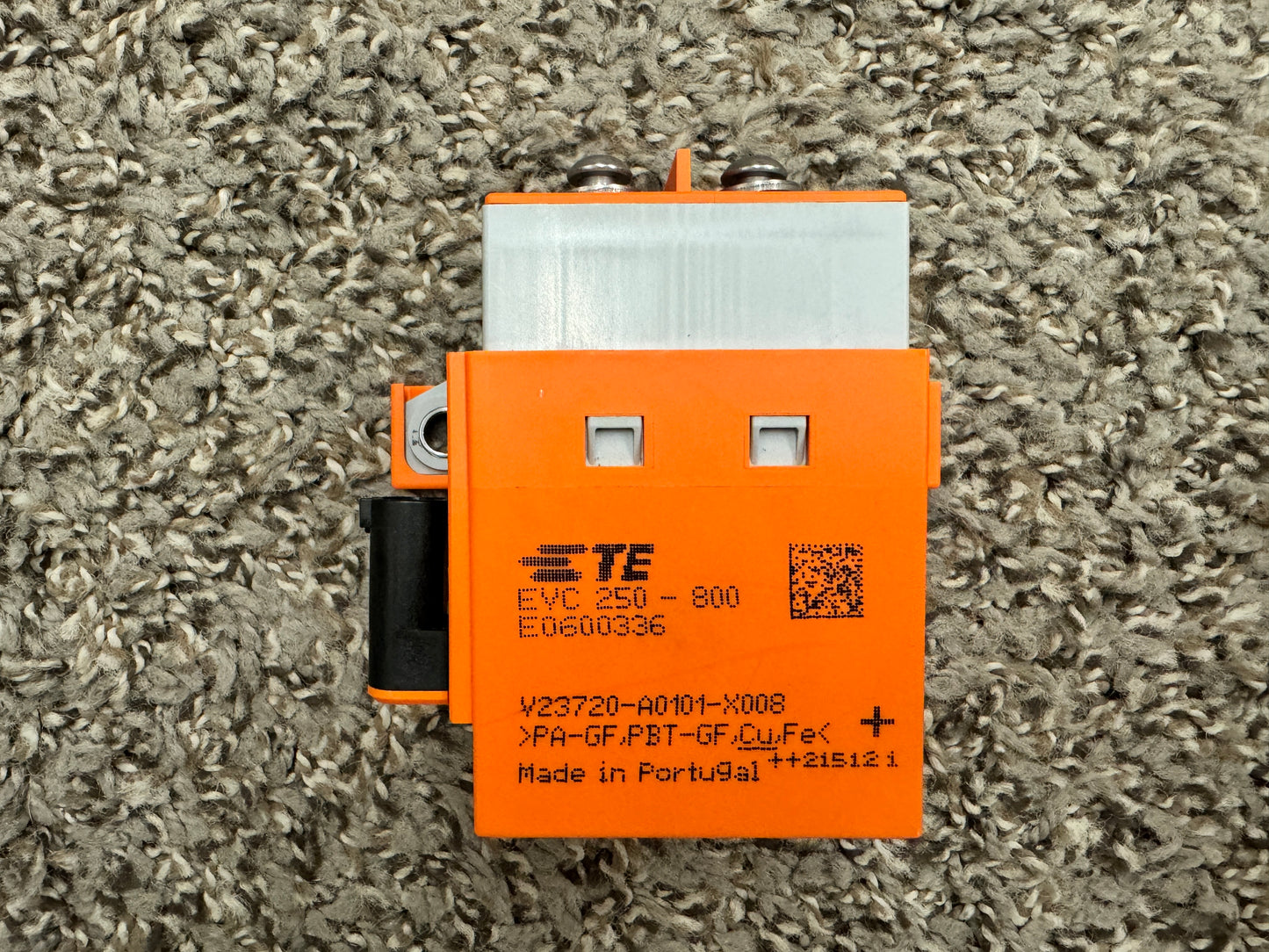

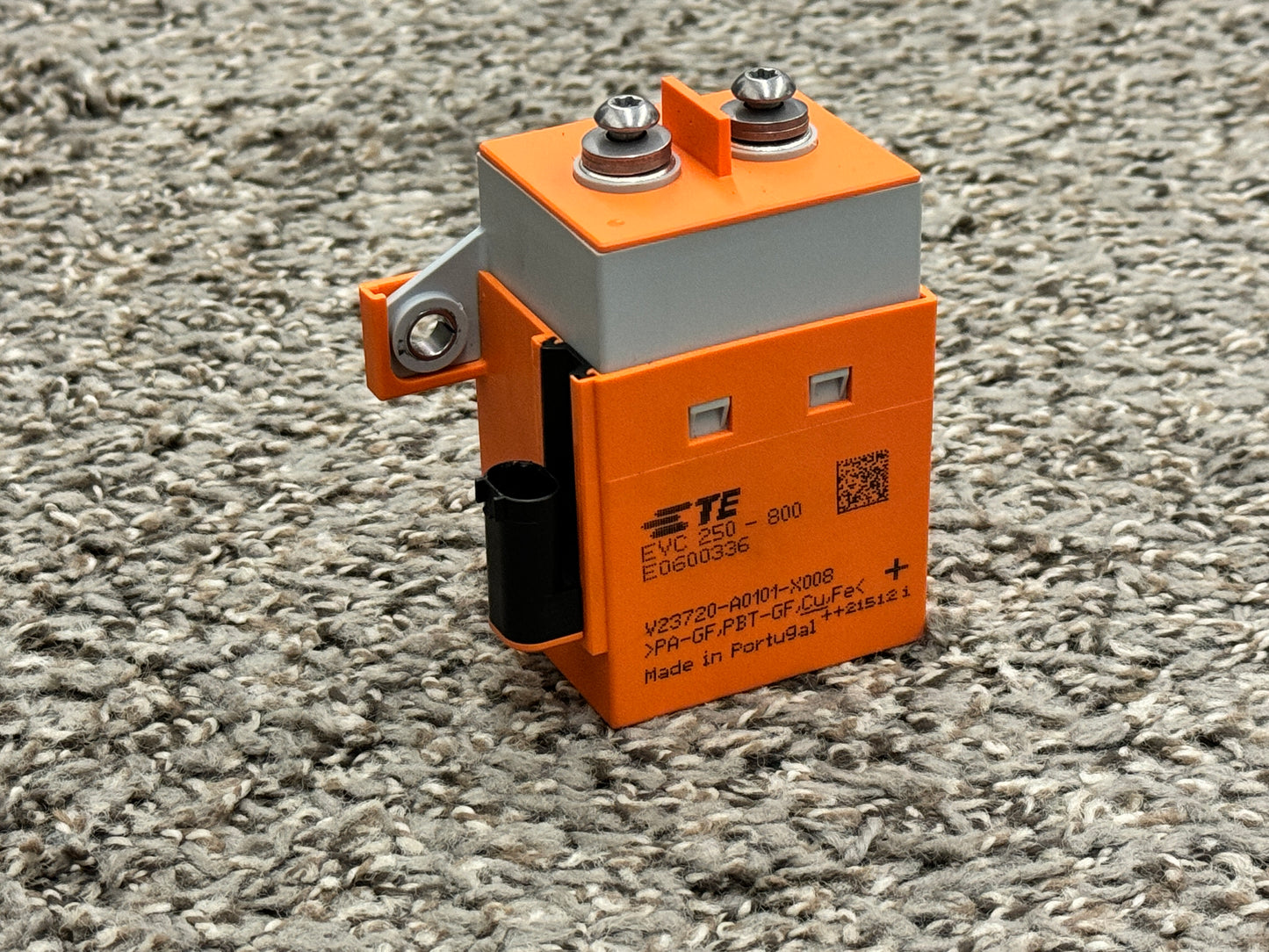

High Voltage Automotive EVC 250-800 Main Contactor 800v E0600336

High Voltage Automotive EVC 250-800 Main Contactor 800v E0600336

Regular price $49.00 USD
Regular price Sale price $49.00 USD
Sale Sold out
Shipping calculated at checkout.

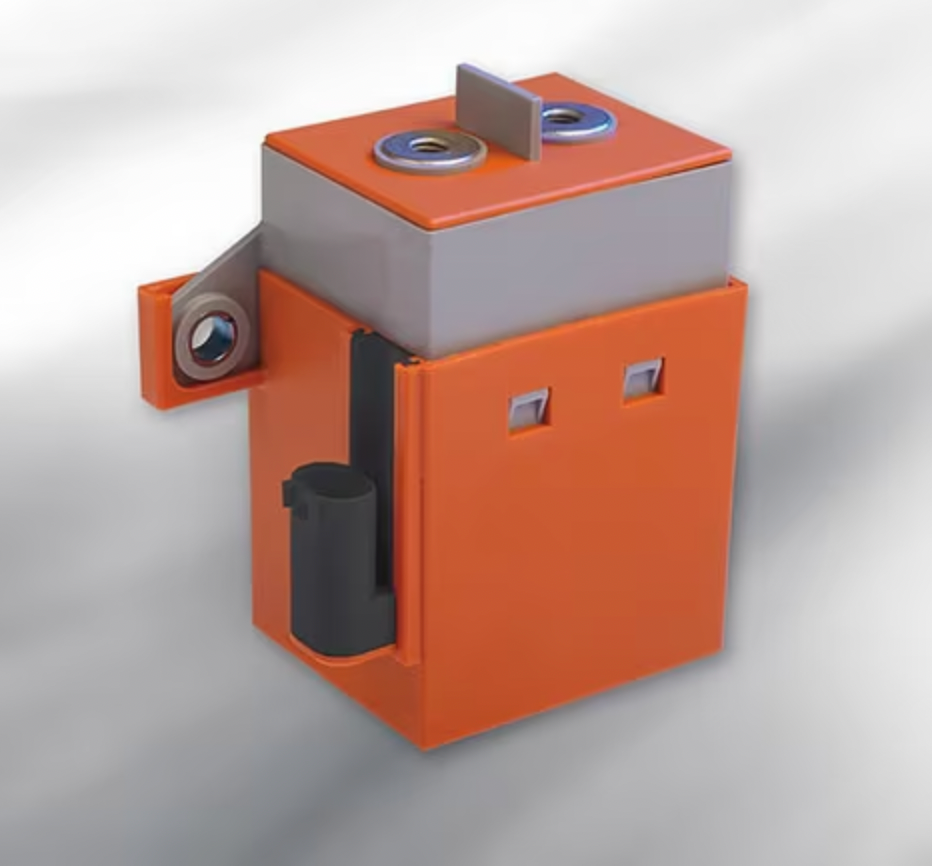

The EVC 250-800 contactor is specially designed with a rated load voltage of 800V.  The internal design,  ensures creepage and clearance distances according to IEC 60664 up to 1000V. This feature makes the EVC 250-800 contactor ideally suited for commercial vehicles as well as passenger cars with elevated system voltages.

EVC 250-800 Contactor Highlights


    • Compact high voltage main contactor
    • Voltage rating up to 800VDC
    • Continuous current up to 250A at 85°C
    • Short circuit carry currents up to 6kA

    Applications

    DC high voltage applications as main contactor in
    hybrid and electric vehicles especially for:

    • Commercial vehicles
    • Trucks and buses
    • Passenger cars

    Requirements

    The requirements for the main contactor under normal operation conditions are:

    • Connect and disconnect the battery
    • Carry several hundred Amps with low power dissipation
    • Ensure full galvanic isolation, when the vehicle is turned off

    The requirements for failure cases are:

    • The contactor must be able to switch off overcurrents of up to 700A
    • The contactor must still be capable of separating the circuit after an overload
    • The contacts must remain closed in case of overload (especially at short circuits), as long as the contactor is activated
