EVE MB56 628Ah 3.2V LiFePO4 Battery Cell | Grade A Prismatic | 2.0kwh
EVE MB56 628Ah 3.2V LiFePO4 Battery Cell | Grade A Prismatic | 2.0kwh
Regular price
$165.00 USD
Regular price
Sale price
$165.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

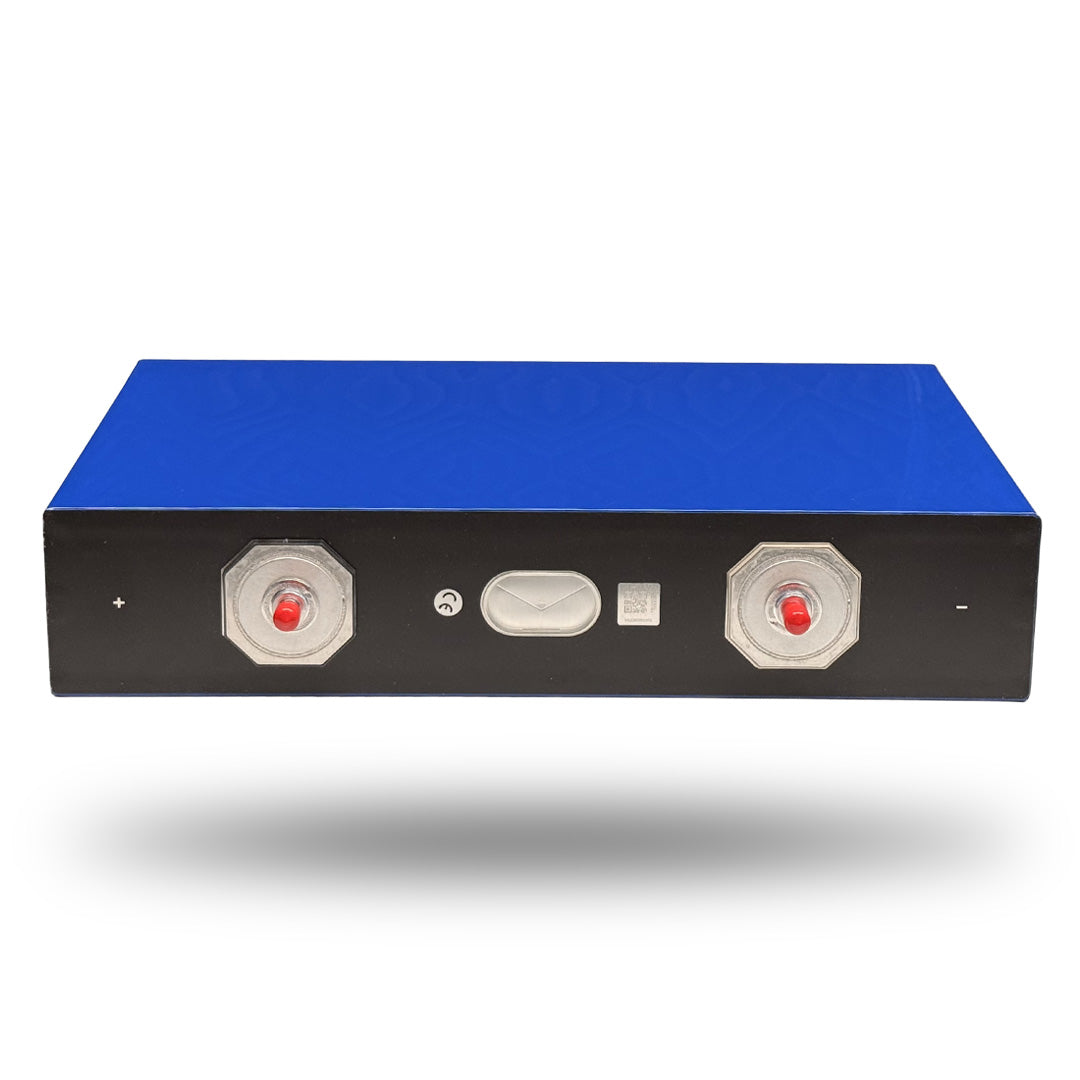

EVE Power MB56 628Ah Prismatic LiFePO4 Cell
The EVE MB56 is the next generation of high-capacity energy storage, offering a massive 628Ah (2.0kWh) in a single prismatic cell. Designed for large-scale solar arrays, off-grid home storage, and marine power, this cell provides double the energy of standard 300Ah models with fewer connections and higher reliability.
🚀 Key Features
- Ultra-High Capacity: 628Ah nominal capacity for maximum energy density.
- Long Cycle Life: Rated for ≥8,000 cycles at 70% SOH (0.5P/0.5P).
- Factory Fresh: Manufactured on September 21, 2025 with fully traceable QR codes.
- NTP Technology: Built-in "No Thermal Propagation" technology for industry-leading safety.
Technical Specifications
| Manufacturer | EVE Power |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage / Capacity | 3.2V / 628Ah (2009.6 Wh) |
| Weight | 11.5 kg (25.35 lbs) |
| Dimensions (L x T x H) | 352.3 x 71.7 x 207.2 mm (13.87" x 2.82" x 8.16") |
| Internal Resistance | ≤0.25mΩ |
| Charging Temperature | 0°C to 60°C (32°F to 140°F) |
| Discharging Temp | -30°C to 60°C (-22°F to 140°F) |
Note: Due to the 25.35 lbs (11.5 kg) weight per cell, ensure your battery rack or enclosure is rated for the total weight of the bank. Busbars and terminal nuts are not included.
