The Ultimate DIY Powerhouse

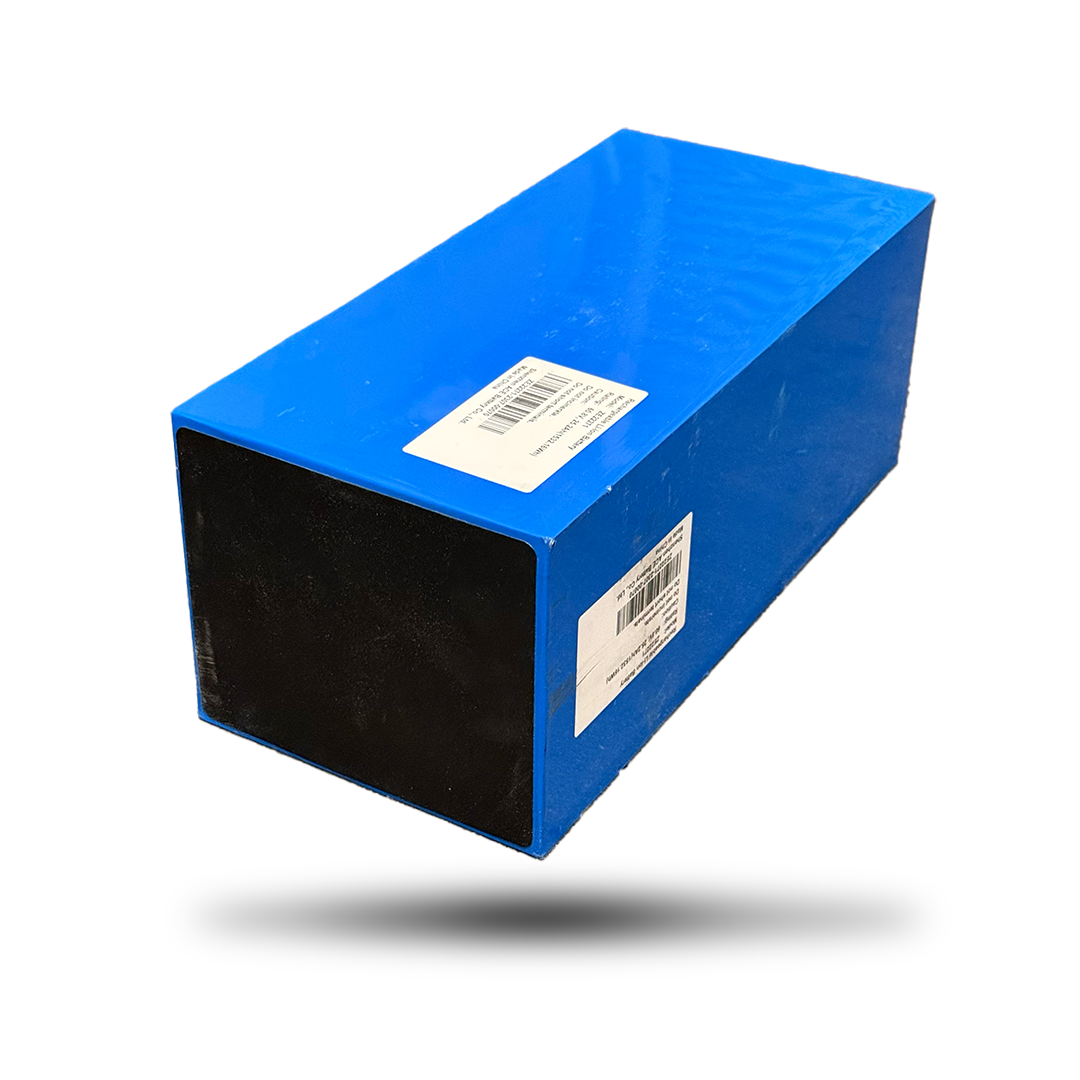

Built by Enphase, a world leader in energy management, this 1.5kWh module is a rare find for the DIY community. Utilizing ultra-safe CBAK 26700 Lithium Iron Phosphate (LiFePO4) chemistry, this module offers a compact, lightweight, and incredibly stable power source for everything from home solar storage to high-performance electric vehicles.
⚠️ IMPORTANT: DIY CONFIGURATION REQUIRED

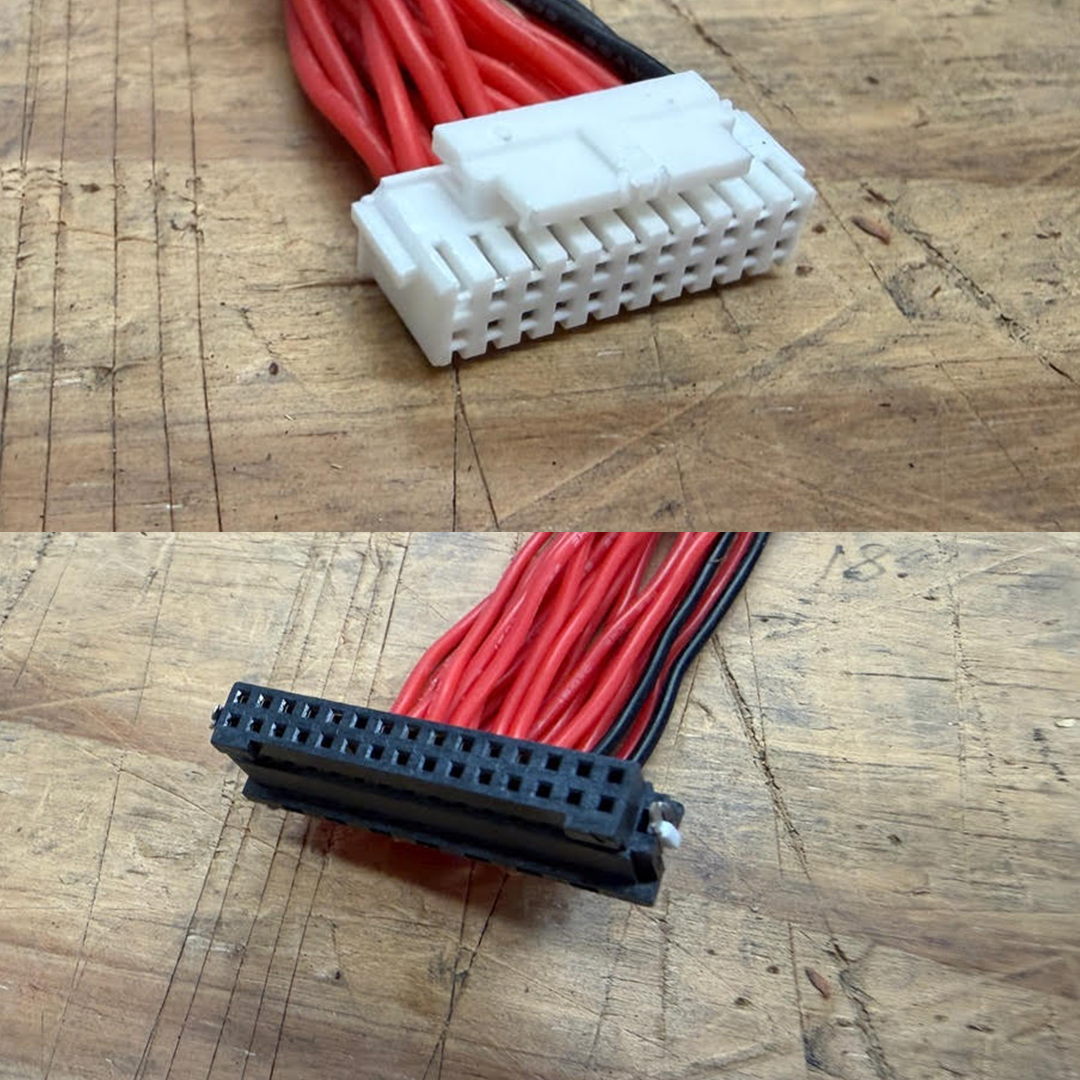

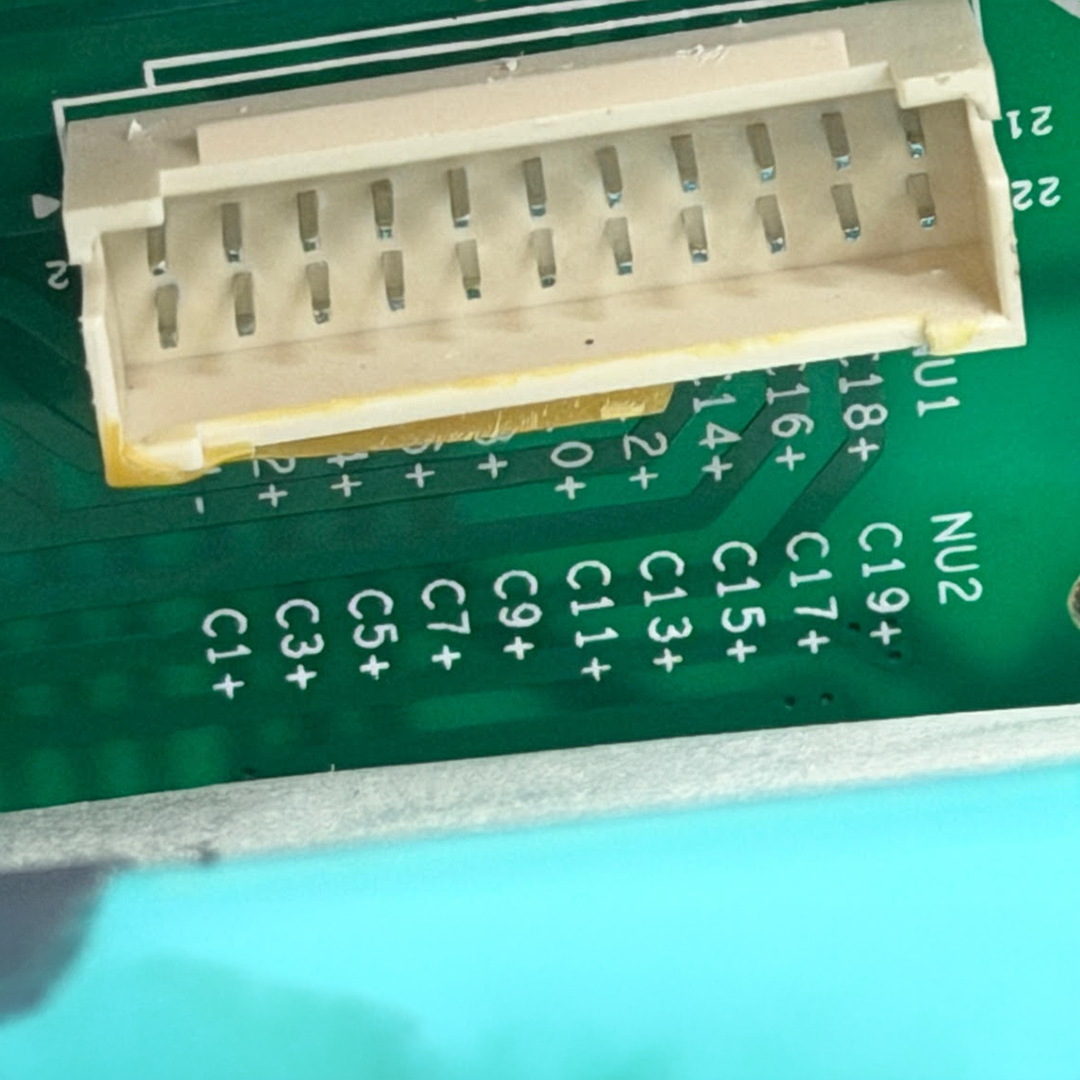

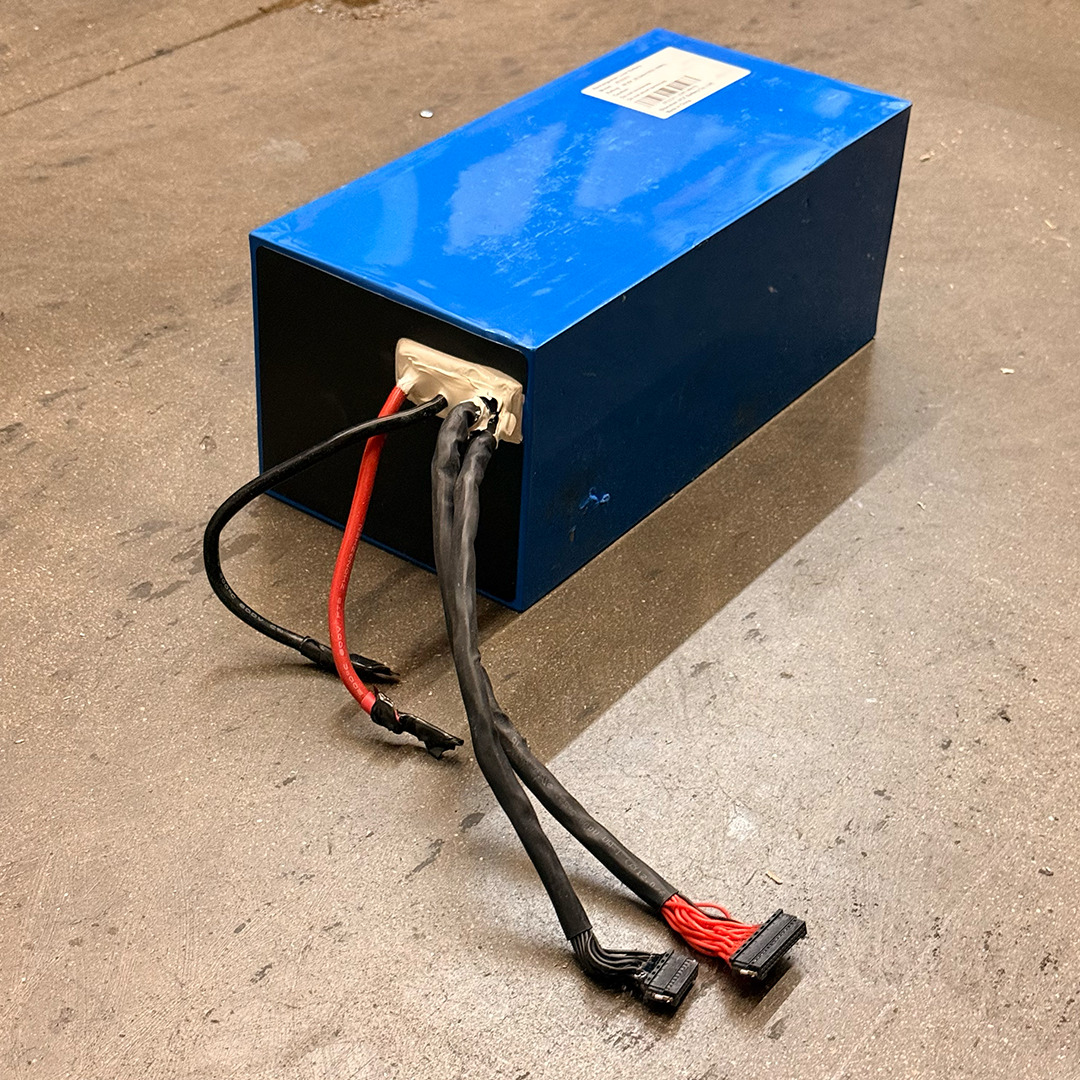

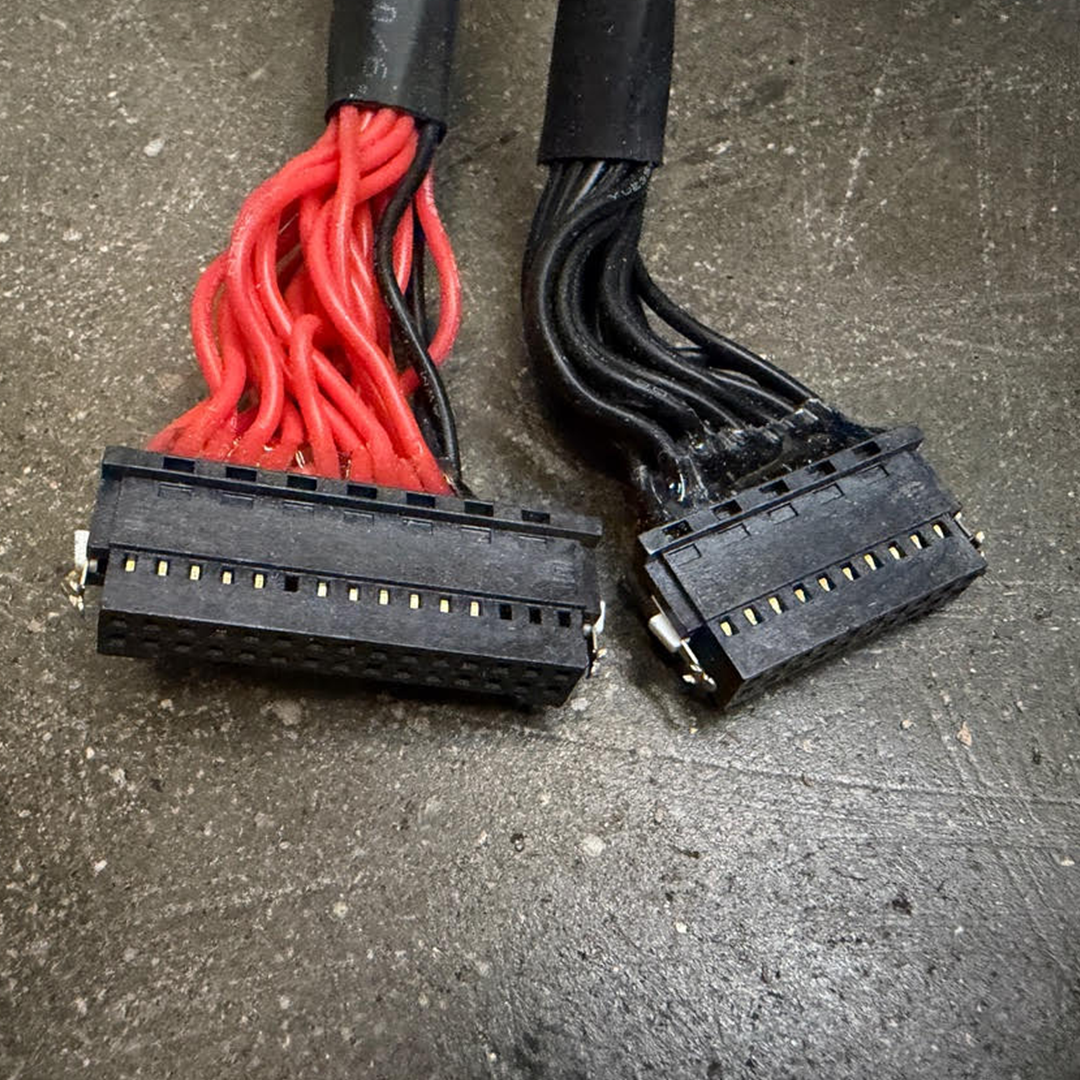

This module does NOT include an internal BMS. It is designed for experienced builders. All balance leads and thermistors are conveniently terminated on two connectors, allowing you to easily integrate your own 19s 3rd party BMS system.
🚲
eBikes & Motorcycles
At only 25 lbs, it's the perfect weight-to-power ratio for 60V electric conversions.
⛳
Golf Carts
Drop-in stability and massive capacity for extended range on the green.
Technical Specifications
| Capacity |

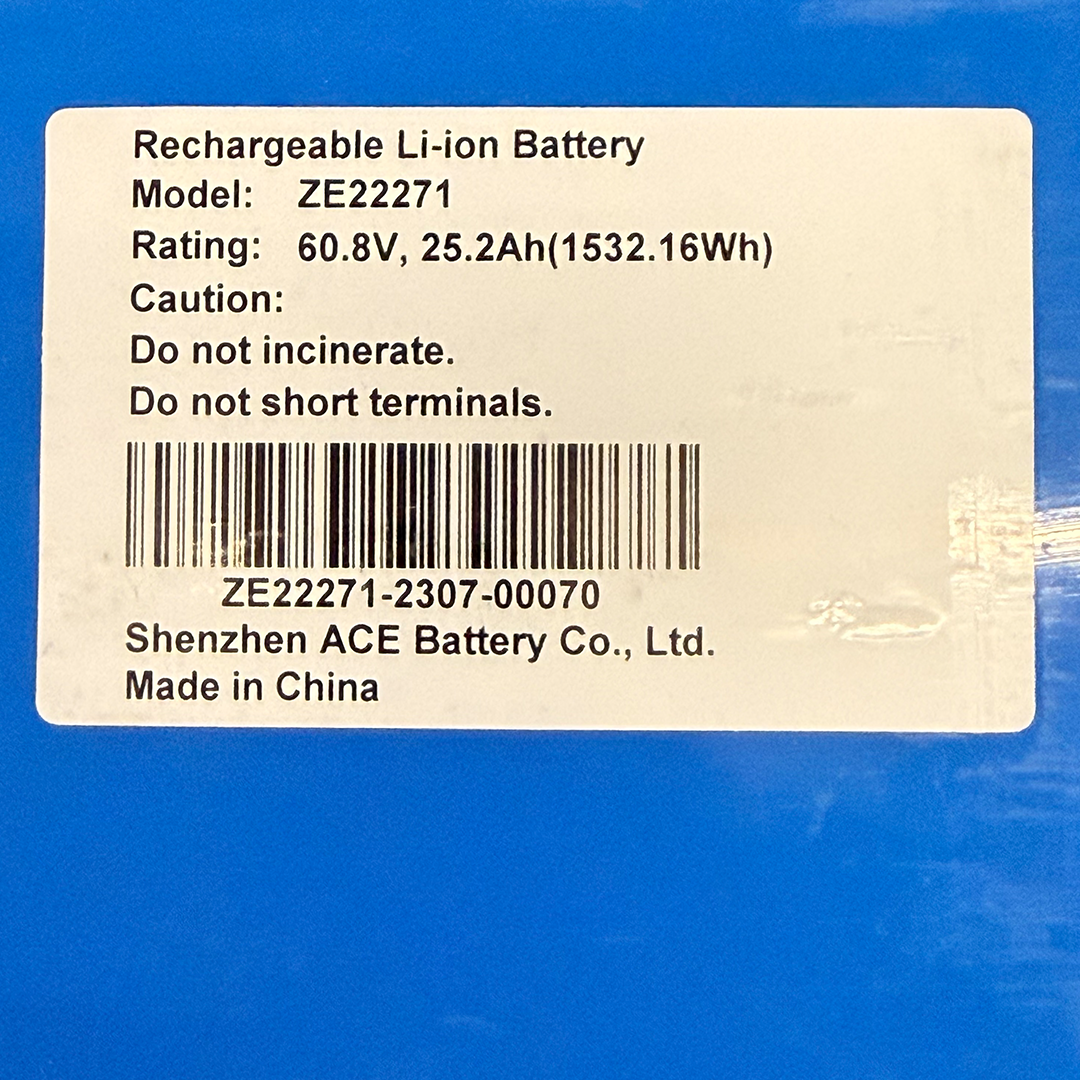

1532Wh (1.5kWh) |
| Configuration |

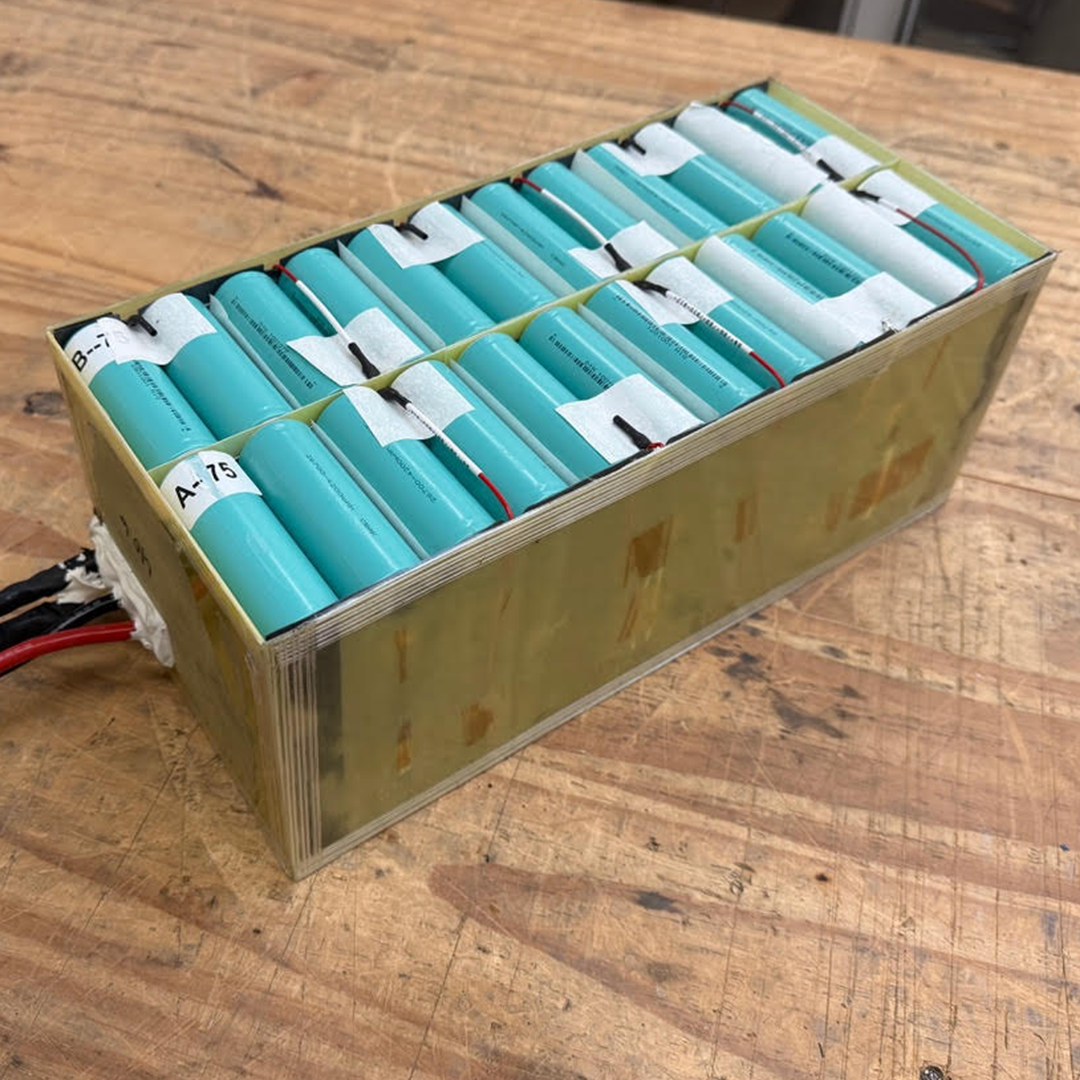

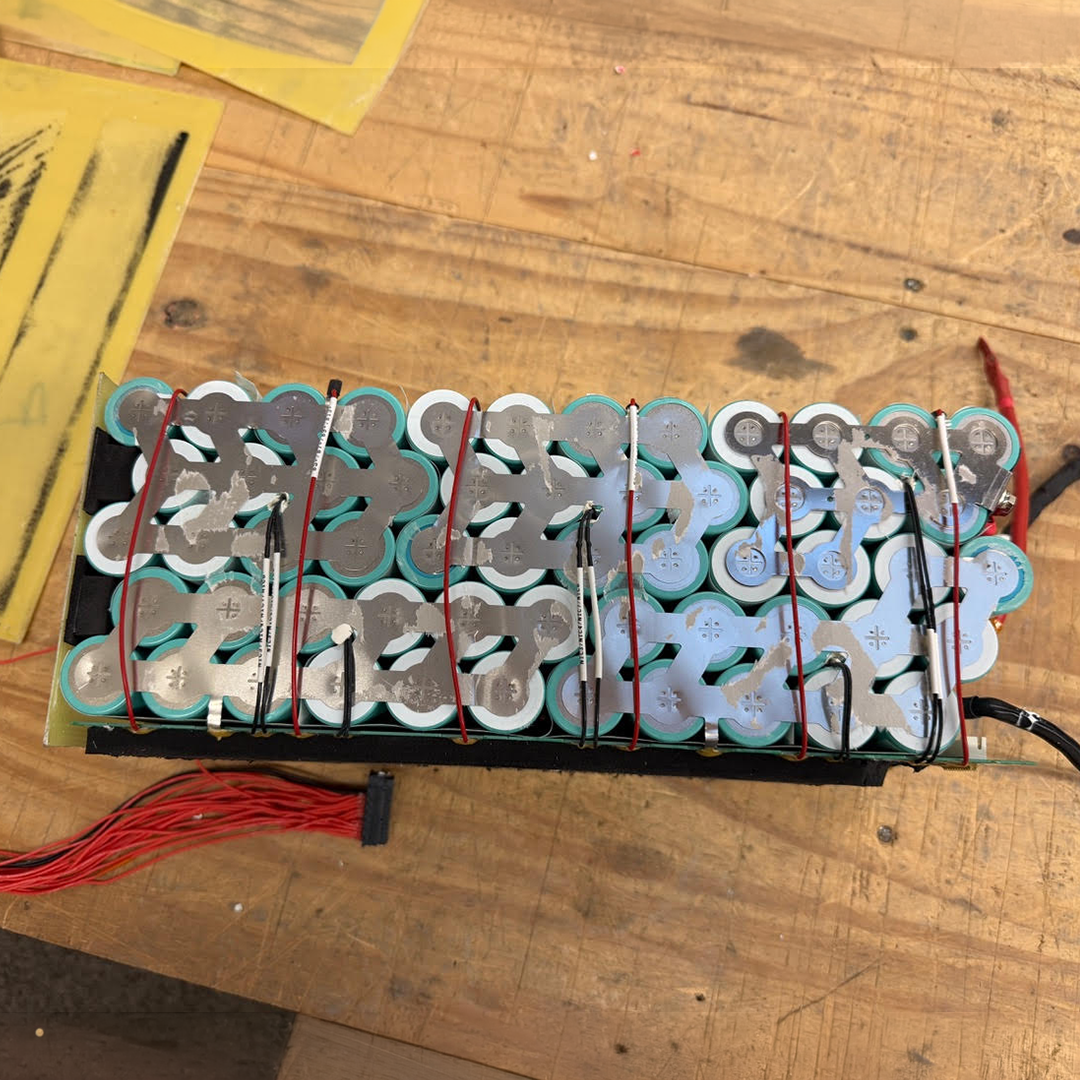

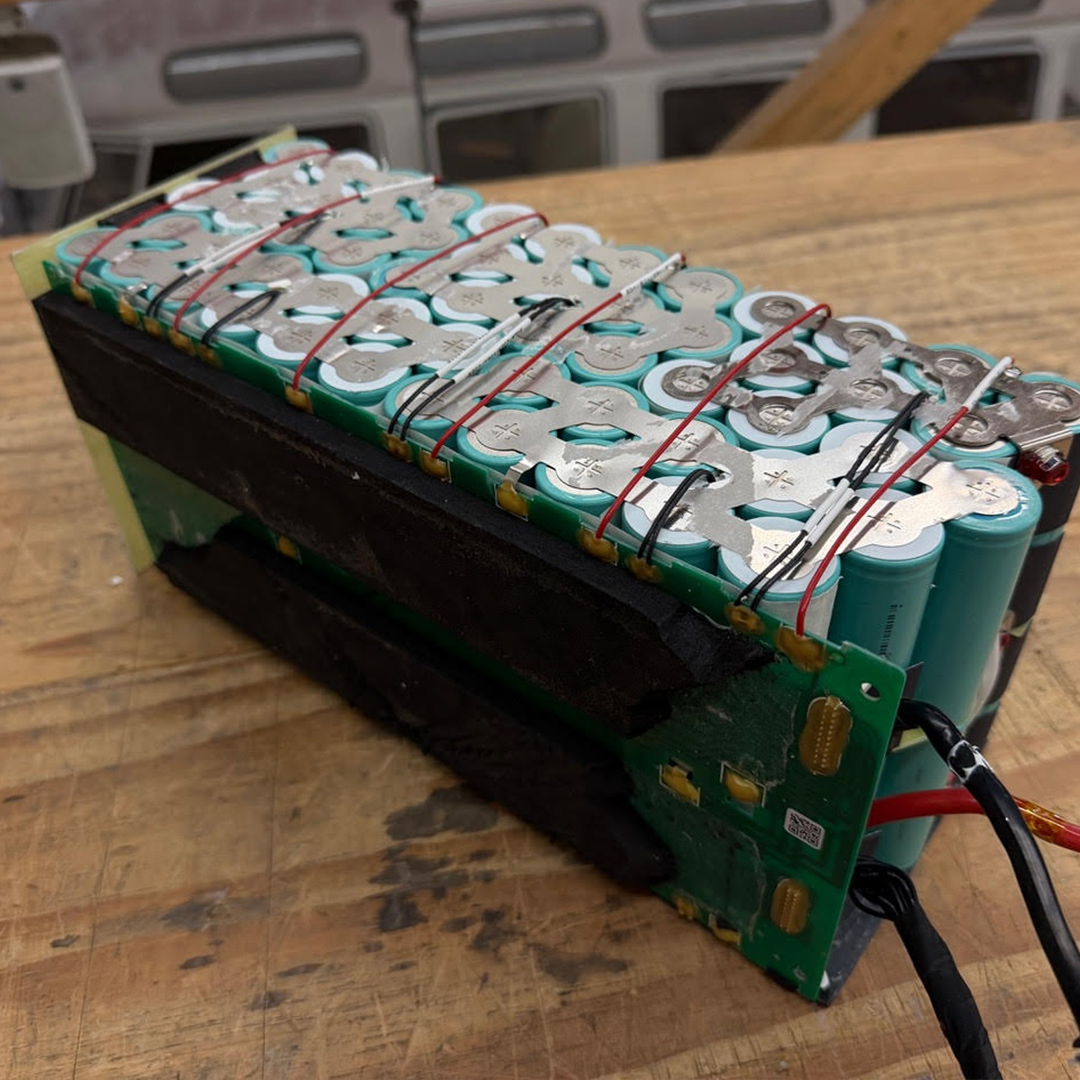

6p19s (114 Total Cells) |
| Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Cell Brand |

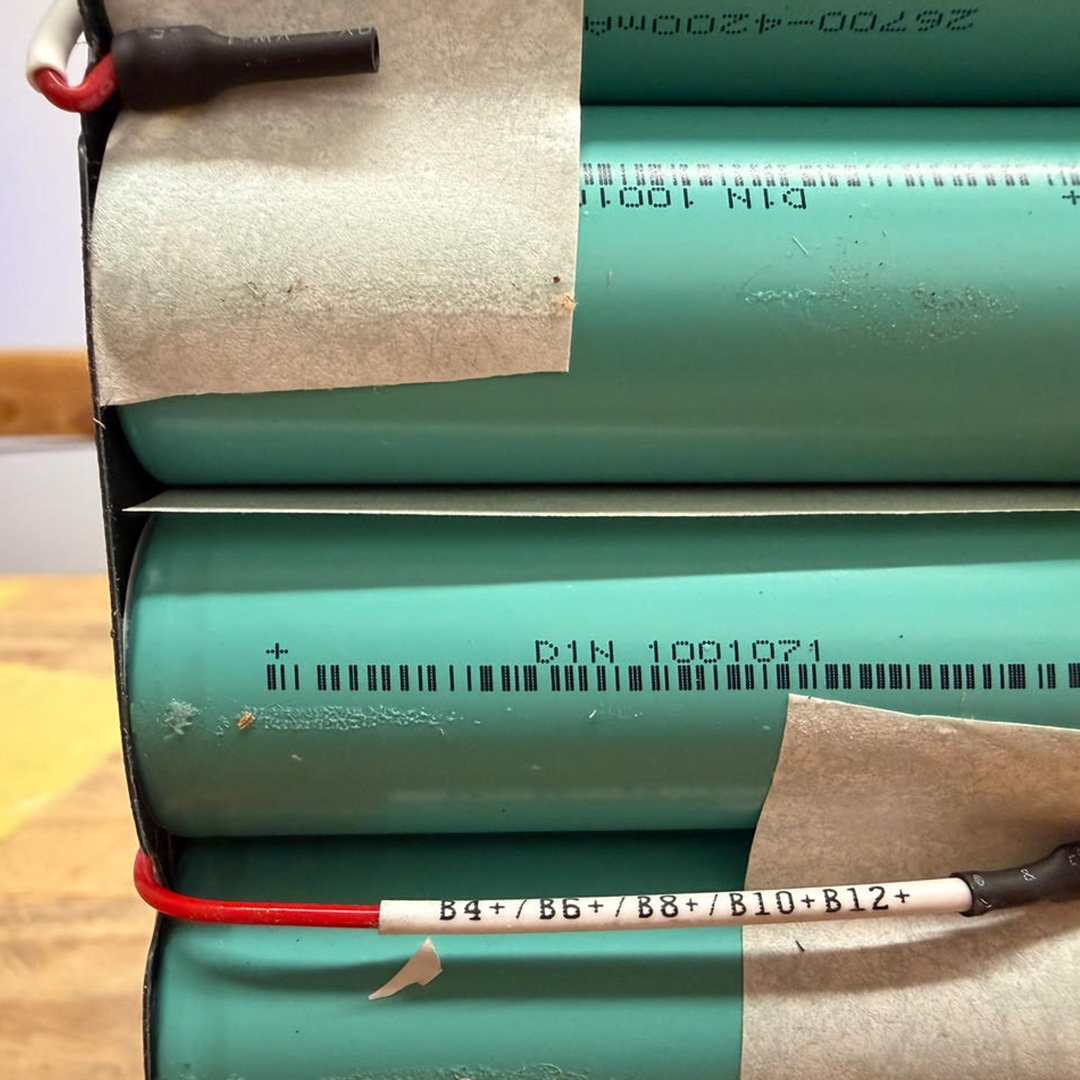

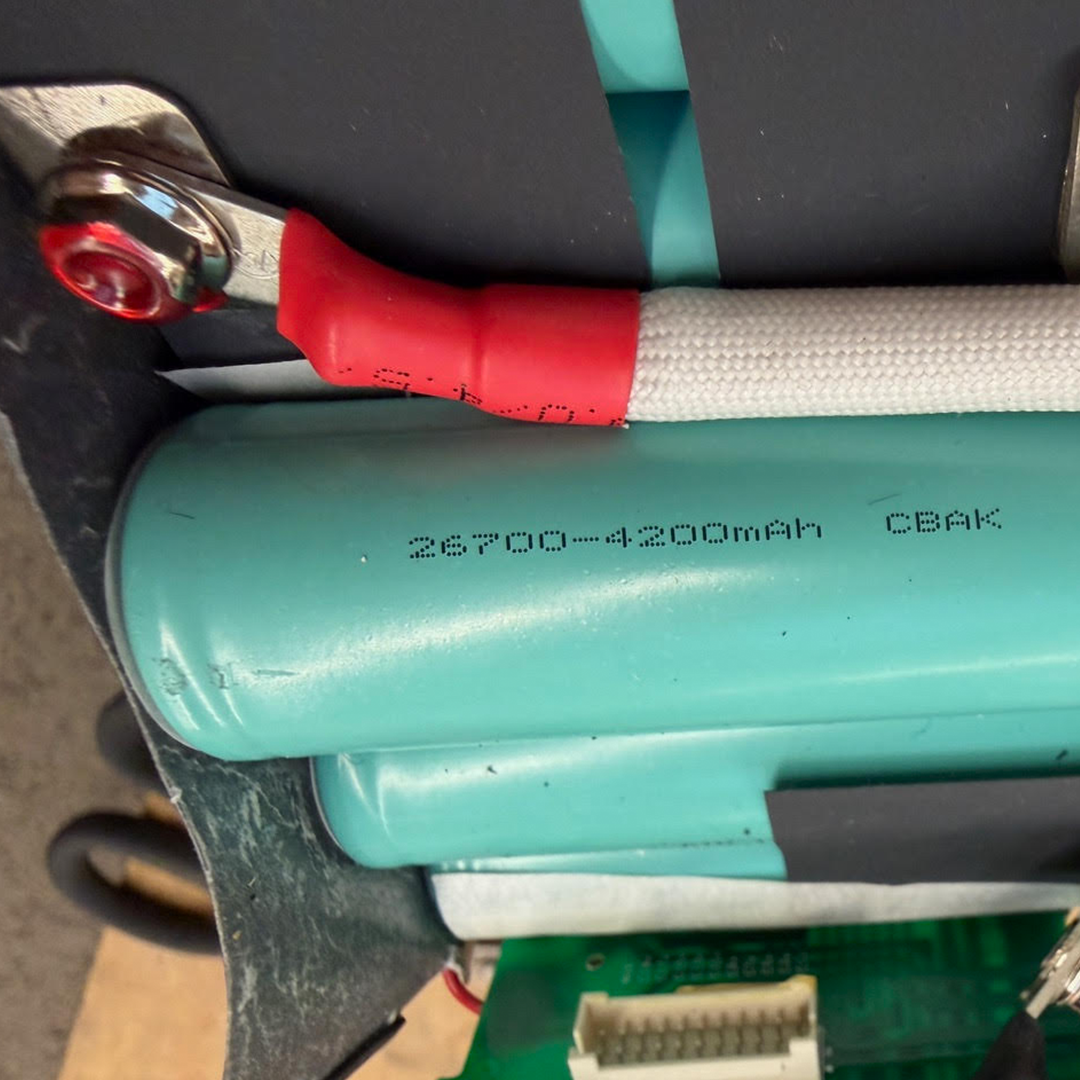

Premium CBAK 26700 (4200mAh) |
| Dimensions |
13” x 6” x 5.25" |
| Weight |
25 LBS (Ultra-Compact) |
Frequently Asked Questions
What BMS do I need?
Any 3rd party BMS compatible with a 19s LiFePO4 configuration will work. You can find the mating connector or splice into the existing balance leads.
Is this safe for indoor use?
Yes. LiFePO4 chemistry is chemically stable and significantly more resistant to fire and thermal runaway than traditional NCM lithium batteries.
