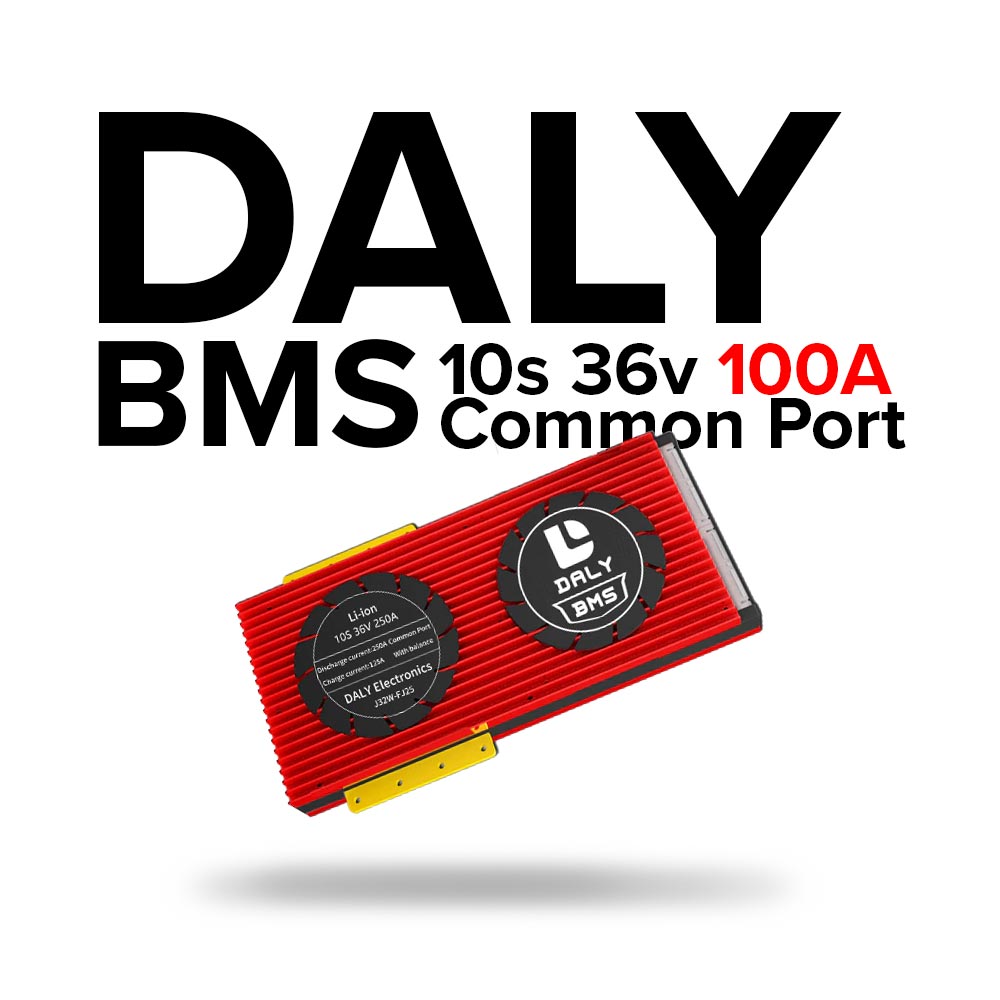

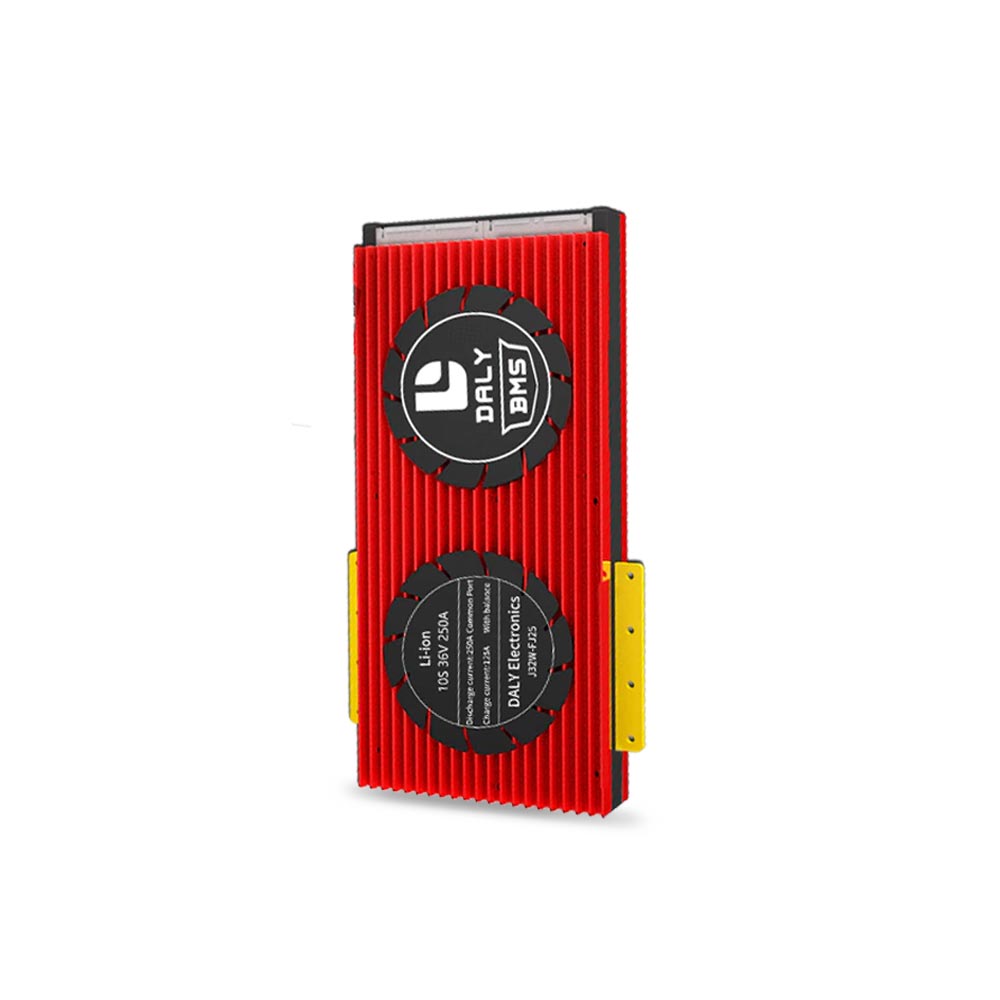

Daly waterproof 10s 36v 100A BMS Lithium ion BMS for lithium battery. Common port for charge / discharge. DL10S36V/100A PCB is used for 10 series 36V battery pack.
The main functions are:
- Over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
- BMS manufactured by high quality MOS and IC imported top quality (A-level) protective integrated circuit IC, from Seiko of Japan.

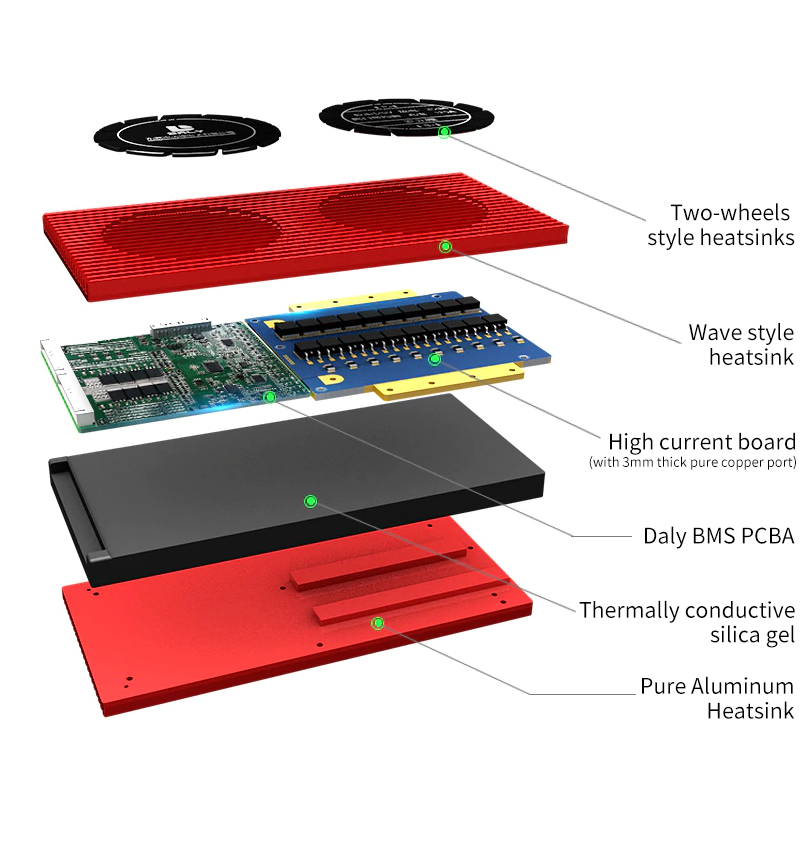

- Strong load ability, constant discharge current 100A, use high voltage resistance, low inner resistance power MOSFET. The heat sink will greatly help cooling.
- IC itself has power balancing function, simple and reliable.
- Extreme low power consumption, less than 50uA
- PCB Conformal Coating
- BMS protect battery charge current: 66A
- BMS protect battery discharge current: 300A
- BMS protect battery charge voltage: 4.25V
- BMS protect battery discharge voltage: 2.7V
- Continuous charging current: 50A
- Continuous discharging current: 100A
- Balance voltage: 4.2V
