PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Ground Shipping. No shipping to PO Boxes. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.

LIMITED-TIME SPECIAL PRICE for unused LEV60 cells! We're moving to another warehouse and need to close these out since we need space. These will move fast so act now!

These powerful LEV60F Lithium Energy Japan prismatic cells are perfect for high discharge applications, such as car audio 12v batteries and other high performance uses. This lithium iron phosphate (LiFePO4) chemistry is much safer than standard NMC cells. Cells are new and unused. They can power a wide range of devices and can be configured in a variety of ways to fit nearly any of your voltage or capacity needs.

Available in 3 variants (choose from dropdown menu):

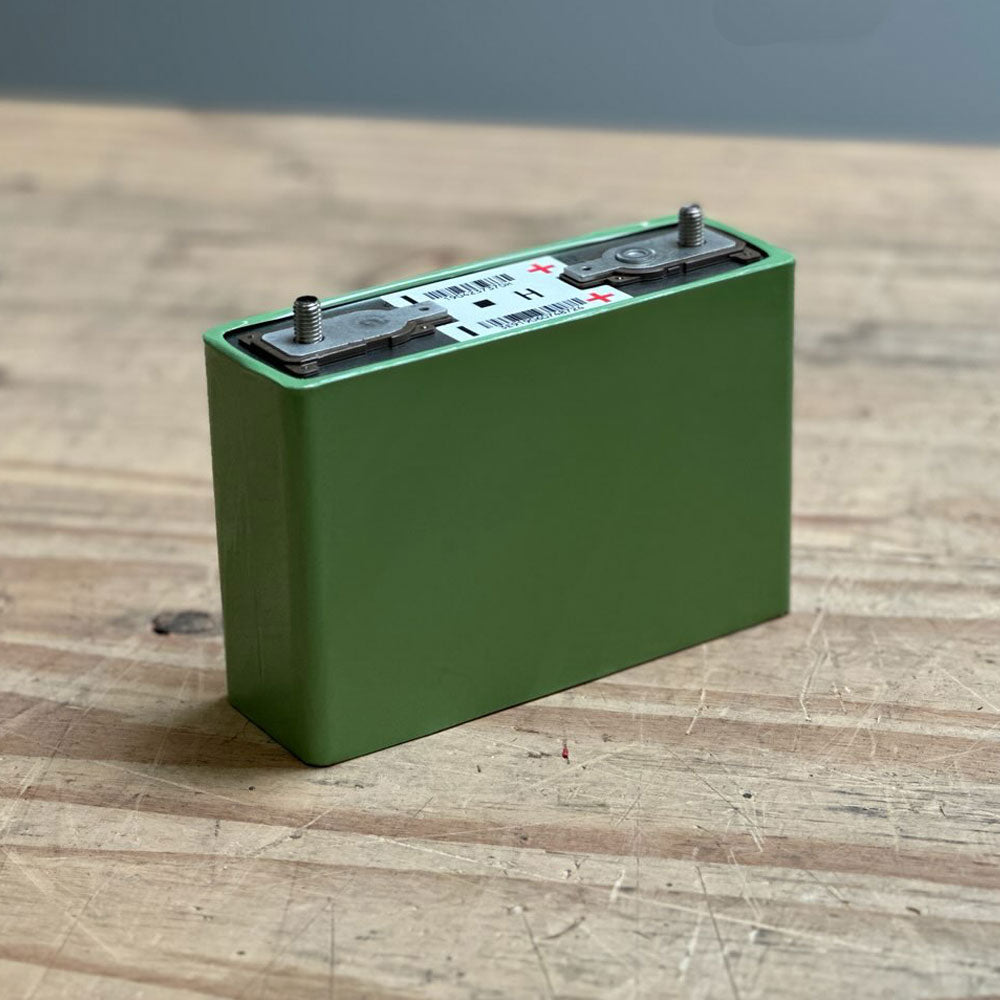

• x1 LEV60 cell

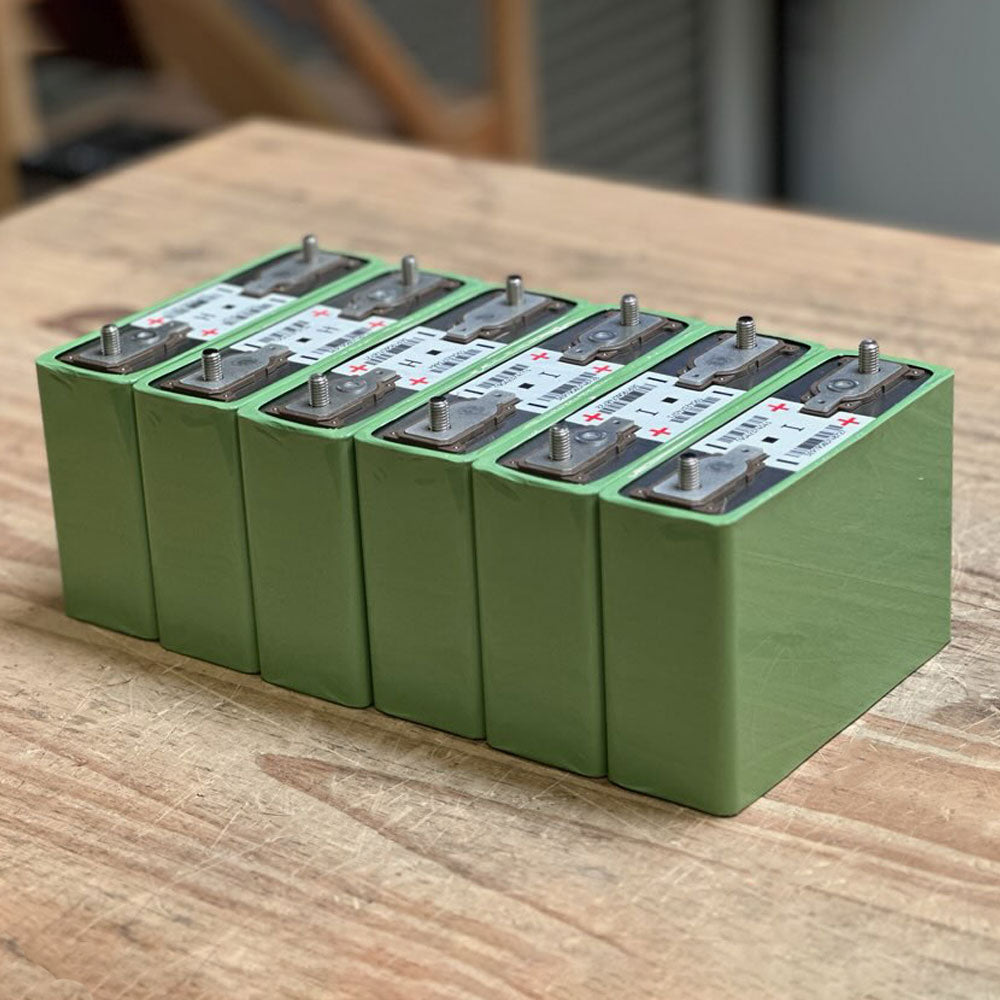

• x6 LEV60 cells in a box

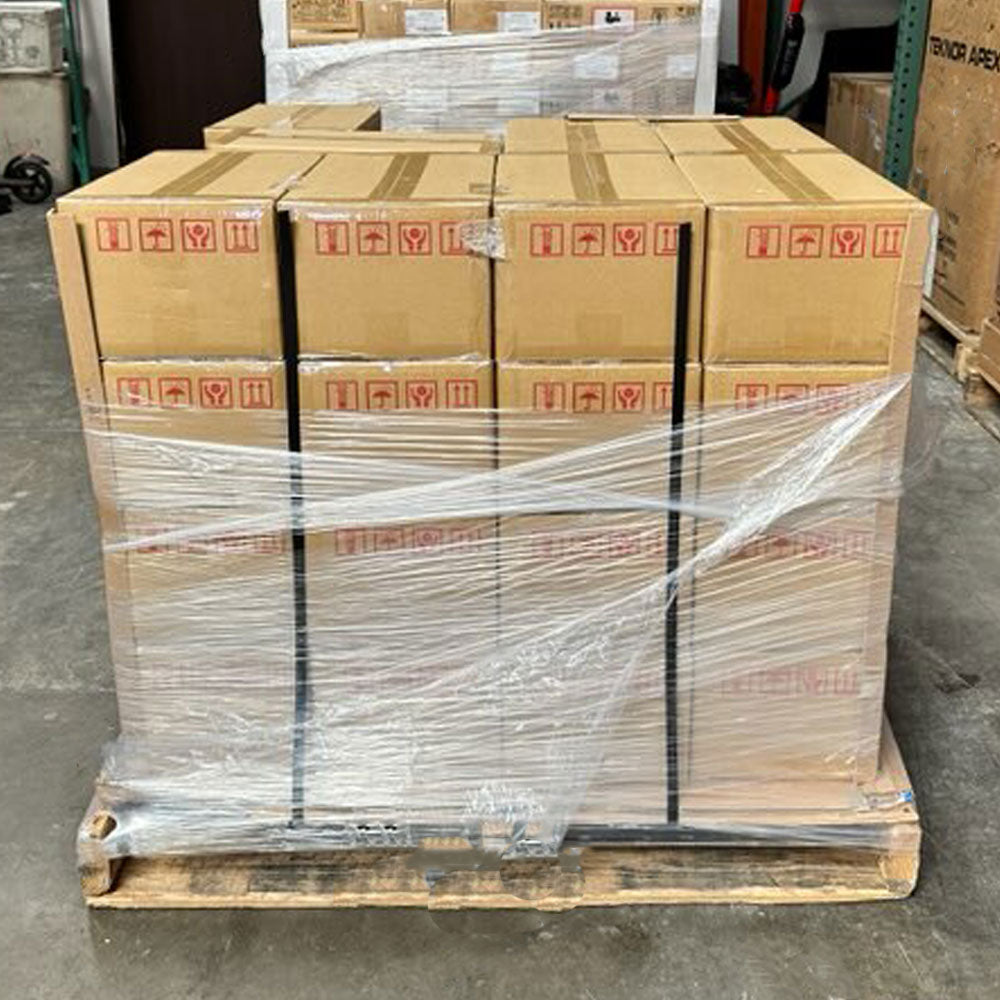

• x240 LEV60 cells on a pallet (*NOTE: LTL shipping is not included in the pallet price. After you pay for the pallet then you'll get an updated invoice so we can collect the LTL shipping cost which must be fully paid before we can ship out the pallet.)

Cell Specs

• Brand:  Lithium Energy Japan
• Form:  Prismatic
• Type:  LEV60
• Voltage (nominal):  3.2v
• Voltage range:  2v-3.5v
• Typical capacity:  74Ah
• Power (max current):  1,780W (600A) at 25° C, SOC 50%, 10sec
• Resistance:  0.7milliOhms at at 25° C, SOC 50%, 10sec
• Max charge/discharge current: 180A continuous (at 25° C)
• Weight:  2.17kg
• Dimensions:  55mm L x 171mm W x 115mm H

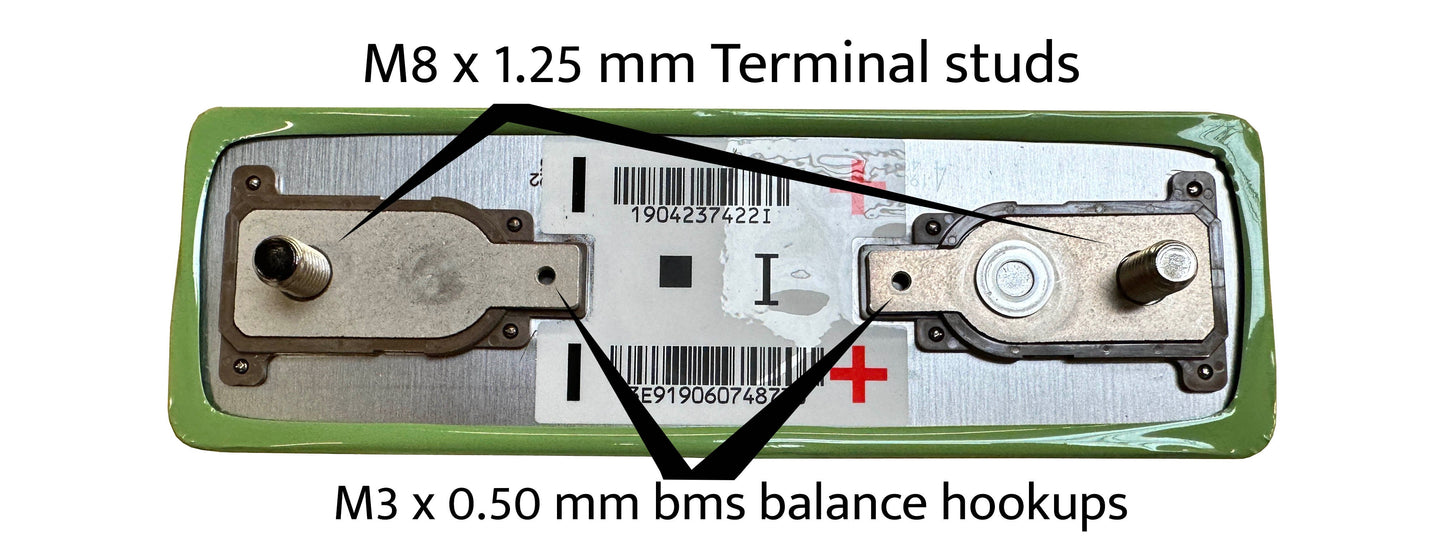

• Terminal torque: 9Nm +/- 3 / 6.64ft-lb

*** IMPORTANT SHIPPING NOTE: Our automatic shipping calculator sometimes underquotes heavy orders. If your order is underquoted for shipping costs we'll send you an edit email to collect the balance due. Only orders that are fully paid for can be shipped out. Email support@jag35.com to get an accurate shipping price before purchasing.

Other components you'll need:
Fish Paper for isolation between cells > HERE

Use these cells to build a powerful 12v battery:
Turn x4 of these LEV60F cells into a high discharge 12v 600A 74Ah 4S battery (see example below). PCB busbar not included, sold separately HERE.

Use these cells to build a powerful 24v battery:
Turn x8 of these LEV60F cells into a high discharge 24v 600A 74Ah 8S battery (see example below). PCB busbar not included, sold separately HERE.

Use these cells to build a powerful 48v battery:
Turn x16 of these LEV60F cells into a high discharge 48v 600A 74Ah 16S battery (see example below). PCB busbar not included, sold separately HERE.

Other components you'll need:
Fish Paper for isolation between cells > HERE

*** IMPORTANT SHIPPING NOTE: Our automatic shipping calculator sometimes underquotes heavy orders. If your order is underquoted for shipping costs we'll send you an edit email to collect the balance due. Only orders that are fully paid for can be shipped out. Email support@jag35.com to get an accurate shipping price before purchasing.

STEP BY STEP - BUILD YOUR OWN 48v DIY LiFePO4 BATTERY:

PRODUCT VIDEO - MAX CONTINUOUS VOLTAGE:

PRODUCT VIDEO - INTERNAL RESISTANCE (IR) TESTING:

PRODUCT VIDEO - HOW TO MAKE LARGE BATTERY PACKS:

IMPORTANT NOTE! For any lithium iron phosphate batteries, state of charge cannot be determined by voltage alone, you need to count Amp Hours or Watt Hours.

__

These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. Listings that are specifically described as “untested” or “sold as-is” and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases from us.

NEW YORK residents:
On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.

Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
