Chrysler Pacifica NMC 60V 45Ah 2.6kWh 16S Battery Module
Chrysler Pacifica NMC 60V 45Ah 2.6kWh 16S Battery Module
Couldn't load pickup availability
PLEASE READ THE DESCRIPTION CAREFULLY.
Shipping to Lower 48 USA states only via Ground Shipping. No shipping to PO Boxes. No international shipping including Hawaii, Guam, Puerto Rico.

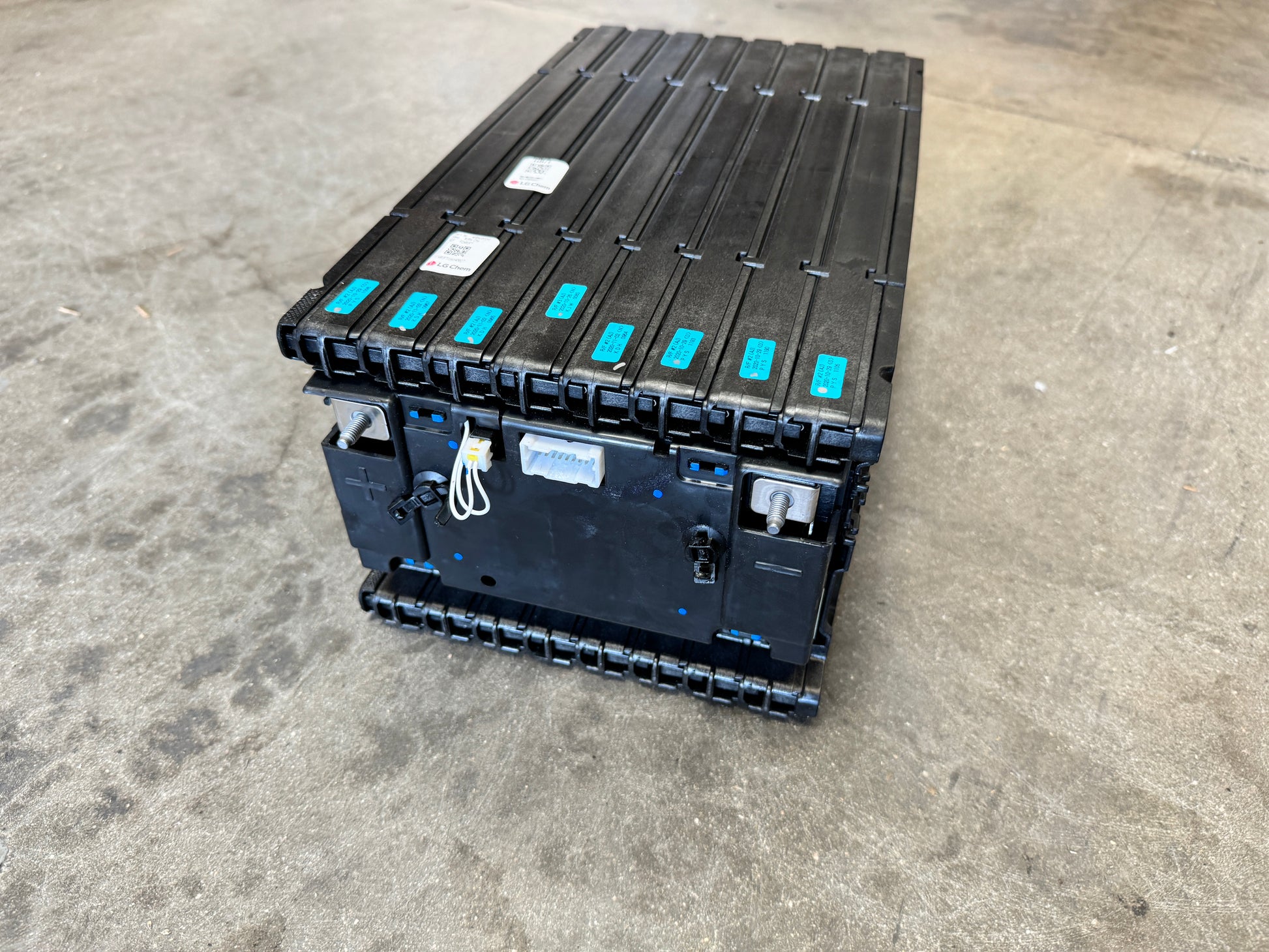

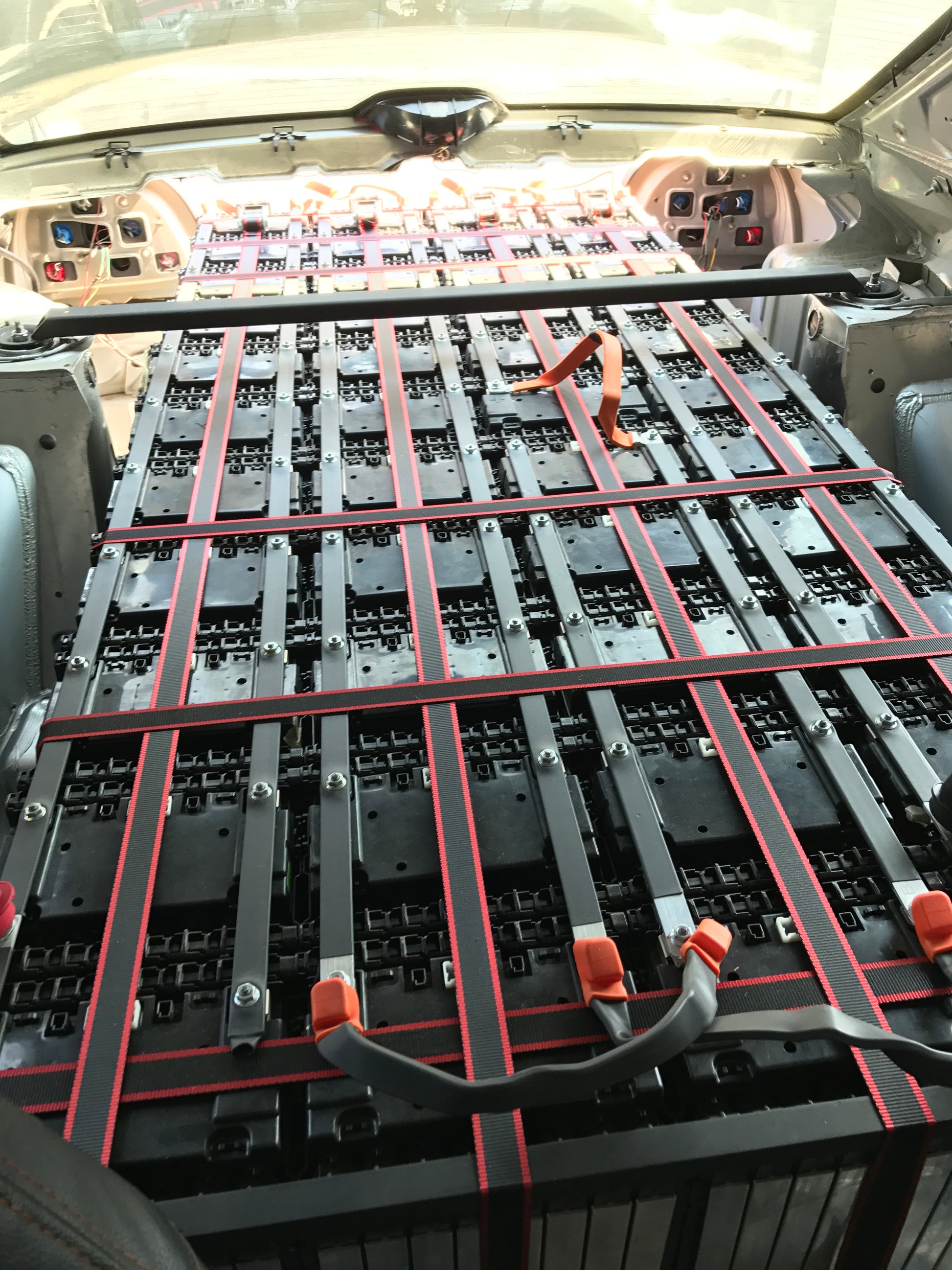

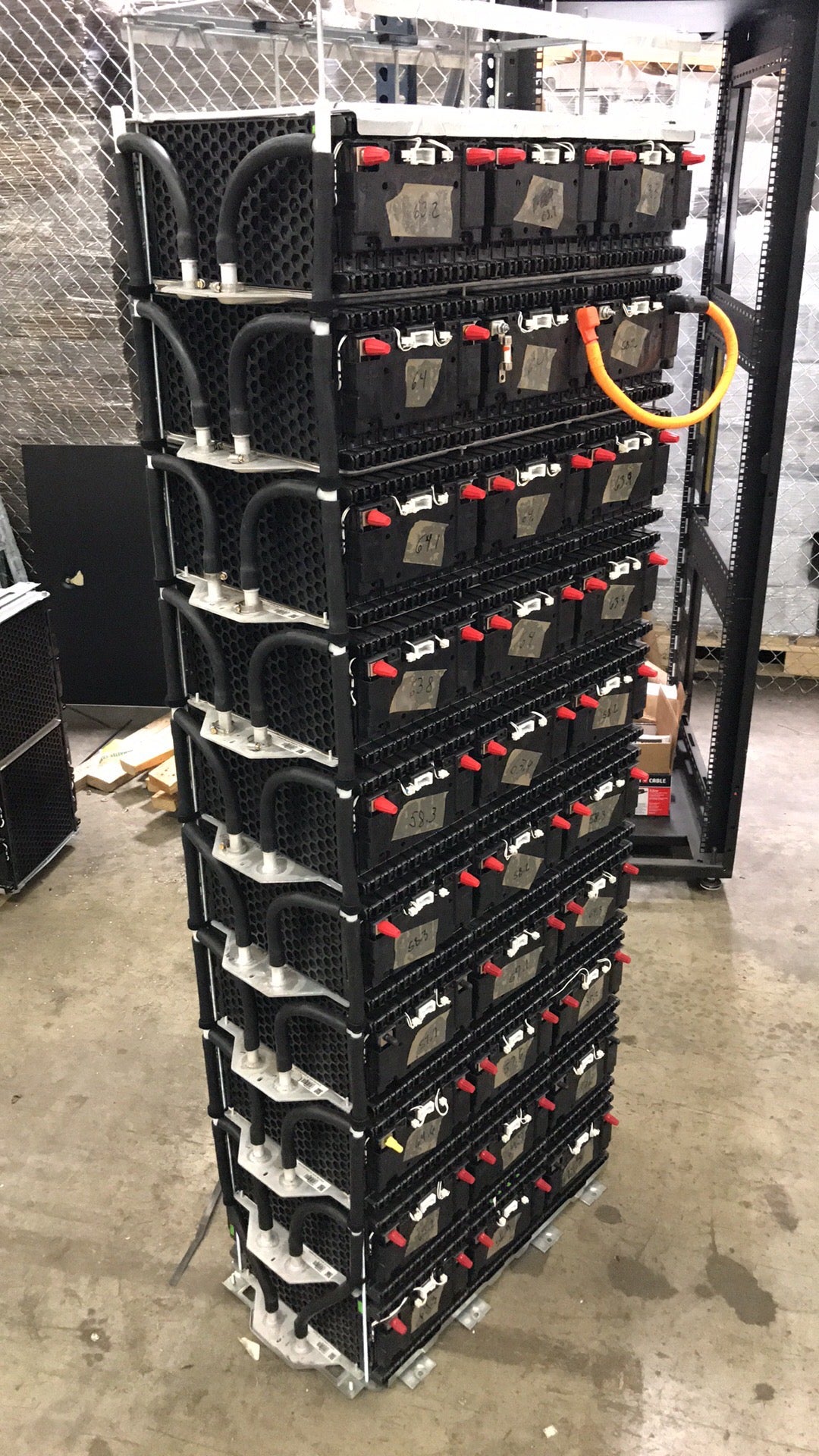

High power Battery modules suitable for many DIY applications like EV conversions and golf carts that can handle the higher voltage of this module. This battery module is easy to assemble into larger battery packs for more range and higher voltage.

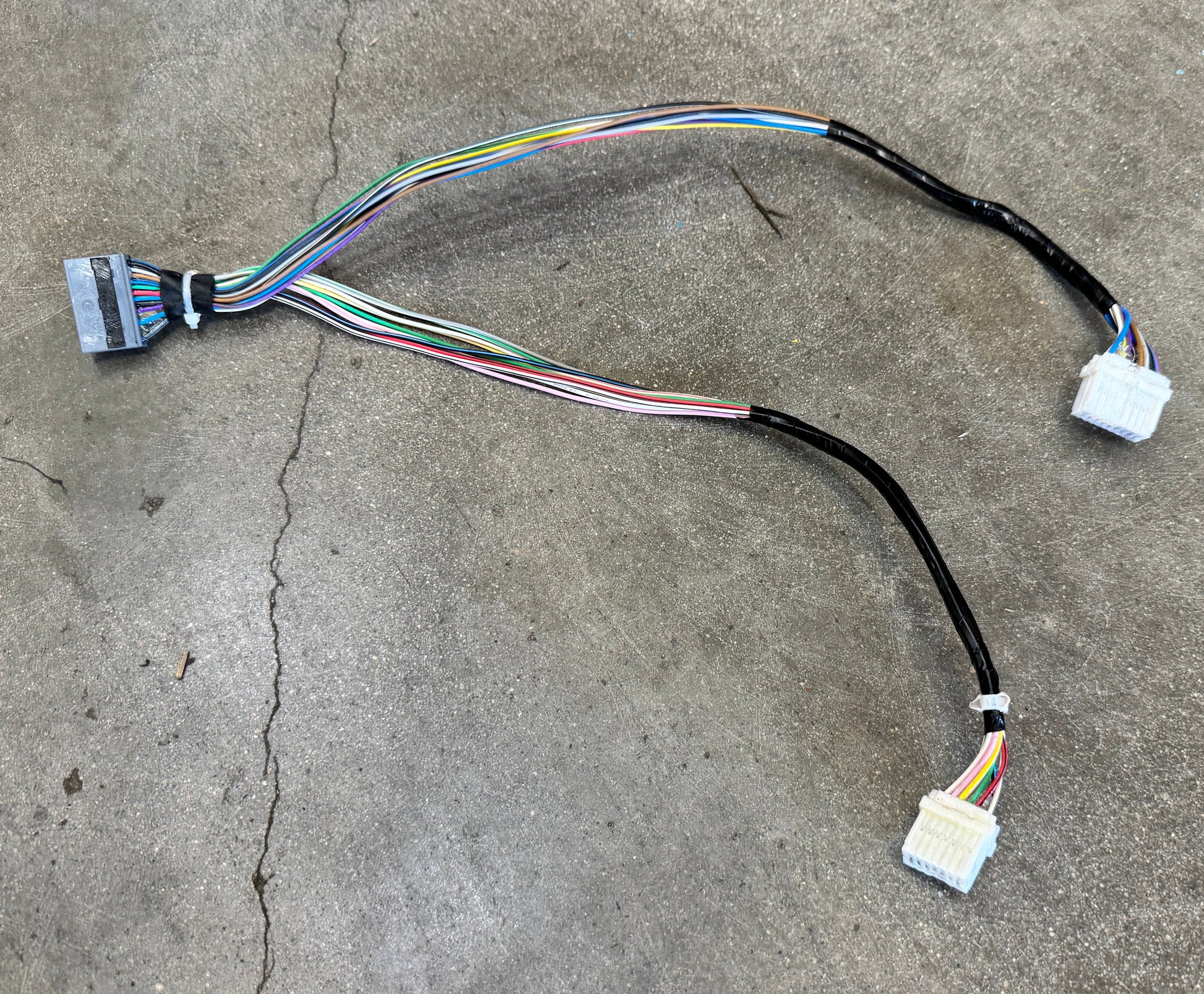

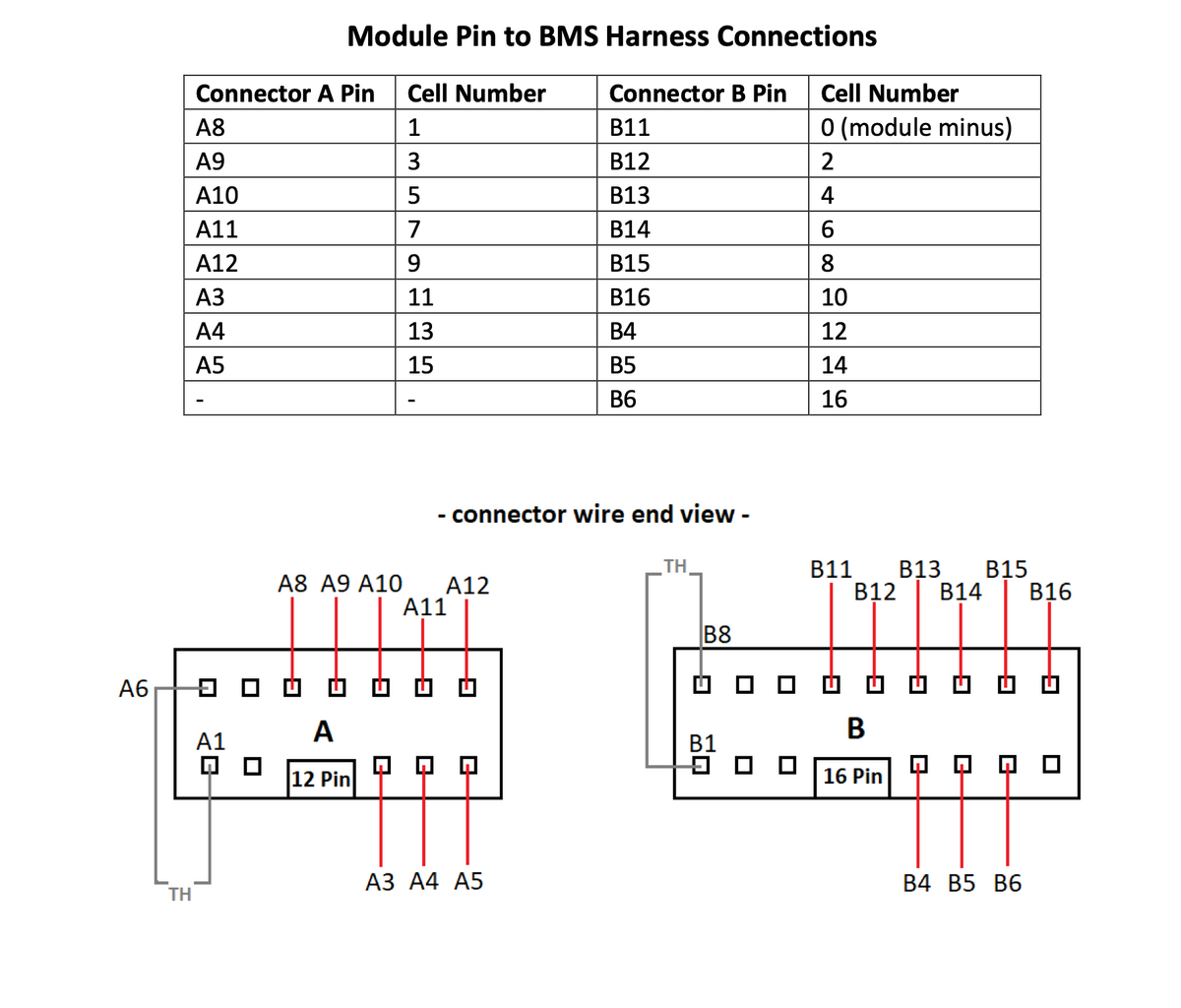

Each module is 2.6kWh. A continuous current rating of 200-400 amps, with a maximum discharge of 800 amps. The modules come with the balance wiring harness.
Capacity: 2.6Kw
Height: 14.25 Inches
Width: 8.00 Inches
Length: 6.25 Inches
Weight: 38.00 Pounds
Bolt Size: M6
Voltage nominal: 3.8V/Cell, 60.8V/Module
Charge voltage cut-off: 4.2V/Cell, 67.2V/Module
Discharging cut-off: 3.3V/Cell, 52.8/Module
Maximum Discharging Current (10 sec.):800 Amps
*** IMPORTANT SHIPPING NOTE: Our automatic shipping calculator sometimes underquotes heavy orders. After your purchase if your order was underquoted we'll send you an edit email to collect the balance due. Only orders that are fully paid for can be shipped out. Need more than 2 qty? Email support@jag35.com to get an accurate shipping price before purchasing.
