7s BMS Module 50A-60A -1200W
The BMS Module Now Comes In 3 Variants
1 - The BMS KIT (assembly & soldering required)
2 - The BMS Populated
3 - The DalyBMS Populated
The Kit includes everything pictured, everything you need to build the BMS Module for Jehu's DIY Powerwal PCB Project
Contents:
1x PCB
3x 20A BMS units w/ connectors
3x 3M Double sided Adhesive
2x 35A Fuses with Bases
4x M4 screw terminals
4x M4 Nuts
4x M4 screws
4x M4x25mm standoffs
1x 6" solid copper wire
1x XT90 Pigtail
1x 16pin IDC socket connector
1x 16pin IDC connector
Download BMS Gerber
Assembly Required
Watch this Video for Assembly instructions or Order it Populated ready to go.

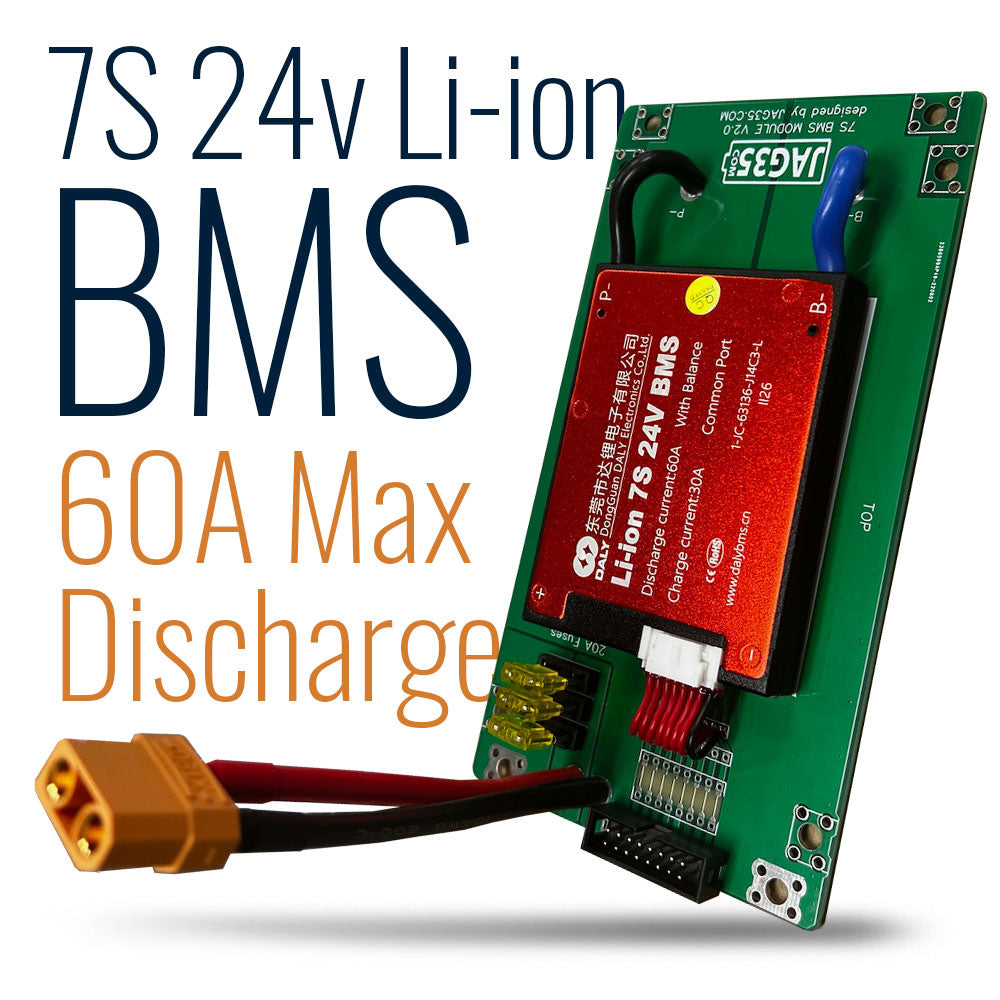

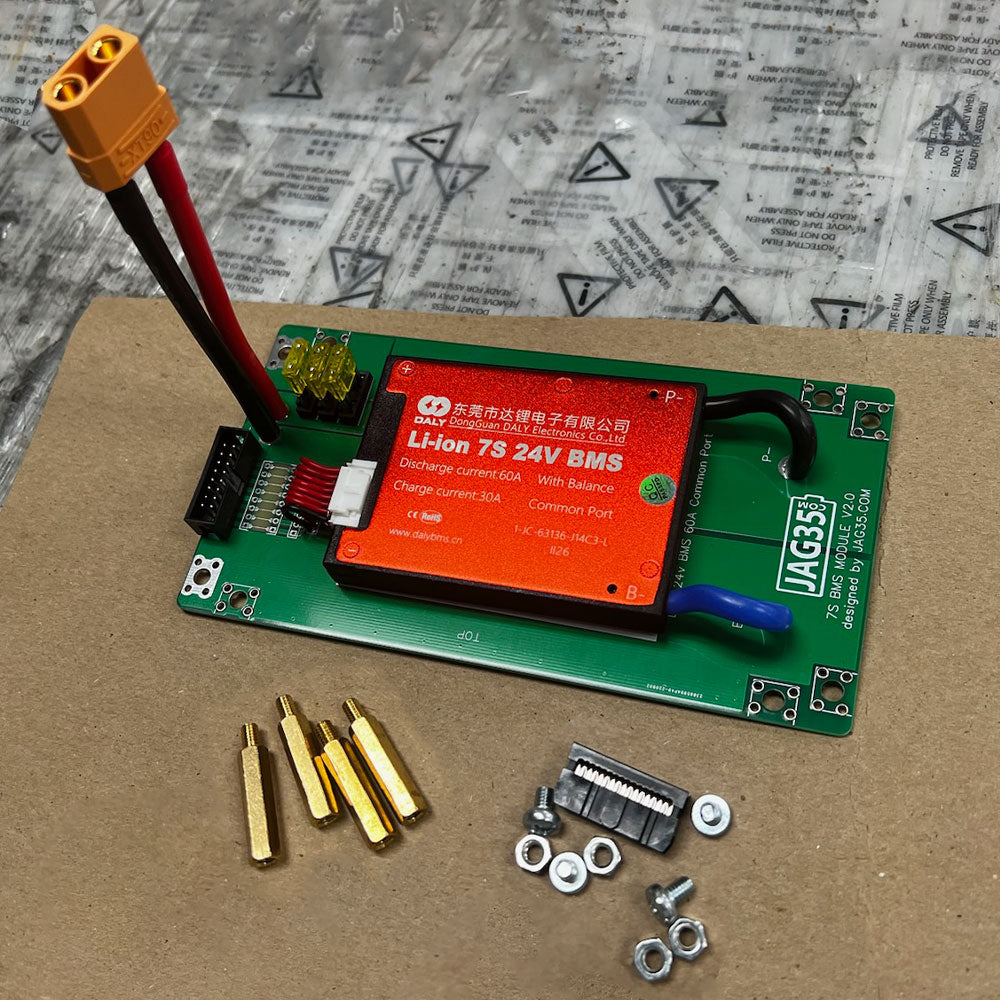

The NEW 60A DALY BMS Module
This BMS can be used in a 24v System
It can also Be used in 48v Systems by connecting 2 in series
TroubleShooting Tips
