BABY SLIM Busbar for LEV60 12v 74Ah 4S
BABY SLIM Busbar for LEV60 12v 74Ah 4S
Couldn't load pickup availability
PLEASE READ THE DESCRIPTION CAREFULLY.
Shipping to USA only. No shipping to PO Boxes. No international shipping. Non-USA customers click here.

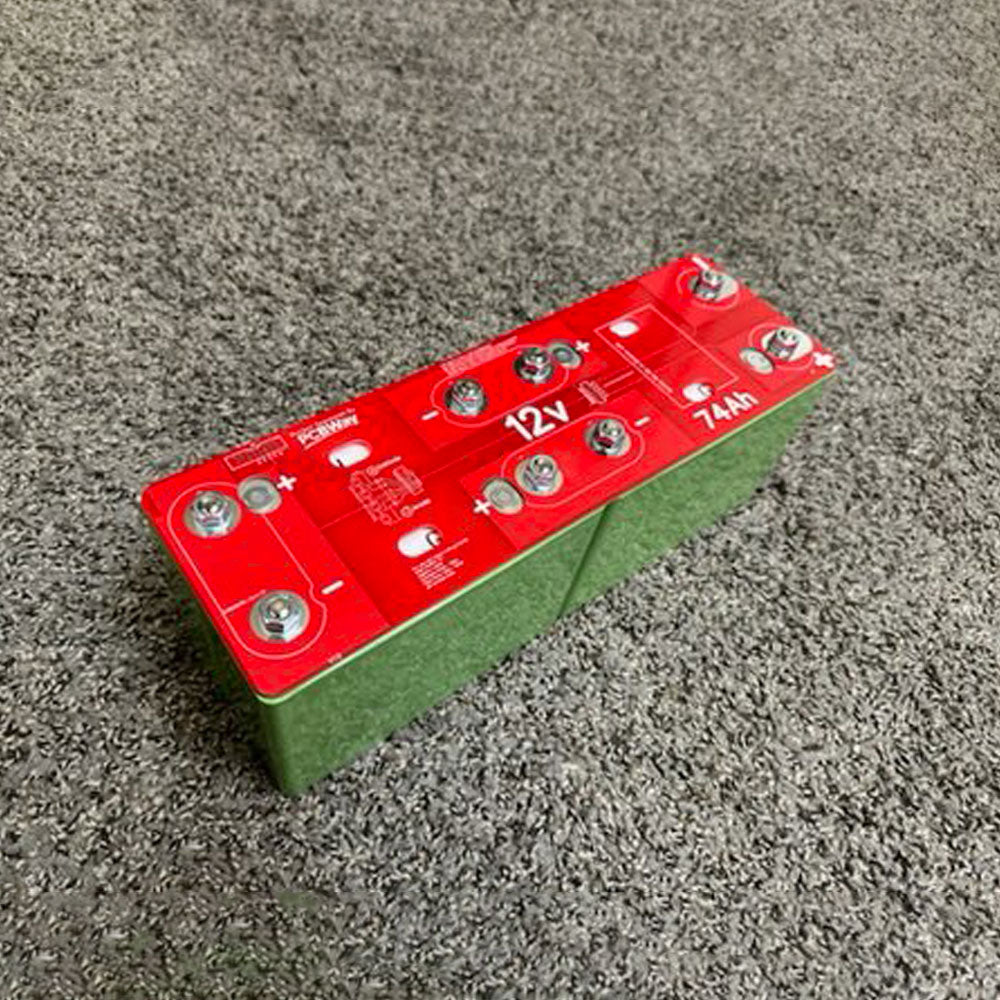

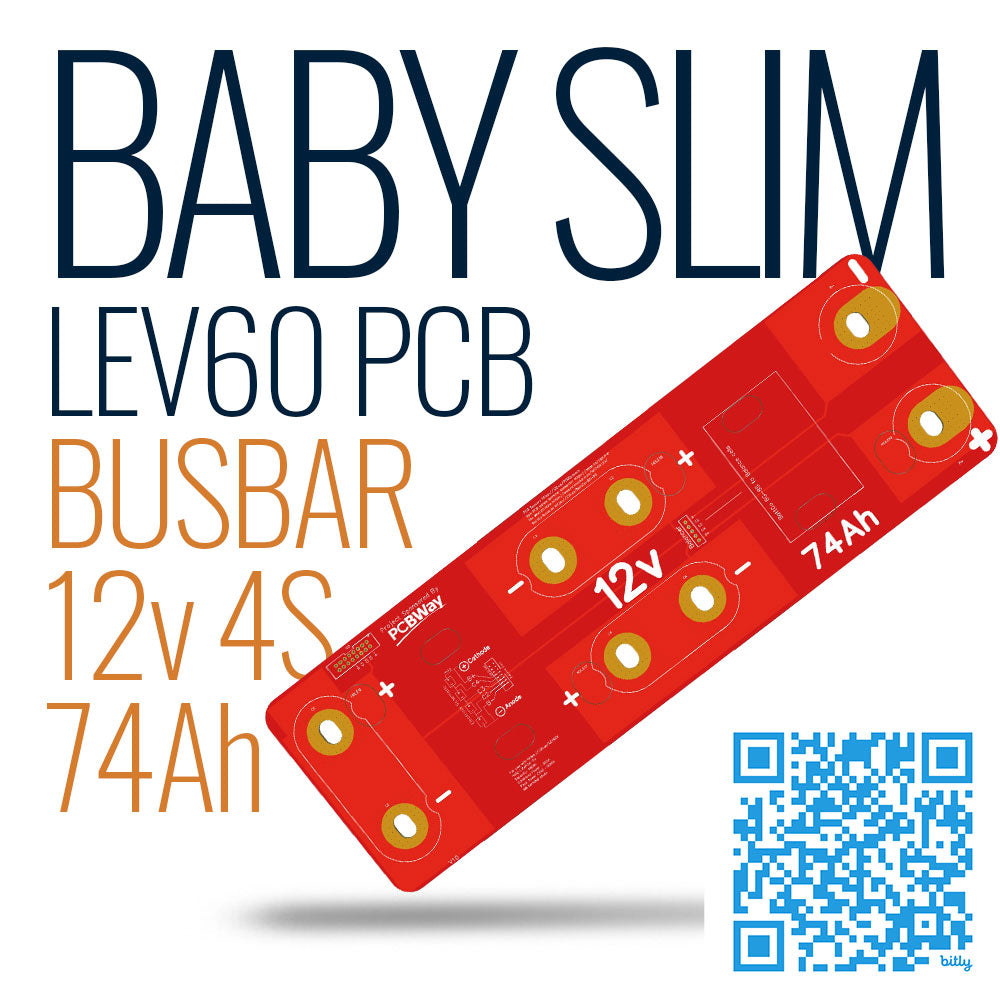

High-amp busbar PCBs for 12v 4S LEV60 SLIM! These brand new beefy busbars PCBs are perfect for turning x4 LEV60F lithium-iron-phosphate (LiFePO4) cells into an ultra compact and powerful 12v 74Ah 7,200W battery (200 amps continuous = 2,400W, 600 amps burst = 7,200W). This listing is for the PCB busbars only. Perfect for high discharge 12v applications such as lead-acid replacement battery, RV stationary storage, golf cart replacement battery, car audio, and other high performance uses. These cells may need containment or compression depending on how you use them, compression kit is available HERE. LEV60 cells sold separately HERE.
Final SLIM PCB busbar dimensions: 13.50" L x 4.5" W x 1/8" H.
Final SLIM battery pack dimensions: 13.50" L x 4.5" W x 4.6" H.
LEV60 Terminal torque: 9Nm +/- 3 / 6.64ft-lb
Other components you'll need:
- x4 LEV60 cells sold separately > HERE
- Fish Paper for isolation between cells available > HERE
- Compression kit sold separately > HERE
- 5-pin jumper cable sold separately > HERE
- BattGo balancer is not included, sold separately > HERE
Looking for a fully-assembled BABY SLIM? Available available > HERE
Charging
After building your battery, we recommend fully charging the battery pack as soon as possible to avoid damage to the cells from low SoC. Charger not included.
NOTE: For any lithium iron phosphate batteries, state of charge cannot be determined by voltage alone, you need to count Amp Hours or Watt Hours. Typical behavior is for the "Resting Voltage" to be 13.2VDC a few hours after your charging session.
MAKE A 12v FAST CHARGING D.I.Y. EXPANSION BATTERY:
This PCB busbar can be used to make a 12v battery pack that can serve as an expansion battery for many popular power stations such as EcoFlow, Bluetti, etc. It may be possible to connect multiple batteries in series to increase the charging speed (Volts), or connect multiple in parallel to increase capacity (AmpHours) and current (Amps), see your device specs for max limits. Plz double-check your power station's PV/Solar input specifications to make sure this battery will be compatible.
PRODUCT VIDEO:
—
These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
NEW YORK residents:
On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.
Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
