5Ah Ford cMax Hybrid Battery Modules
5Ah Ford cMax Hybrid Battery Modules
Couldn't load pickup availability
Shipping to the lower 48 USA states only via Ground Shipping. No shipping to P.O. boxes. No international shipping is available, including Hawaii, Guam, and Puerto Rico. We are receiving a high volume of Fraud orders on these. Do not use a Web Proxy, do not use a freight forwarder service unless you can verify you live outside the USA, Only use a mailing address associated with credit card, we will not ship your order if it doesn't meet our requirements.

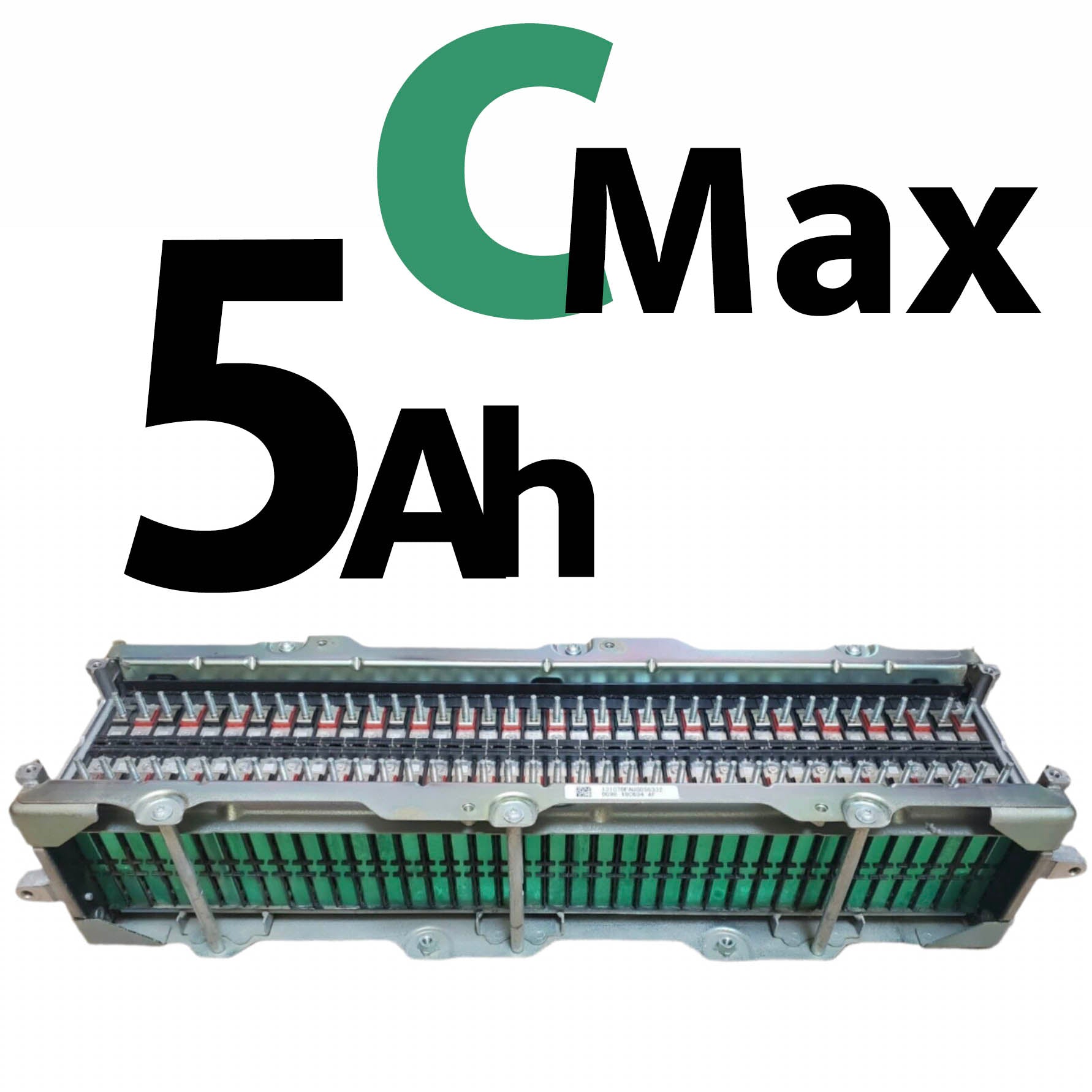

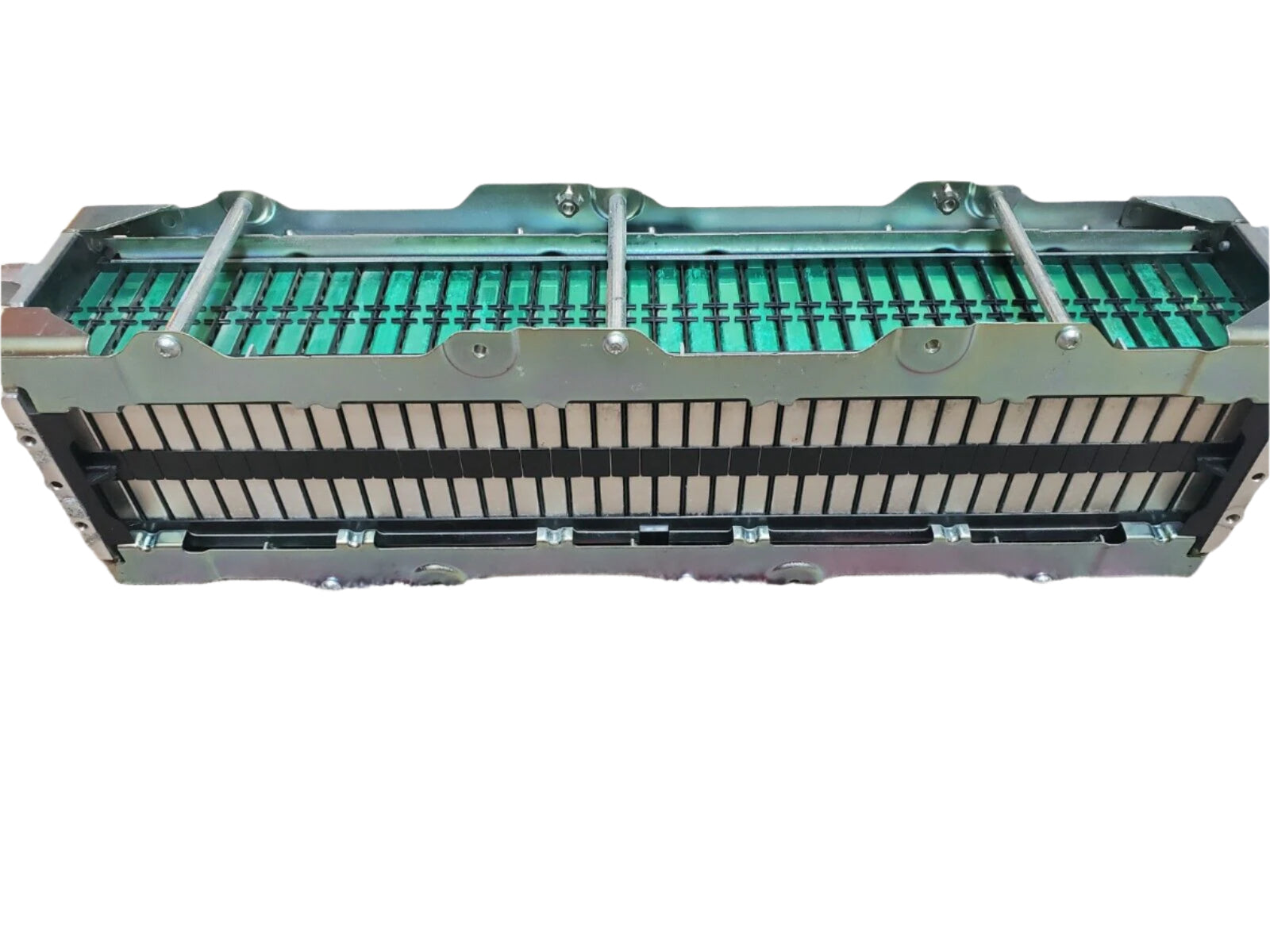

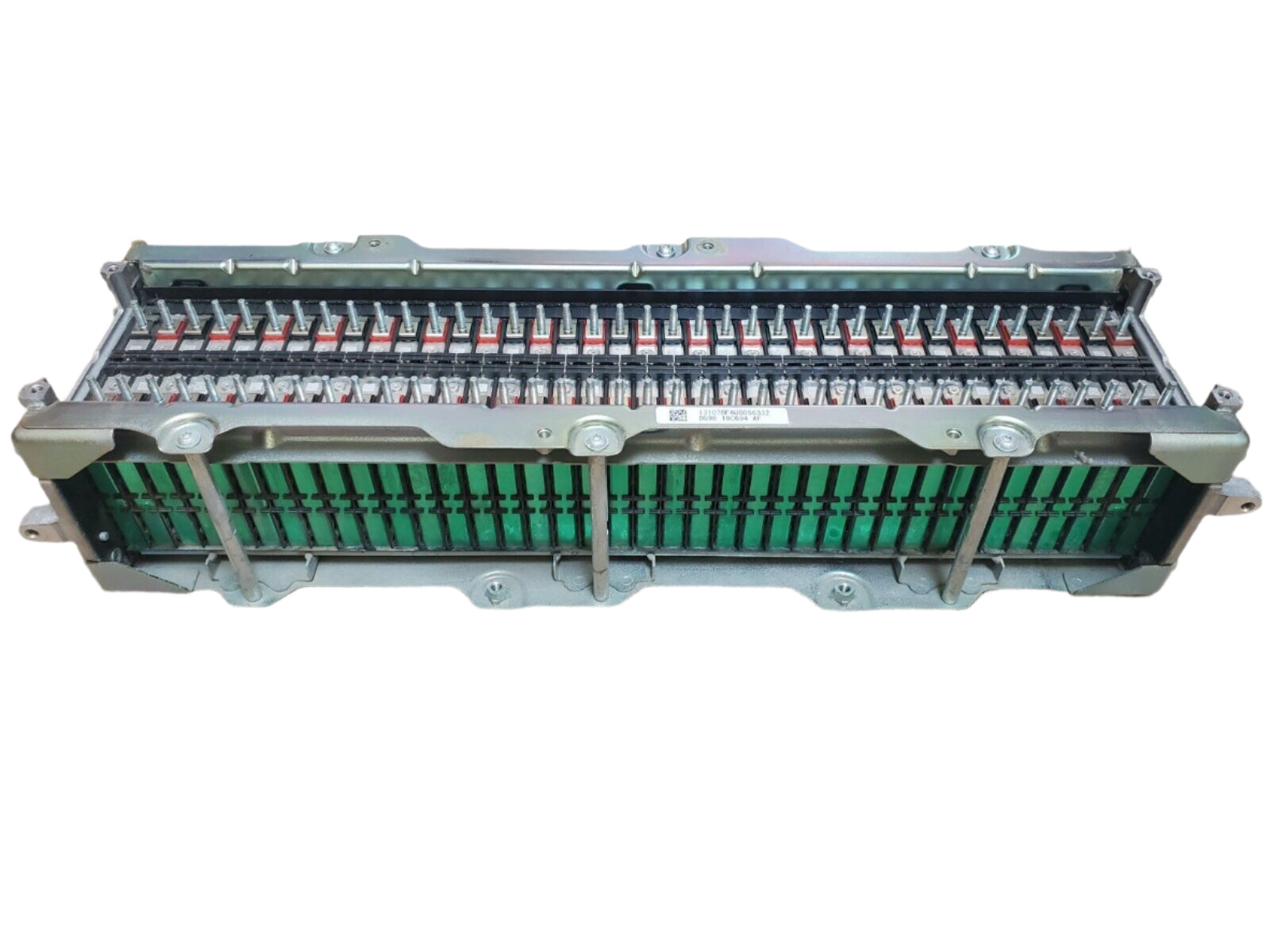

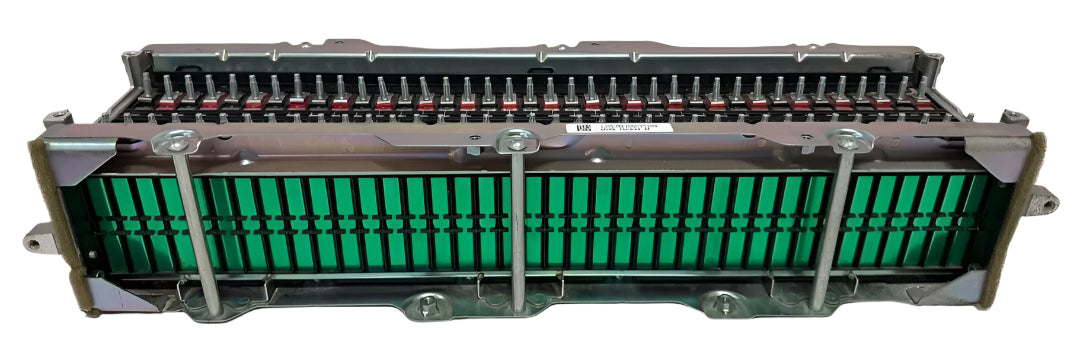

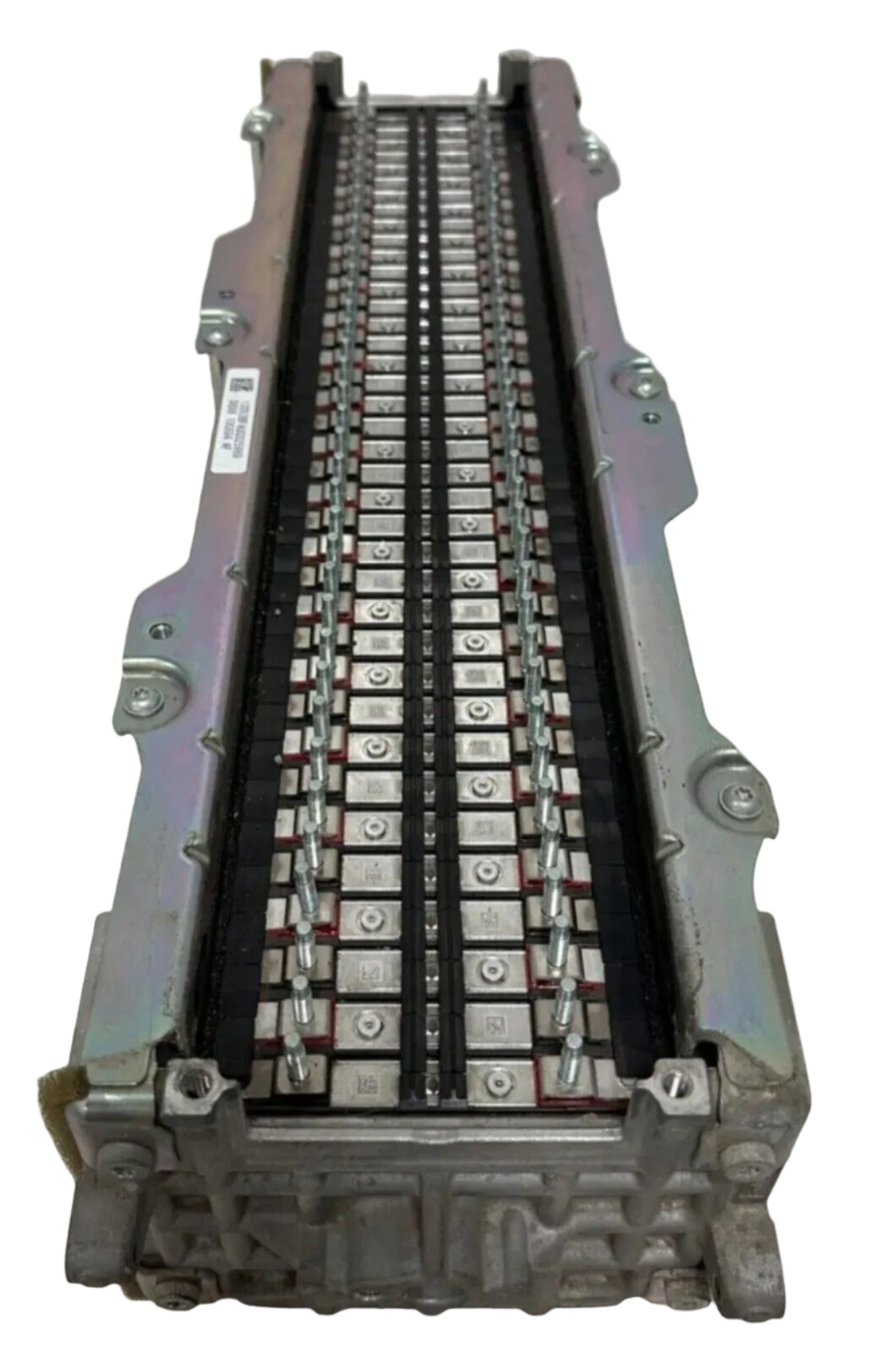

Ford Cmax Lithium Battery modules from a hybrid car.
The cells are assembled in a 38s, 1p configuration. The module can be taken apart and reassembled into any configuration of series/parallel. The chemistry is Lithium Ion Manganese Oxide, LiMn2O4.
The dimensions of the module are 25" long, 5.25" high, 7.5" wide. The weight is 33 pounds.

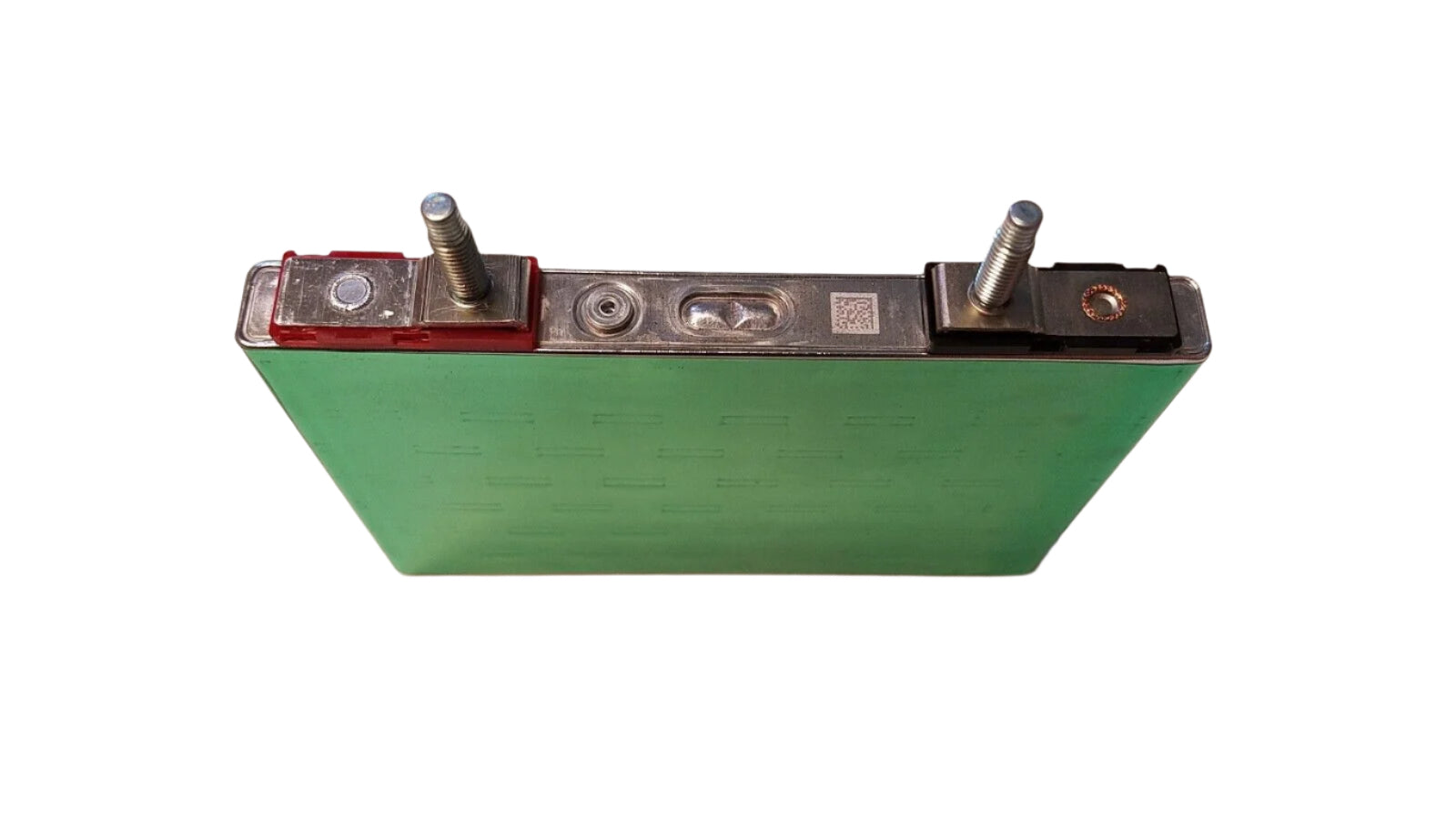

The dimensions of the individual cells are 4.75" wide, 0.5" thick, 4.25" high (with terminals). The weight is 9 ounces.
The nominal voltage of each cell is 3.7v, full-charge voltage is 4.2v, and full-discharge voltage is 2.75v. They are 5 amp hour cells with a max continuous discharge of 100 amps, peak of 150 amps.
This item is guaranteed to be 100% functional however being a used item it may have minor scratches, scuffs, wear marks, faded finish
