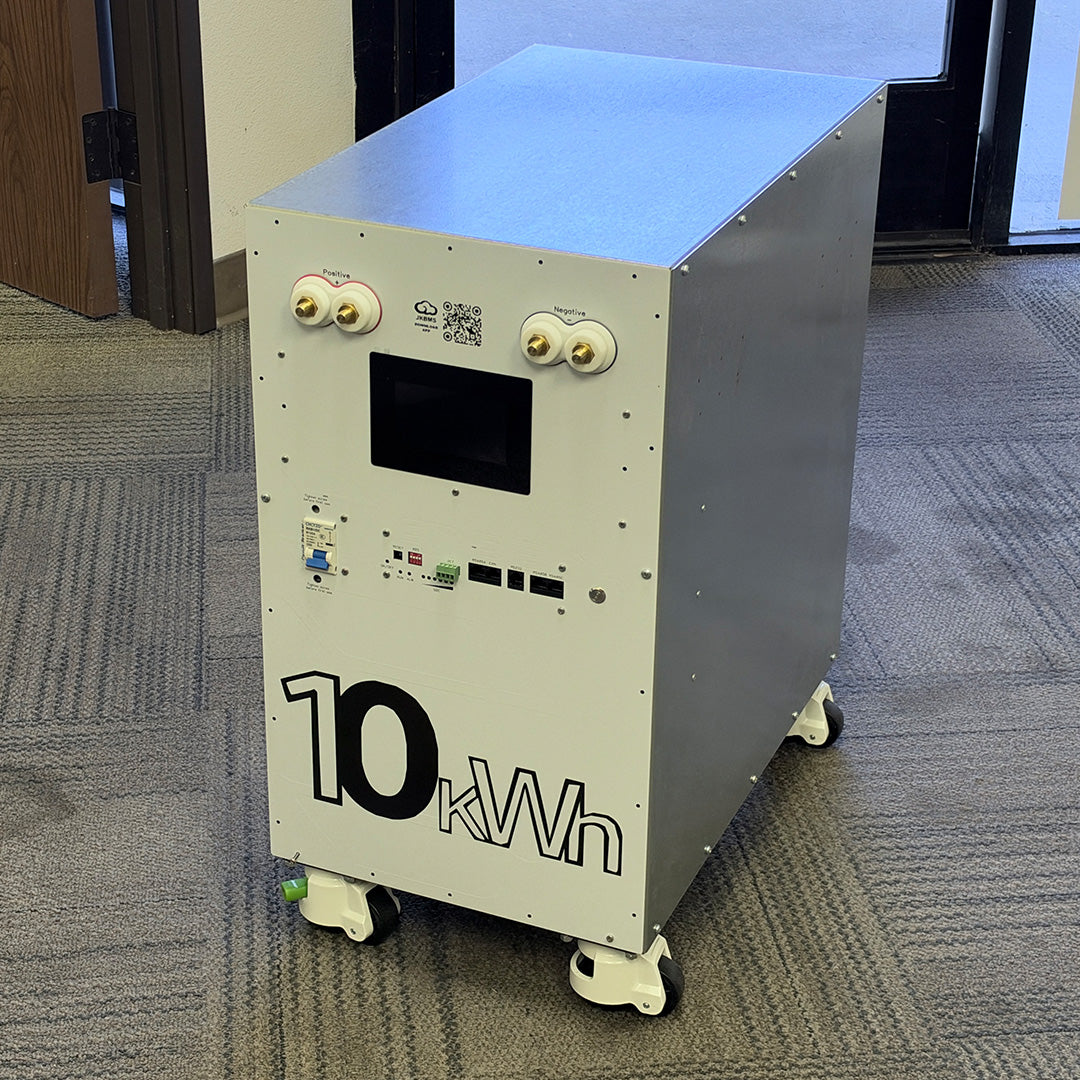

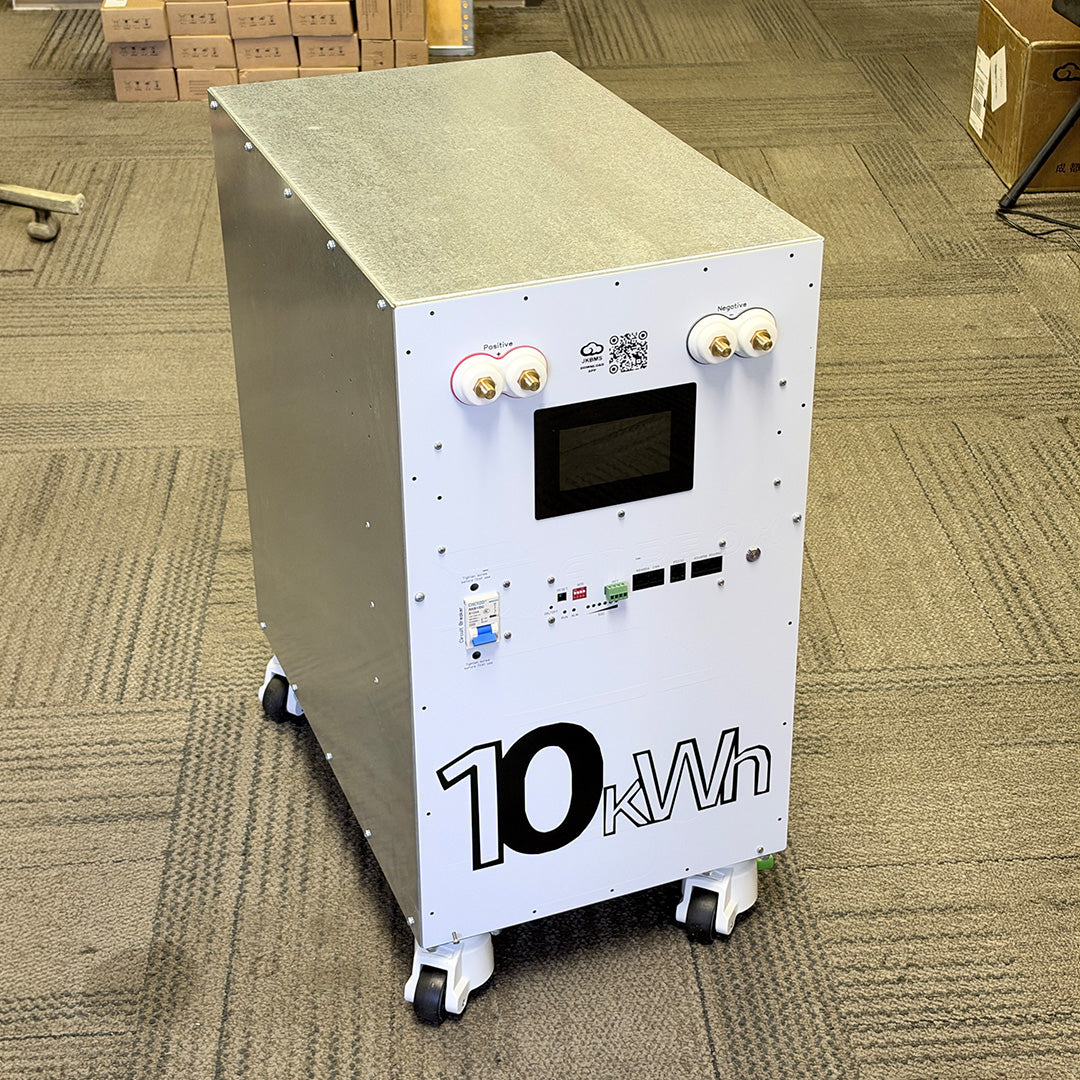

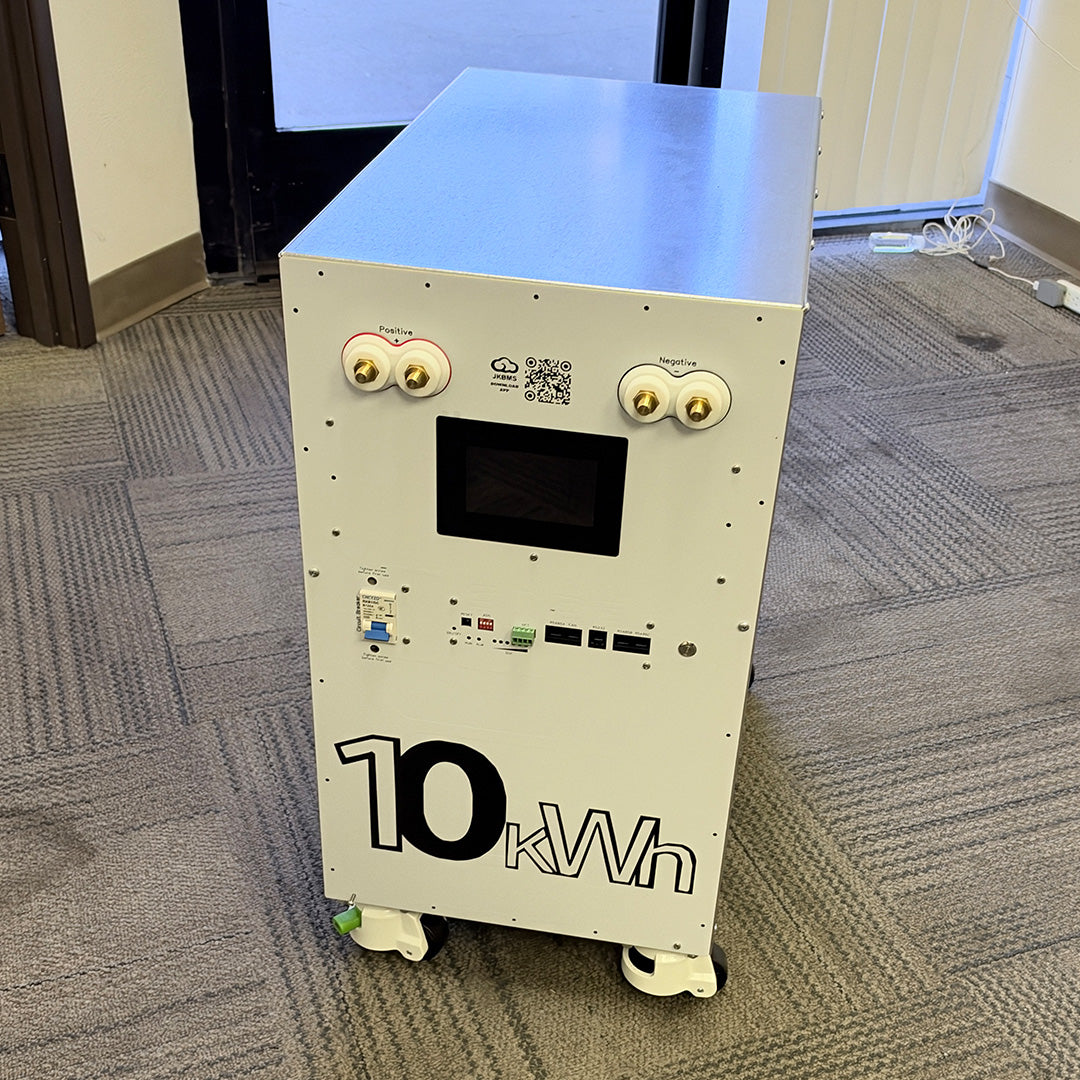

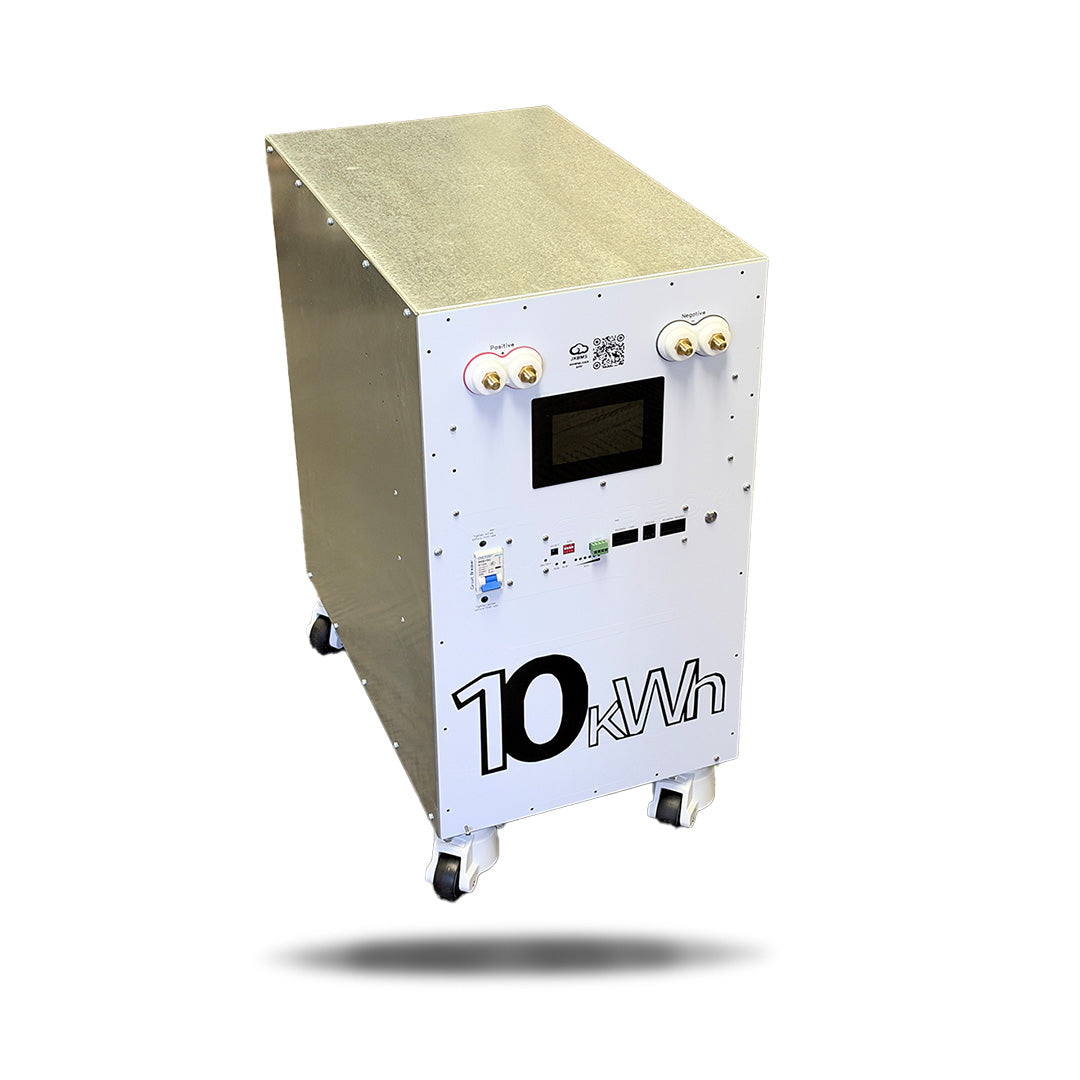

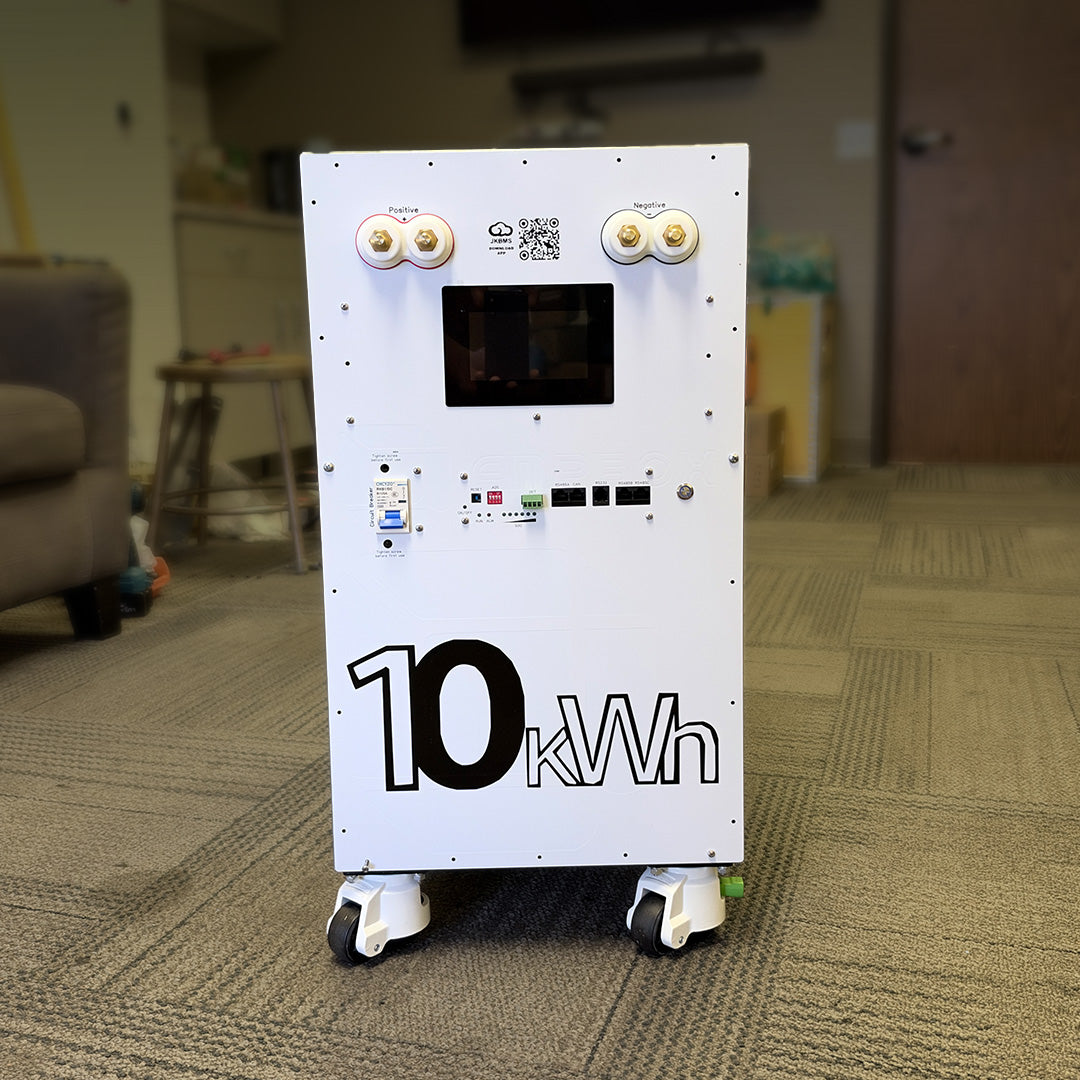

48v AmpBox Kit 10.24 kWh Pre-Built

48v AmpBox Kit 10.24 kWh Pre-Built

$999.00 USD
$999.00 USD
Sale Sold out
Shipping calculated at checkout.

Engineered energy storage powered by genuine BYD C12_4SI LiFePO4 cells. Heavy-duty reliability for serious off-grid architecture.

Eliminate the layout guesswork and safety hazards of custom cell harvesting. The premium 10.24 kWh AmpBox is an industrial-grade, fully pre-assembled energy storage system built explicitly around four heavy-duty BYD C12_4SI LiFePO4 modules.

Configured natively for standard 48V/51.2V solar and backup inverter ecosystems, this block provides a clean 200Ah storage floor. Engineered with an integrated smart management core, dense cell framing, and robust mechanical protections, it delivers pristine power profiles capable of sustaining 3,000+ deep discharge cycles at 80% DOD.

System Specifications

Total Energy Capacity 10.24 kWh
Rated Battery Capacity 200 Ah
System Configuration 51.2V Nominal (16S1P)
Expected Cell Longevity 3,000+ Cycles @ 80% DOD
Cell Chemistry / Variant BYD C12_4SI (LiFePO4)
Management Board Core JK-BMS 100A Smart Control
Overcurrent Breaker B125A Mechanical Switch
Box Enclosure Footprint 27" x 14" x 23" (~200 lbs)

What’s Included 📦

  • Heavy-duty steel protection structural AmpBox enclosure
  • 4 × BYD C12_4SI 12.8V 200Ah long-life modules
  • Pre-installed JK-BMS 100A with integrated Bluetooth tracking
  • Physical B125A circuit breaker quick-disconnect safety switch
  • Solid low-resistance internal linkage copper busbars
  • Fully batched, tested, and quality-vetted before shipping

System Integration Needs 🔌

  • 48V-native solar controller or hybrid battery inverter
  • Heavy DC cabling tailored to matching terminal configurations
  • Freight receiving prep (approx. 200 lbs cargo shipping profile)

Minimizing Risk: Frequently Answered Questions

How is the internal module layout wired?

The four discrete 12.8V BYD modules are strapped cleanly in a 16S1P series configuration. This brings the box output to a 51.2V nominal base, preventing common voltage drop bottlenecks and aligning perfectly with standard 48V consumer or commercial power hardware.

What are the cycle life limits?

The embedded genuine BYD LiFePO4 cells are premium industrial-tier chemistry. They natively sustain 3,000+ deep charging cycles down to 80% Depth of Discharge (DOD) before scaling down capacity performance, ensuring stable multi-year operation under heavy continuous off-grid loads.

How does the integrated safety management protect the box?

This AmpBox protects your environment using active software metrics via the integrated 100A JK-BMS (over/under voltage tracking, balancing lanes, thermal sensor watchdogs) paired with a heavy physical B125A mechanical circuit breaker for absolute overcurrent surge isolation.
