PLEASE READ THE DESCRIPTION CAREFULLY.
Shipping to USA only. No shipping to PO Boxes. No international shipping. Non-USA customers click here.

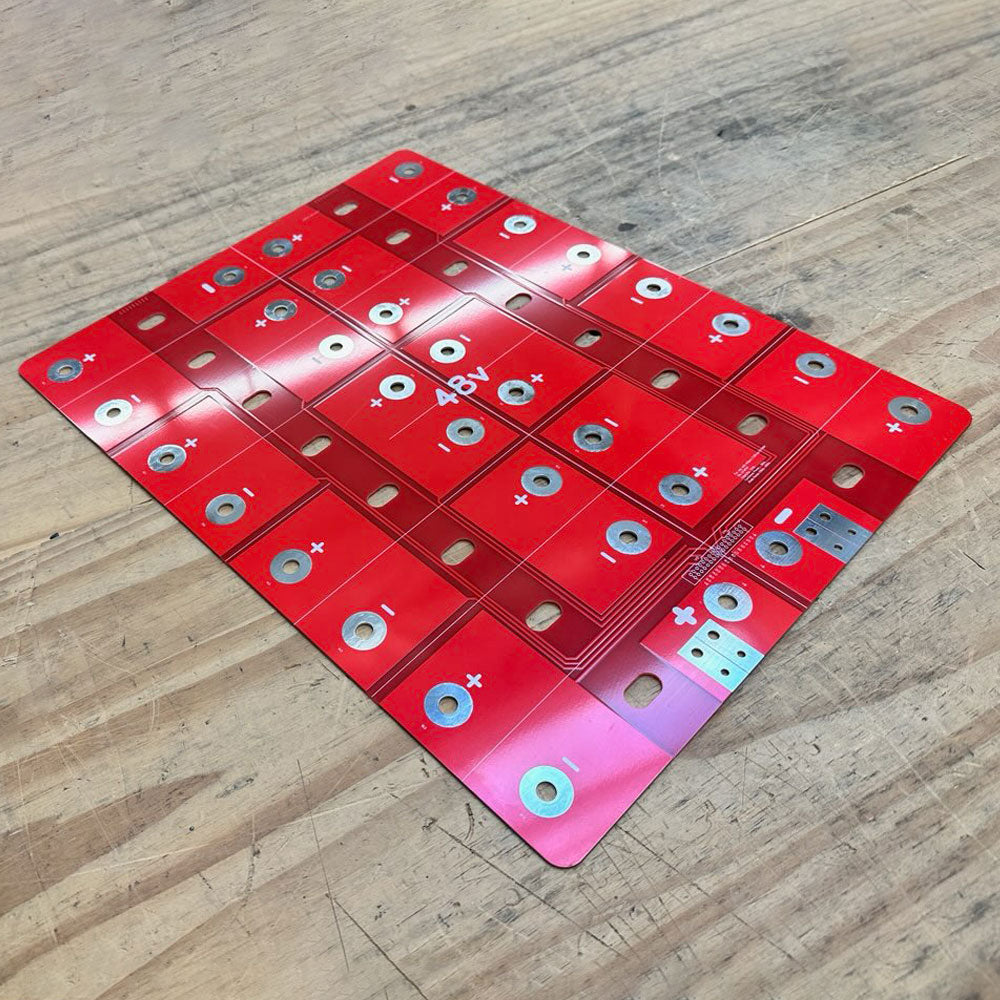

Brand new high-discharge 48v 16S busbar PCBs! These beefy busbars PCBs are perfect for turning x16 in series LEV60F lithium-iron-phosphate (LiFePO4) cells into a compact and powerful 48v 74Ah 600A battery. Great for high current applications, such as Bad Boy Buggies and UTVs. This listing is for the PCB busbars only. LEV60F cells sold separately HERE. These cells need containment/compression, the compression kit is available HERE.

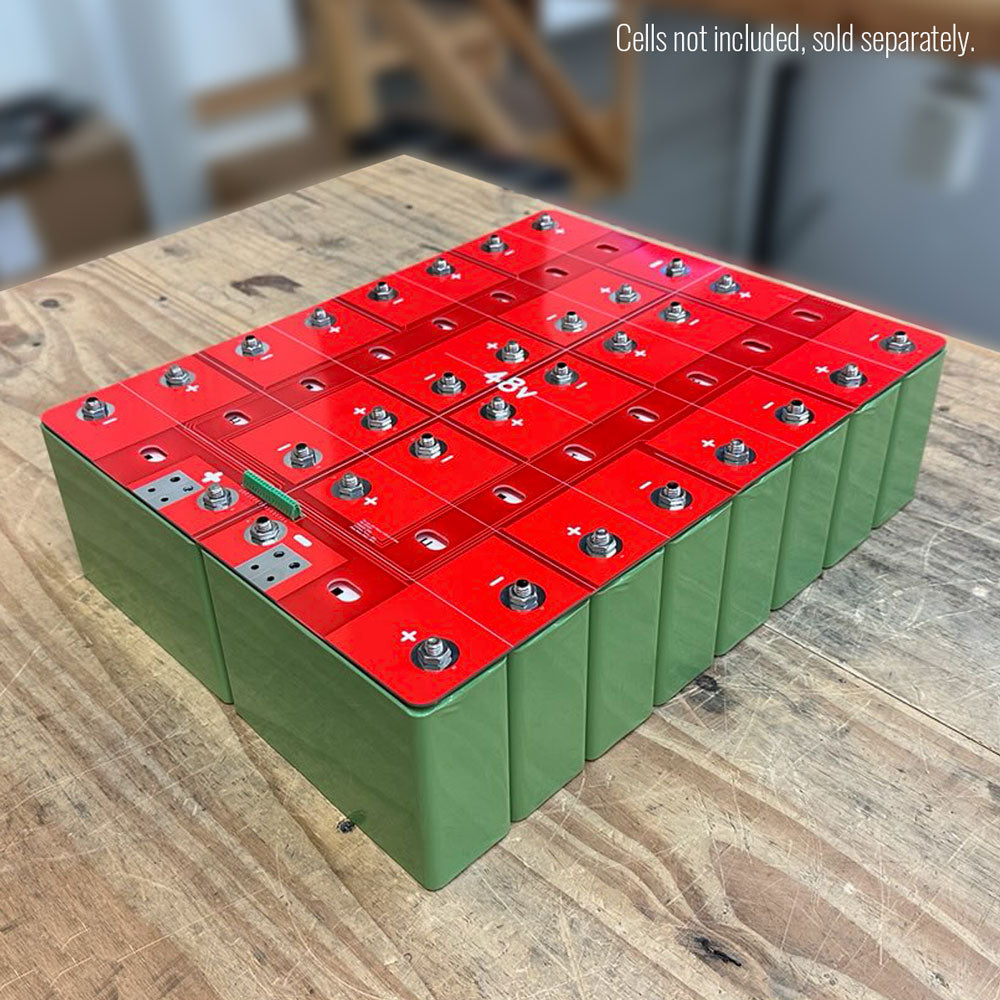

Final 16S pack dimensions: 17.5" L x 13.5" W x 5.75" H.

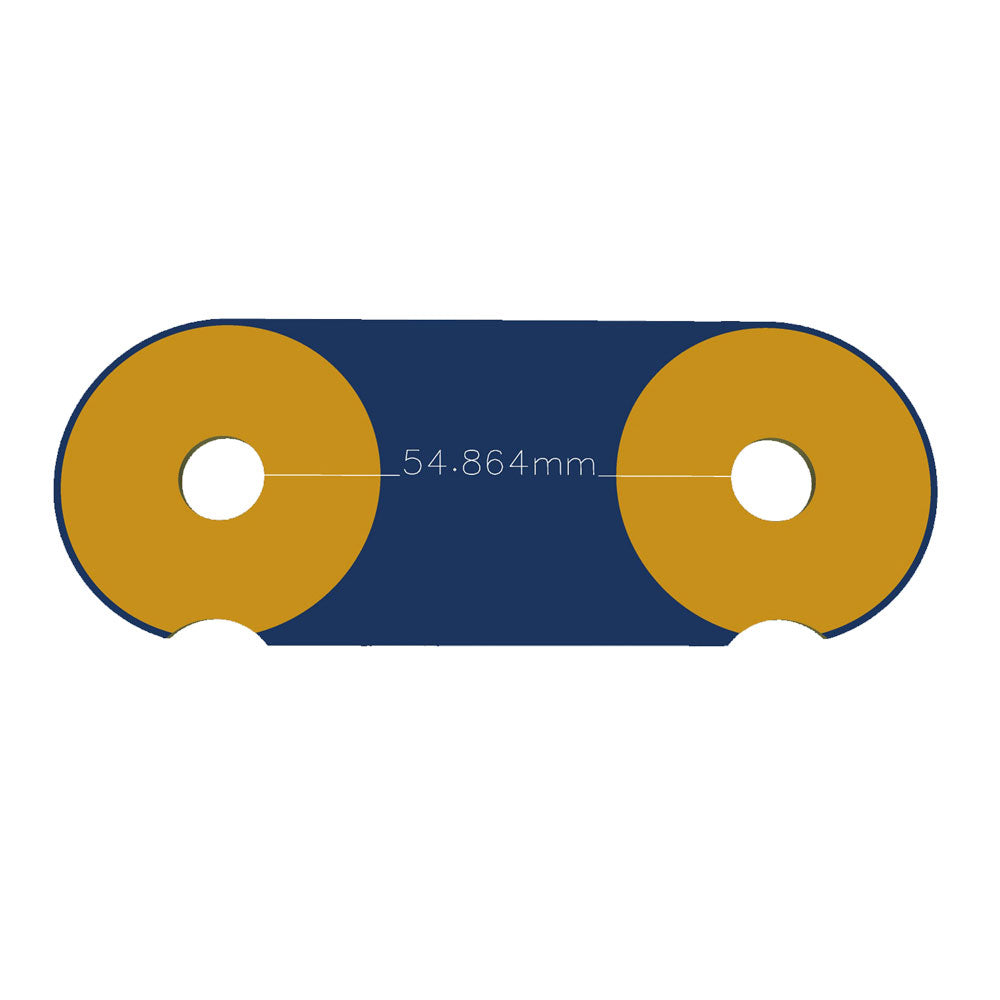

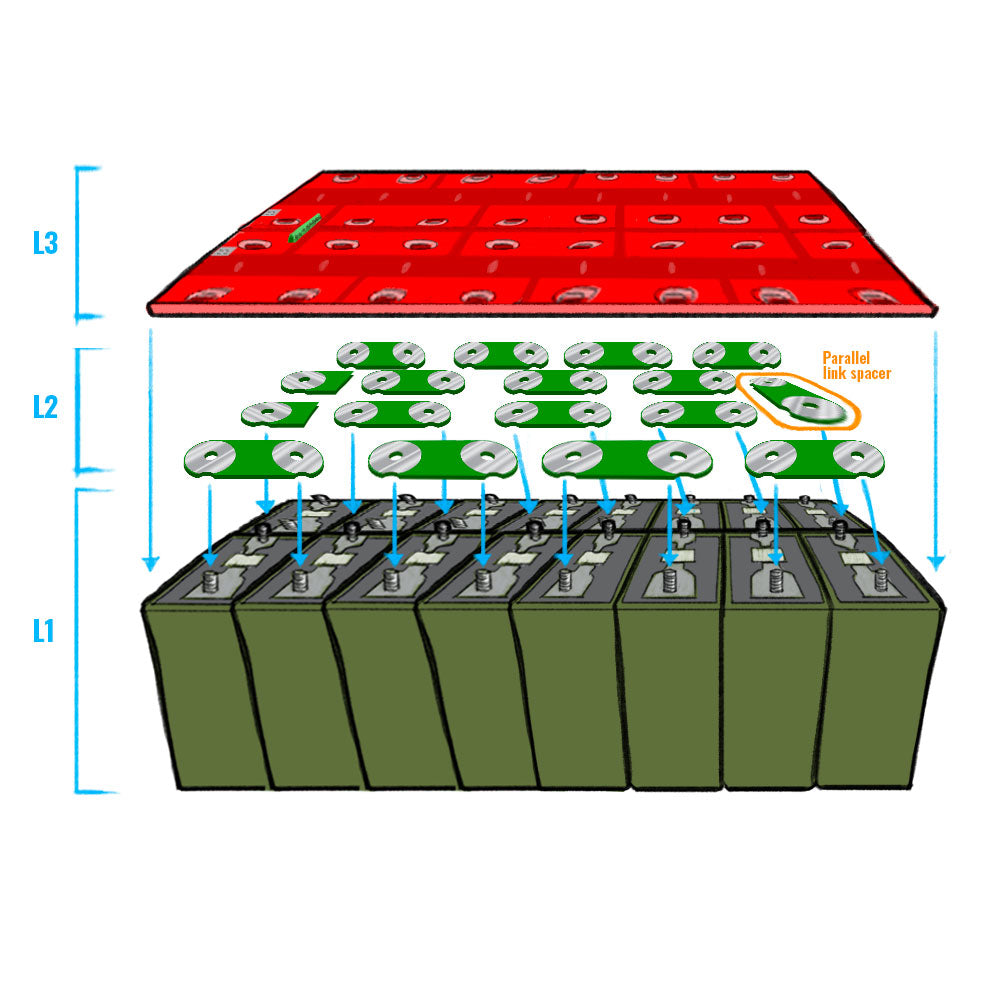

Seventeen PCB spacers (14x of the 54mm, 1x of the 43mm short, 2x round singles) are required to prevent shorts, included in this kit! Plz see the diagram below for more details:
Other components you'll need:
- Fish Paper for isolation between cells available > HERE
- Compression kit sold separately > HERE
- 5-pin jumper cable sold separately > HERE
PRODUCT VIDEO:
__
These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, "unused" or “like-new”, they may be in less than perfect condition. If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases from us.
