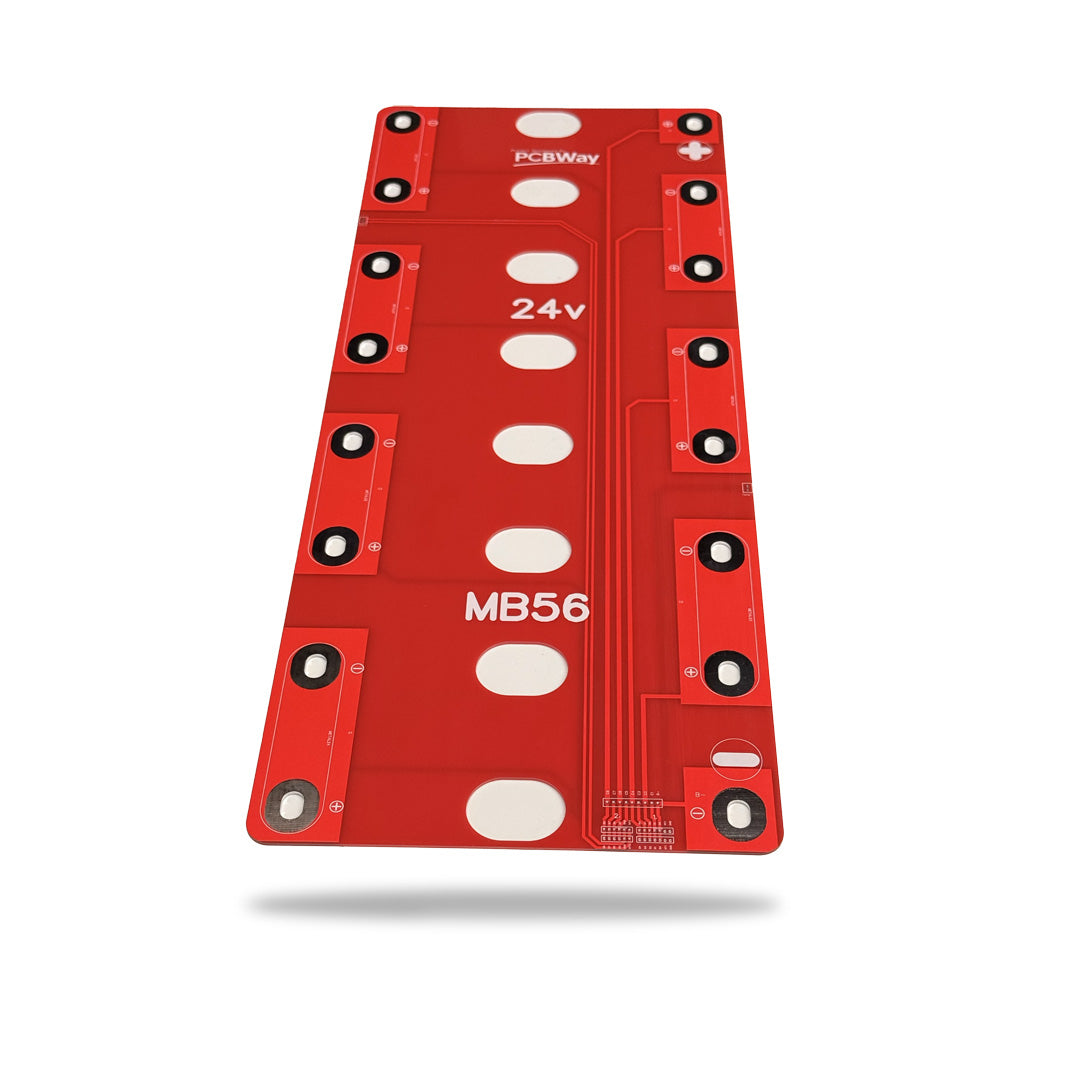

24V PCB Busbar Board for EVE MB56 628Ah 2.0kWh Cells
24V PCB Busbar Board for EVE MB56 628Ah 2.0kWh Cells
Couldn't load pickup availability
Pro-Series PCB Busbar
Designed for EVE MB56 628Ah 24V Configurations
The Ultimate Building Foundation
Streamline your high-capacity energy storage project with our precision-engineered PCB Busbar. Specifically tailored for the massive EVE MB56 628Ah LiFePO4 cells, this board transforms a complex 8-cell assembly into a clean, professional-grade 24V battery pack. Whether you are a first-time builder or a seasoned pro, this board eliminates guesswork and maximizes safety.
Engineered Specifications
- Compatibility: Exclusively for EVE MB56 628Ah (352.3 x 71.7 x 207.2 mm)
- Configuration: 8-Cell / 24V Series Systems
- Current Rating: 100A Continuous
- BMS Integration: Single-connector balance wire termination
Why Choose Our PCB Solution?
Error-Proof Assembly
Clear markings on the board guide your cell orientation and wiring, significantly reducing the risk of short circuits or incorrect series connections.
Elegant Cable Management
No more "spaghetti wiring." All balance leads are integrated into the PCB, terminating in a single clean port for your BMS.
⚡ Pro-Builder Recommendation
For maximum efficiency and safety in high-load applications, always couple this PCB with metal busbars. This ensures optimal conductivity while the PCB manages your balance circuitry and structural layout.
