Jag35

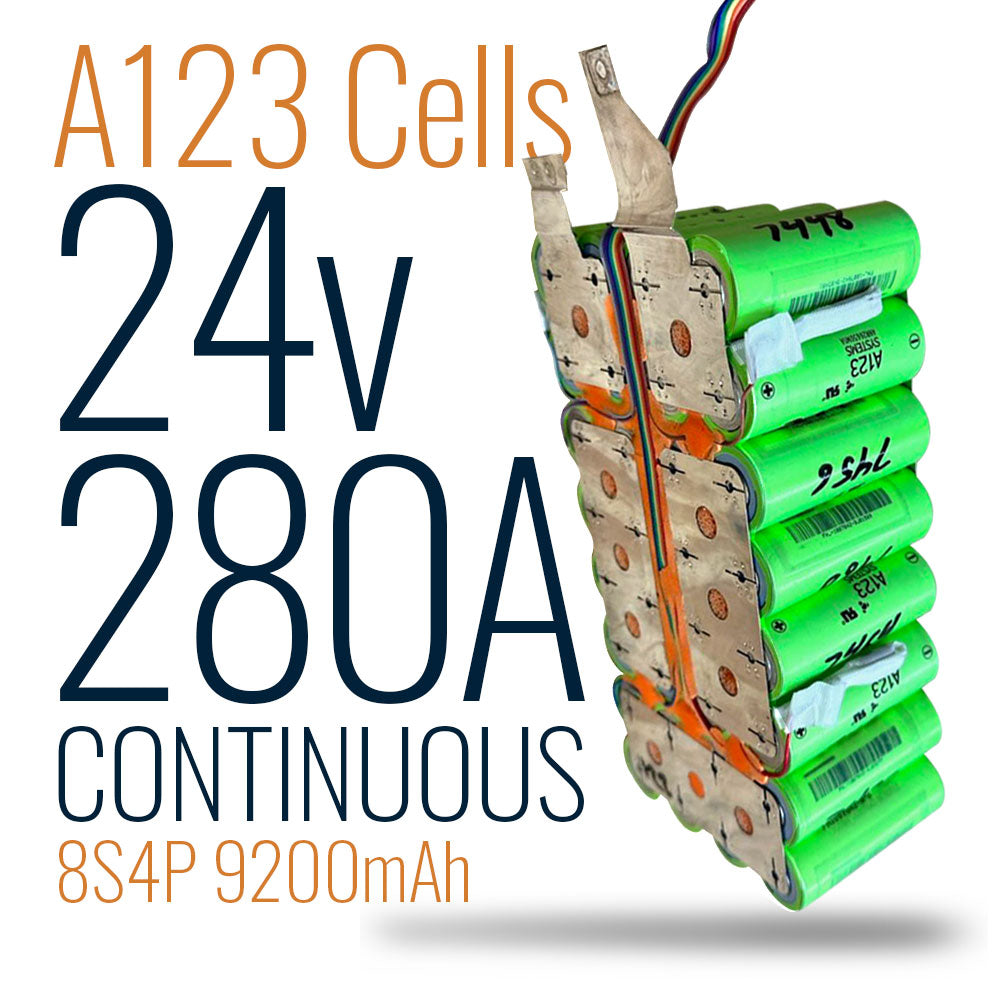

24v 9200mAh Battery 280A Cont 8s4p w/ A123 Power Cells

24v 9200mAh Battery 280A Cont 8s4p w/ A123 Power Cells

Regular price $42.00 USD
Regular price $109.00 USD Sale price $42.00 USD
Sale Sold out
Shipping calculated at checkout.
Type

Please read the description carefully.

Shipping to Lower 48 USA states only via Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.

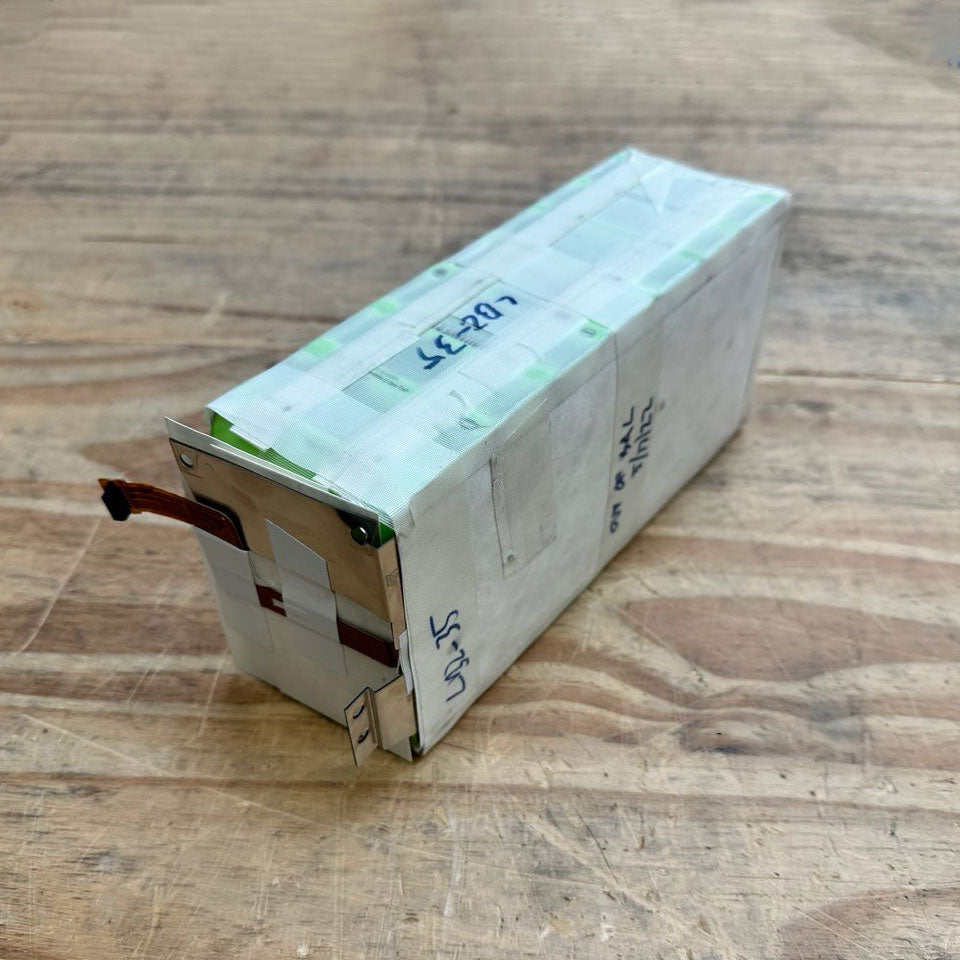

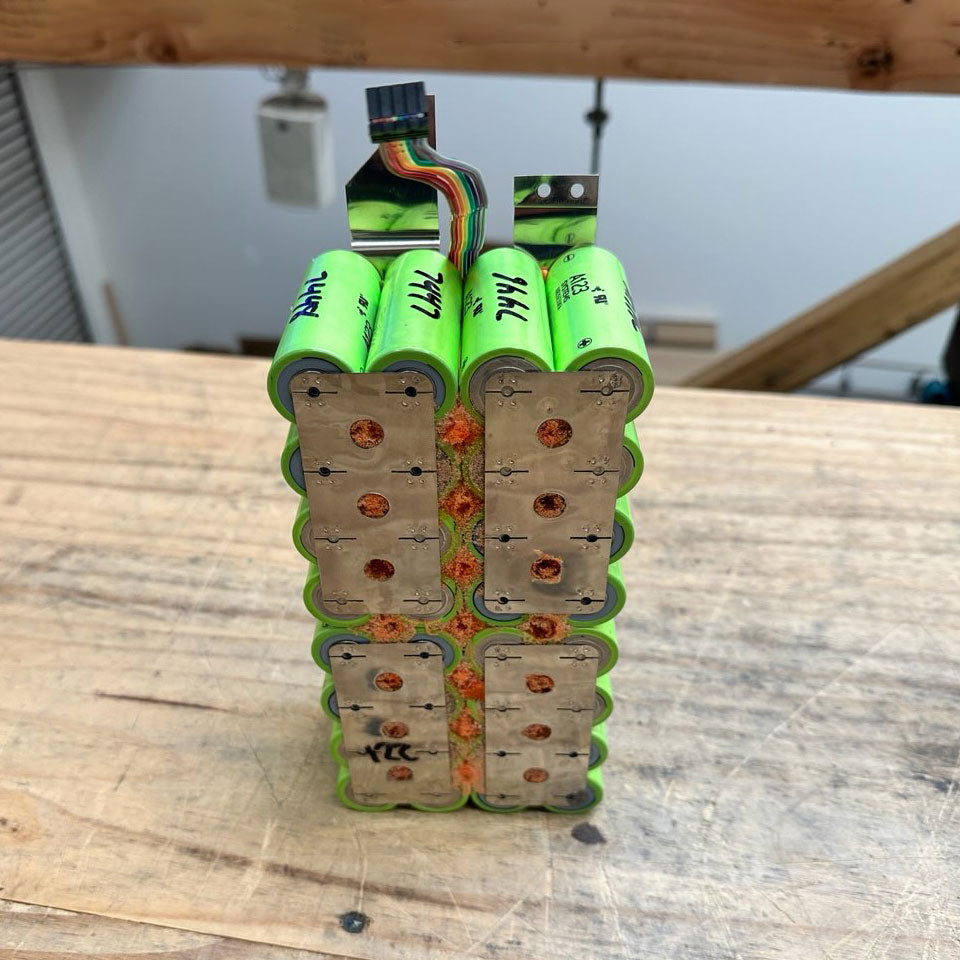

Power cell battery! These powerful 24v 9200mAh battery packs can pull 480A, up to 280A continuous, in an 8s4p configuration using the popular A123 power cells that are used in high power e-bikes and e-boards.

These packs come with a custom BMS connector, so to add your own BMS you'll need to find the matching connector or adapt it to add your own connector.


FYI,  Untested batteries are in unknown condition and are sold as-is. Untested batteries may be unbalanced, so you may need to try to balance them before using them safely. If your pack doesn't end up balancing out, you need to be prepared to DIY repair it or harvest the cells out of it. No refunds or replacement on "untested" batteries.



Pack Specs

  • Voltage: 24v
  • Capacity: 9200mAh
  • Current: 480A
  • Continuous discharge: 280A
  • Configuration: 8s4p
  • BMS: Not included


Cell Specs

  • Brand: A123
  • Chemistry: LiFePO4
  • Code: ANR26650M1A
  • Style: 26650
  • Dimensions: 25.85mm D x 65.15mm H
  • Weight: 70g
  • Nominal Capacity: 2300mAh
  • Voltage (nominal): 3.3V
  • Internal impedance (1kHz AC typical, mΩ): 6
  • HPPC 10 Sec Discharge Pulse Power 50% SOC: 200W
  • Recommended standard charge method: 1C to 3.6V CCCV, 45 min
  • Recommended fast charge Method to 80% SOC: 4C to 3.6V CC,12 min
  • Maximum continuous discharge (A): 70
  • Maximum Pulse discharge (10 seconds, A): 120
  • Cycle life at 10C discharge, 100% DOD: Over 1,000 cycles
  • Operating temperature range: -30°C to +55°C
  • Storage temperature range: -40°C to +60°C



Product video:




__

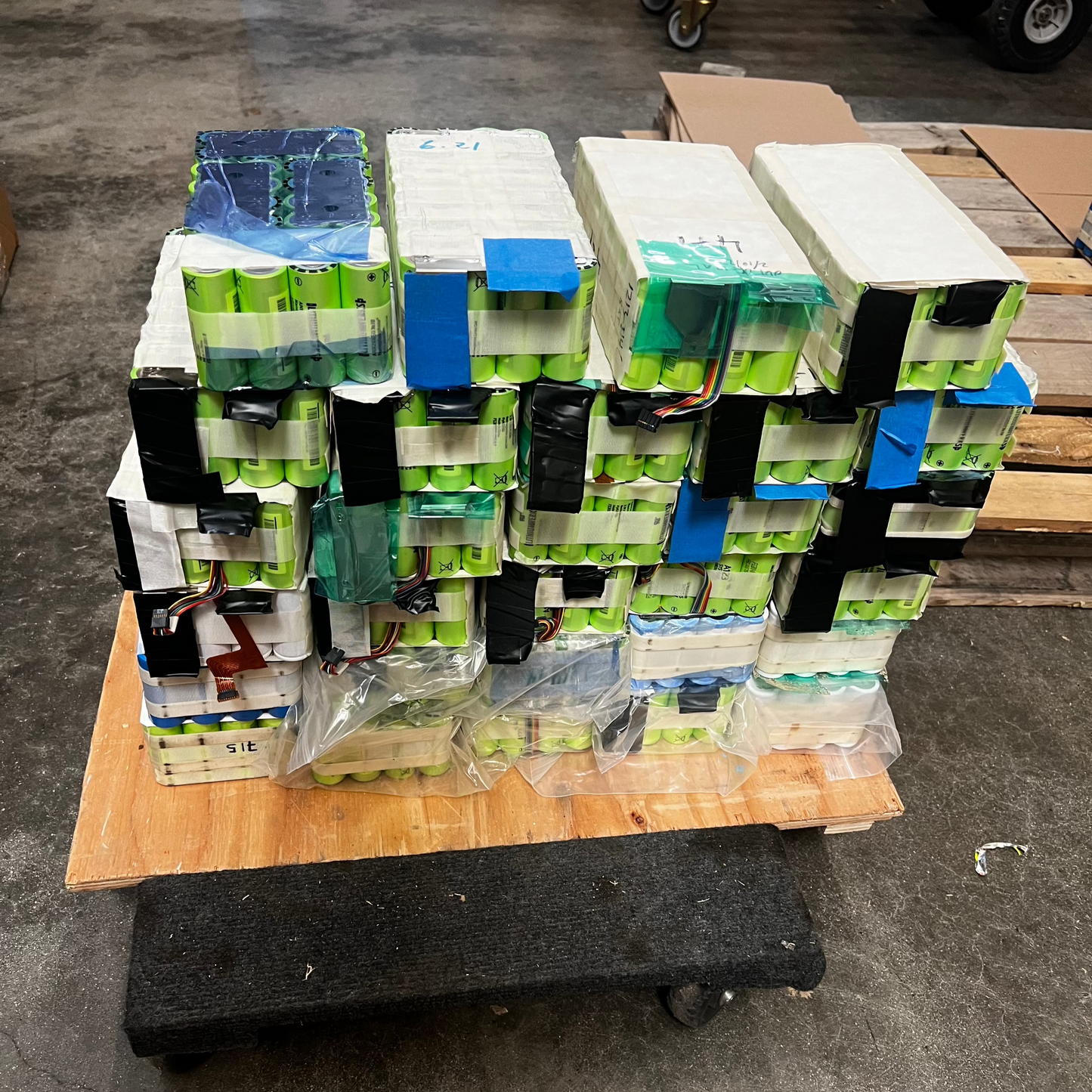

Note that these are reclaimed packs, so the actual cell voltage you receive may be lower than the label shows. These items are sold for DIY and Second Life purposes. Listings that are specifically described as “untested” or “sold as-is” and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases from us.

NEW YORK residents:
On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.

Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
