18650 Battery Module DIY PCB Kit 25x

18650 Battery Module DIY PCB Kit 25x

Regular price $284.00 USD
Regular price Sale price $284.00 USD
Sale Sold out
Shipping calculated at checkout.
Options

Please read the description carefully.

Shipping to USA only via Ground Shipping. No international shipping. Non-USA customers click here.

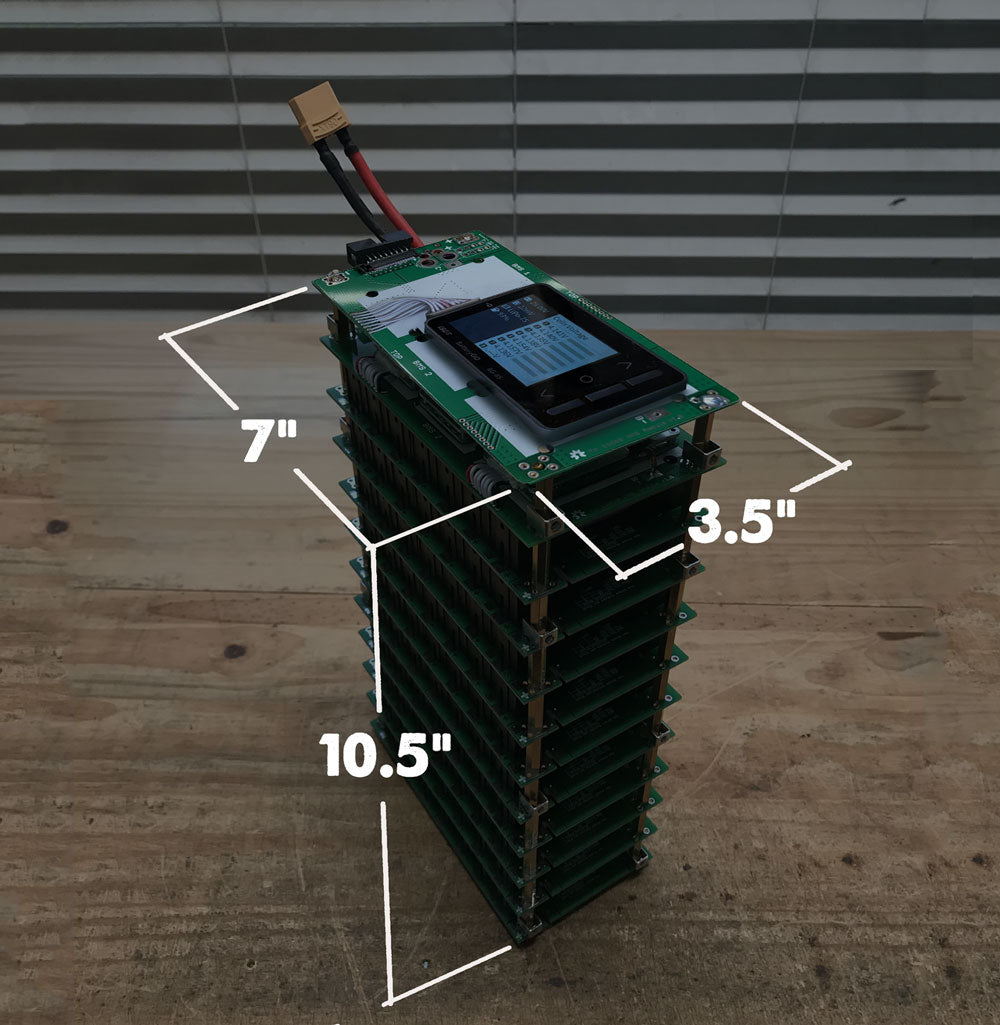

This kit it includes everything to make a 175-cell 18650 battery pack 24v +- 1.75kwh (7s25p). Requires Assembly and soldering.

Battery cells sold separately > Find batteries here

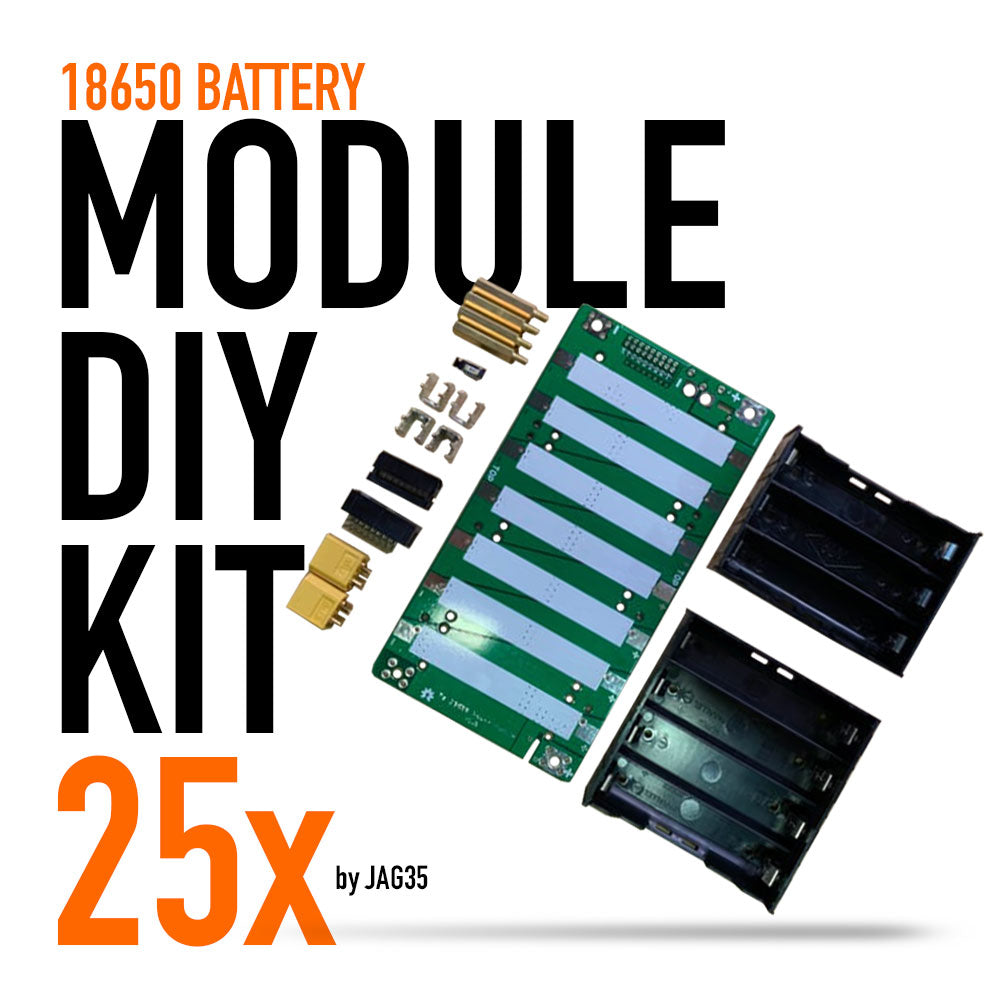

PCB KIT (included)
Contents: Battery Module PCB DIY Kit

25x Printed Circuit Boards
25x 4cell 18650 holders
25x 3cell 18650 holders
25x 5A SMD fuses
25x IDC Socket connector
25x IDC Ribbon connector
1x Ribbon cable
1x XT60 connector
100x M4x 25mm standoffs
Download PCB v1.3 Gerber

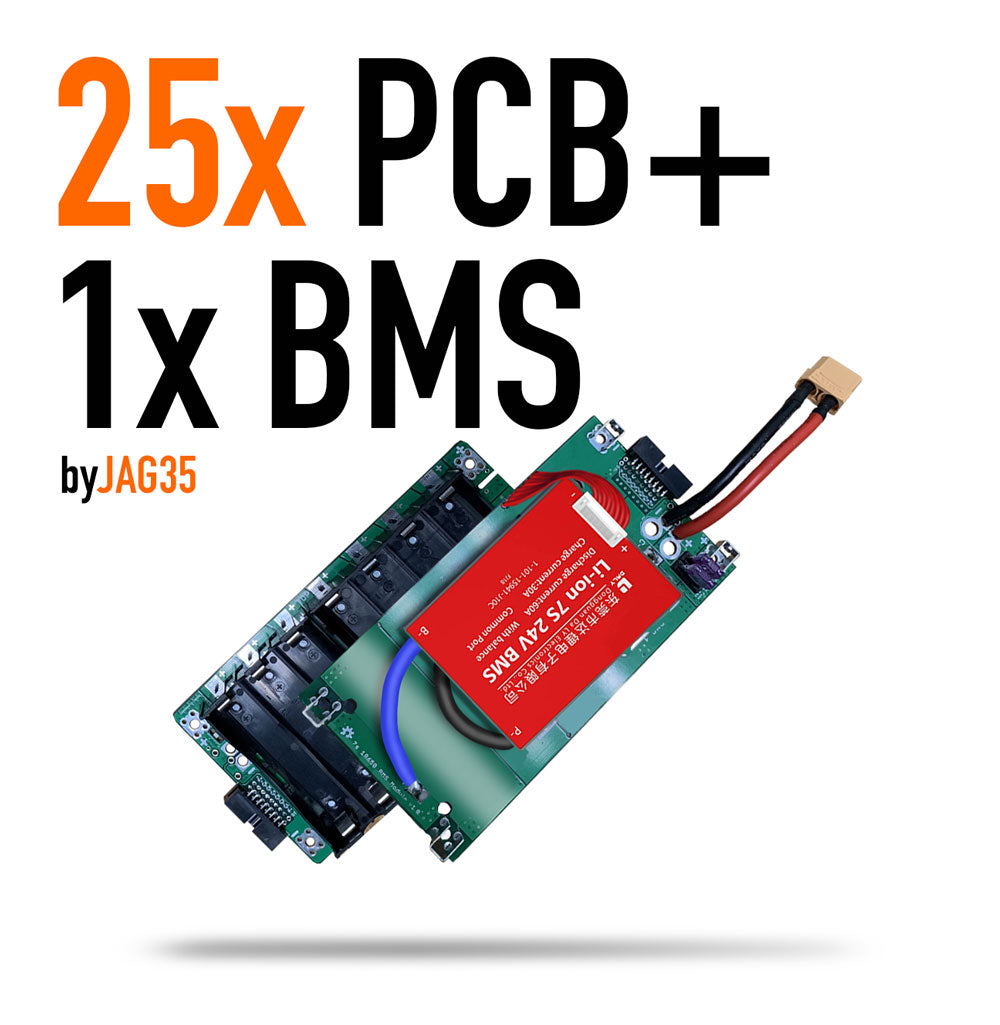

BMS KIT (optional)
Contents: Battery Management System DIY Kit

1x PCB
1x 60A BMS units
1x 3M Double sided Adhesive
3x 20A Fuses with Fuse Holders
4x M4 Nuts
4x M4 screws
4x M4x25mm standoffs
1x XT90 Pigtail
1x 16pin IDC socket connector
1x 16pin IDC connector
Download BMS Gerber

Assembly required.

DALY PCB BMS 7s 24v 60A



Battery cells sold separately > Find batteries here



Packs that are “untested” as sold as-is and cannot be returned, exchanged or refunded. These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
