DIY 18650 Battery Module 10x Populated

  • Sale
  • $299.98
  • Regular price $349.00
  • 1 available
Shipping calculated at checkout.


Please read the description carefully.

Shipping to Lower 48 USA states only via UPS Ground. No international shipping. Non-USA customers click here.

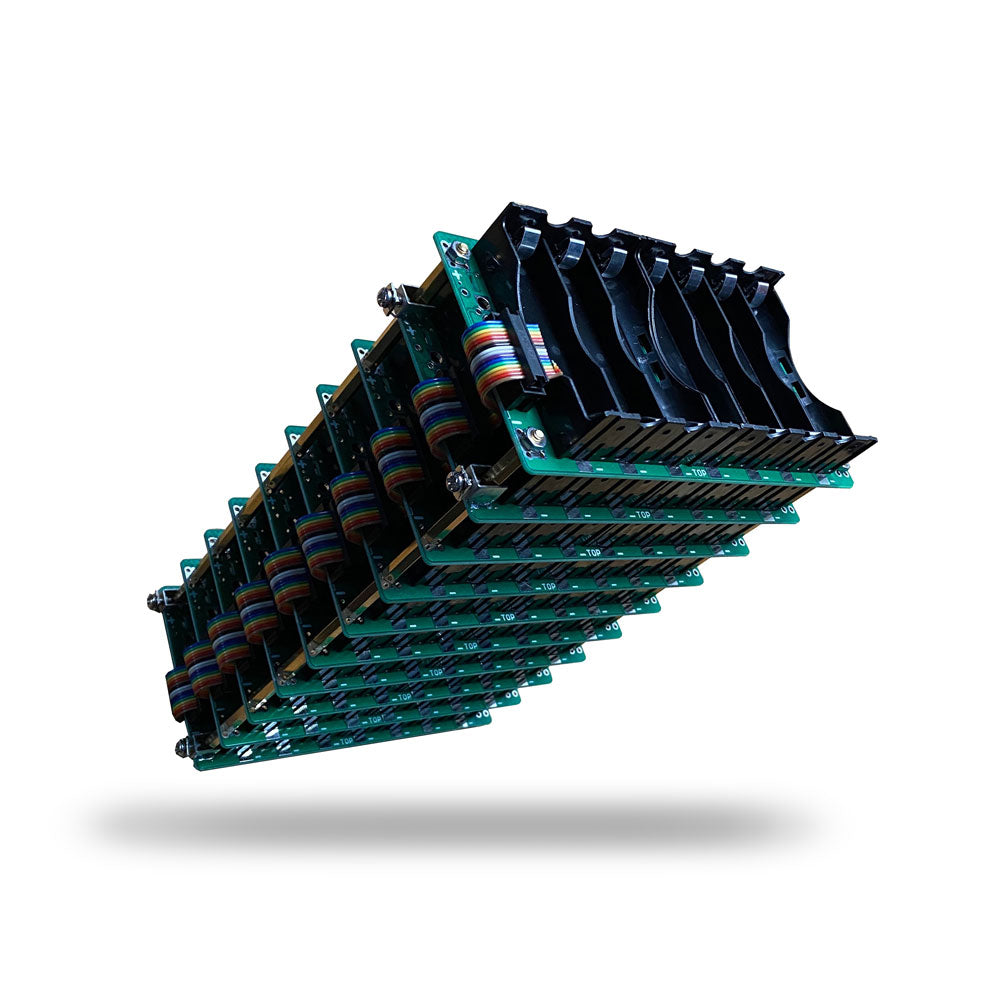

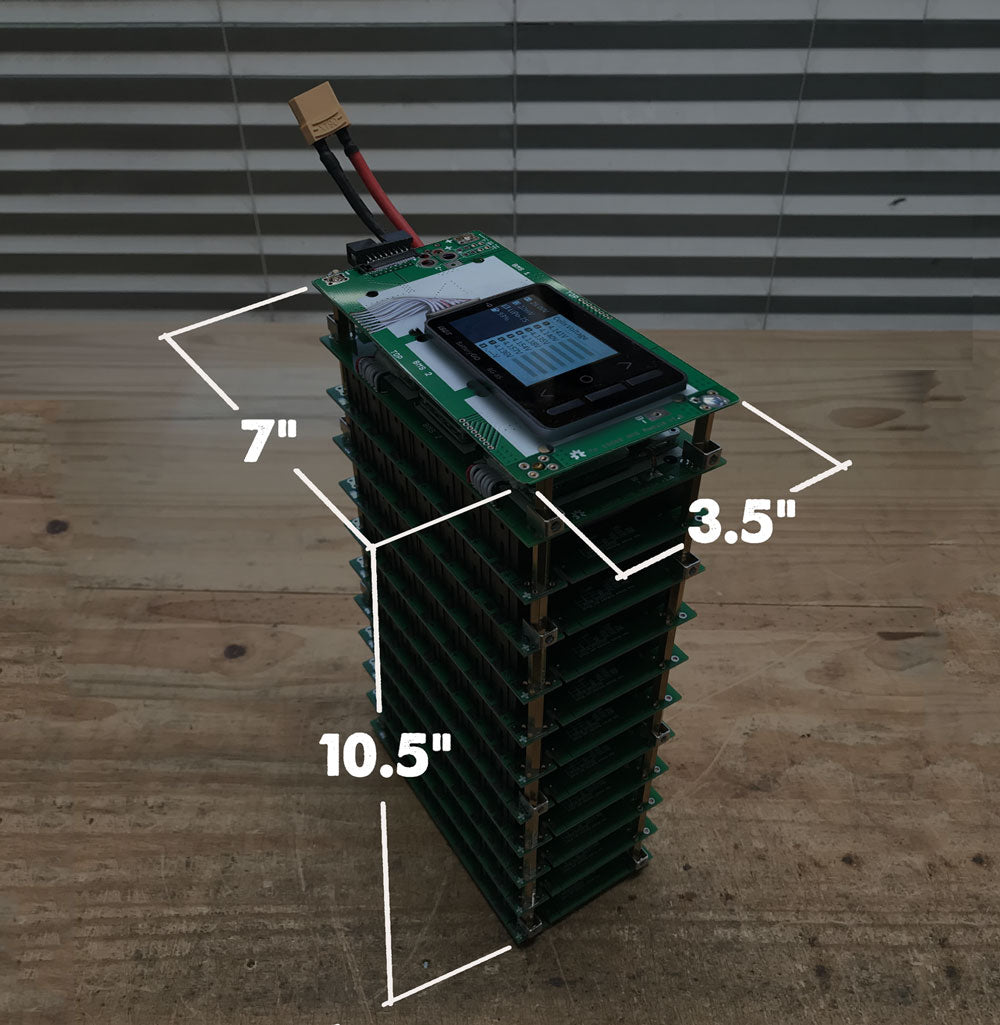

This includes the hardware to make a 70-cell 18650 battery pack 24v +- 700Wh (7s10p). Includes 10 battery modules and ribbon cable to connect them, also the brass standoffs and one XT60 connector that must soldered if you choose to use it.  PCB Boards are populated but they require some assembly.

Battery cells sold separately > Find batteries here

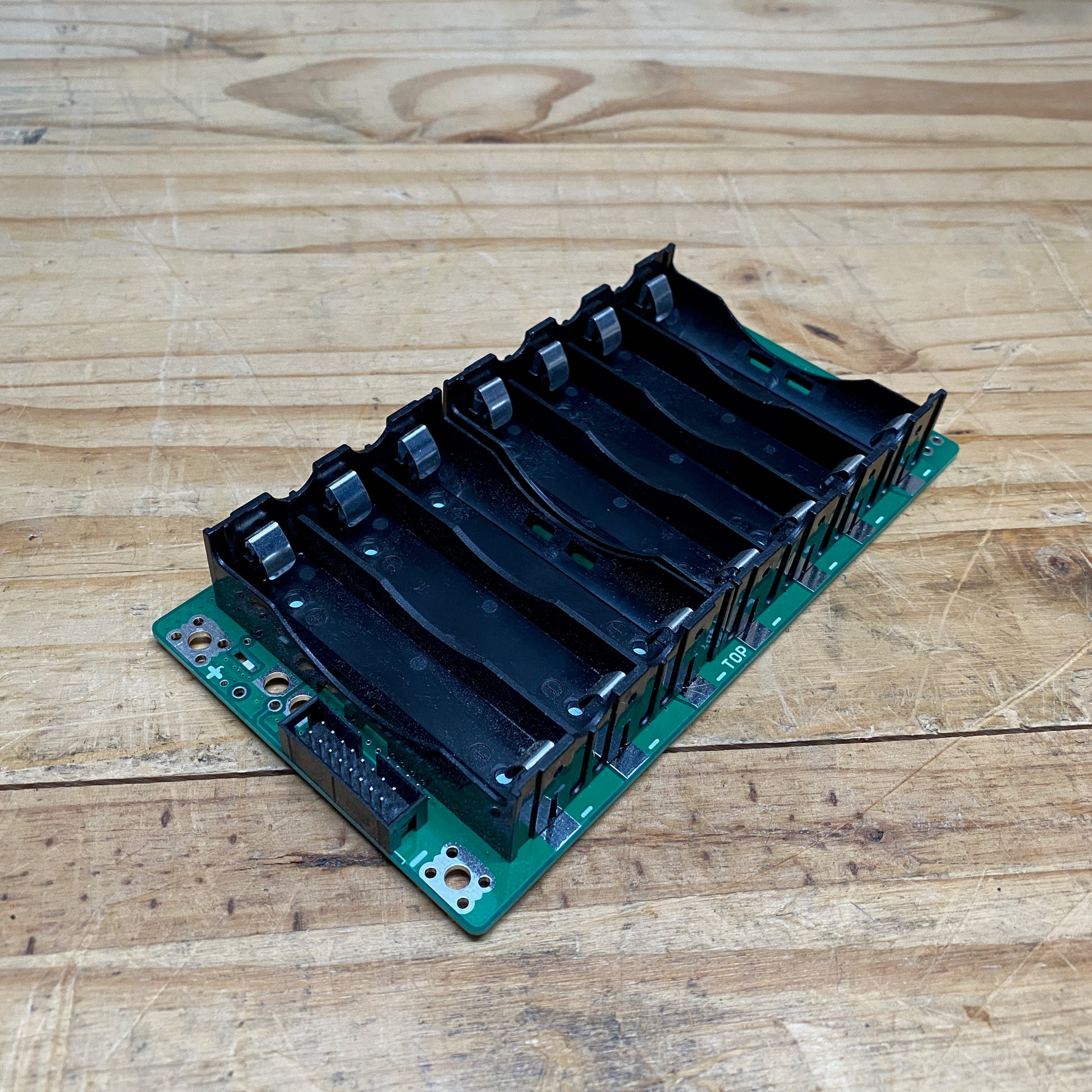

PCB Battery Board (populated)
Contents: Battery Module PCB

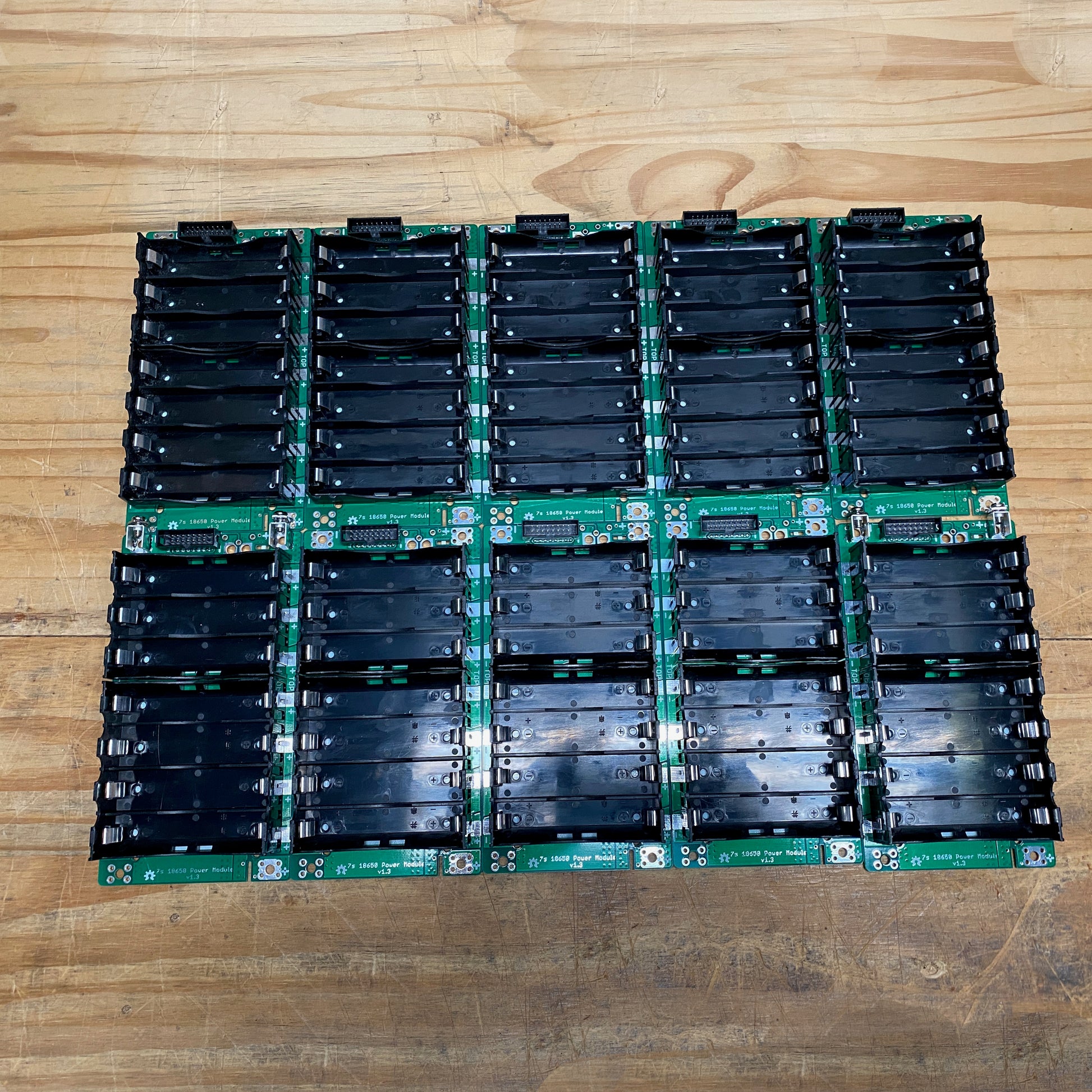

10x Printed Circuit Boards
10x 4cell 18650 holders
10x 3cell 18650 holders
10x 5A SMD fuses
10x IDC Socket connector
10x IDC Ribbon connector
1x Ribbon cable
1x XT60 connector
4x M4 Lug PCB Terminal
40x M4x 25mm standoffs

PCB Board - Assembly Required

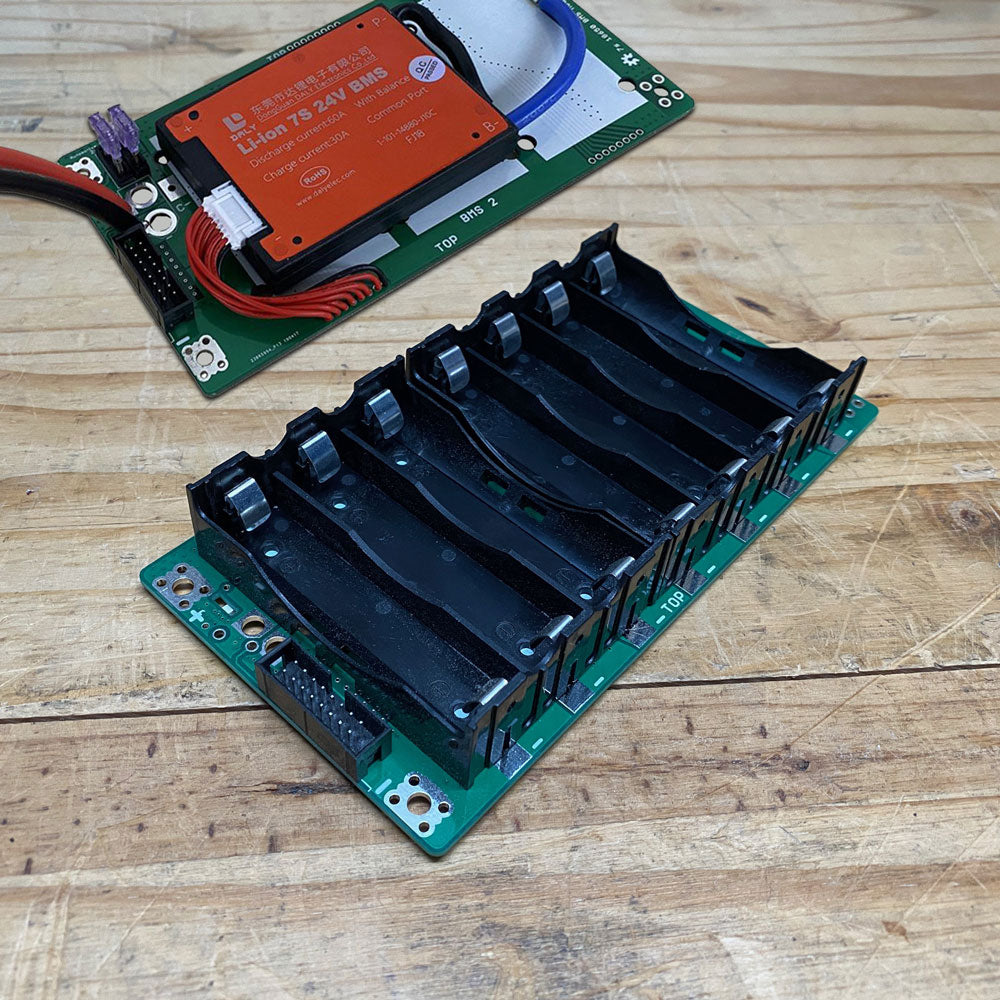

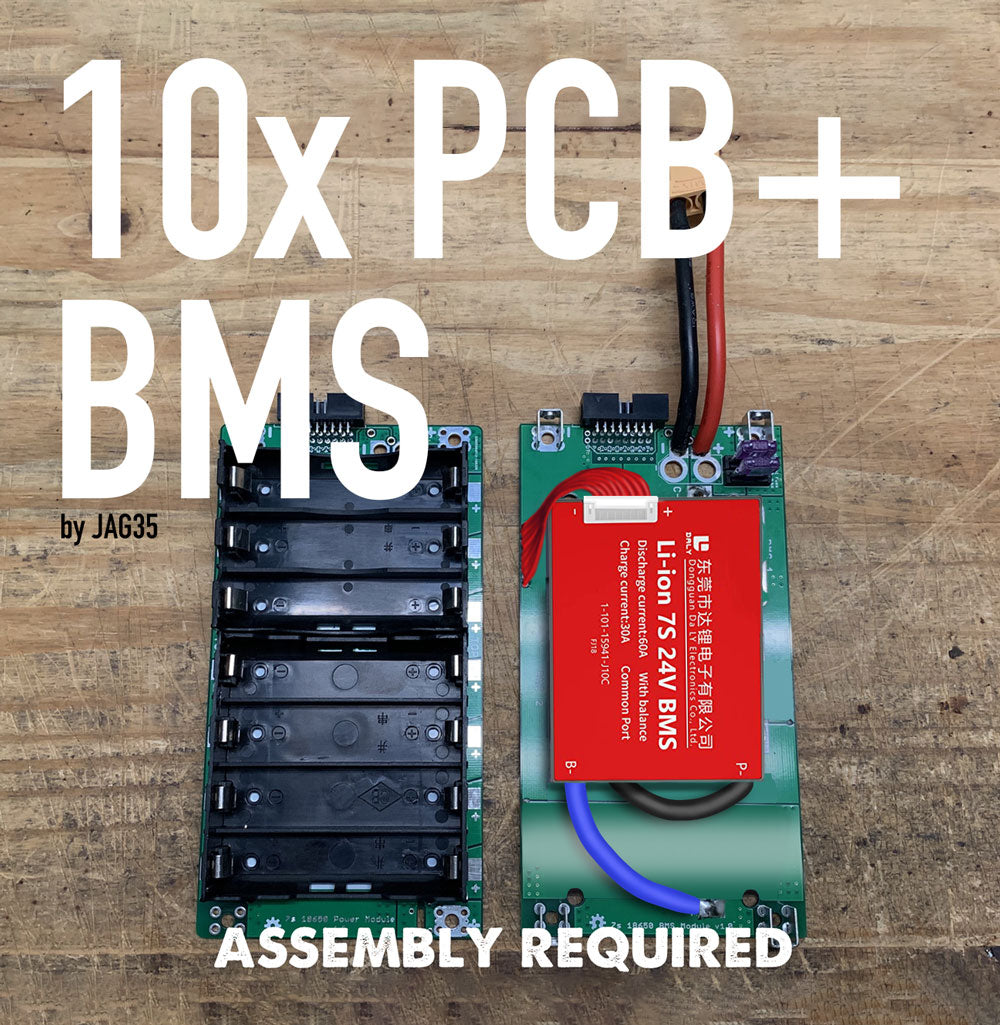

BMS Populated Board (Optional)
Contents: Battery Management System DIY Board

1x BMS gerber file
1x 60A BMS units
1x 3M Double sided Adhesive
2x 35A Fuses with Bases
4x M4 screw terminals
4x M4 Nuts
4x M4 screws
4x M4x25mm standoffs
1x XT90 Pigtail
1x 16pin IDC socket connector
1x 16pin IDC connector


Some assembly may be required.

Daly BMS 7s 24v 60A | JAG35.com Jehu Garcia

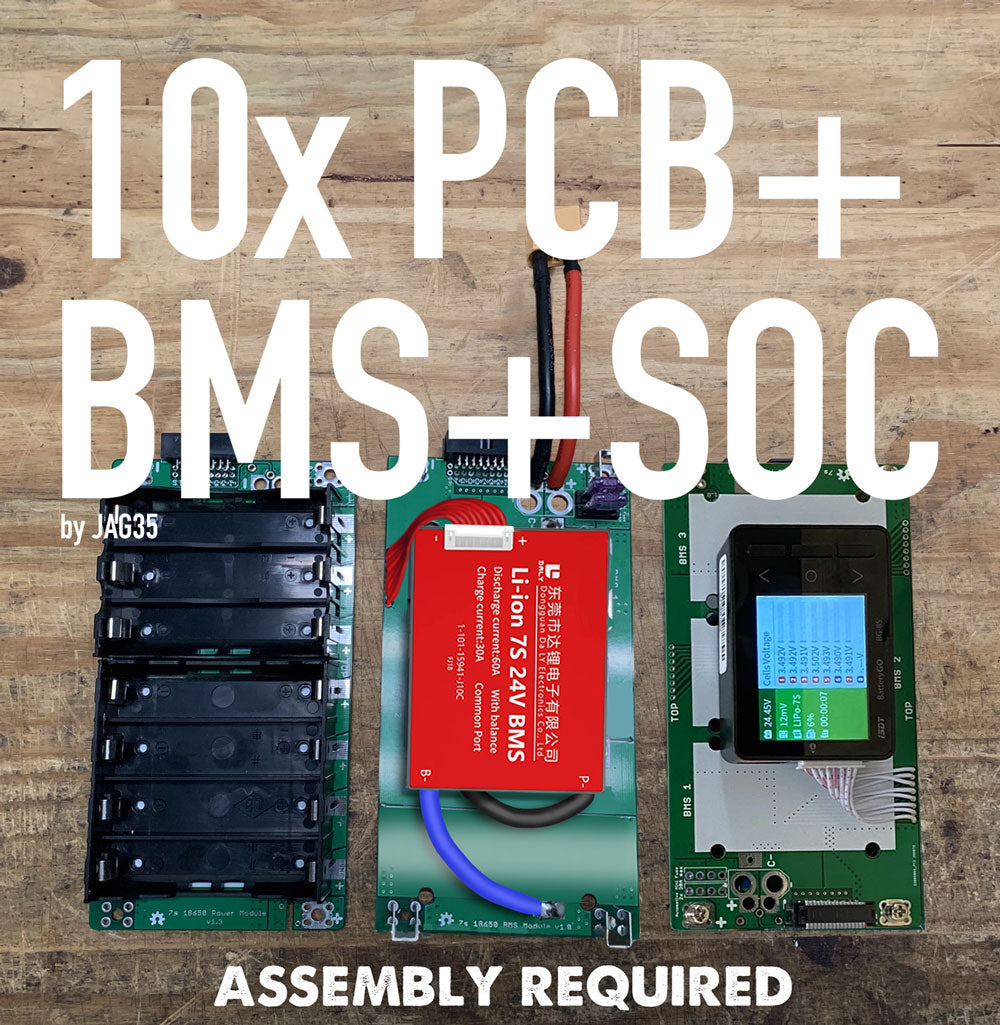

SOC Populated Board (Optional)
Contents: 7s State of Charge Meter Board

42x Resistors (Various 1,2,3,4,5)
1x Dip Switch
1x PCB
7x LM3914n
7x 10segment LED
4x M4 Screws
4x M4 Nuts
4x M4x 25mm Standoffs
4x Nylon standoffs
7x 5A fuses
1x S7 SOC Gerber File

Some assembly may be required.

SOC State of Charge Meter | JAG35.com Jehu Garcia



Battery cells sold separately > Find batteries here



BMS Troubleshooting:



—-

These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
