18650 Battery Module DIY PCB Kit 10x

  • Sale
  • Regular price $89.99
  • 4 available
Shipping calculated at checkout.


Please read the description carefully.

Shipping to Lower 48 USA states only via UPS Ground. No international shipping including. Non-USA customers click here.

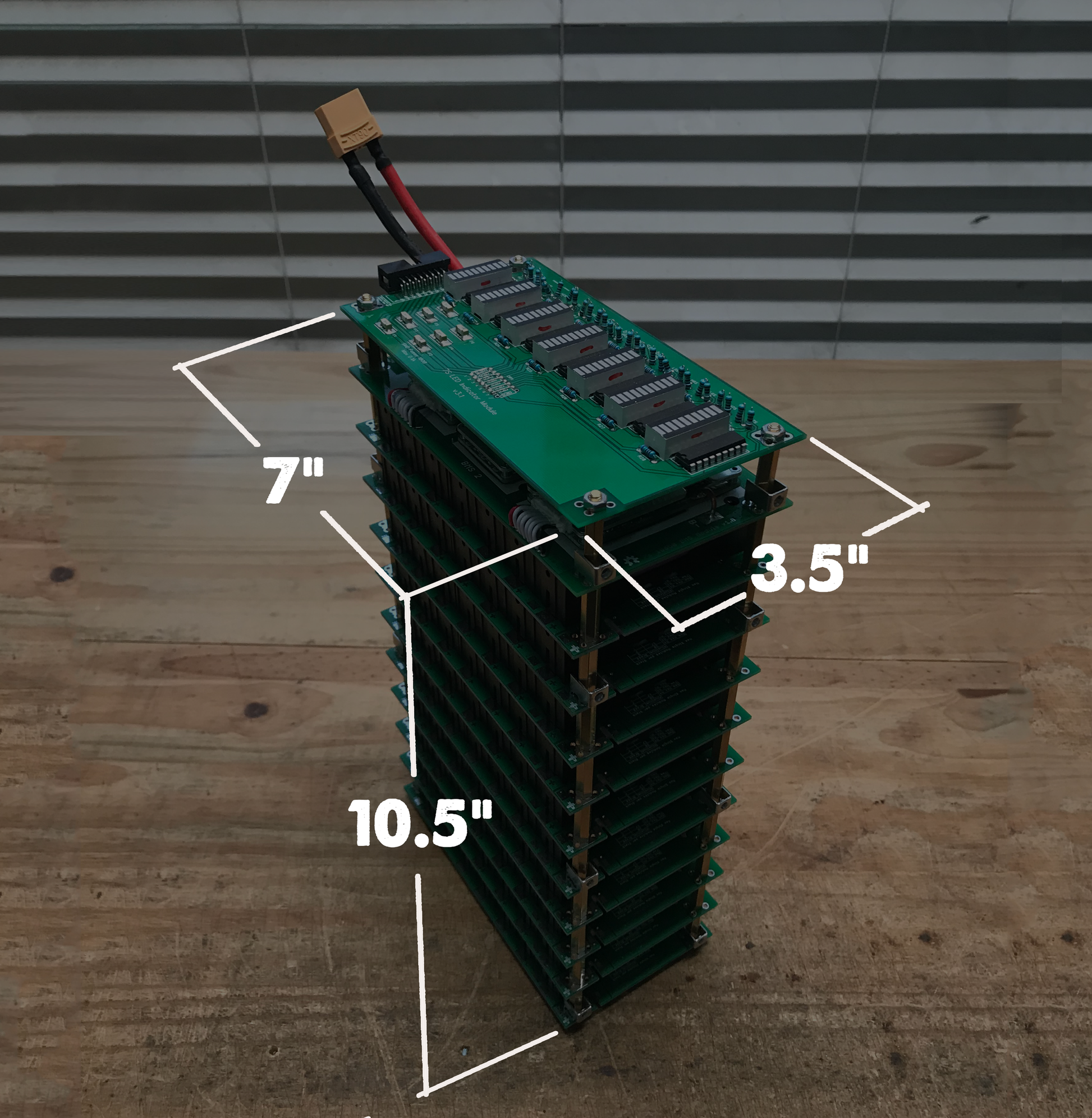

This is the basic kit it includes everything to make a 70-cell 18650 battery pack 24v +- 700wh (7s10p). Requires Assembly and soldering.

Battery cells sold separately > Find batteries here

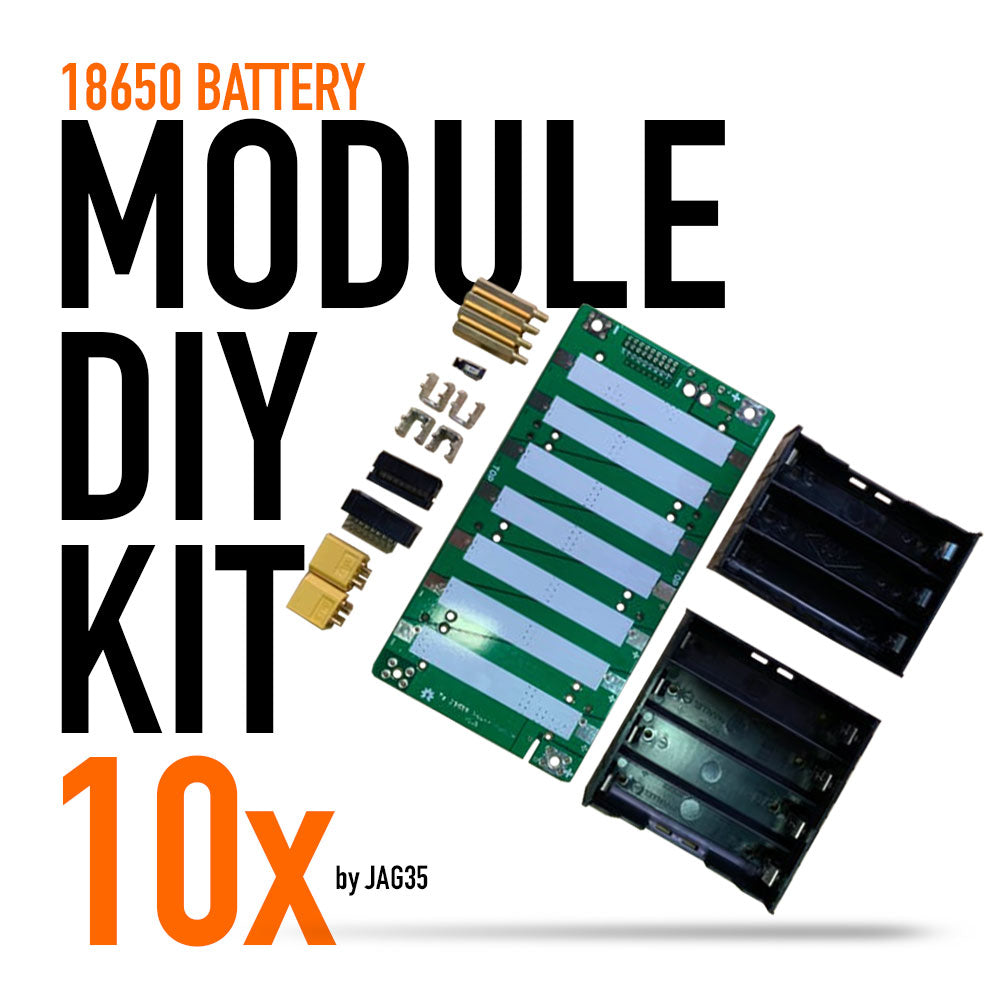

PCB KIT (included)

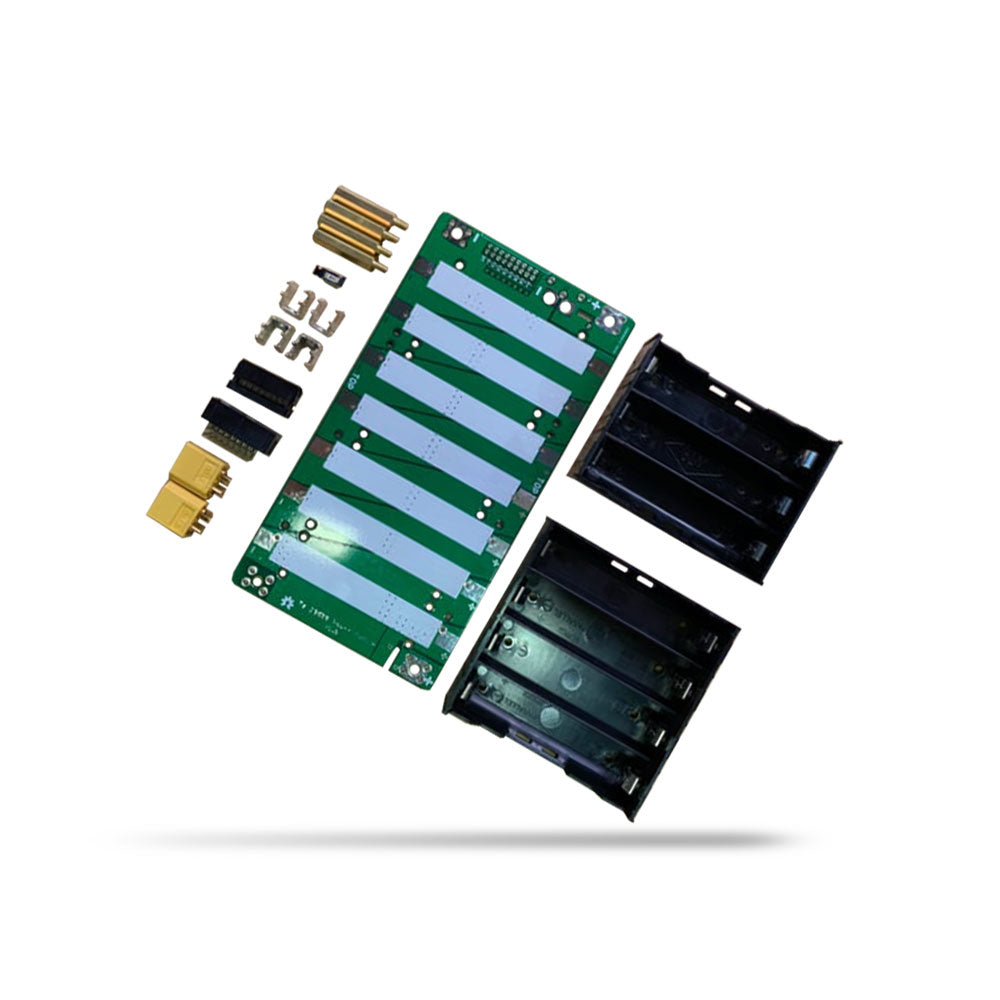

Contents: Battery Module PCB DIY Kit

10x Printed Circuit Boards
10x 4cell 18650 holders
10x 3cell 18650 holders
10x 5A SMD fuses
10x IDC Socket connector
10x IDC Ribbon connector
1x Ribbon cable
1x XT60 connector
4x M4 Lug PCB Terminal
40x M4x 25mm standoffs
Download PCB v1.3 Gerber

PCB Board - Assembly Required

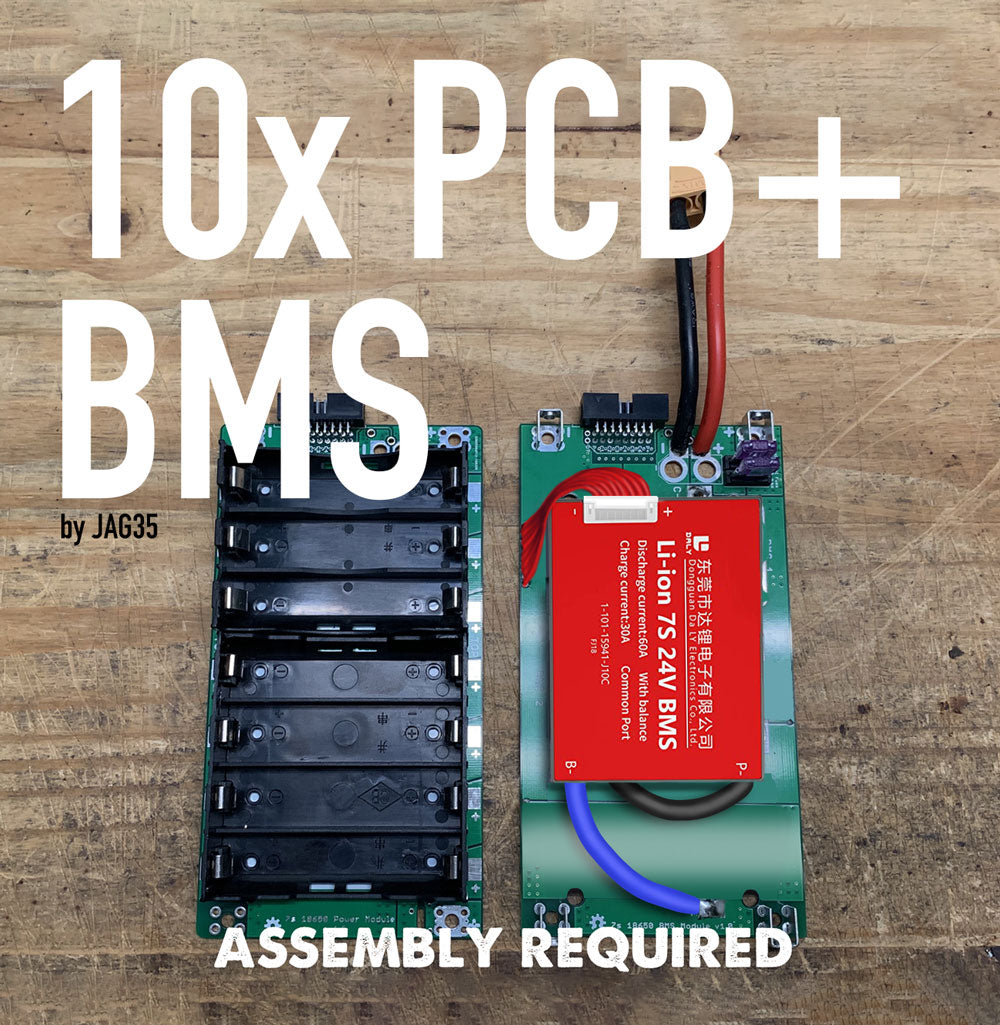

BMS KIT (optional)
Contents: Battery Management System DIY Kit

1x PCB
1x 60A BMS units
1x 3M Double sided Adhesive
3x 20A Fuses with Fuse Holders
4x M4 screw terminals
4x M4 Nuts
4x M4 screws
4x M4x25mm standoffs
1x XT90 Pigtail
1x 16pin IDC socket connector
1x 16pin IDC connector
Download BMS Gerber

Assembly required.

DALY PCB BMS | JAG35.com Jehu Garcia



Battery cells sold separately > Find batteries here
