PCB Busbars for LEV60 (High Amp)

PCB Busbars for LEV60 (High Amp)

Regular price $1.50 USD
Regular price Sale price $1.50 USD
Sale Sold out
Shipping calculated at checkout.
Style

PLEASE READ THE DESCRIPTION CAREFULLY.


Shipping to USA only. No shipping to PO Boxes. No international shipping. Non-USA customers click > HERE.

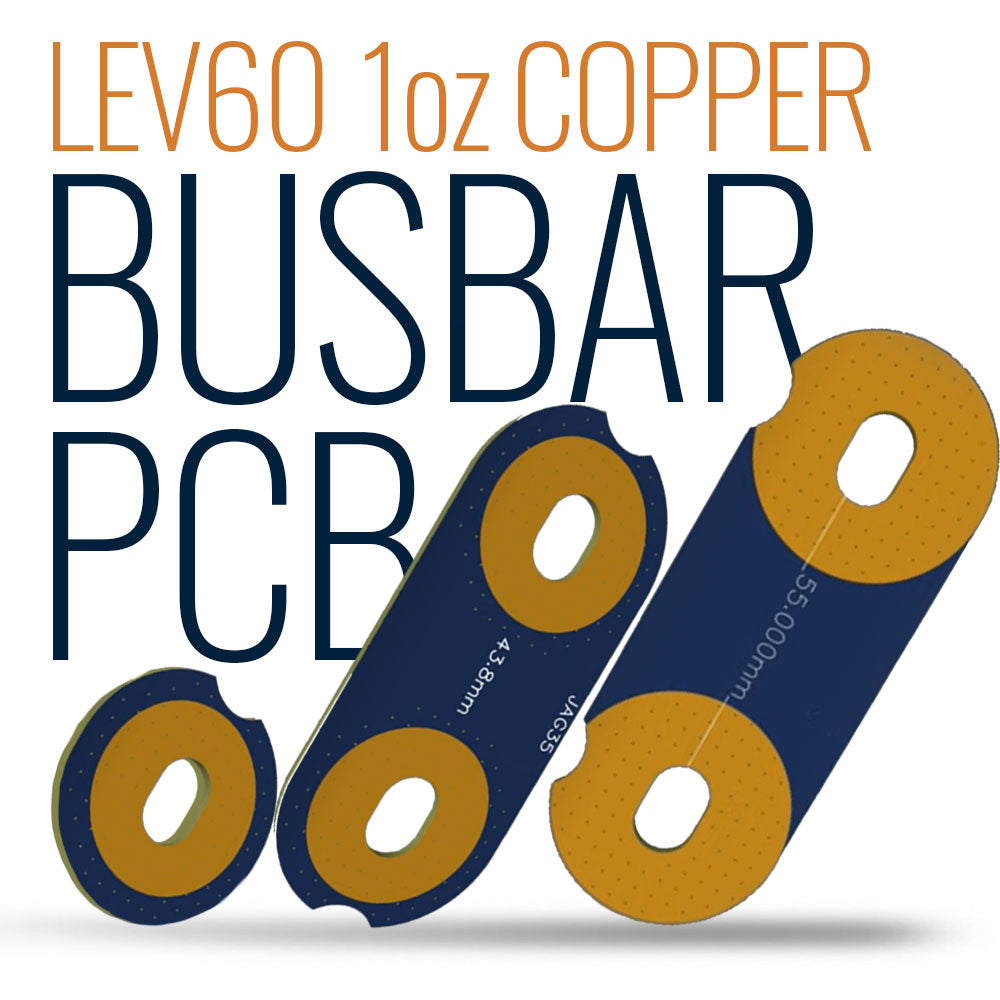

Brand new high-discharge copper PCB busbars! These busbars are small but beefy! A single PCBs busbars is made of 1oz copper capable of 600A and can be stacked on top of each other to handle more amperage! Perfect for turning the powerful LEV60F lithium-iron-phosphate (LiFePO4) cells into compact, high discharge, high performance batteries for things like 12v car audio, marine, 48v golf cart & UTV, and other high performance uses that require high amp discharge capability. Also great for building DIY solar systems and stationary storage batteries. See video below for more product information.

LEV60F cells sold separately HERE. Hardware not included. 2/0 aluminum terminal blocks not included, but linked below. LEV60 Terminal torque: 9Nm +/- 3 / 6.64ft-lb.

Available in 3 variations (choose from dropdown menu):

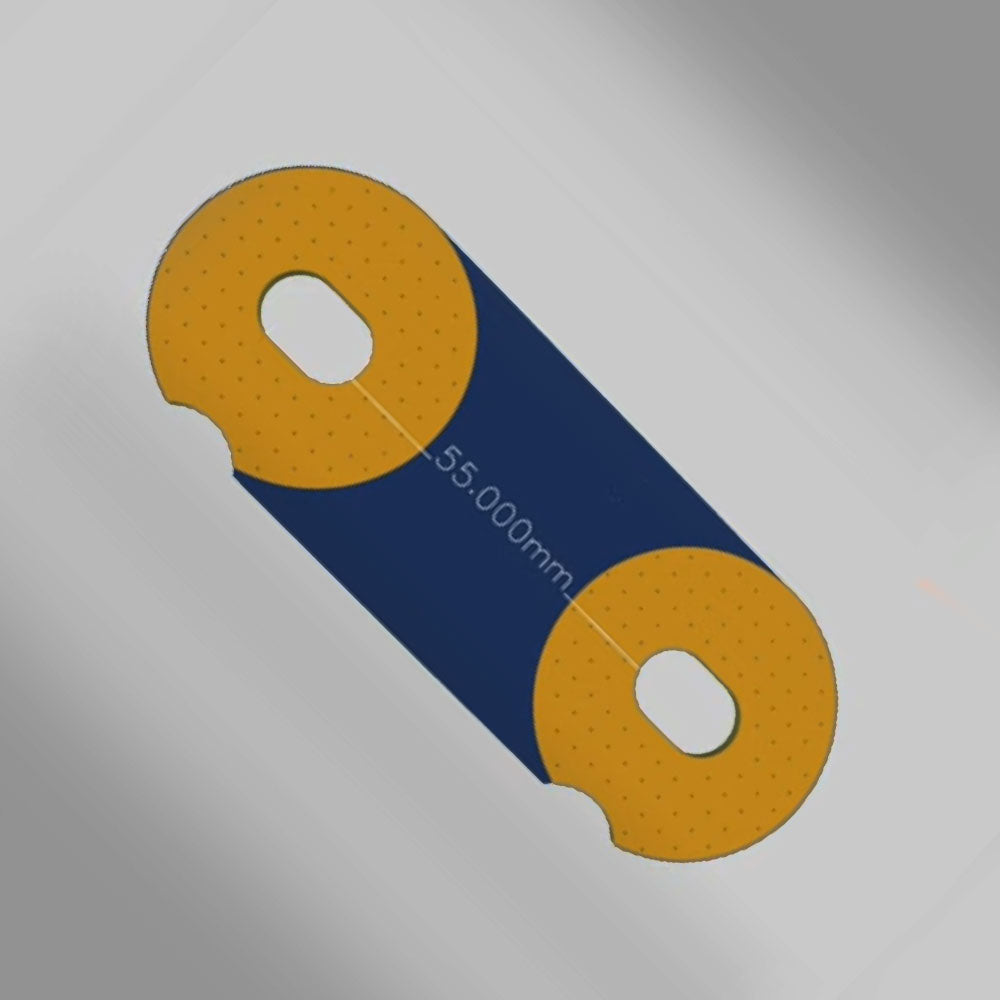

  • 55mm PCB Busbar, for series connection, (sold one-by-one)

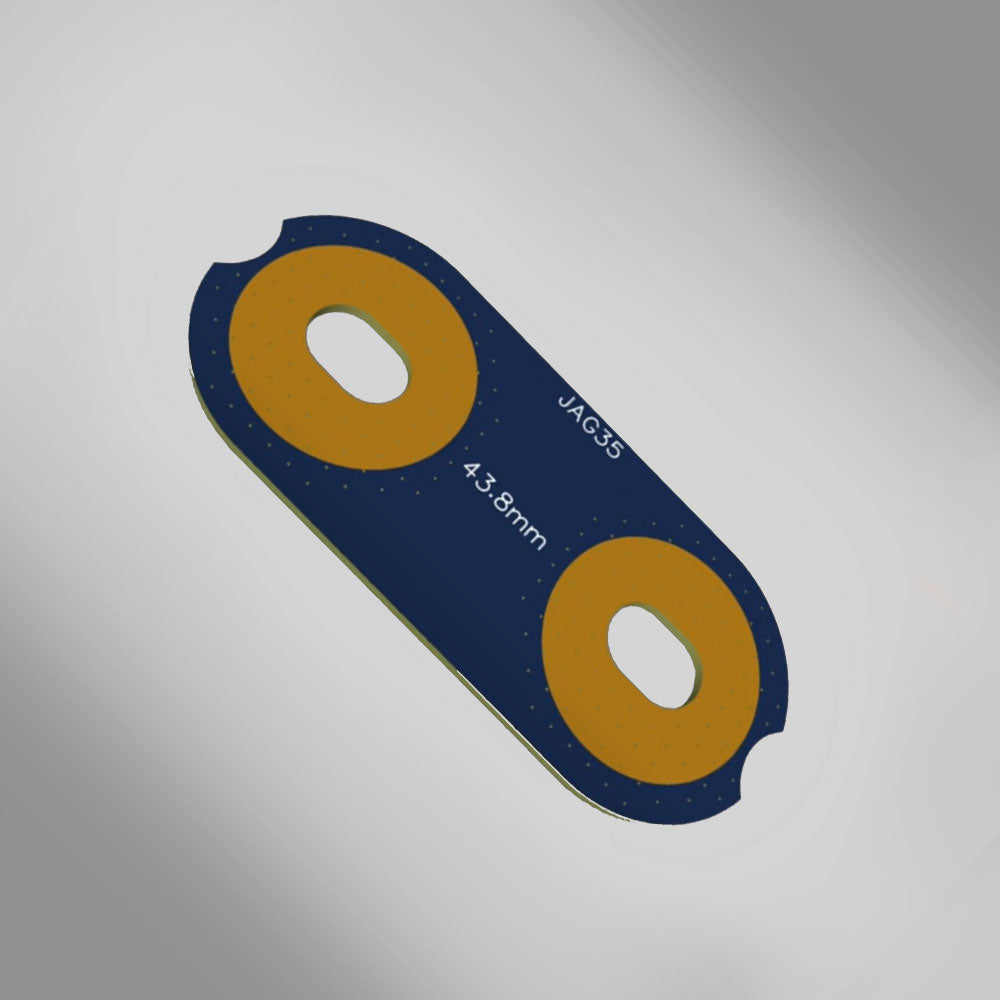

  • 43mm PCB Busbar, for parallel connections (sold one-by-one)

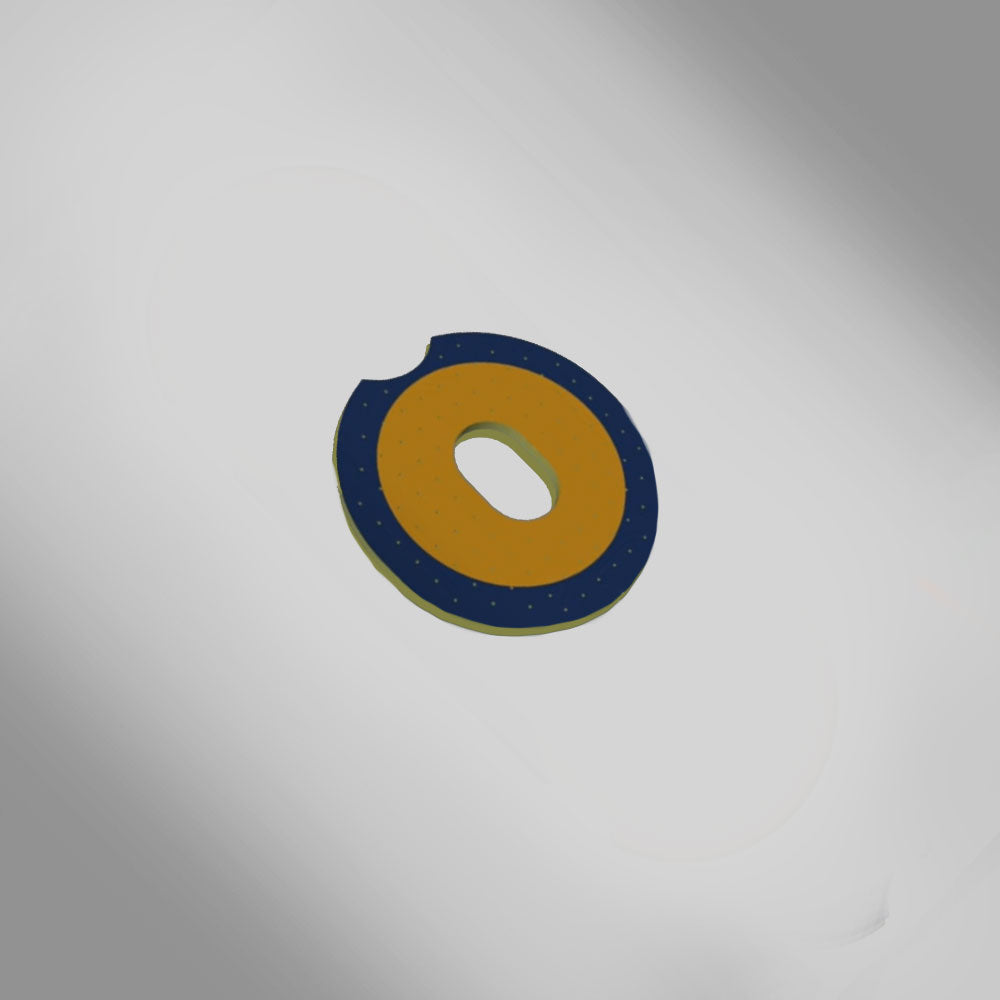

  • Single Stud PCB Busbar (sold one-by-one)



For customers who wish to add 2/0 terminal blocks after receiving their LEV60 battery you can buy them here

**Note: When using for LEV60F cells, if combining with the JAG35 12v/24v/48v PCB busbar kits, then the busbars are required to prevent shorts (adds height between the cells and the main large PCB busbar).

If using with the JAG35 12v PCB busbar kit, five (x5) PCB busbars are required to prevent shorts (x3 of 55mm, x2 singles). See the diagram below for more details:

If using with the JAG35 24v PCB busbar kit, nine (9x) PCB busbars are required to prevent shorts (x7 of 55mm, x2 singles). See the diagram below for more details:

If using with the JAG35 48v PCB busbar kit, seventeen PCB busbars are required to prevent shorts (14x of 55mm, 1x of 43mm short, 2x singles). See the diagram below for more details:

Other components you'll need:

  • Fish Paper for isolation between cells available > HERE
  • Compression kit sold separately > HERE
  • 5-pin jumper cable sold separately > HERE




PRODUCT VIDEO:



___

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases. These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others and/or property.
