Male Battery Connector for Scooter Batteries OKAI ES200G

Male Battery Connector for Scooter Batteries OKAI ES200G

Regular price $36.00 USD
Regular price Sale price $36.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

Please read the description carefully.

Shipping to Lower 48 USA states only via UPS Ground. No international shipping. Non-USA customers click here.

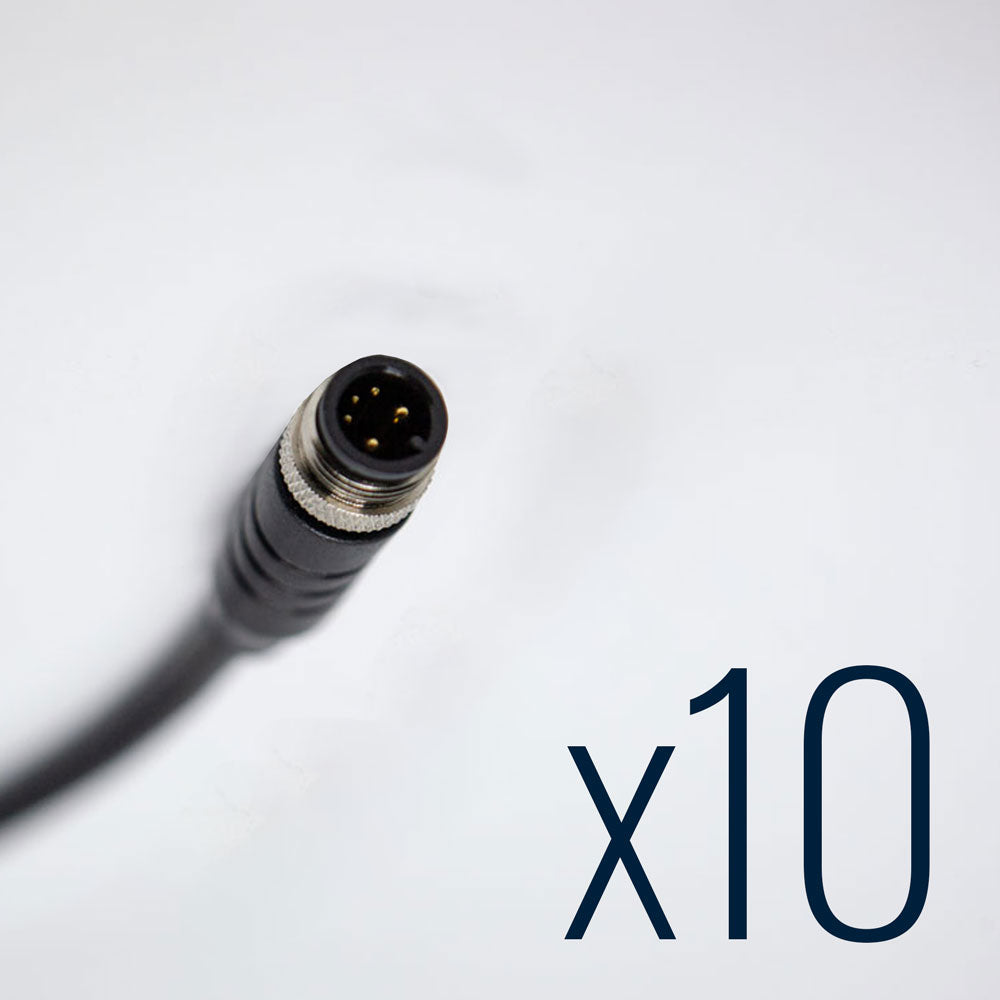

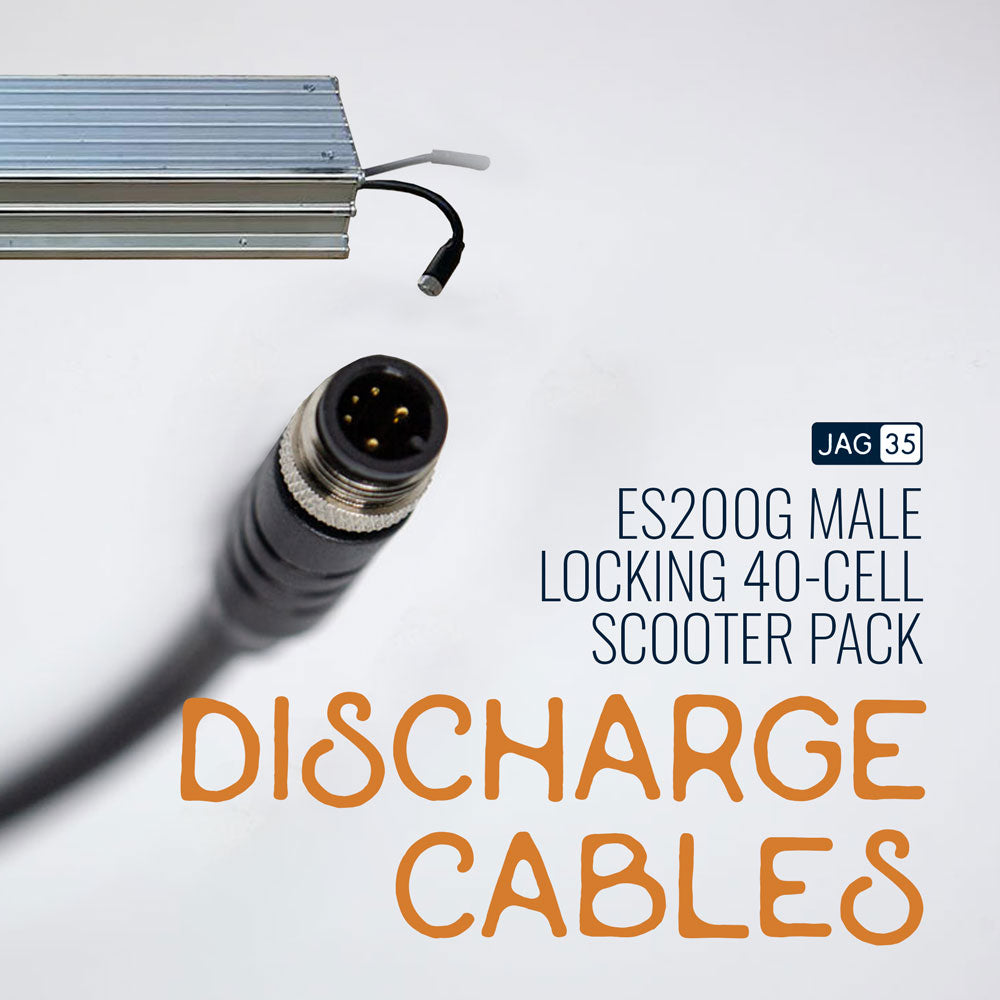

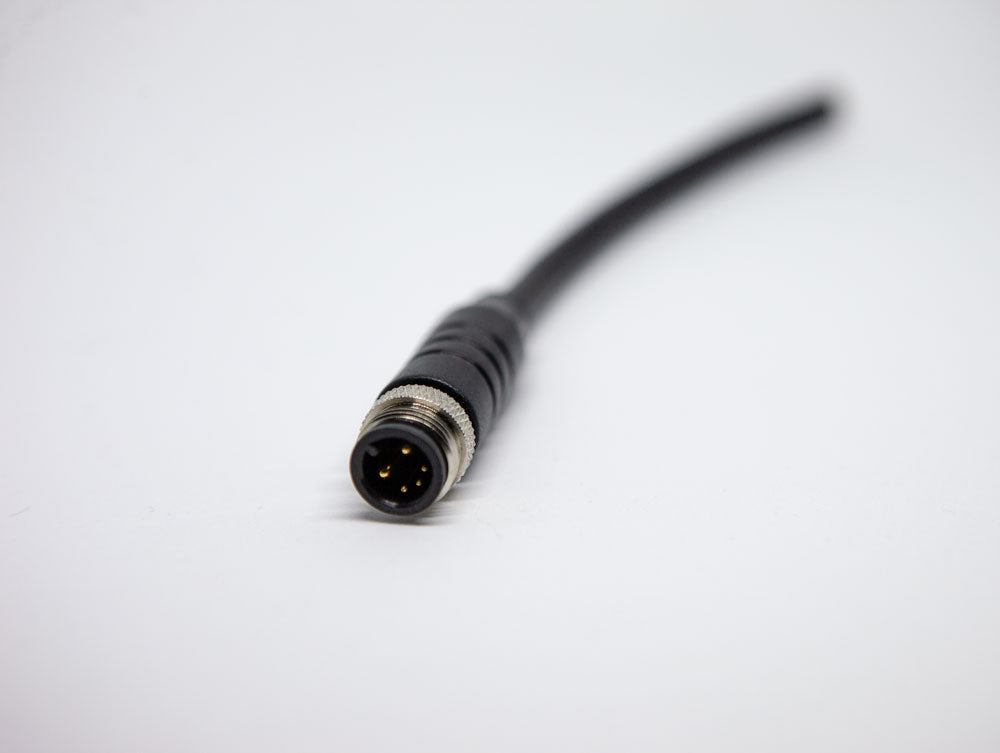

These are the male battery discharge connectors you need for your OKAI ES200G scooter battery modules to connect to the programmed Arduino that "wake up" the ES200G scooter batteries. Also available included as an activating dongle.

Cable length is 4 inches (10cm). They're IP67 dust/water-resistant, providing protection from sprays and splashing of water in all directions, even resists being dropped into water up to a meter deep for half an hour.

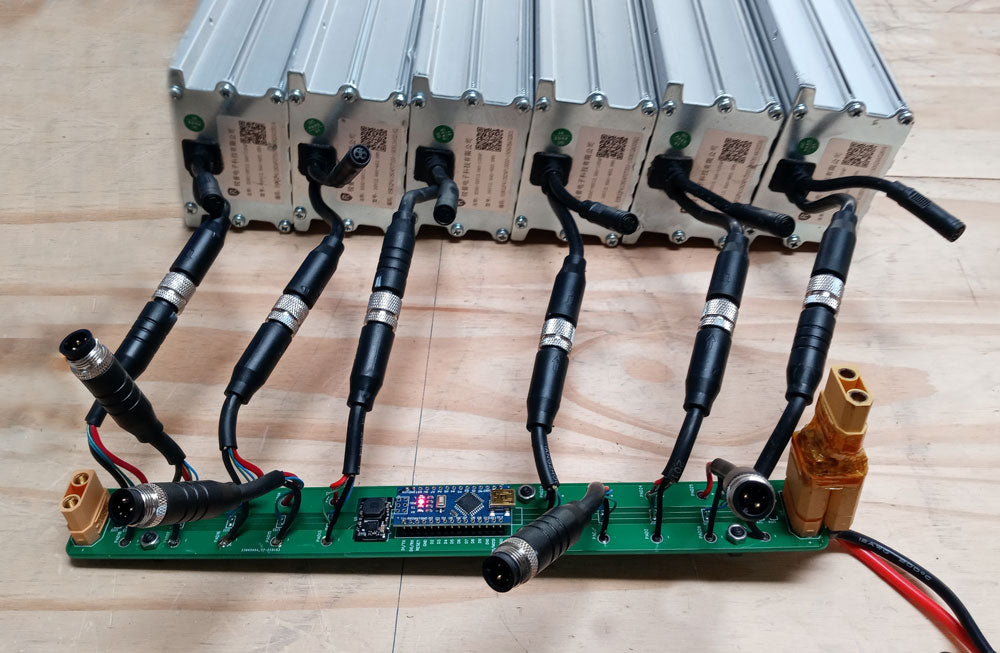

You can use these connectors to build your own DIY Powerwall:





Technical Specs

Electrical Characteristics
Rated Voltage: 48V AC/DC
Rated Current: Power 25A,Signal 2A
Withstanding Voltage: 500V
Insulation Resistance: ≥20MΩ
Contact Resistance: ≤10mΩ

Mechanical Characteristics
Mating Type: Screw Locking
Mating Cycles: 200Times

Performance
Operation Temperature:
-25℃~+80℃
Protection Degree: IP67 water-resistant & dust proof

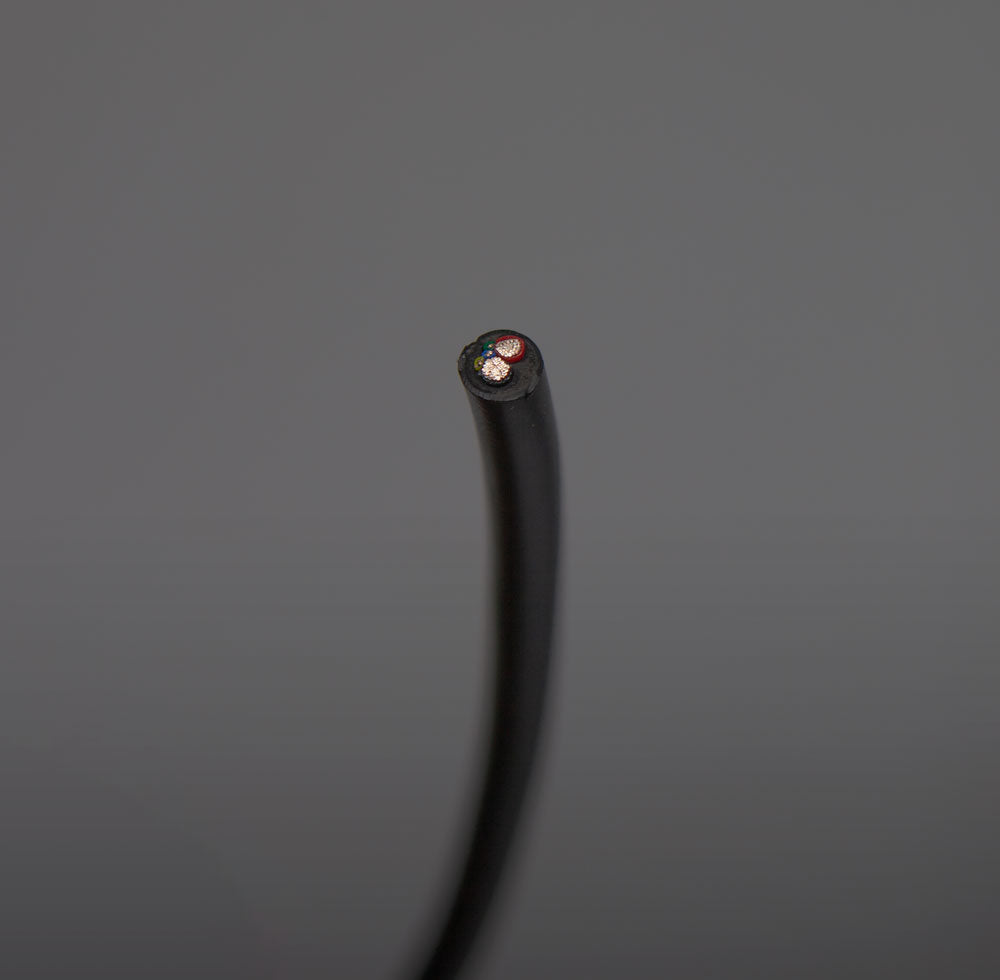

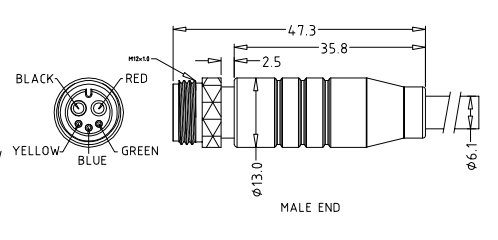

Wires Specification
Cable Length: 10cm (4 inches)
Max Outer Diameter: 13mm
Mating Length: 96mm
Contact Material: Copper alloy plated with gold, conforms to military standard
Wire Section: 0.20mm²+ 2.0mm²
Certification: ROHS



You can also use these connectors to "wake up" JAG35 scooter battery modules:




These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
