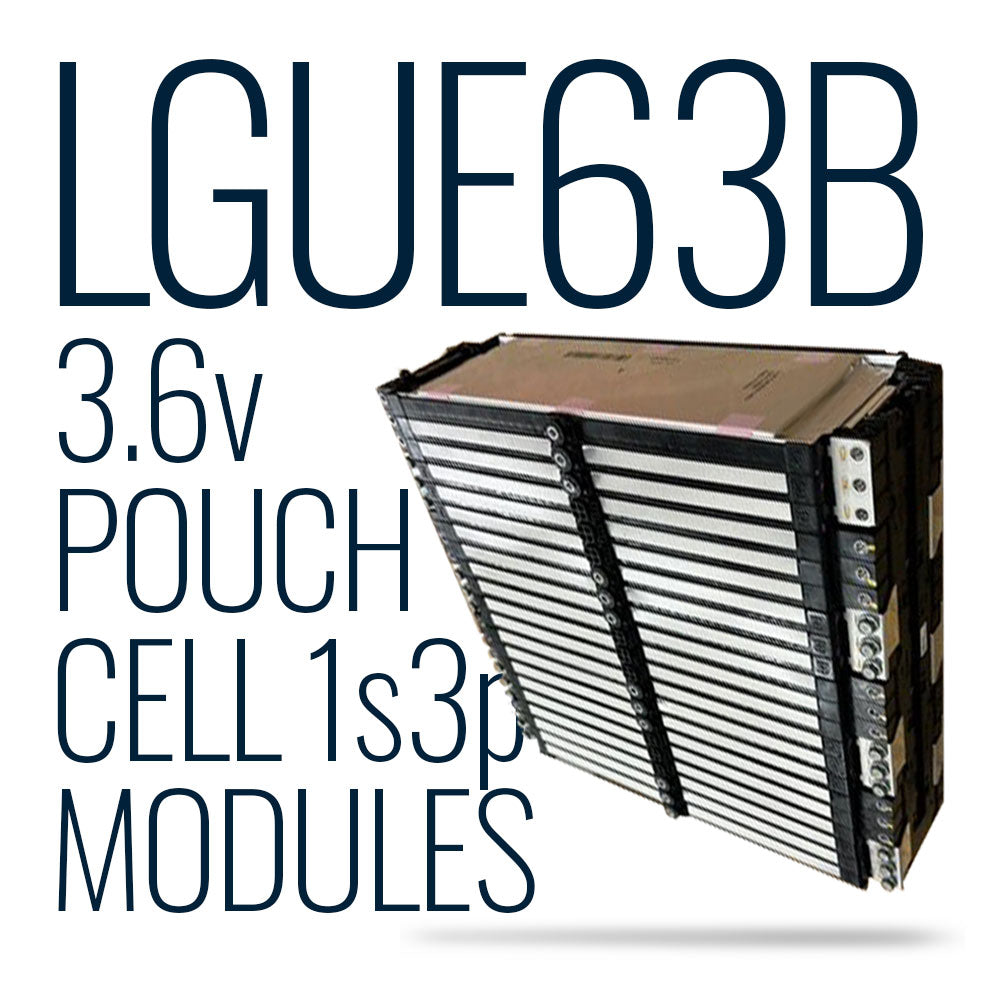

LGUE63B Modular Pouch Cell Modules

  • Sale
  • Regular price $65.00
  • Will be in stock after
Shipping calculated at checkout.


PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.



LIMITED TIME PRE-SALE!
UNUSED, zero cycles! Buy at our special PRE-SALE only price of ~$100/kWh. Product will ship a few weeks after your purchase date. Buy these only if you can wait a few weeks.

UNUSED EV-grade pouch cell modules for ~$100/kWh! Modules have zero cycles and contain similar 3.7v cells to the LG NMC pouch cells, but in connected module form. Modular design, so you can disassemble or combine to make different voltages. For example, buy 14x of the 1s3p config to make voltages like 48v (14s) and other voltages. Did we mention these are unused, zero cycles? Easy access to all the terminals. Easily add your own chill plate for liquid cooling. The cells are not taken from any recalled battery packs. BMS not included.

Compared to regular lithium-ion cells, these pouch cells provide better temperature stability and tolerance. Ultra thin design = small size, extremely light weight, and ability to accommodate many applications. Use as cheap way to build out a solar battery solution.

Available in 3 variants (choose from dropdown menu):

  • 1s3p Configuration 3.7v 180Ah 653Wh
  • 9s3p Configuration 33v 180Ah 5.88kWh
  • 10s3p Configuration 36v 180Ah 6.48kWh



1s3p Module Specs

  • Configurations:  1s3p
  • Voltage:  3.7v
  • Capacity:  180Ah
  • Energy:  653Wh
  • Dimensions: 14"x4.5"x2.5"



9s3p Module Specs

  • Configurations:  9s3p
  • Voltage:  33v
  • Capacity:  180Ah
  • Energy:  5.88kWh
  • Dimensions: 14"x17"x4.5"





10s3p Module Specs

  • Configurations:  10s3p
  • Voltage:  36v
  • Capacity:  180Ah
  • Energy:  6.48kWh
  • Dimensions: 14"x20"x4.5"




Cell Specs

  • Brand: LG
  • Product: LGUE63B
  • Chemistry: Li-ion
  • Voltage: 3.63v
  • Capacity: 60Ah
  • Energy: 218Wh
  • Discharge Rate: 2C

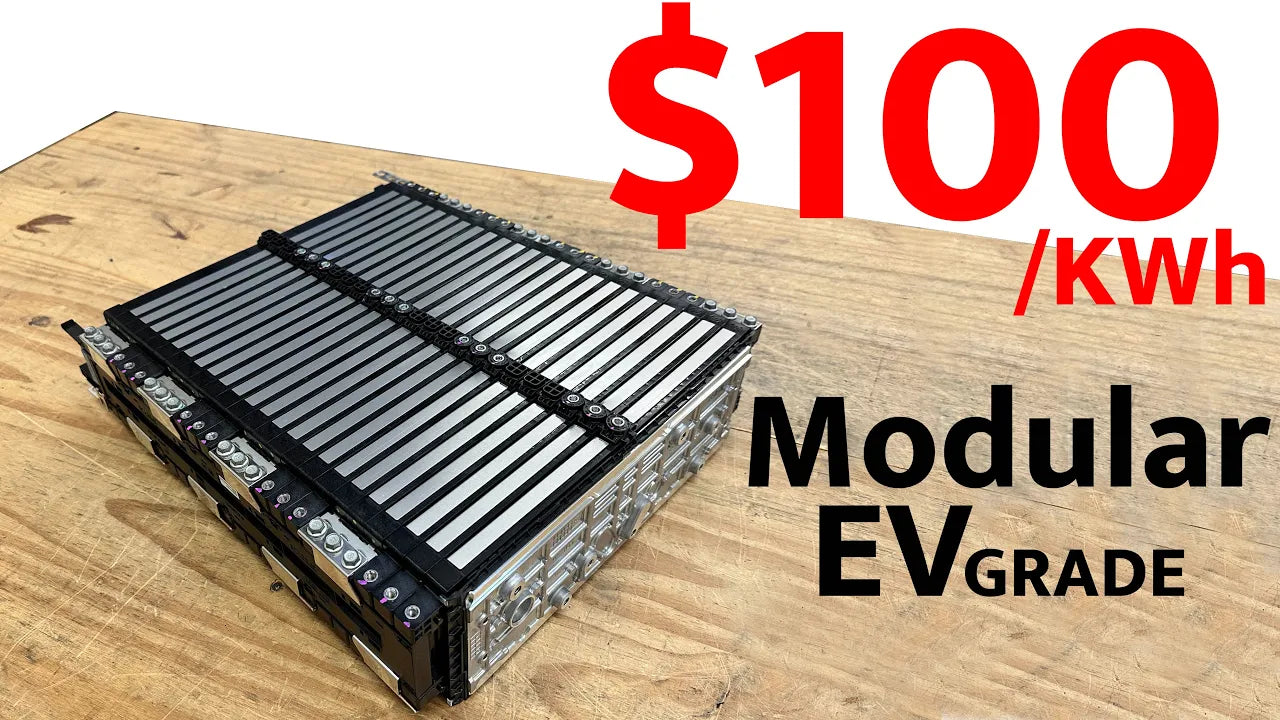

    Product video:



    *** IMPORTANT SHIPPING NOTE: Our automatic shipping calculator sometimes underquotes heavy orders. After your purchase if your order was underquoted we'll send you an edit email to collect the balance due. Only orders that are fully paid for can be shipped out. Email support@jag35.com to get an accurate shipping price before purchasing.



    _____



    Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.

    If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
