EV West

Elcon PFC2500 Charger

Elcon PFC2500 Charger

Regular price $729.00 USD
Regular price Sale price $729.00 USD
Sale Sold out
Shipping calculated at checkout.

This product is linked to a 3rd party affiliate.

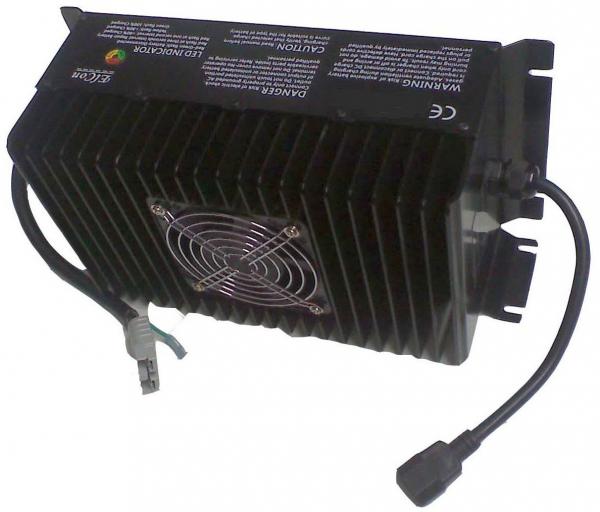

The PFC2500 is an excellent low cost solution to high voltage, medium amperage charging that comes in a sealed enclosure. Being one of the more versatile chargers by being able to accept both 110v and 220v, the PFC2500 is a great mid range charger. These chargers are voltage specific, so we have to program the charge curves before delivery. Please specify traction pack voltage in notes when ordering.

Input Current Range: 0.2 to 15A AC
Output Current Range: 4A to 40A DC (depending on model)
Height: 5.5 inches
Width: 7.8 inches
Length: 13.9 inches
Weight: 15.4 lbs
Mounting: 6 holes, 5/16" each (slotted one side)
Charge Algorithm: Programmable
Output Voltage Range: 36-408 volts (depending on model)
Input Voltage Range: 90-260 volts, 50-60 Hz
Efficiency: 92 percent
Power Factor: .98
Connection In: #12-3 Cable w/Plug
Connection Out: #12-2 Cable w/Plug
Input Protection: Internally protected
Output Protection: Internally protected
Isolated: Yes, may be combined with other chargers
Display: Tri-color LED
Preset Cutoff Voltage: Yes
Adjustable Cutoff Voltage: Yes, via factory programming
Adjustable Cutoff Time: Yes, via factory programming
Adjustable Current: Yes, via factory programming
Thermal Cutoff Point: 80º C reduced output, 85º C chutdown
Thermal Cooling: Thermostat controlled, variable speed fan
Reverse Polarity Protection: Yes
Warranty Period: One year
