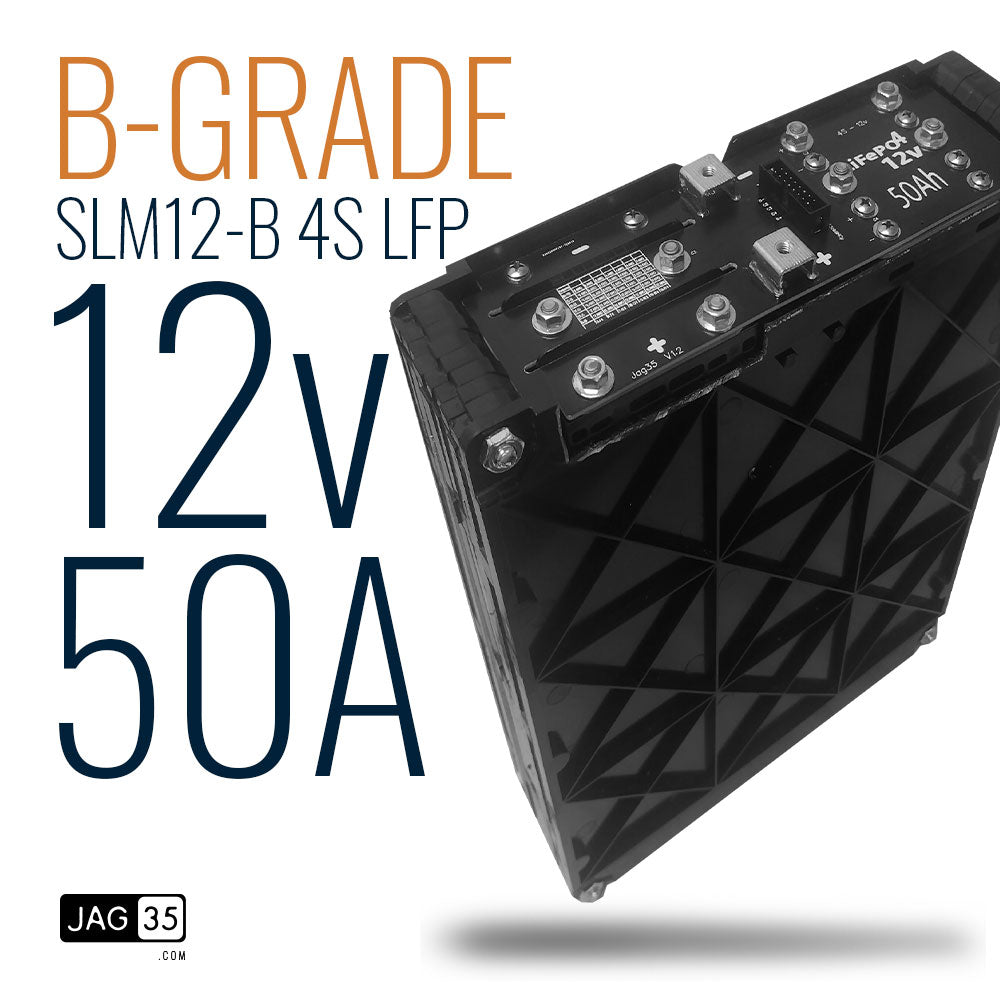

B-Grade LiFePO4 12v 50A 4s Battery, SLM12-B

  • Sale
  • $79.00
  • Regular price $180.00
  • Will be in stock after
Shipping calculated at checkout.


PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Fedex Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.


B-Grade battery. 12v 50Ah 600Wh LiFePO4 energy storage in 4s configuration using A123 LFP cells. Capable of continuous power output of 50A from the battery terminals. The reason these are B-Grade is because they are made up of cells that are not matched. Safer LFP chemistry, better temperature stability and tolerance compared to regular li-ion 18650 cells.

There is no BMS on these cells > LiFePO4 BMSs sold separately here. See BMS PCB video here.

NOTE: For any lithium iron phosphate batteries, state of charge cannot be determined by voltage alone, you need to count Amp Hours or Watt Hours. Typical behavior is for the "Resting Voltage" to be 13.2VDC a few hours after your charging session.

** NOTE:  To get an accurate shipping price when buying more than x4 sets, email support@jag35.com

A-Grade 12v 50A version available HERE!
12v 100A version available HERE!
24v 50A version available HERE!



Use as an Expansion Battery:

This battery pack can serve as an expansion battery. Connect multiple in series to increase the charging speed (volts), or connect multiple in parallel to increase capacity and current (amps), see your device specs for max limits. Use with:



Pack Specifications:

  • Battery Type: 12v
  • Battery Type:  Lithium Iron Phosphate
  • Battery Capacity:  50Ah
  • Watts: 600w
  • Continuous Power Output:  50A
  • Cycle Life: ~6000 cycles
  • Module Dimensions:  2.5" x 9.25" x 12.25"
  • Recommended Charging Voltage: 14.6VDC
  • Resting Voltage (after 12 hrs): 13.2VDC


Cell Specifications:

  • Size: WX1213250
  • Type: Rechargeable
  • Voltage: 3.2V
  • Chemical Composition: Lithium ion
  • Charging Cut-off Voltage: 3.65V
  • Discharging Cut-off Voltage: 2V
  • Max Pulse Discharging Current: 125A (5C)
  • Max Continuous Discharging Current: 75A (3C)
  • AC Impedance: ≤1.2mΩ
  • Dimension: 267x240x11.2mm
  • Weight: 1171g
  • Max Continuous Charging Current: 50A (2C)



** NOTE:  To get an accurate shipping price when buying more than x4 sets, email support@jag35.com



Other parts you may need (This will require you to order all the components and assemble it yourself by soldering components into the board):



Charging

    We recommend fully charging this pack as soon as you receive it. Charger not included.



    Product video:




    NOTE: For any lithium iron phosphate batteries, state of charge cannot be determined by voltage alone, you need to count Amp Hours or Watt Hours. Typical behavior is for the "Resting Voltage" to be 13.2VDC a few hours after your charging session.

    ___

    Note that these are reclaimed cells. These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. Sold as-is. No refunds.

    If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
