Jag35

4s LiFePO4 26650 PCB Master kit, 12v & 48v

4s LiFePO4 26650 PCB Master kit, 12v & 48v

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale Sold out
Shipping calculated at checkout.
Title

Please read the description carefully.

No international shipping. Non-USA customers click here.



This is my kit of 12v and 48v 4s LiFePO4 26650 Populated Printed Circuit Boards + hardware to build a 12v or 48v volt battery pack. No soldering required. Great for RVs and lead acid replacements. Battery cells sold separately > get cells for harvesting here.

6 options available:

  • x16 4s populated PCB 48v LifePO4 module kit + Populated BMS  (capable of 100A)
  • x15 4s populated PCB 12v LifePO4 module kit + Populated BMS  (capable of 100A)
  • Single 4s populated PCB 12v LifePO4 module 5A
  • Single 4s populated 12v LifePO4 BMS 60A
  • x10 4s populated PCB 12v LifePO4 module 5A
  • x5 4s populated PCB 12v LifePO4 module 5A

No assembly required for the populated PCBs & BMS. Some light assembly required for the x15 module kit.



26650 48v 16s PCB Populated Module Kit + BMS comes with:

  • x16 populated 12v PCB modules
  • x52 30mm Standoffs
  • x12 6mm Standoffs
  • x16 M4 screws
  • x16 M4 nuts
  • x7 M4 terminals
  • x20 IDC female 2x5 10P ribbon connectors
  • x20 IDC 2x5 10P box connectors
  • Ribbon cable 10P
  • x16 5A mini fuses
  • x2 20A mini fuses
  • x2 XT90 pigtails
  • x18 fuse holders
  • x1 16s LiFePO4 48v 60A BMS



26650 12v 4s15p PCB Populated Module Kit + BMS comes with:

  • x15 populated 12v PCB modules
  • x48 30mm Standoffs
  • x16 Nylon Standoffs
  • x16 M4 nuts
  • x12 6mm Standoffs
  • x20 IDC female 2x5 10P ribbon connectors
  • x20 IDC 2x5 10P box connectors
  • Ribbon cable 10P
  • x15 5A mini fuses
  • x8 20A mini fuses
  • x2 XT90 pigtails
  • x23 fuse holders
  • x2 4s LiFePO4 12v 50A BMS



x1 26650 PCB Populated Module comes with:

  • x1 populated PCB modules
  • x4 30mm Standoffs
  • x1 20A mini fuses
  • x1 IDC female 2x5 10P ribbon connectors
  • x1 IDC 2x5 10P box connectors
  • x1 Ribbon cable 10P


x5 26650 PCB Populated Modules come with:

  • x5 populated PCB modules
  • x5 20A mini fuses
  • x5 Ribbon cable 10P
  • x5 IDC female ribbon connectors
  • x5 IDC Box 2x5 10P connectors
  • x20 30mm Standoffs
  • x4 Nylon Standoffs
  • x4 M4 nuts


x10 26650 PCB Populated Modules come with:

  • x10 populated PCB modules
  • x10 20A mini fuses
  • x10 Ribbon cable
  • x10 IDC female 2x5 10P ribbon connectors
  • x10 IDC Box 2x5 10P connectors
  • x40 30mm Standoffs
  • x4 Nylon Standoffs
  • x4 M4 nuts

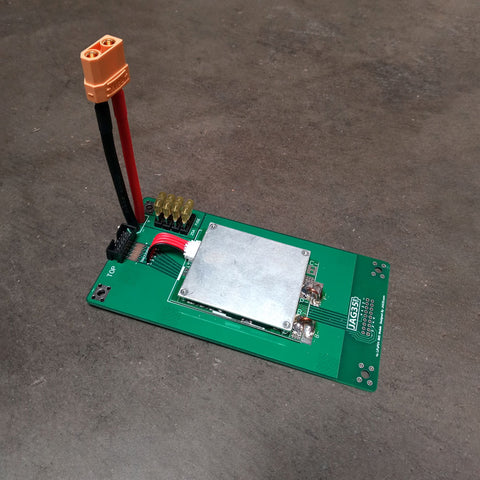

x1 LifePo4 Populated BMS comes with:

  • x1 populated BMS 50A PCB module
  • x1 IDC female ribbon connectors
  • x1 IDC Box 2x5 10P connectors
  • x4 20A mini fuses
  • x1 XT90 pigtail
  • x4 30mm Standoffs


Battery cells sold separately > FIND BATTERIES HERE:



Watch these videos:







Important troubleshooting 411:

The BMS will not come on if your battery system is unbalanced. Check to make sure all your cells are the same voltage before assembling the pack.

Battery pack is made up of 16 cell groups, they must be at the same voltage.


Here is how you can check the voltage of each group, use the probes of your multimeter to measure the 16 individual voltages at these pins.


If all cells are not at the same voltage when the battery pack is assembled then you can blow the trace fuses. Please check every board if any of the groups show zero volts at the testing pins.






—-
