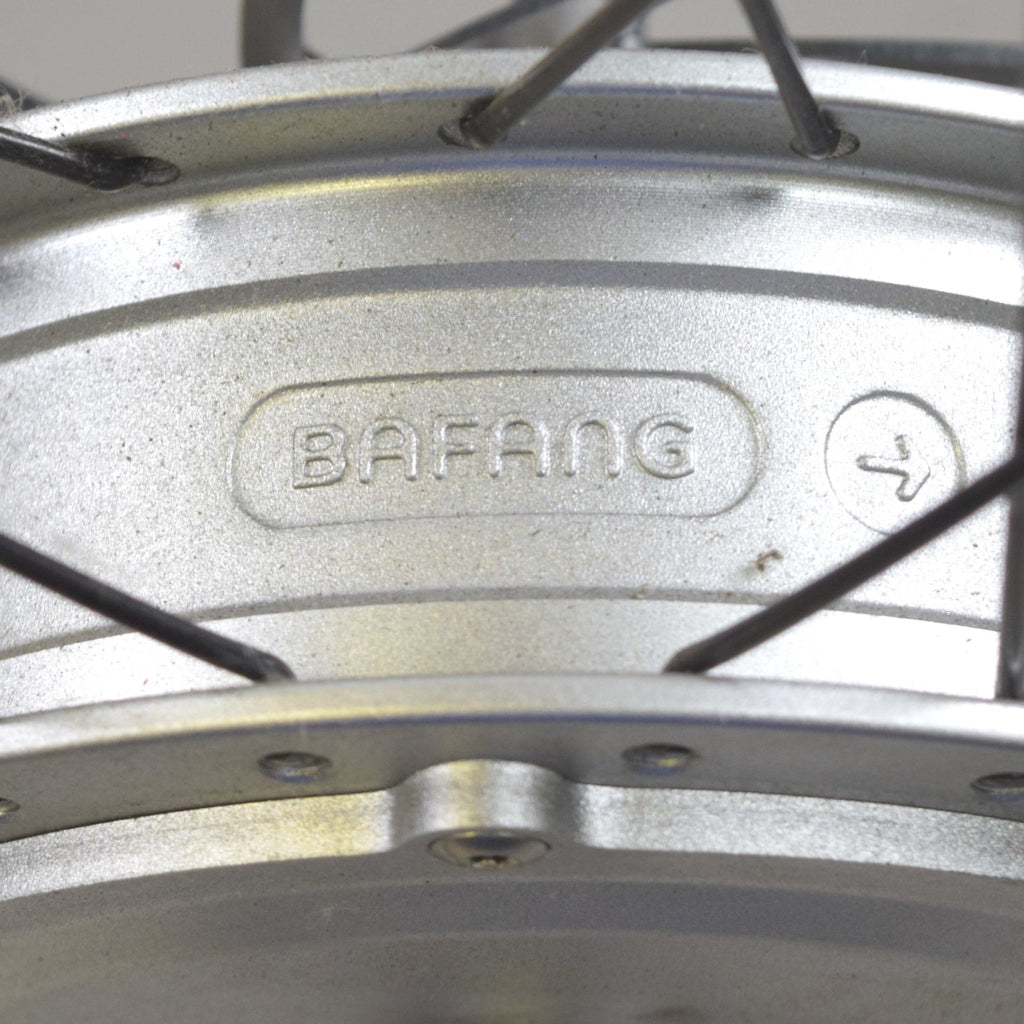

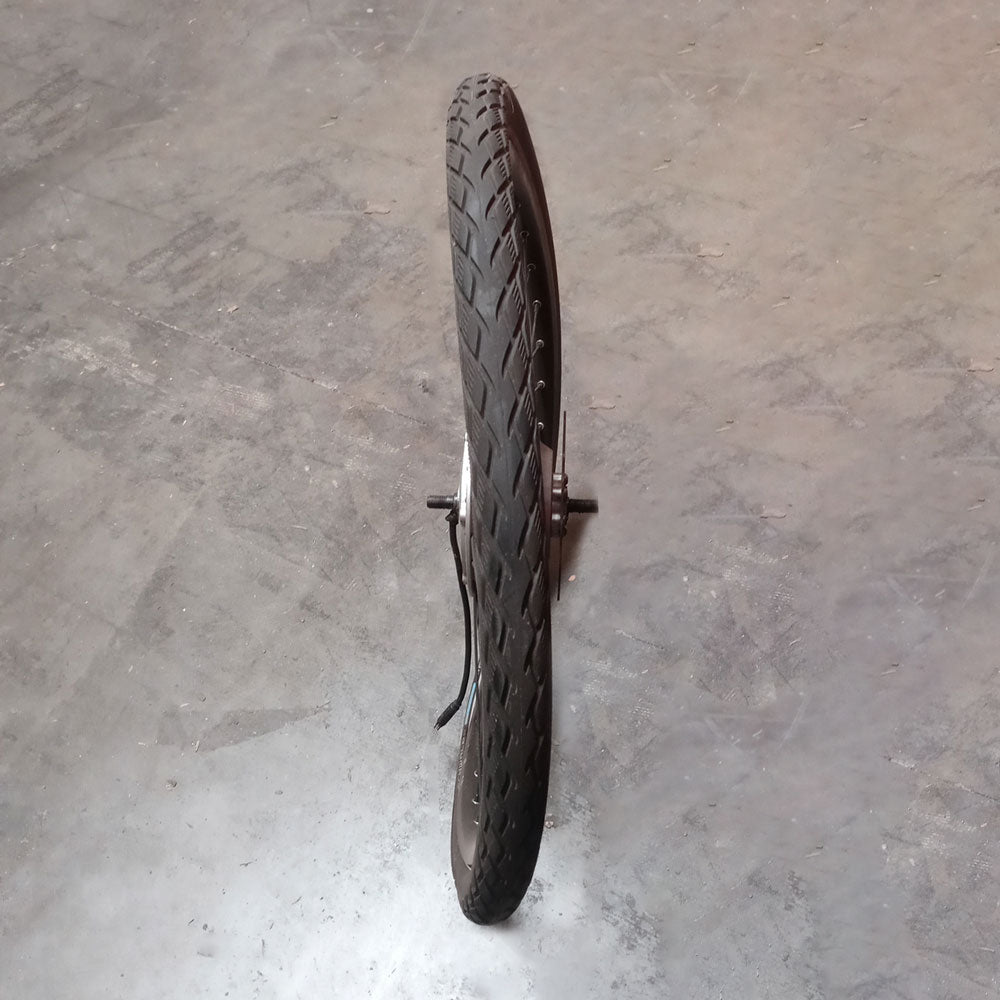

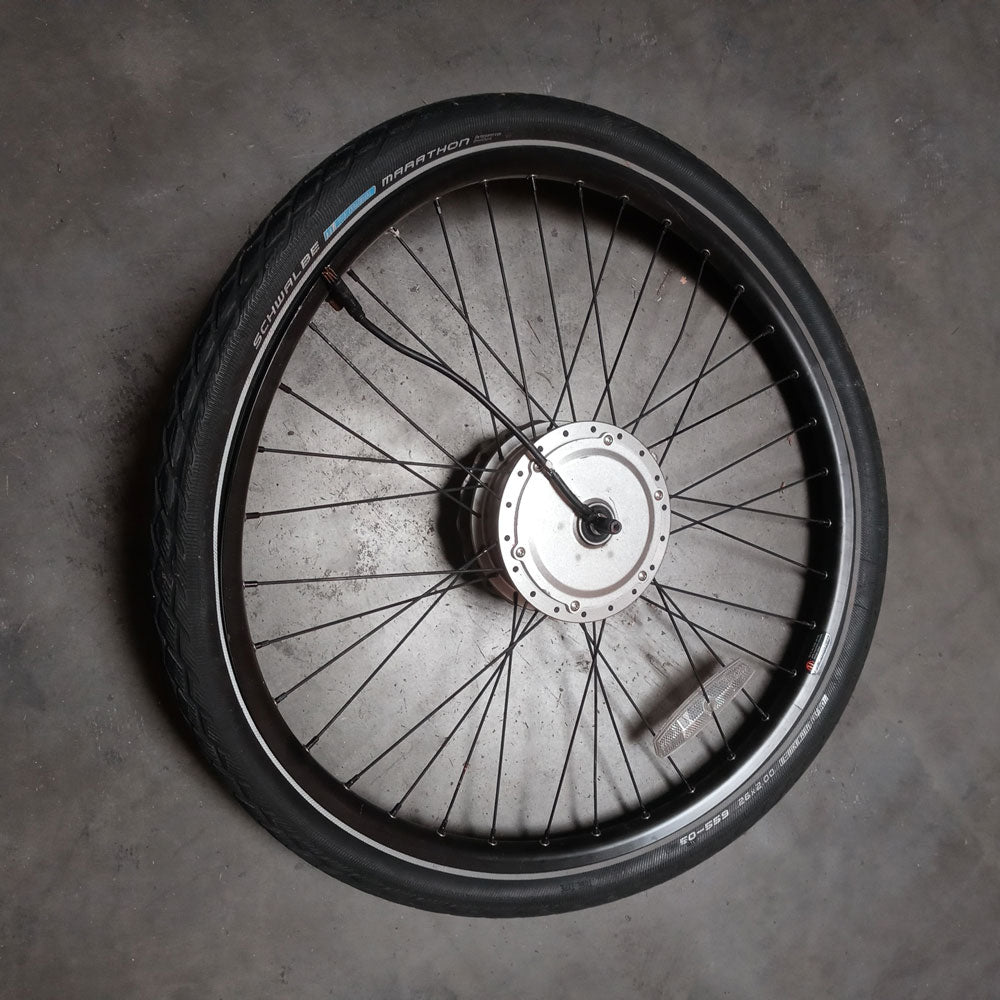

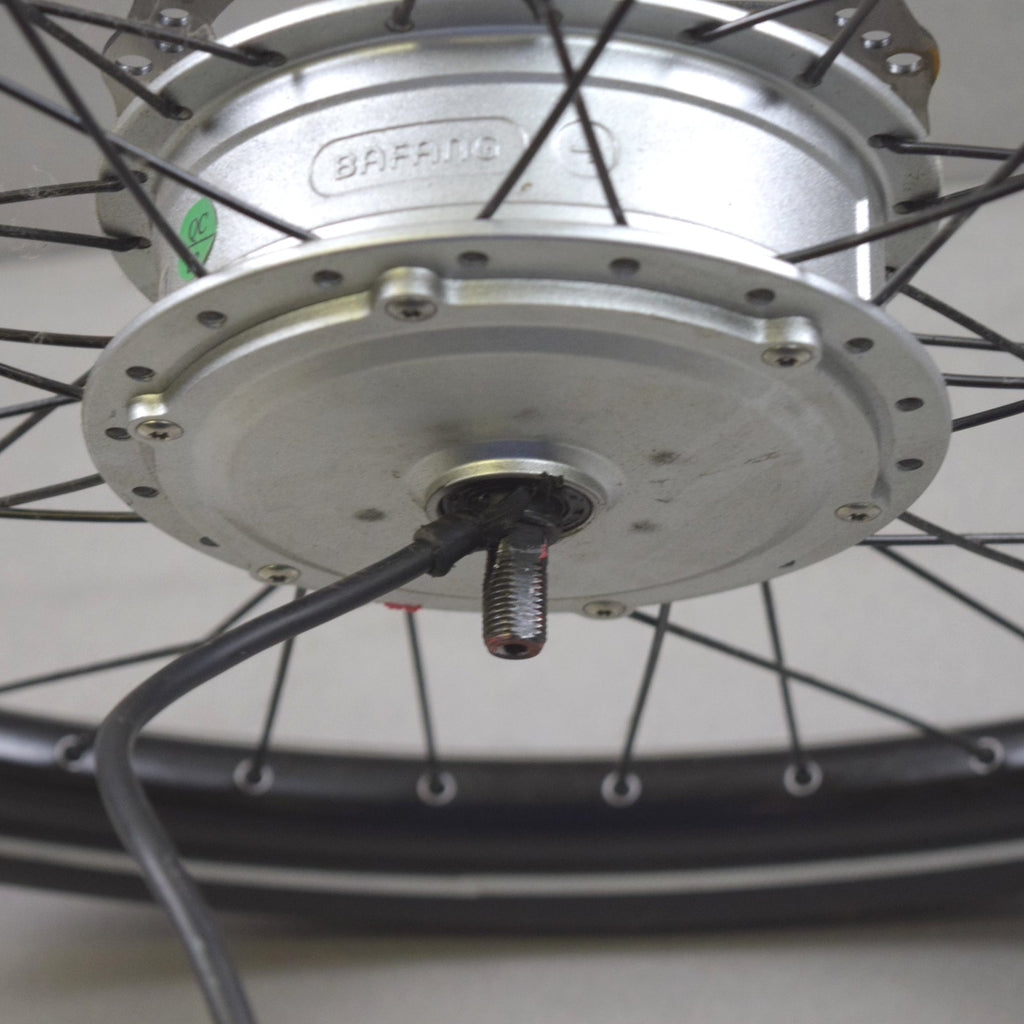

This listing is for the eBike wheel MOTOR with Tektro disk brake on an IMPERFECT wheel. Imperfect means it may have a bent rim, damaged spokes, damaged tire, or slightly bent disk brake. Great for DIY eBike projects, ready for re-lacing onto another wheel, all you need to do is remove the motor from the imperfect wheel. Motor works fine, cable in tact, tires may or may not be good, tube might need replacing. May be some cosmetic blemishes.

Available in 2 versions (choose from the dropdown menu):

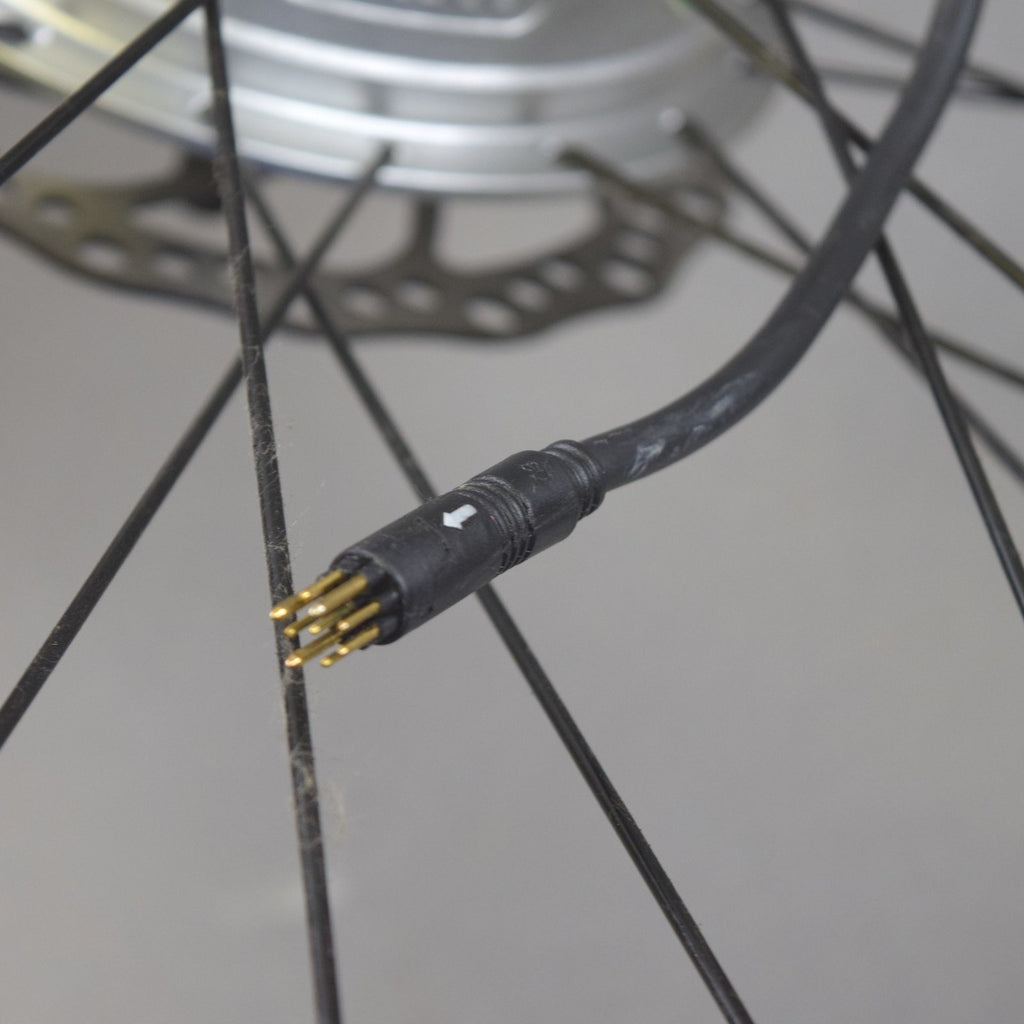

• With connector

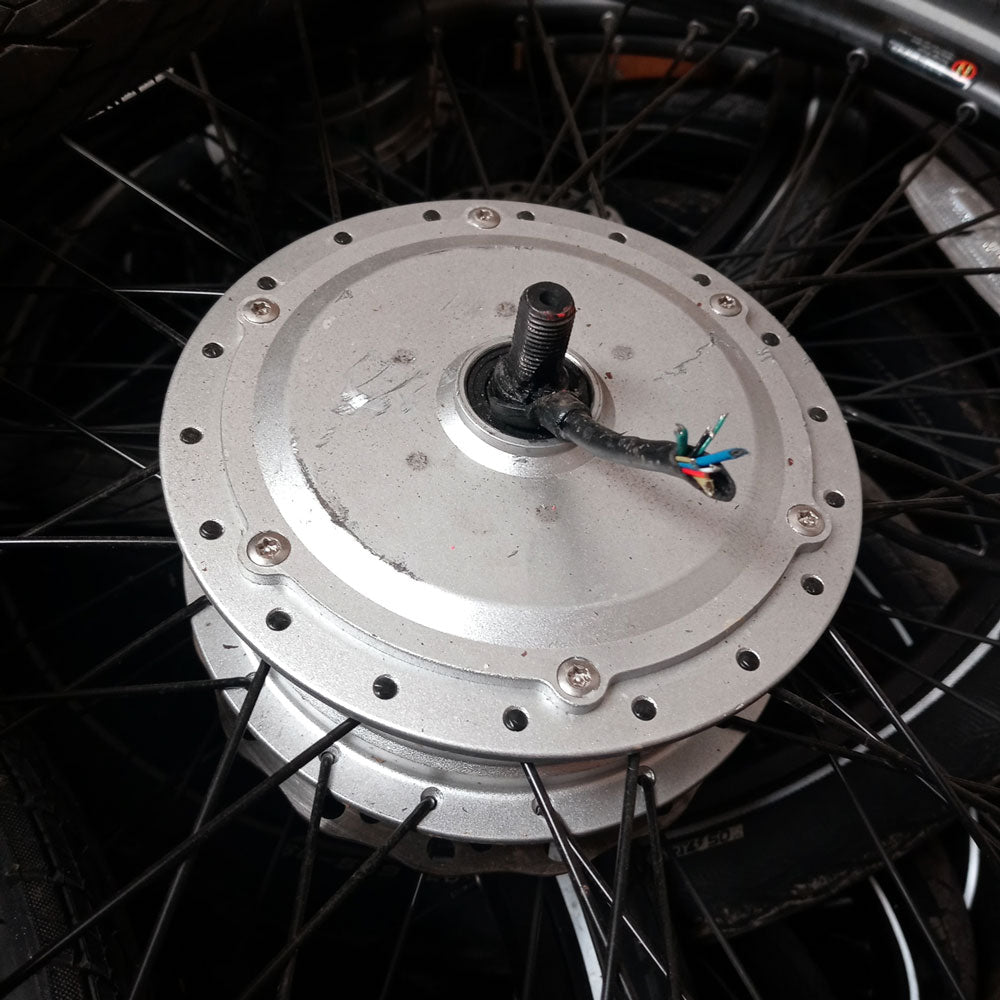

• Without connector

Batteries sold separately, see below for recommendations. Additional parts and wiring will be required to use these in your eBike project. Controllers sold separately.

How to re-lace motor onto another wheel:

Engine Model - FM G020.250/350.D 10

• Position Front Motor
• Construction Gear drive
• Rated Voltage (DCV) 36
• n0 (Rpm) 325 ; 245
• Rated Power (W) 250/350
• nT(Rpm) 205
• Max Torque 45 N.m
• Efficiency (%) ≥ 80
• Weight (kg) 3.3
• Noise Grade (dB) < 55
• Operating Temperature -20-45℃
• Mounting Parameters

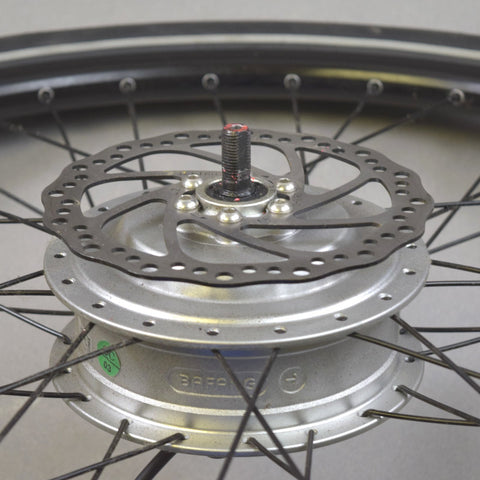

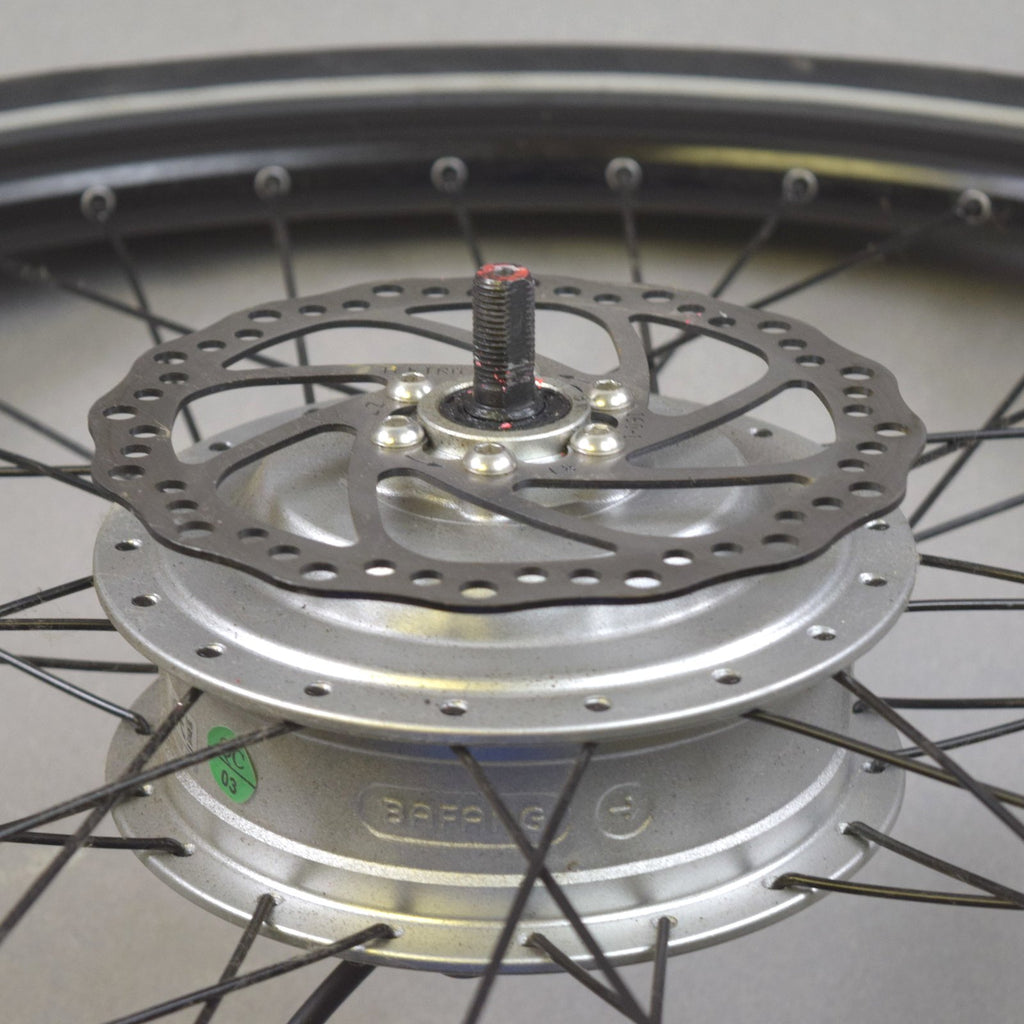

• Brake Disc Brake
• Installation Widths (mm / OLD) 100
• Max. Housing Diameter (mm) 158
• Cabling Route Shaft Side, Right
• Cable Length(mm), Connection Type 250 G9.1
• Spoke Specification 36H*13G
• Further Specifications
• Speed Detection Signal (Pulses/Cycle) 6
• Reduction Ratio 1:5
• Magnet Poles (2P) 20

Center bolt: M12, 0.125" pitch

What else you need to build your DIY eBike:

READ THIS, IT'S IMPORTANT

The wiring colors from the controller and the eBike wheel motor cable should not be matched up entirely (blue with blue, yellow with yellow, green with green). In order to wire it correctly see this picture:

It's possible another wiring combination may be needed, but we've seen that this configuration works best. If you don't wire the motor correctly the motor may appear to be running but without turning the wheel. It's very likely not broken, it just needs the motor wiring as pictured above.
