Jag35

R14 Li-ion 36v 13Ah 470Wh Battery

R14 Li-ion 36v 13Ah 470Wh Battery

Regular price $79.00 USD
Regular price Sale price $79.00 USD
Sale Sold out
Shipping calculated at checkout.

PLEASE READ THE DESCRIPTION CAREFULLY.

Shipping to Lower 48 USA states only via Fedex Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.

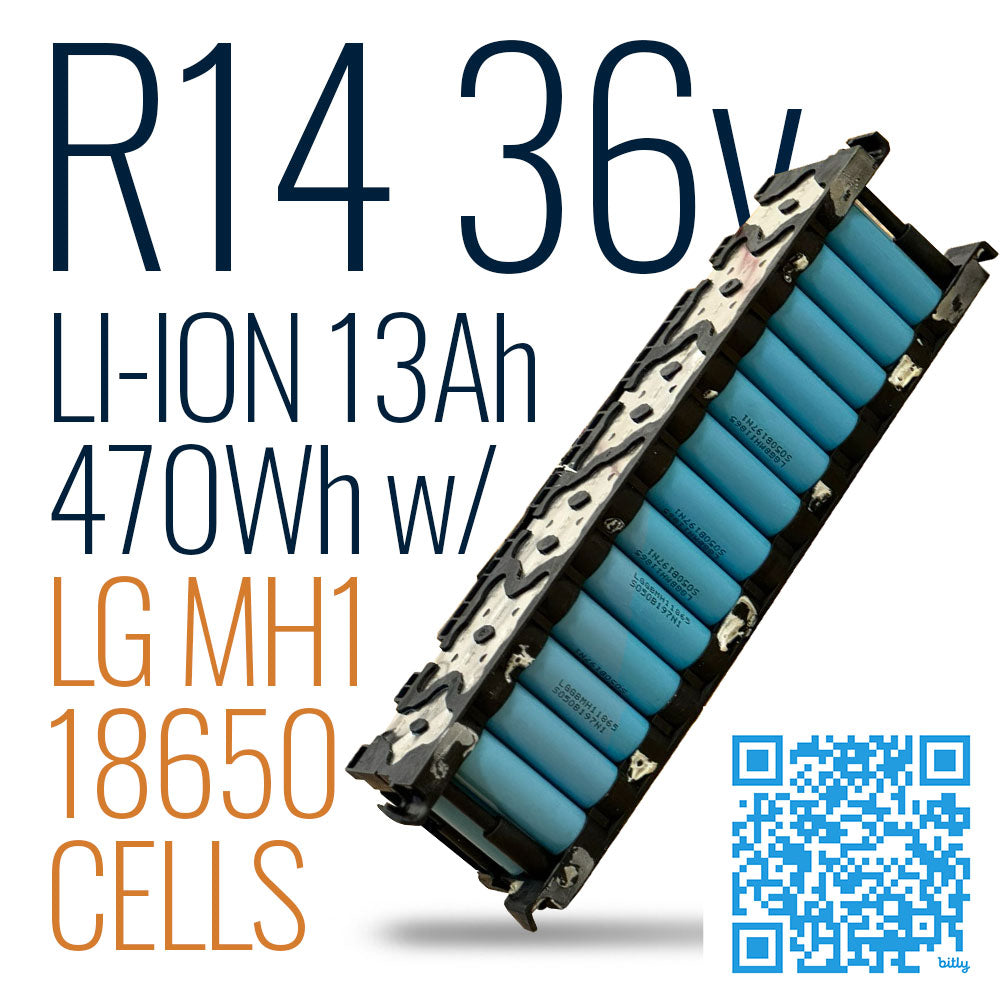

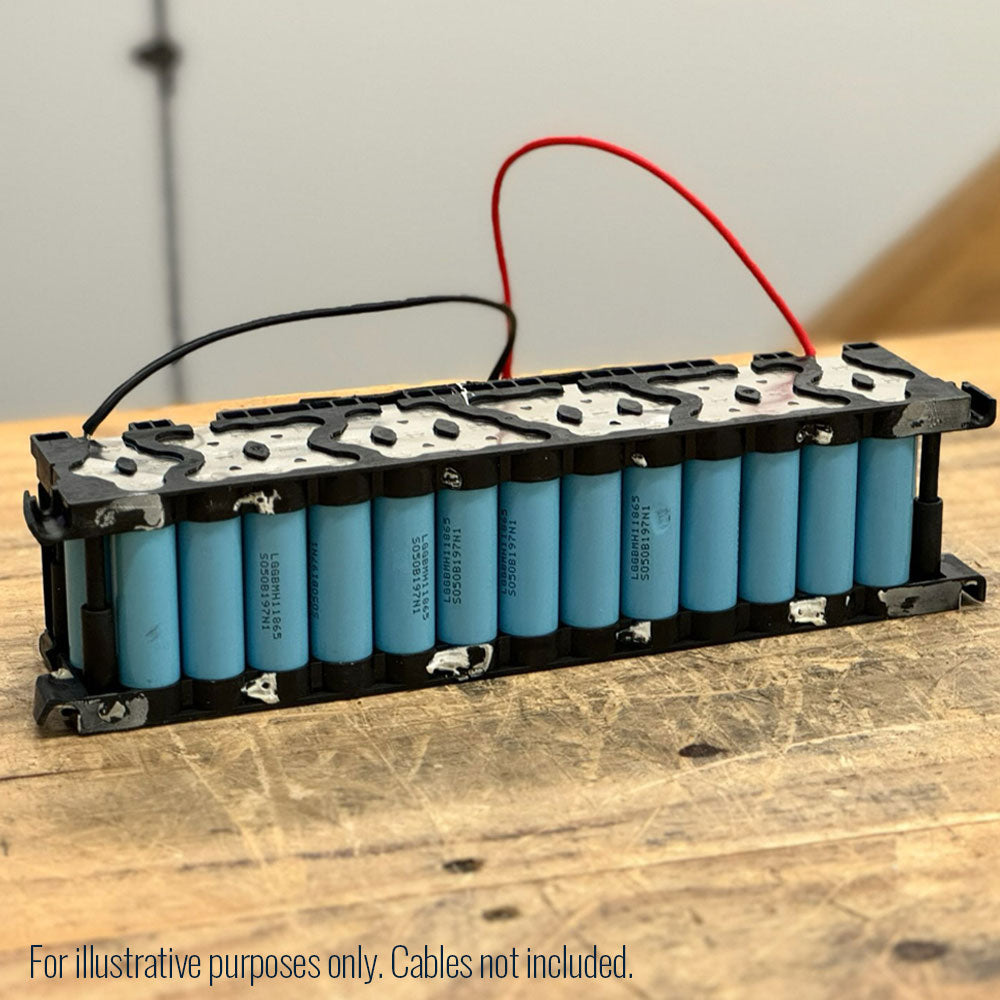

Reclaimed R14 Li-ion Battery Pack! These compact battery packs contain the powerful and popular high-capacity LG MH1 3200mAh 18650 lithium-ion cells. These are very similar to popular R5 battery packs. Originally made as eScooter battery packs, these are great for eBikes, stationary storage, or any . Connect x2 in parallel to increase capacity and make 36v 26Ah 936Wh. Connect x2 in series to raise voltage and make 72v 13Ah 936Wh.

Battery packs come with no connectors. If you want XT connectors you'll need to add your own. Packs may have some cosmetic blemishes from storage. These packs are untested and in unknown condition, sold as-is.

Specs

  • Chemistry:  Lithium-ion
  • Voltage:  36v
  • Capacity:  13Ah
  • Energy:  470Wh
  • Size:  13" L x 4" W x 2.75" H
  • Continuous Discharge: 23A



** NOTE:  Planning on buying 4 or more packs? Our automatic shipping estimator can sometimes underquote heavy orders. To get a more accurate shipping price plz email support@jag35.com . If you were underquoted for shipping costs at checkout we will send you an invoice to collect the remaining balance due for the shipping cost. Please note that this is not additional shipping cost that is added, it is the remainder of the actual shipping cost due for your order. If you're reading the full product descriptions, as we tell you at the beginning, then this should not be a surprise to you. Only orders that are fully paid can be shipped out.

Charging

Charger sold separately. These packs can be charged using our standard 42v 2A charger. Make sure you choose a charger with the right connector, if not you'll have to splice in your own connector. We recommend fully charging this pack as soon as you receive it.


Use as an Expansion Battery:

This battery pack can serve as an expansion battery for many popular power stations. It may be possible to connect multiple batteries in series to increase the charging speed (Volts), or connect multiple in parallel to increase capacity (AmpHours) and current (Amps), see your device specs for max limits. Plz double-check your power station's PV/Solar input specifications to make sure this battery will be compatible. Use with:

  • EcoFlow Delta Max 2000 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
  • EcoFlow Delta Max 1600 (Solar Charging Input 800W Max, 11-100V, 13A). May require an XT90 connector adapter.
  • EcoFlow Delta Pro (Solar Charging Input 1600W Max, 11-150V, 15A Max). May require an XT90 connector adapter.
  • EcoFlow Delta Mini (Solar Charge Input 300W 11–75V DC 10A max). May require an XT60 connector adapter.
  • Bluetti AC300 (Solar Input 2,400W Max., VOC 12-150VDC, 12A). May require an XT60 connector adapter.
  • Bluetti AC200 Max (Solar Input 900W Max., VOC 10-145VDC, 15A). May require an XT60 connector adapter.
  • Bluetti AC200P (Solar Input 700W Max., VOC 35-150V, 12A). May require an XT60 connector adapter.
  • Bluetti EB240 (PV Max Input Power MAX 500W/10A, OCV 16V~68V /MAX10A). May require an XT60 connector adapter.
  • Similar spec portable power stations. You are responsible for double-checking to make sure this battery is compatible with your power station. When combining batteries, you are ultimately responsible for making sure your configuration (series or parallel) is compatible.

Harvesting Cells

If you prefer to harvest the cells, you have to open the case and extract the cells. You'll have to cut and clean the Nickel interconnects using snips. Once the cells are out and clean you will have to test them using a charger like this.



---



** NOTE:  Planning on buying 4 or more packs? Our automatic shipping estimator can sometimes underquote heavy orders. To get a more accurate shipping price plz email support@jag35.com . If you were underquoted for shipping costs at checkout we will send you an invoice to collect the remaining balance due for the shipping cost. Please note that this is not additional shipping cost that is added, it is the remainder of the actual shipping cost due for your order. If you're reading the full product descriptions, as we tell you at the beginning, then this should not be a surprise to you. Only orders that are fully paid can be shipped out.

Note that these are reclaimed packs, so the actual cell voltage you receive may be lower than the label shows. These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. We make no guarantees that all cells will be usable. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition. Buyer is responsible for proper cell recycling/disposal. Sold as-is. No refunds.

If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.

NEW YORK residents:
On 3/2/2023 New York passed a law banning the sale of lithium-ion batteries for mobility devices that are not certified to UL 2271, and the assembly and reconditioning with cells removed from used batteries for commercial sale within the state of New York (more details here). New York residents, you are solely responsible for researching, understanding and complying with all pertinent regulatory rules, laws, statutes, and NY safety standards.

Safety is important to us, we don't want people to get hurt or property to get damaged, especially when working with DIY and/or second-life lithium-ion batteries. All batteries everywhere are inherently dangerous, so we urge all who work with DIY and/or second-life lithium-ion batteries to take safety seriously so as to avoid causing any harm to self, others or property.
