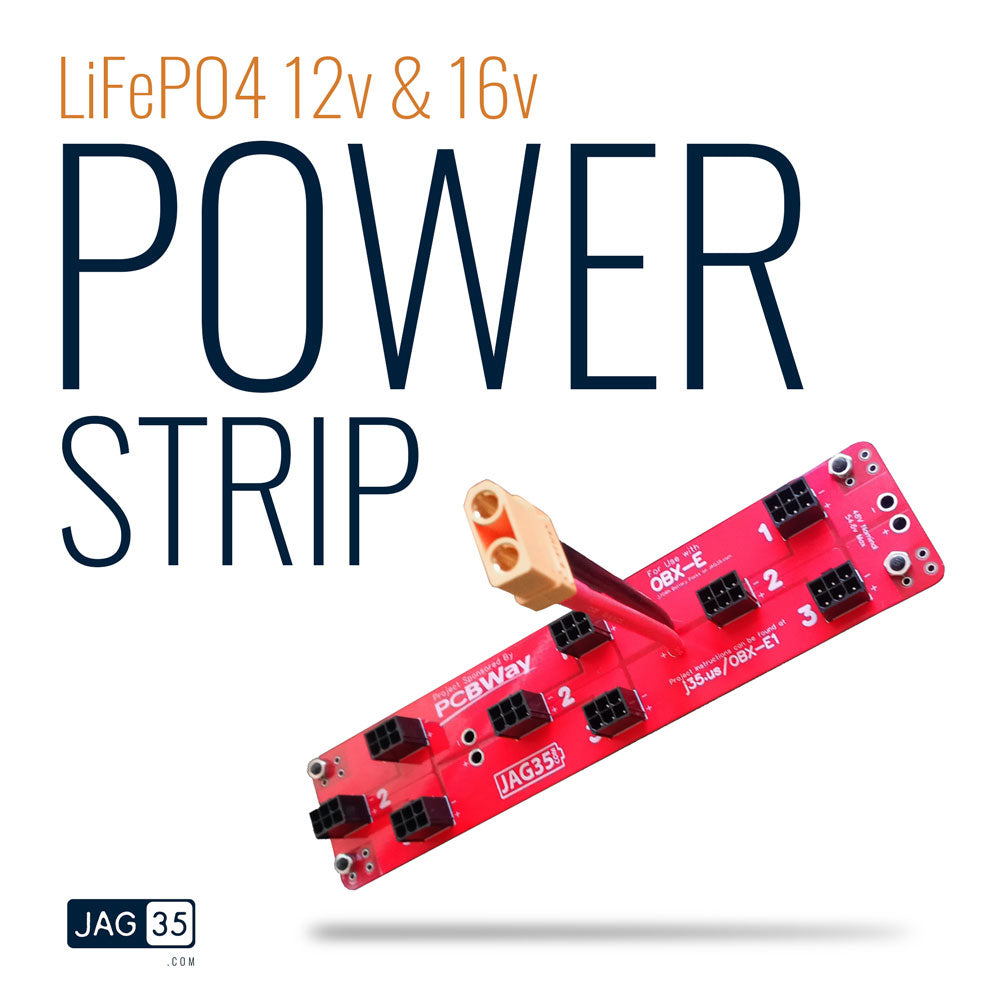

DC 48v PowerStrip for LiFePO4 Battery Packs 12v / 16v

  • Sale
  • Regular price $24.00
Shipping calculated at checkout.


Please read the description carefully.

Shipping to Lower 48 USA states only via UPS Ground. No international shipping including HI, GU, PR. Non-USA customers click here.

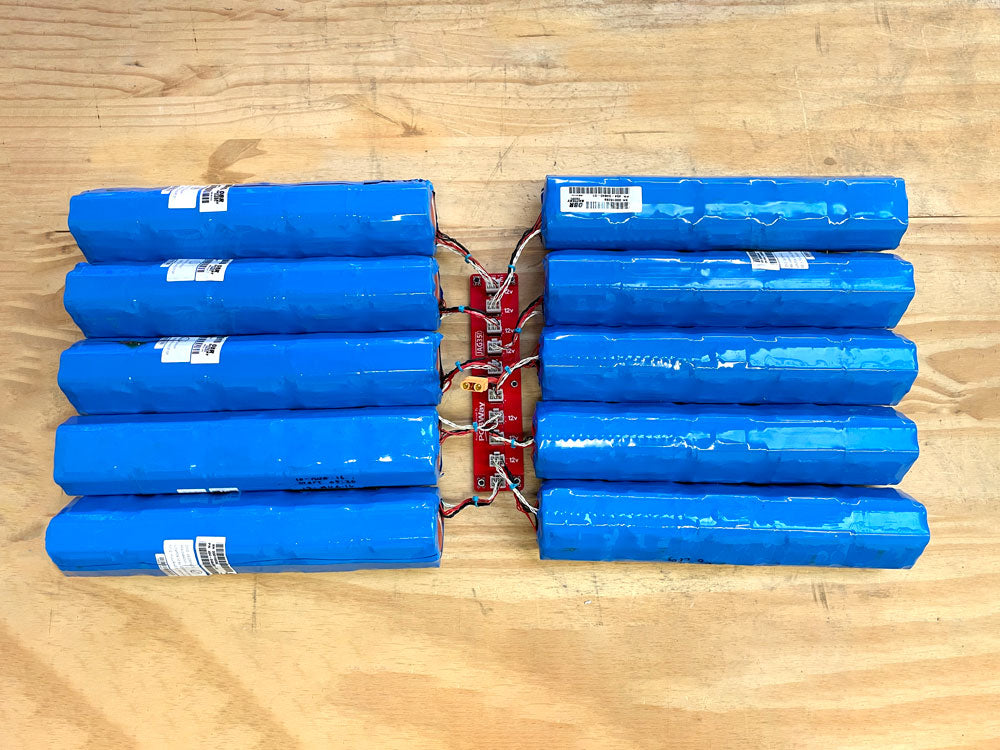

These DC PowerStrips allow you to use multiple 16v OBX-E or 12v OBR battery packs to build medium to large battery systems.  The Parallel Powerstrip PCB Board will connect to up to 10 packs in parallel so the voltage will remain the same but the capacity and power will increase with every battery pack.

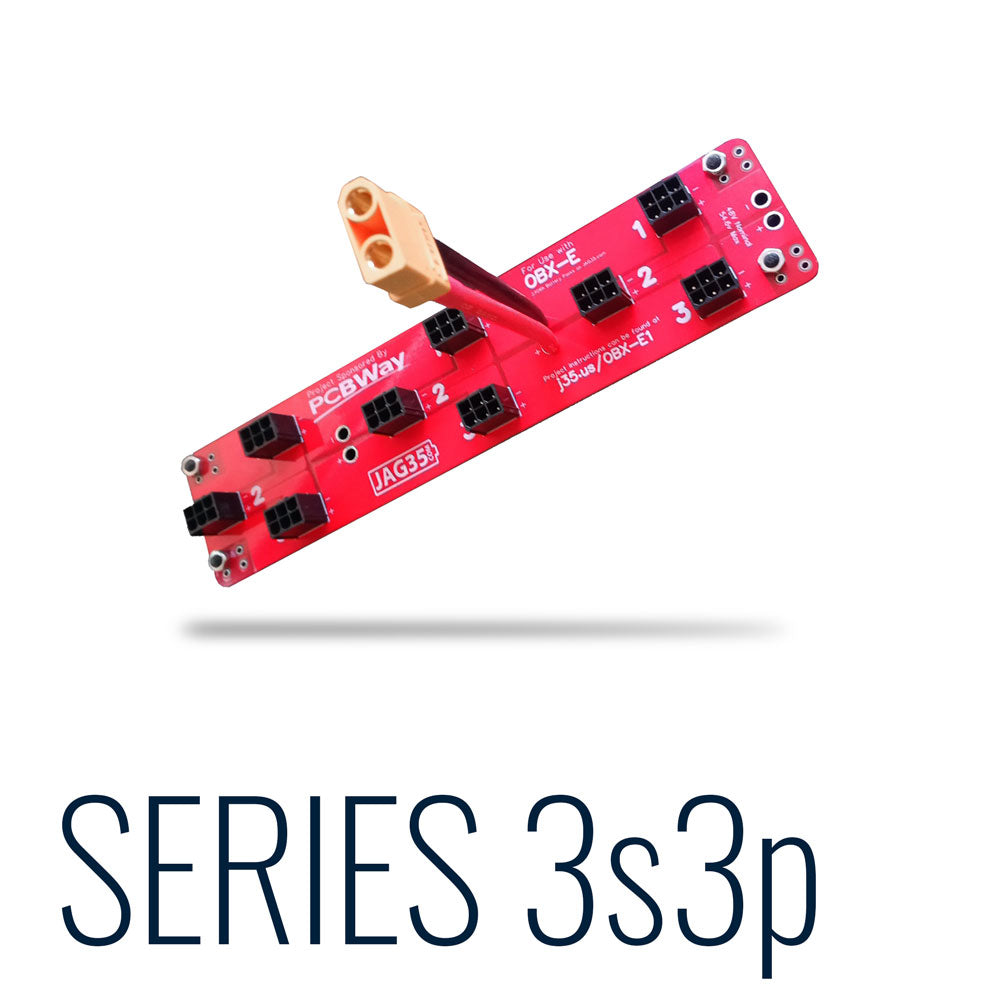

The 3s PowerStrip PCB Board will connect 3 packs in series, then connect 2 more sets of 3 packs in parallel  for a  9-pack battery pack configured 3s3p. When using the 16v OBX-E packs the final voltage will be 48v 69Ah. When using the 12v OBR packs the final voltage will be 36v 67Ah.

These allow you to build booster packs for use with the very popular Bluetti AC200. You can also use this PCB to build a stand alone 48v battery for any application of 15A or less.

This board is fully populated.


Available in 2 configurations:

  • SERIES 3S

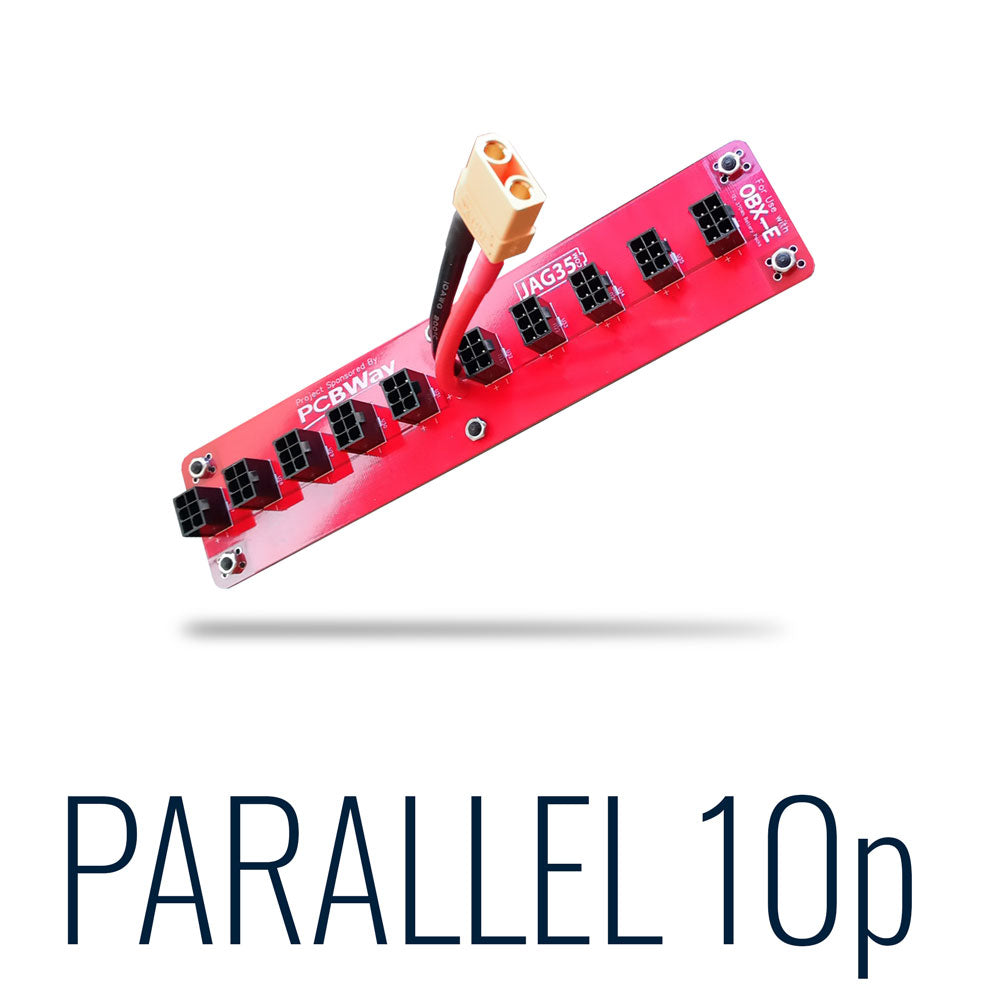

  • PARALLEL x10


Additional items needed:





Specs:

  • 2 Layers PCB
  • 49.2 x 221 mm
  • FR-4
  • 1.6 mm
  • HASL with lead
  • Red solder mask
  • White silkscreen



DIY, sold as-is.
