Smart LiFePO4 Batteries For Off-Grid

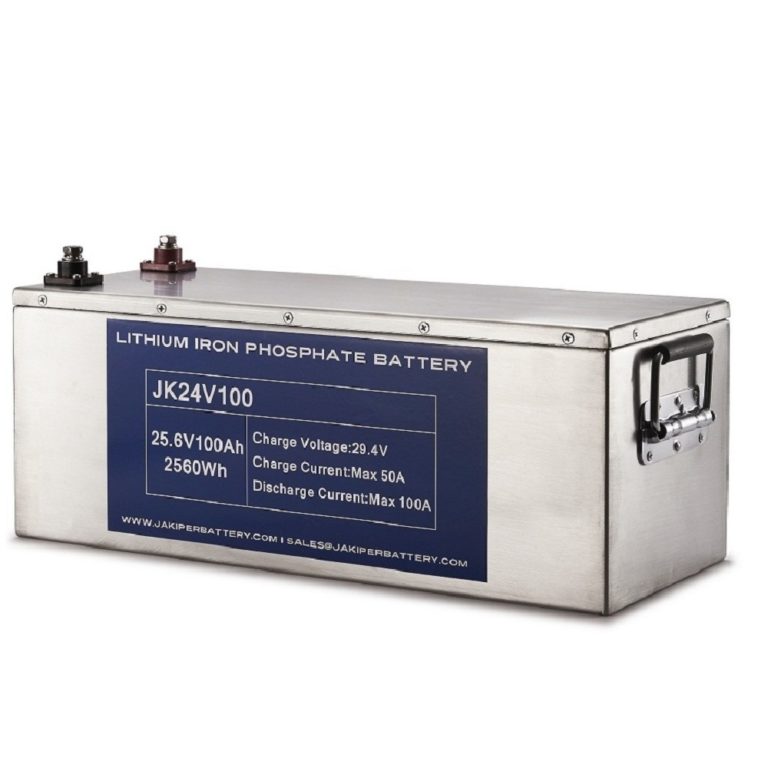

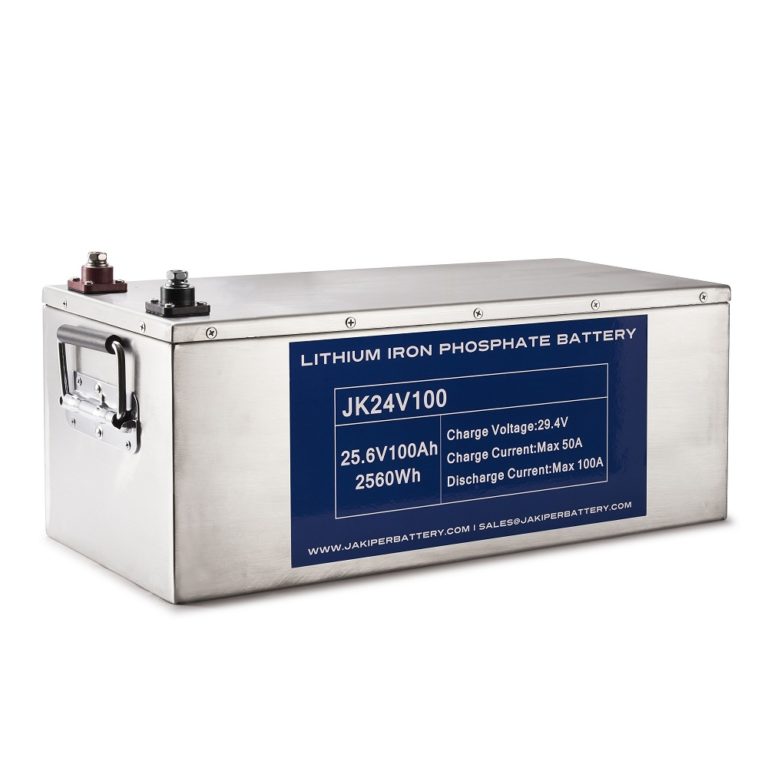

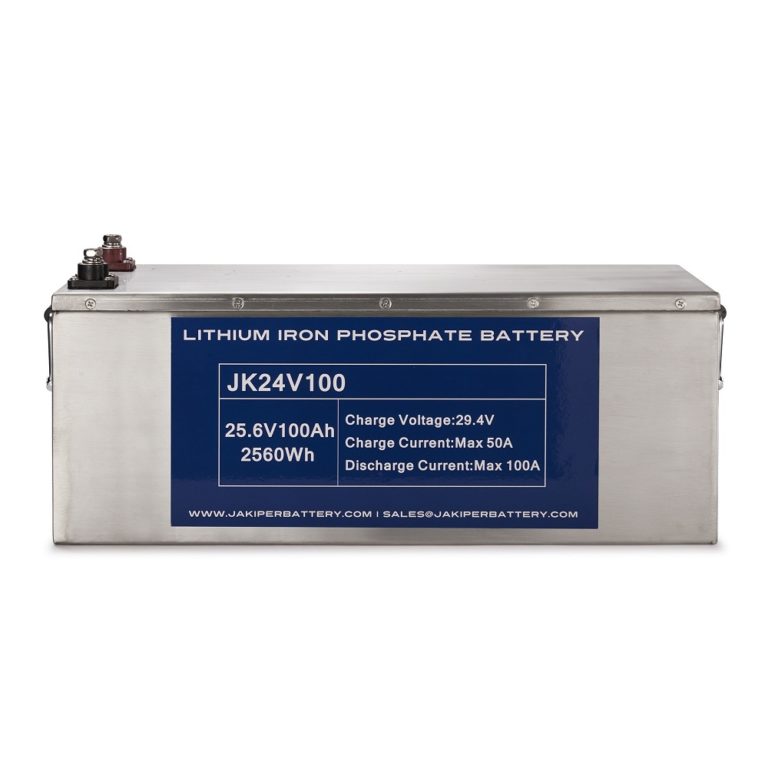

Jakiper 25.6V 100Ah 2560Wh LiFePO4 battery packs using brand new grade A cells. Connect in series to make up to 48V, unlimited parallel. Comes with a 10-year limited warranty. Ready to ship from CA warehouse.
Description
- Size: 466*200*180mm
- Weight: 25kgs
- Big Mosfet BMS Included
- 4000 Times Cycle Life
- 50A Max Charge Current
- 100A Max Discharge Current
- Light Weight
- >4000 Cycles at 80% depth of discharge
- Stanless steel case
- Create 24 Volt Storage Systems
- Connect in series up to 48V System
- Unlimited parallel
- Automatic system cell balancing
- Temperature monitoring (high and low cut-off)
- Exceptional voltage stability
- Maintenance-free
- No hydrogen generation or gassing
- <70% the weight of similarly sized SLA batteries
Specifications
| Nominal Voltage |
25.6 V |
|---|---|
| Nominal Capacity |
100 Ah |
| Dimension (LxWxH) |
18.34×7.87×7.08 “(466x200x180 mm ) |
| Approx. Weight |
57 lbs ( 26 Kg ) |
| Capacity @ 20A |
300 min |
| Energy |
2560 Wh |
| Resistance |
< 40mΩ |
| Self Discharge |
< 3% |
| Cells |
3.2V 100Ah Cells |
| Recommended Charge Current |
20 A |
| Maximum Charge Current |
50 A |
| Recommended Charge Voltage |
29.2 V |
| BMS Charge Cut-Off Voltage |
> 29.2 V (3.65 V/Cell) |
| Reconnect Voltage |
< 28.8 V (3.6 V/Cell) |
| Balancing Voltage |
> 28.8 V (3.6 V/Cell) |
| Maximum Batteries in Series |
2 |
| Maximum Continuous Dishcarge Current |
100 A |
| Peak Discharge Current |
200 A ( 3s) |
| BMS Discharge Current High Warning |
125 A |
| BMS Discharge Cut-Off Current |
330 A (10ms) |
| Recommended Low Voltage Disconnect |
22.4 V |
| Low Voltage Warning |
22.4 V ( 2.8 V/Cell*8) |
| BMS Discharge Cut-Off Voltage |
< 20.8 V ( 50 ~ 150ms) ( 2.6 V/Cell) |
| Reconnect Voltage |
>23.2 V ( 2.9 V/Cell) |
| Short Circuit Protection |
200 ~ 500 μs |
| Terminal Type |
M8 |
| Terminal Torque |
80 ~ 100 in-lbs ( 9 ~ 11N·m ) |
| Case Material |
Stainless Steel |
| Recommended Connection Wire |
6 AWG |
| Temperature Sensor Quantity |
1 pcs |
| Discharge Temperature |
– 4 ~ 140 °F ( – 20 ~ 60 °C ) |
| Charge Temperature |
– 32 ~ 113 °F ( – 0 ~ 45 °C ) |
| Storage Temperature |
– 23 ~ 95 °F ( – 5 ~ 35 °C ) |
| BMS High Temperature Cut-Off |
149 °F ( 65 °C ) |
| Reconnect Temperature |
131 °F ( 55 °C ) |
| Enclosure Protection |
IP50 |
