Please read the description carefully.
Shipping to Lower 48 USA states only via UPS Ground. No international shipping including HI, GU, PR. Non-USA customers click here.

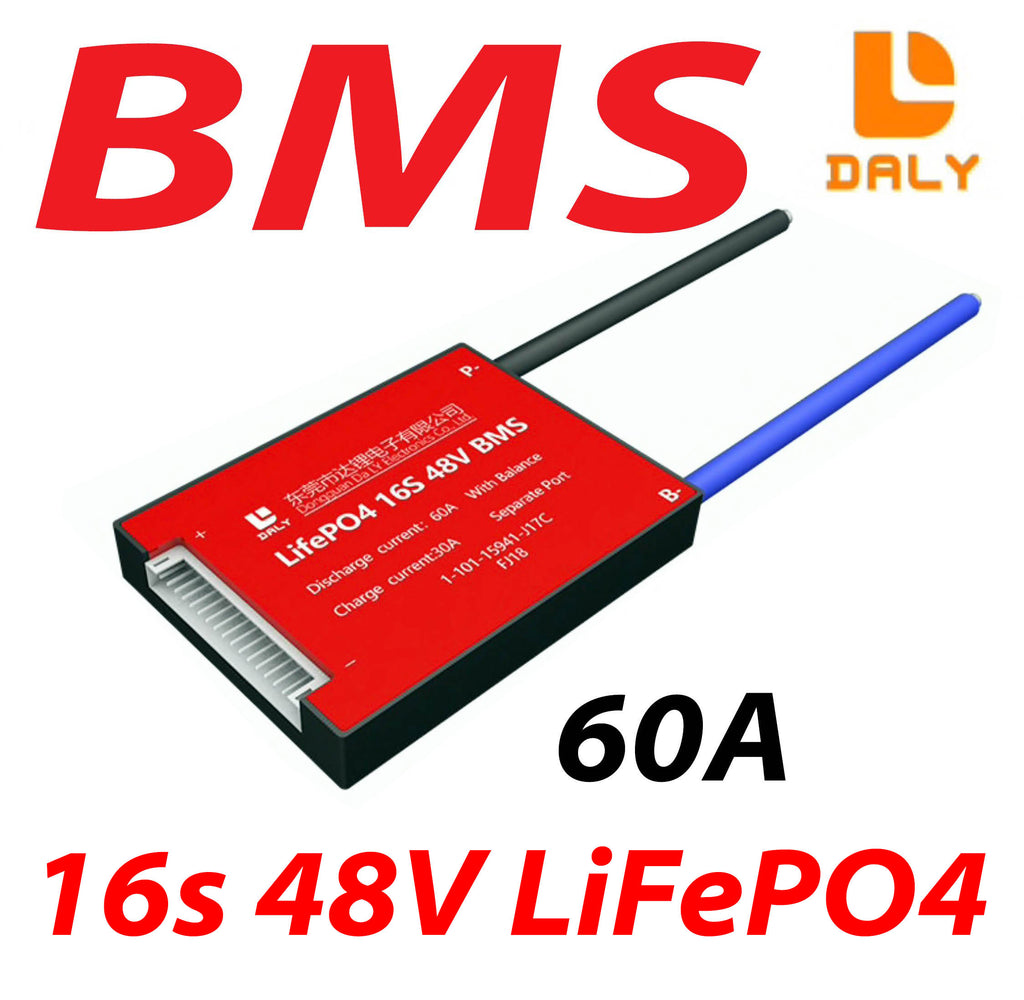

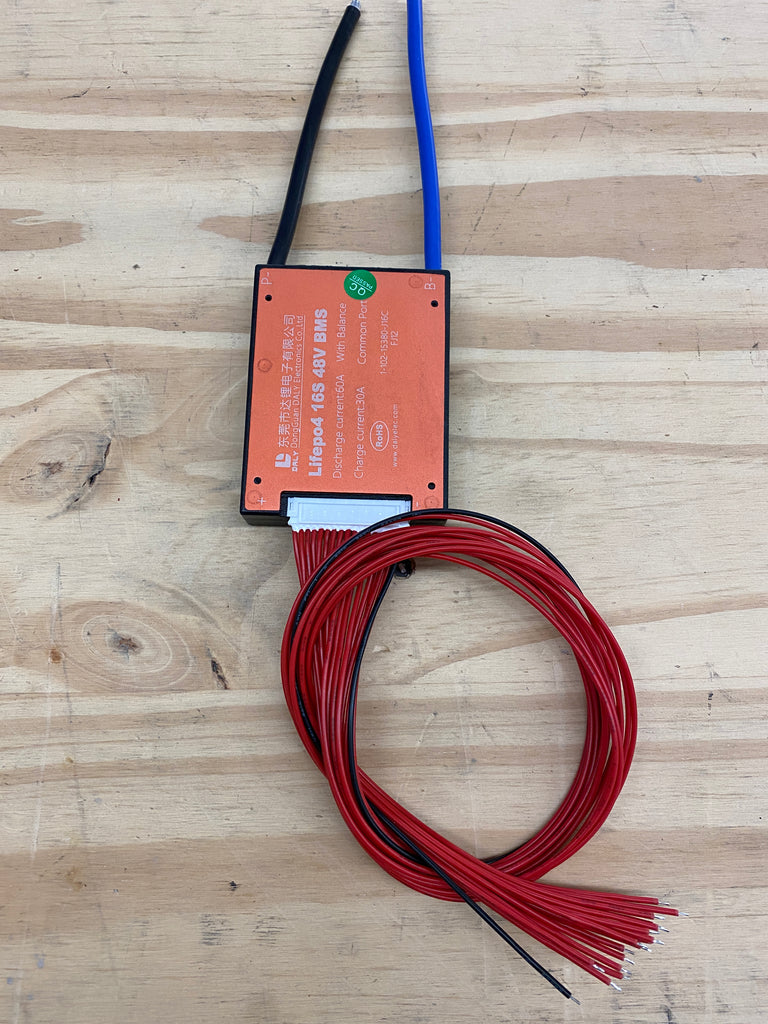

Daly waterproof 16s 48v 60A Lifepo4 BMS for lithium battery (3.2V Rated LiFePO4, not for 3.7V rated Li-ION Battery) Common port for charge/discharge. DL16S PCB is used for 16 series 48V battery pack.
The main functions are:
- Over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
- BMS manufactured by high quality Mos and IC imported top quality (A-level) protective integrated circuit IC, from Seiko of Japan.
- Strong load ability, constant discharge current 60A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
- IC itself has power balancing function, simple and reliable.
- Extreme low power consumption, less than 50uA.
- PCB Conformal Coating.
—-
These items are sold for DIY and Second Life purposes. Listings that are “untested” as sold as-is and cannot be returned, exchanged or refunded. Even when sold as “new”, “NOS”, or “like-new”, they may be in less than perfect condition.
If you buy a product from us and then realize you don't have, or don't want to acquire, the tool(s) or information needed to make our product(s) work for your specific build, this does not constitute valid grounds for replacements, exchanges or refunds. You are responsible for doing your due diligence before making any purchases.
