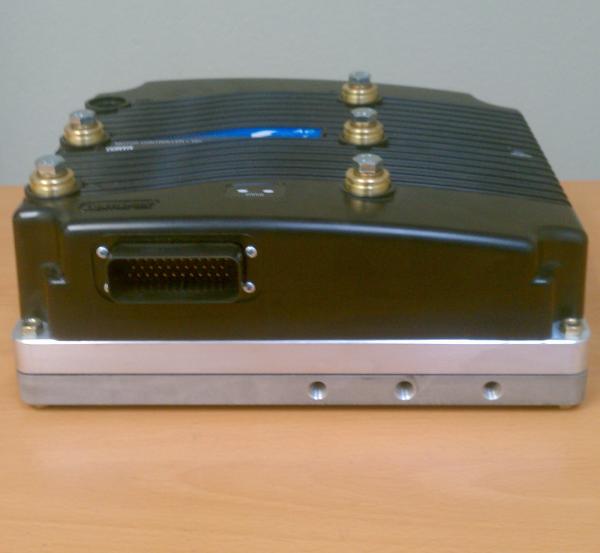

I cool my VW bus system with this plate.

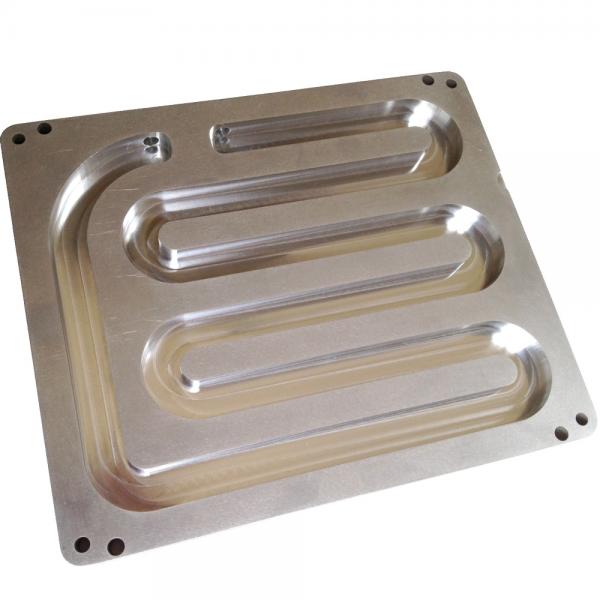

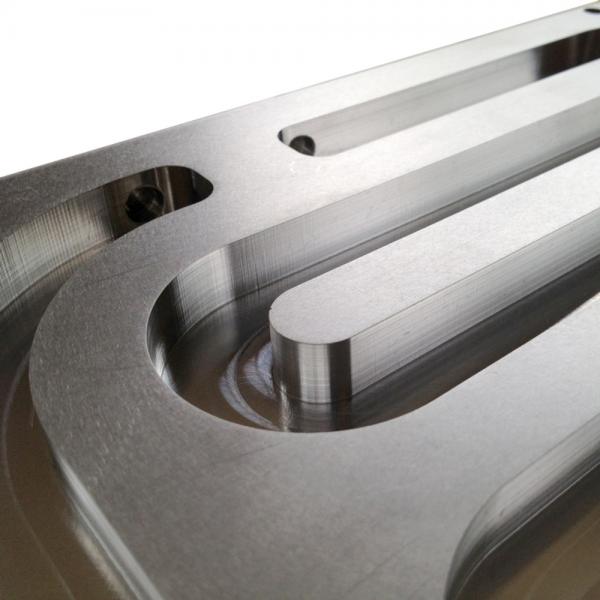

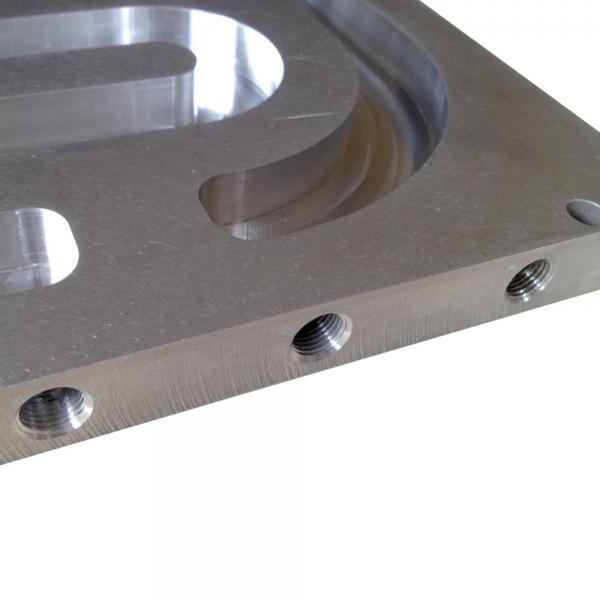

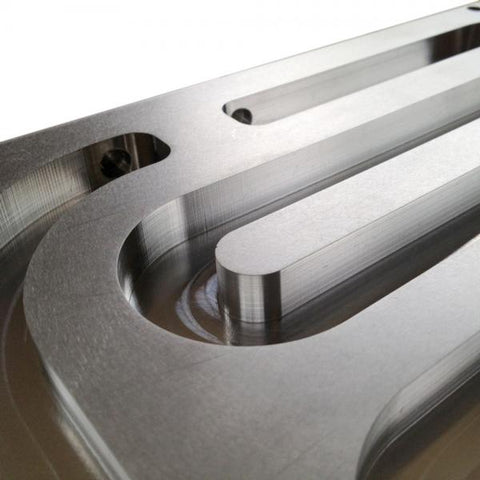

Made from 6061 solid aluminum, this 5/8" thick plate is fitted with 1/8" NPT inlet and outlet ports, as well as a thermistor port for monitoring temperature, and controlling the fan and pump. This plate achieves almost perfect 50/50 distribution between aluminum surface, and liquid channels to the surface of the controller. This is an unfinished aluminum plate and can be buffed with an abrasive pad for a matte finish or polished for a chrome look.
For our adjustable thermostat relay, click here.
For an installation video guide on this Curtis Chill Plate, please see the video below:
