Manufacturer | AIMS POWER |
---|---|
Brand | AIMS Power |
Model | CON120AC1224VDC |
Item Weight | 6.63 pounds |
Product Dimensions | 10.25 x 6.75 x 3.25 inches |
Item model number | CON120AC1224VDC |
Manufacturer Part Number | CON120AC1224DC AC |
Cover Included | 1 converter 1 manual |
Safety Rating | ETL certified to UL 458 |
This product is linked to a 3rd party affiliate.
Large charging capacity design (75 Amp for 12Vdc; 37.5 Amp for 24Vdc) charges a 100 amp hour battery in under an hour up to 90% charge Listed to UL 458 and CSA 22.2 NO. 107.1

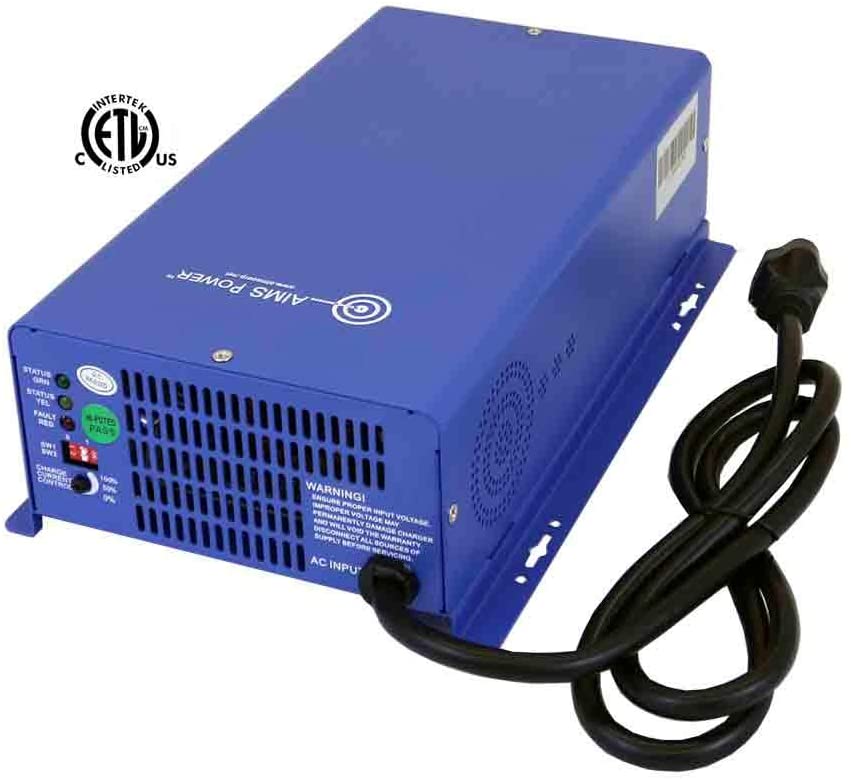

AIMS AC Converter / Battery Charger 12V & 24V Smart Charger 75 Amps – Large Charging Capacity
- Large charging capacity design (75 Amp for 12Vdc; 37.5 Amp for 24Vdc) charges a 100 amp hour battery in under an hour up to 90% charge Listed to UL 458 and CSA 22.2 NO. 107.1
- Charges lead acid, AGM, GEL and LiFPO4 batteries. Power supply up to 75 amps at 12Vdc or 37.5 amps at 24Vdc
- Three stage smart charger with variable charging voltage algorithm for maximizing battery life (bulk, absorb and float) 4 pre-programmed charging algorithms using the dip switches for the most common charging profiles. Auto detects DC voltage.
- Adjustable charge current control dial to safely charge smaller battery (s) Wide input voltage range, 70Vac to 145Vac for unstable inputs
- 2 Year warranty Reverse polarity, over voltage, under voltage, over temperature, short circuit protections High AC to DC converting efficiency design >80%
Ideal charger for multiple battery types with adjustable charge current
Ideal for applications requiring different methods of battery charging, the AIMS Power 12V and 24V Converter/Battery Charger is suitable for many applications and battery technologies. This converter charges batteries including open lead acid, AGM, gel and LiFeP04. It’s particularly useful with generators and shore power.
The flexibility of this unit makes it practical for virtually any application. Its reliable high-frequency structure accepts a wide range of input voltages, from 70VAC to 145VAC, to handle unstable inputs. This charger automatically detects 12VDC or 24VDC battery banks for easy use. Its large, 75-amp charging capacity gets the job done fast. This is a great unit for RVs, boats, camping and many other purposes.
Reliable Quality
AIMS Power is a leader in the industry with more than 20 years of experience and dedicated technical support team in Reno, NV.
- Reverse polarity, over voltage, under voltage, over temperature, short circuit protections
- Smart fan, always on, for maximizing the performance of the charger
Quick Charging Capability
- Large charging capacity design (75 Amp for 12Vdc; 37.5 Amp for 24Vdc) charges a 100 amp hour battery in under an hour up to 90% charge
- Power supply up to 75 amps at 12Vdc or 37.5 amps at 24Vdc
- High AC to DC converting efficiency design >80%
Adjustable Charge for your battery bank
- Charges lead acid, AGM, GEL and LiFPO4 batteries
- Adjustable charge current control dial to safely charge smaller battery (s)
- Wide input voltage range, 70Vac to 145Vac for unstable inputs
Technical Details
