26" Bafang 36V DC Electric Front Bike Wheel & Tire w/ Motor + Tektro Disk Brake for DIY

26" Bafang 36V DC Electric Front Bike Wheel & Tire w/ Motor + Tektro Disk Brake for DIY

Regular price $40.00 USD
Regular price $75.00 USD Sale price $40.00 USD
Sale Sold out
Shipping calculated at checkout.

This listing links to a 3rd party seller. Brand, item, colors and prices may vary.


Please read the description carefully.

Shipping to Lower 48 USA states only via Ground Shipping. No international shipping including Hawaii, Guam, Puerto Rico. Non-USA customers click here.


Perfect for DIY eBike projects is our 26" Front wheel/hub with 1 Tektro disk brake and 6 screws on front tires. High quality parts used in commercial application. Wheels have good tires, tube might need replacing. May be some cosmetic blemishes. Additional parts and wiring will be required to use these in your project. Batteries and controllers not included. Batteries sold separately, see below for recommendations.

Engine Model - FM G020.250/350.D 10

  • Position Front Motor
  • Construction Gear drive
  • Rated Voltage (DCV) 36
  • n0 (Rpm) 325 ; 245
  • Rated Power (W) 250/350
  • nT(Rpm) 205
  • Max Torque 45 N.m
  • Efficiency (%) ≥ 80
  • Weight (kg) 3.3
  • Noise Grade (dB) < 55
  • Operating Temperature -20-45℃
  • Mounting Parameters
  • Brake Disc Brake
  • Installation Widths (mm / OLD) 100
  • Max. Housing Diameter (mm) 158
  • Cabling Route Shaft Side, Right
  • Cable Length(mm), Connection Type 250 G9.1
  • Spoke Specification 36H*13G
  • Further Specifications
  • Speed Detection Signal (Pulses/Cycle) 6
  • Reduction Ratio 1:5
  • Magnet Poles (2P) 20

Center bolt: M12, 0.125" pitch


What else you need to build your DIY eBike:

Wheel nut -
Alternate wheel nut: Autozone
36V eBike kit -
Alternate 36v eBike kit -
Extension cable - Buy here on Amazon
Charger -

$25 - eBike light-power Battery -
$35 - eBike mid-power Battery -
$57 - eBike high-power Battery -

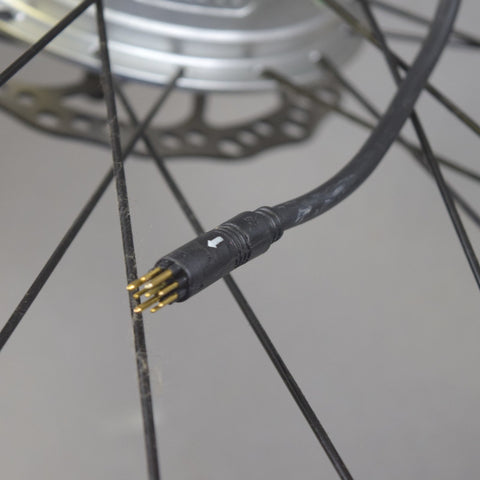

The wiring colors from the controller and the eBike wheel motor cable should not be matched up entirely (blue with blue, yellow with yellow, green with green). In order to wire it correctly see this picture:

It's possible another wiring combination may be needed, but we've seen that this configuration works best. If you don't wire the motor correctly the motor may appear to be running but without turning the wheel. It's very likely not broken, it just needs the motor wiring as pictured above.


These items are sold for DIY and Second Life purposes. Even when sold as “new”, “NOS”, or “like-new”, they’re generally in less than perfect condition.
